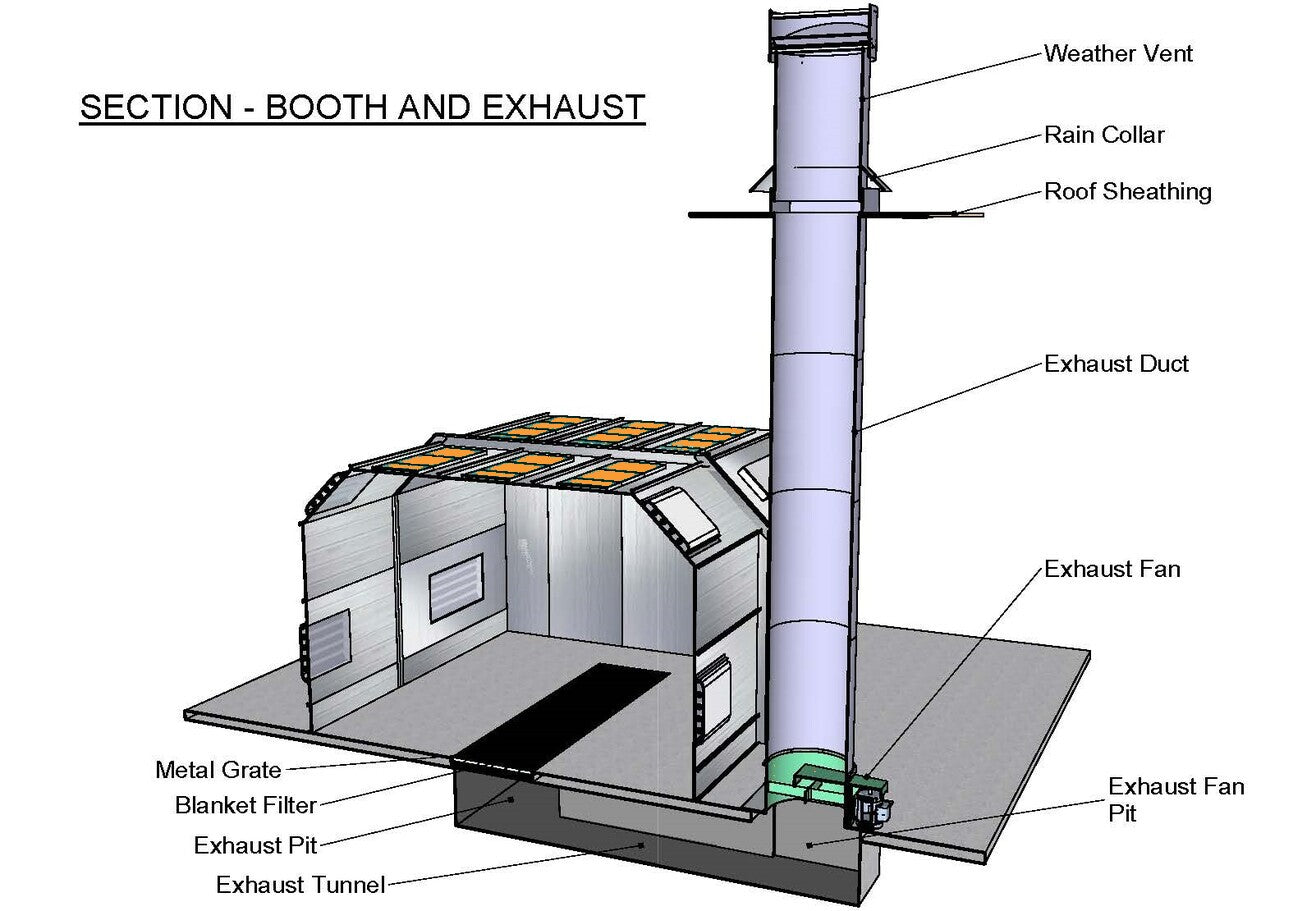

Maximize productivity and ensure a clean, professional finish with this Pitted Down Draft Paint Booth. Designed for superior airflow control and contamination reduction, this large booth is ideal for automotive, industrial, and high-production finishing environments.

The booth’s inside dimensions are 14 feet wide, 9 feet 4 inches tall, and 25 feet 9 inches long. Outside dimensions are 15 feet wide, 9 feet 10 inches tall, and 26 feet long. It is constructed from durable 18-gauge G-90 galvanized steel for long-term strength and corrosion resistance.

A large front door opens to 10 feet wide by 9 feet tall and includes a wide observation glass for visibility. An additional man door provides easy access and measures 7 feet tall by 3 feet wide with an integrated window.

This booth includes ten 2x4-foot LED light fixtures with four tubes each, protected by glass, and features an overhead door light rated Class 1 Div 2 for hazardous locations. The ventilation system includes a 30-inch diameter tubeaxial fan with a 3 HP, 3-phase motor, providing 12,220 CFM at 0.25 inches of static pressure.

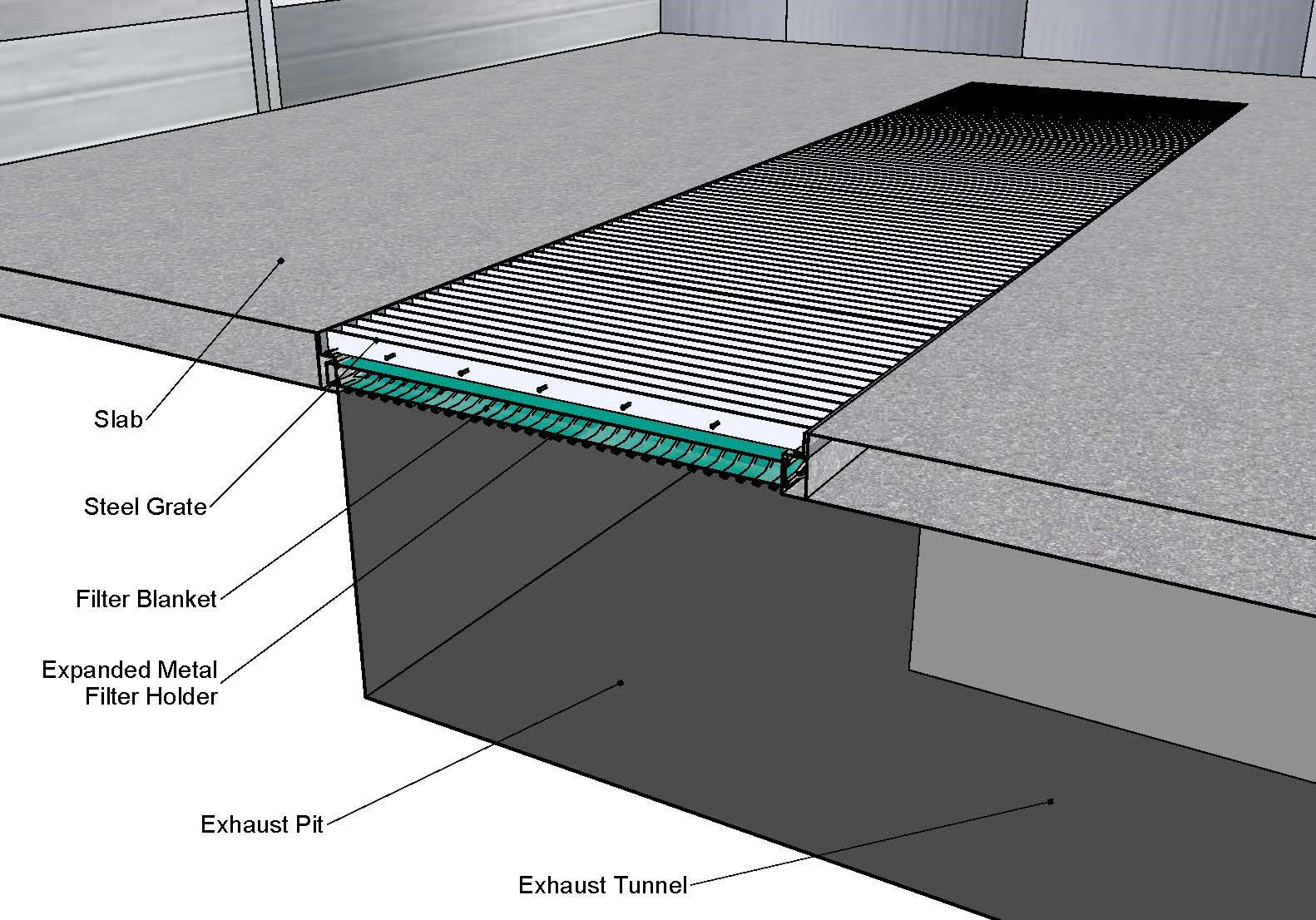

Airflow is managed through 20" x 20" intake and exhaust blanket filters. A manometer/draft gauge, along with all necessary hardware and sealants, are included with your purchase.

All major components—fan, motor, filters, and lights—are certified. This unit is fully OSHA and NFPA-33 compliant, delivering a safe, code-compliant environment for spray applications.

Please note: The pit and grate system is not included.

Optional upgrades include a powder-coated finish, control panel systems, and custom ducting solutions. Standard and custom booth sizes are available, along with multiple airflow configurations to meet your specific needs.

This paint booth is built for extended service life and heavy-duty production use—perfect for auto body shops, fabrication facilities, and any operation requiring reliable finishing performance.
