Tuxedo has a 5 year structural warranty and 1 year parts warranty.

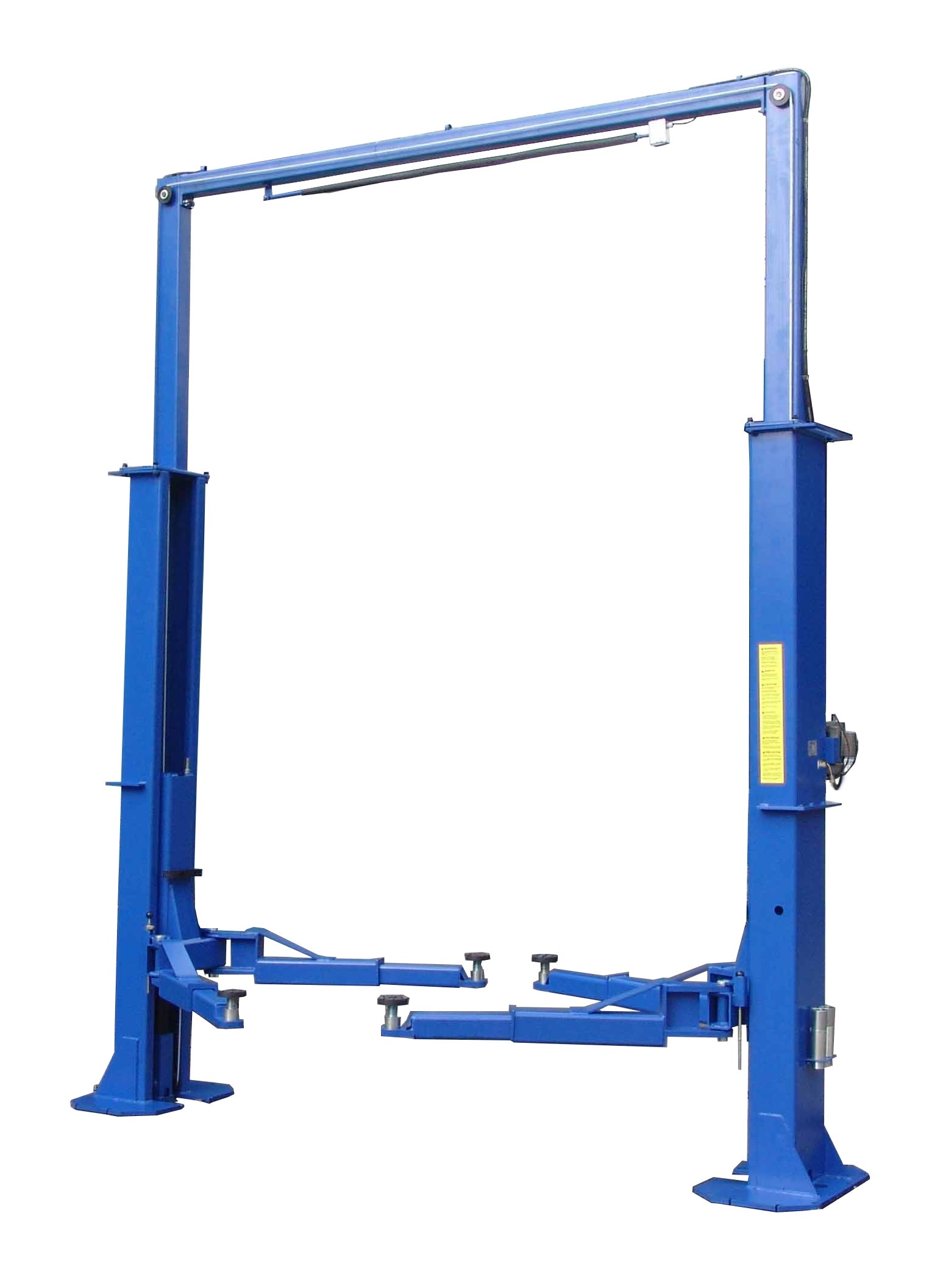

Take your heavy-duty service capabilities to the next level with the Tuxedo TP15KCX 15,000 lb Overhead Two Post Lift—a powerful, commercial-grade lift engineered for the toughest lifting applications. With its robust symmetric arm design, overhead cable routing, and wide drive-through clearance, this two post lift is the ultimate choice for servicing super-duty trucks, commercial fleet vehicles, diesel pickups, and utility vans.
Whether you run a high-volume repair facility, fleet maintenance garage, or commercial truck shop, the TP15KCX offers industry-leading strength, safety, and performance for lifting the heaviest vehicles with ease and confidence.
✅ 15,000 lb Lifting Capacity
Built to handle the most demanding jobs, the TP15KCX easily lifts full-size dually trucks, utility vehicles, work vans, and commercial fleet vehicles. Ideal for shops that specialize in diesel service and heavy-duty truck repair.
✅ Overhead Cable Routing Design
The overhead beam design keeps equalization cables and hydraulic lines securely above the workspace, eliminating floor obstructions and improving safety and cleanliness.
✅ Symmetric Arm Configuration
Equipped with four heavy-duty symmetric arms, this lift provides balanced and stable lifting—especially critical when servicing longer and heavier vehicles.
✅ Extra-Wide Drive-Through Clearance
With ample room between the columns, this lift accommodates larger vehicle widths and improves technician access from both sides of the vehicle.
✅ Automatic Arm Restraints
Locks arms in place as the lift is raised, ensuring secure lifting positions and improved safety during all service operations.
✅ Stackable Adapter Extensions
Included lift pad adapters make it easy to service vehicles of different chassis heights, including lifted trucks and fleet vehicles with higher ground clearance.
✅ Durable Powder-Coated Finish
Protects the lift structure from wear, corrosion, and shop chemicals—keeping your investment looking and performing like new.
✅ Single-Point Safety Lock Release
A centralized lock release system allows for quick and efficient lowering from one side of the lift.

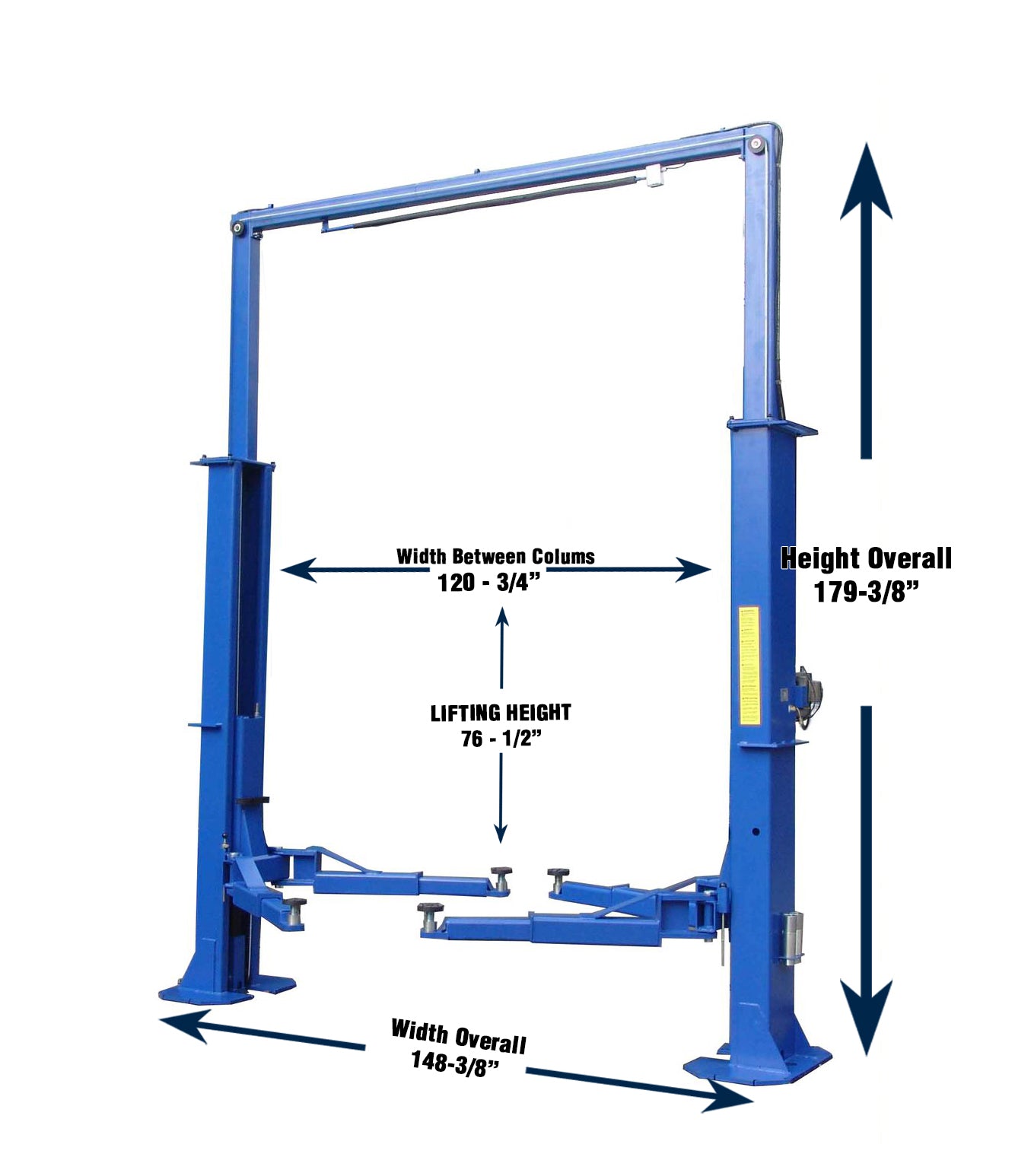

| Lift Model | TP15KCX |
| Capacity | 15,000 lbs. |
| Height Overall | 179-3/8″ |
| Width Overall w/ Power Unit | 148-3/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-3/4″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109-3/8″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37″ – 52″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,750 lbs. |
| Ship Weight | 2,575 lbs |
| Power | 220V – 20 AMP – 1 PH |
Diesel repair shops
Heavy-duty commercial truck service centers
Municipal and fleet maintenance garages
Utility and service vehicle shops
Agricultural equipment and work truck service bays
The Tuxedo TP15KCX 15,000 lb Two Post Lift is built for technicians who need serious lifting power, extra clearance, and industrial-grade reliability. Perfect for handling the biggest and heaviest vehicles in your shop, this lift provides the strength, safety, and efficiency professionals demand.
