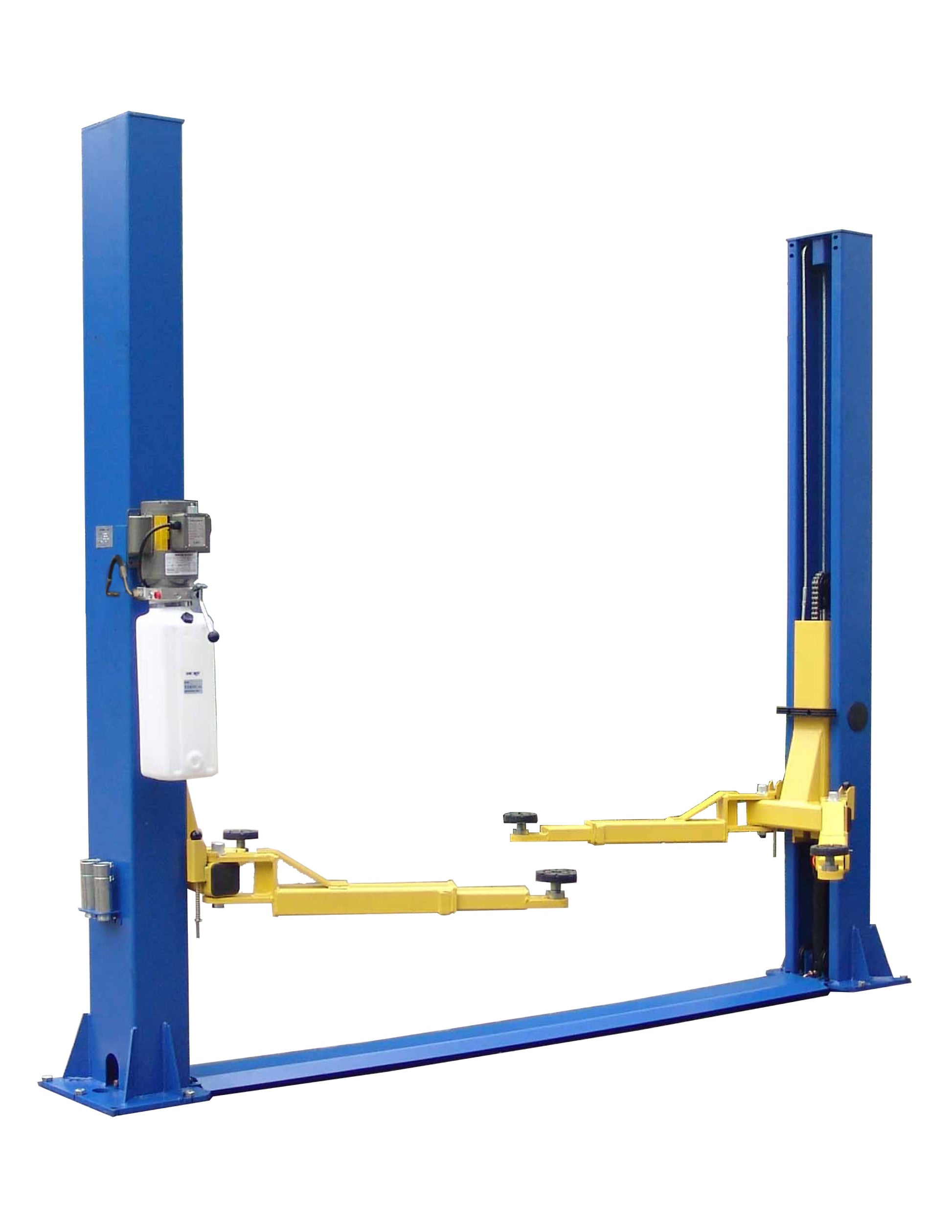

Tuxedo TP9KFX Two Post Lift – 9,000 lb Capacity, Floor Plate, Asymmetrical Arms
Upgrade your shop or garage with the reliable power and precision of the Tuxedo TP9KFX Two Post Lift. Engineered for performance and built to last, the TP9KFX is a 9,000 lb capacity floor plate two-post automotive lift designed for lifting cars, light trucks, and SUVs with safety and ease. This lift is ideal for automotive repair shops, car dealerships, and serious DIYers who demand high-quality equipment for vehicle servicing.
✅ 9,000 lb Lifting Capacity
Perfect for passenger vehicles, light-duty trucks, and SUVs, the TP9KFX handles a wide range of vehicles, making it one of the most versatile lifts in its class.
✅ Asymmetrical Arm Design
The asymmetrical lift arms provide better access to vehicle doors and cabin space. This design also helps center the vehicle’s weight for improved balance and technician comfort.
✅ Heavy-Duty Floor Plate Design
The rugged floor plate configuration ensures maximum stability and provides consistent operation across uneven concrete. It also houses the hydraulic hoses and equalization cables for protection and ease of maintenance.
✅ Low-Profile Arms and Automatic Arm Restraints
Equipped with low-profile lift arms, the TP9KFX can service a variety of vehicle frames, including sports cars and low-clearance vehicles. The automatic arm restraints lock the arms securely in place during lifting for enhanced safety.
✅ Dual Hydraulic Cylinders
Powerful and synchronized hydraulic cylinders provide smooth lifting and lowering action, reducing wear and tear over time and improving overall efficiency.
✅ Powder-Coated Finish
The durable powder-coated steel frame resists rust, corrosion, and harsh shop environments, ensuring long-lasting performance and a professional look.
✅ Reliable Safety Features
The TP9KFX includes mechanical safety locks in each post that automatically engage during lifting and a single-point safety release for fast lowering. Also includes rubber door guards and stackable truck adapters.

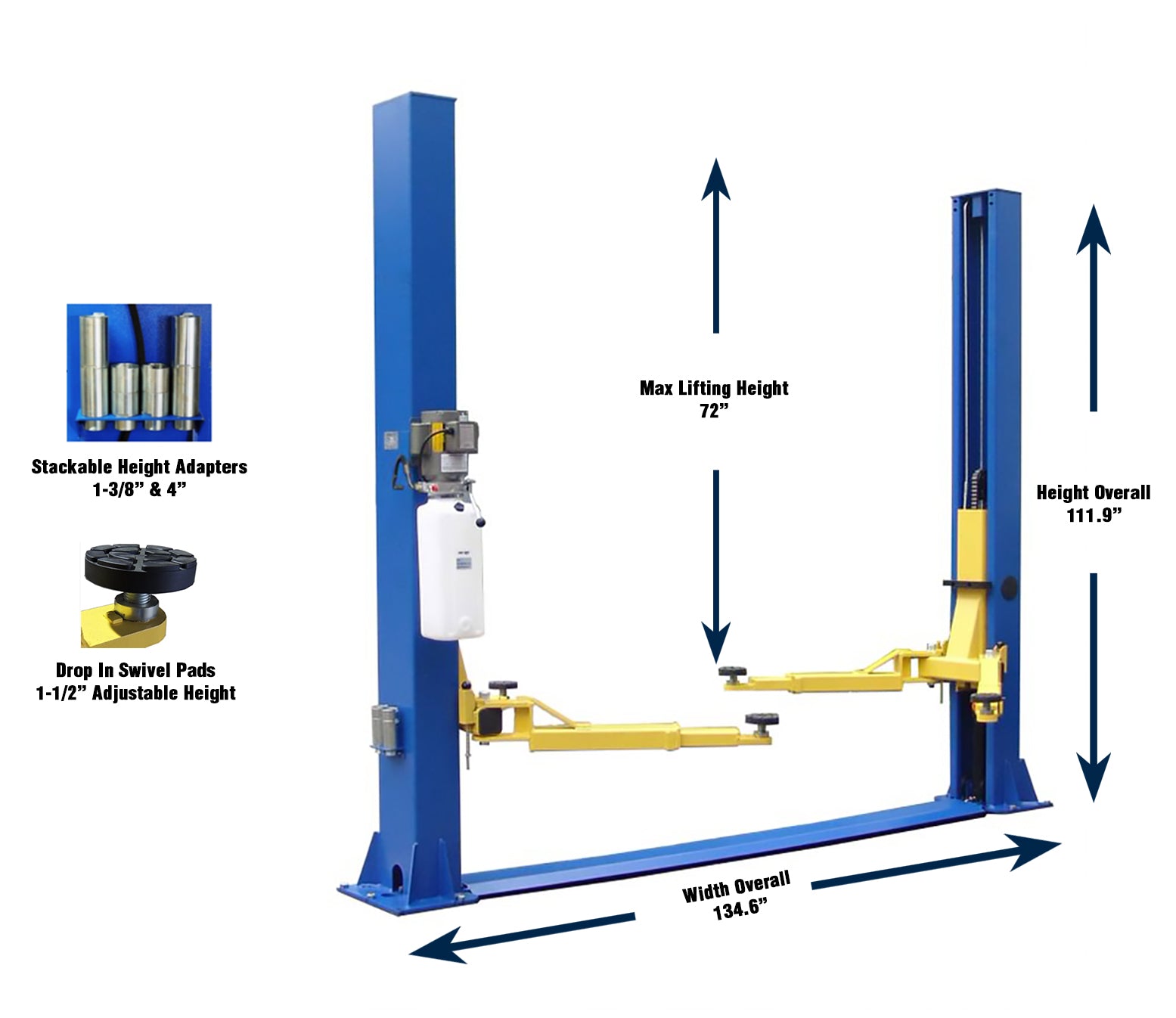

| Capacity | 9,000 lbs. |
| Overall Height | 111.9" |
| Width Overall w/Power Unit | 134.6" |
| Max Lift Height | 72" |
| Width Between Columns | 110.4" |
| Min Pad Height | 4" |
| Drive thru Clearance | 101" |
| Lifting speed | 50 sec |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Front Arm Reach - min/max | 31" - 45" |
| Rear Arm Reach - min/max | 31" - 45" |
| Max Load Per Arm | 2,250 lbs. |
| Cable Diameter | 3/8" |
| Column Size | 7.25" x 10.87" |
| Column Steel Thickness | 5mm |
| Carriage Steel Thickness | 5mm |
| Arm Steel Thickness | 6mm |
| Power | 220V - 20 AMP - 1 PH |
| Ship Weight | 1,265 lbs. |
The TP9KFX is a top-tier choice for any professional or home-based garage seeking a high-performance, budget-friendly car lift. It’s ALI/ETL certified, ensuring it meets the highest industry safety and quality standards. Whether you're performing oil changes, tire rotations, undercarriage inspections, or full engine repairs, the Tuxedo TP9KFX gives you the lifting power, safety, and versatility you need to get the job done right.
Independent auto repair shops
Dealership service centers
Fleet maintenance facilities
DIY automotive enthusiasts
Classic car collectors and restorers
