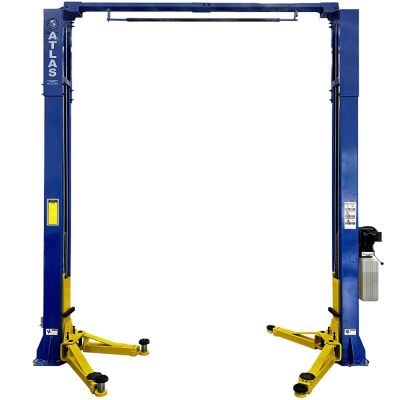

The Atlas® TPO-9 is a robust, overhead-style 2-post lift designed for home garages and light commercial use. With a 9,000 lb. lifting capacity, symmetric arms, and a 12-foot overall height, it's ideal for servicing cars, SUVs, and light-duty trucks. The open-floor design offers full under-car access, while the dual hydraulic chain-drive cylinders and spring-loaded Secondary Lock System (SLS) deliver maximum safety and reliability. The TPO-9 also includes rubber carriage guards, automatic arm restraints, and both screw-up and sliding arm adapters for added versatility. Freight is prepaid, and a 4-piece truck adapter set is included at no extra cost, making this lift an unbeatable value for serious DIYers or small shop operators.
| Product Features |
|---|
| 9,000 lb. lifting capacity |
| Overhead, open-floor design with 12' overall height |
| Symmetric arms for balanced lifting of vehicles |

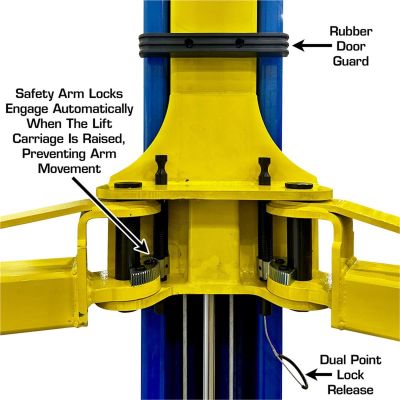

| Automatic arm restraints and dual-point lock release |

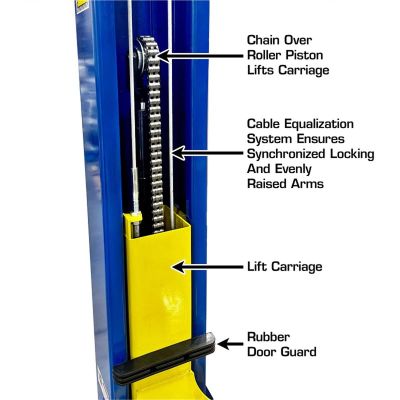

| Dual hydraulic chain-drive cylinders for reliable lifting |
| Spring-loaded Secondary Lock System (SLS) for added safety |
| Rubber guards on carriages protect vehicle doors |

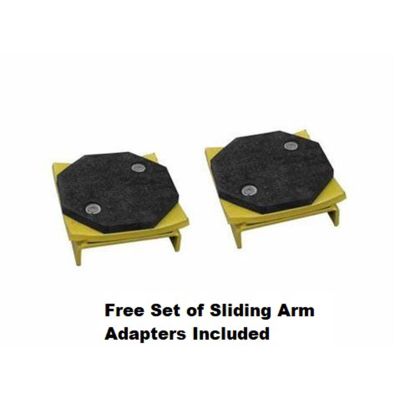

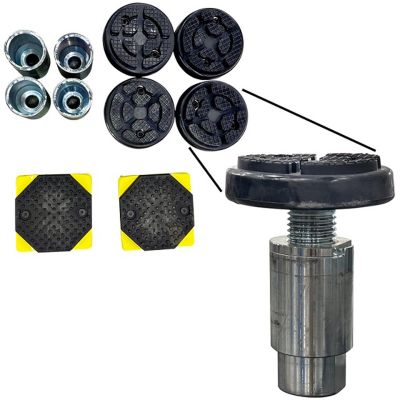

| Adjustable screw-up adapters and sliding arm adapters included |
| Free 4-piece truck adapter set included |
| Mounting hardware included |
| Freight prepaid – no additional shipping charges |
| 2-Year Structural / 1-Year Hydraulic Parts Warranty |
|
 |
| Product Specifications | |
|---|---|
| Capacity | 9,000 lbs. |

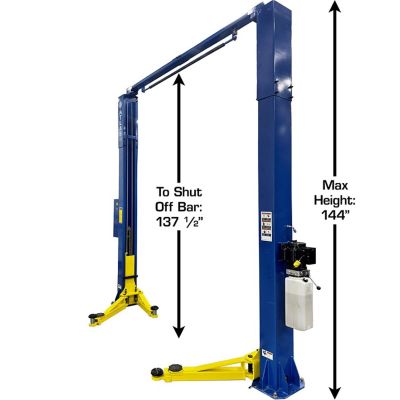

| Overall Height | 144" (12') |

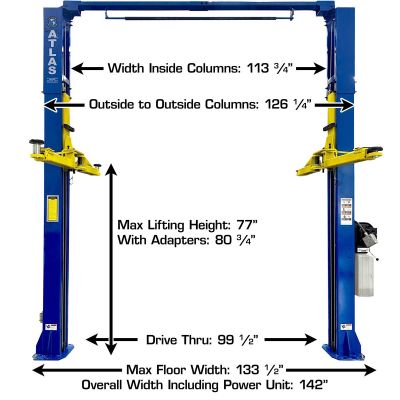

| Overall Floor Width | 133 1/2" |
| Max Lift Height (w/o Adapters) | 77" |
| Max Lift Height (w/ Adapters) | 80 3/4" |
| Minimum Arm Height | 4" |
| Inside Column Width | 111 5/8" |
| Drive Thru Width | 99 1/2" |
| Column Dimensions | 7 1/4" x 11" |
| Column Steel Thickness | 5mm |

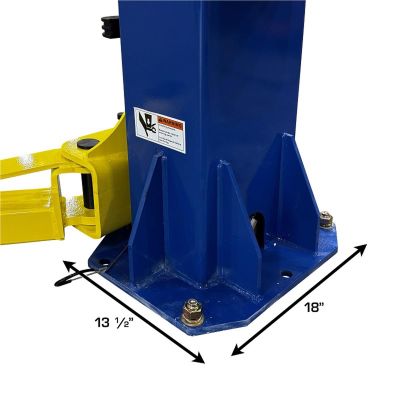

| Base Plate Dimensions | 14 1/4" x 18" |
| Motor / Electrical Requirement | 220V Single Phase (30 AMP breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |
| Adapter Heights | 4 Each @ 2.75" |
| Arm Hole / Adapter Peg Size | 2" |
| Minimum Concrete Requirement | 4" @ 3000 PSI |

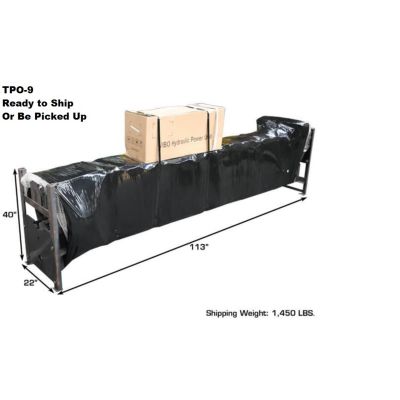

| Shipping Weight | 1,450 lbs. |
