Tuxedo Low Rise Pit Lift 6,000lb Capacity - PL6K

Tuxedo Low Rise Pit Lift 6,000lb Capacity - PL6K

Regular price $3,189.00
Regular price $3,299.00 Sale price $3,189.00
Sold out
Shipping calculated at checkout.

AvailabilityLow stock: 10 left

Vendor: Tuxedo
Category: Pit Lift
Tags: Scissor Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Tuxedo has a 5 year structural warranty and 1 year parts warranty.

Tuxedo Warranty Form

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

View full product details

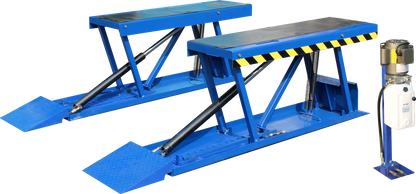

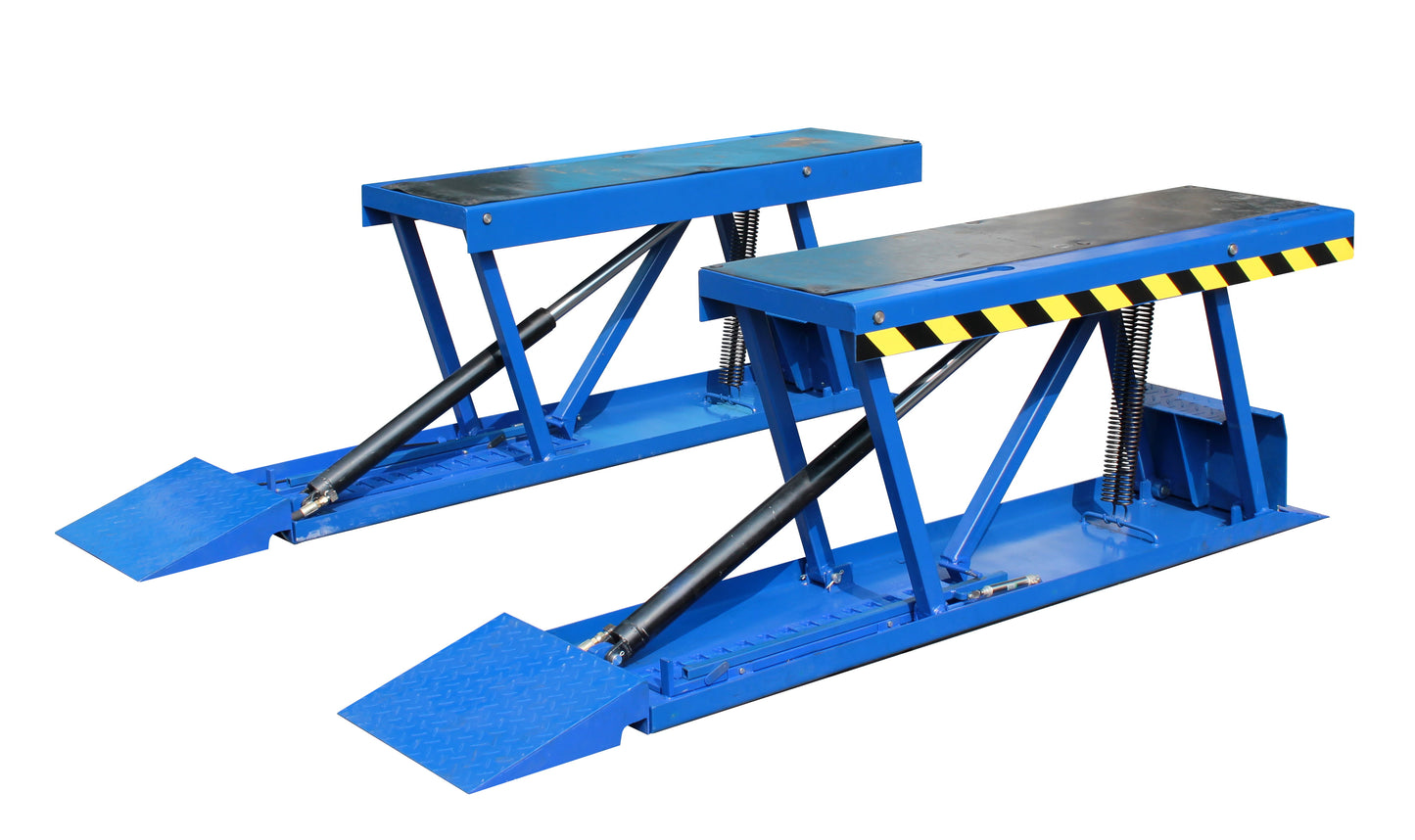

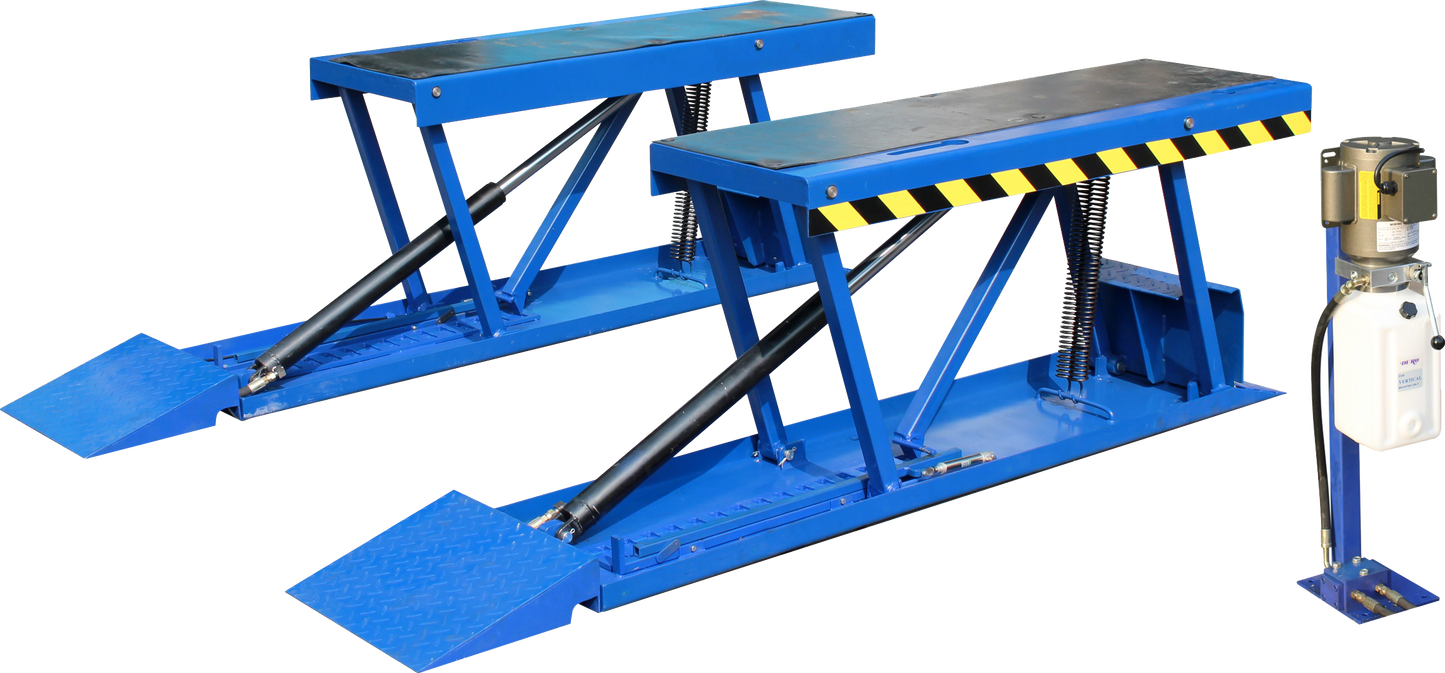

The Tuxedo PL6K Low Rise Pit Lift is a durable and powerful lifting solution designed specifically for use over service pits. With a 6,000 lb lifting capacity, this low-profile pit lift is ideal for quick-service shops, oil change centers, and commercial vehicle facilities looking to maximize throughput and minimize downtime.

Engineered for safety, stability, and performance, the PL6K utilizes a hydraulic twin-cylinder system to deliver smooth, balanced lifting action. Its low-rise design allows it to be mounted directly over a service pit, providing enhanced access to the undercarriage for oil changes, inspections, and maintenance tasks without the need for a full-size lift.


Key Features:

  • 6,000 lb Lifting Capacity
    Easily handles a wide variety of vehicles including cars, light trucks, and SUVs.

  • Designed for Use Over Service Pits
    Maximizes efficiency in quick-lube bays and inspection stations.

  • Low-Profile Construction
    Sits low to the ground for minimal obstruction and easy vehicle positioning.

  • Hydraulic Twin-Cylinder Operation
    Ensures even, stable lifting with fast raise/lower cycles.

  • Built-In Safety Lock System
    Provides secure positioning during service work with multiple locking positions.

  • Heavy-Duty Steel Frame
    Built to last in high-volume automotive shops with a rugged, powder-coated finish.

  • Compact Footprint
    Ideal for shops with space limitations or where a permanent lift isn’t feasible.

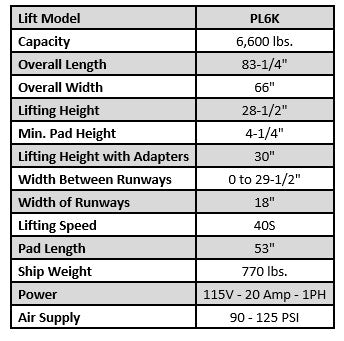

📐 Specifications:

  • Model: PL6K

  • Lifting Capacity: 6,000 lbs

  • Lift Type: Low-Rise Pit Lift

  • Max Lifting Height: Approx. 28"

  • Min Platform Height: Approx. 4.5"

  • Platform Length: 57" (approx.)

  • Power Unit: 110V or 220V (Depending on configuration)

  • Safety Lock Positions: Multi-point mechanical locks

  • Installation Type: Pit-mounted / Surface-mounted over service bays

  • Construction: Heavy-duty powder-coated steel

  • Included Accessories: Rubber lift blocks


🛠️ Perfect For:

  • Quick-lube centers

  • Vehicle inspection stations

  • Oil change shops

  • Dealership service departments

  • Fleet maintenance facilities


💡 Reliable Performance for Fast-Paced Service Bays

When time and space are at a premium, the Tuxedo PL6K Low Rise Pit Lift delivers the strength and efficiency needed to keep vehicles moving through the shop. Its compact, rugged design and over-pit compatibility make it the ideal lift for high-volume, fast-service environments where productivity matters most.


Boost your service efficiency and safety with the Tuxedo PL6K – the professional-grade low-rise pit lift trusted by shops nationwide.
