AMGO 409-DPX 9,000lb Double Parking Four Post Lift

AMGO 409-DPX 9,000lb Double Parking Four Post Lift

$8,455.00
$8,455.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 7 left
SKU: 409-DPX
Vendor: AMGO
Category: Four Post Lifts
Tags: Automotive Lifts Double Lift Four Post Lifts

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

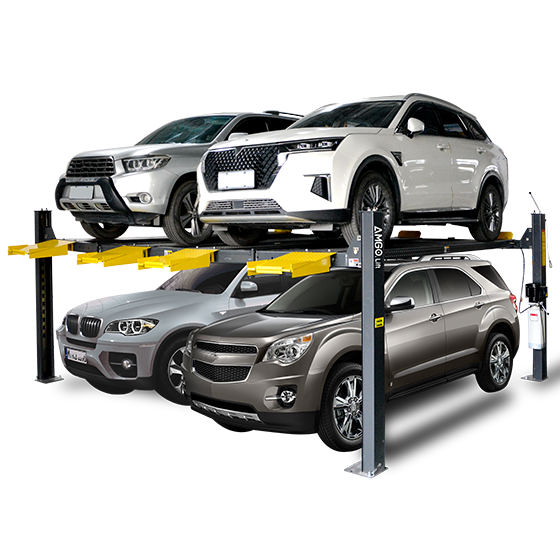

The AMGO 409-DPX 9,000 lb Double Parking Four Post Lift is engineered for maximum efficiency, capacity, and versatility. With its extended length and taller design, this advanced model provides more vertical clearance for storing larger vehicles such as SUVs, trucks, and full-size cars, making it the perfect solution for both residential garages and professional workshops. Featuring a powerful 9,000 lb lifting capacity (up to 6,000 lbs per vehicle), the 409-DPX combines strength, safety, and convenience in one reliable package.

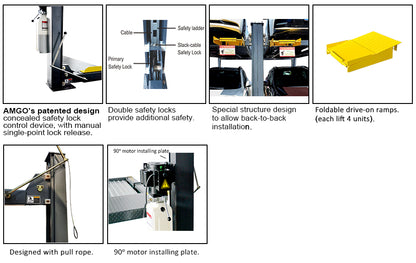

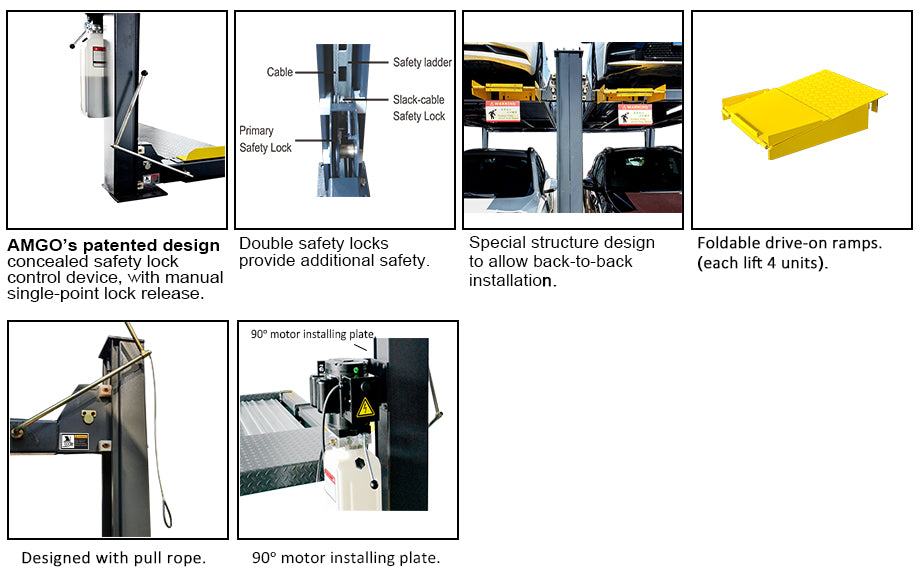

Product Features
  • 9,000 lbs lifting capacity (max 6,000 lbs per vehicle)
  • Extended height design with max lifting height of 87 11/16″
  • Low-profile design with minimum platform height of just 6 1/8″
  • Primary safety lock and cable-slack protection included
  • AMGO patented concealed safety lock with single-point manual release
  • Four foldable drive-on ramps and non-slip diamond platforms
  • Double “S”-shaped columns for increased strength and durability
  • Adjustable safety ladders and pull rope as standard
  • Optimized package size reduces transport and storage costs
  • Powered by a 2.0HP 220V/60Hz single-phase motor (lifting time: 57s)

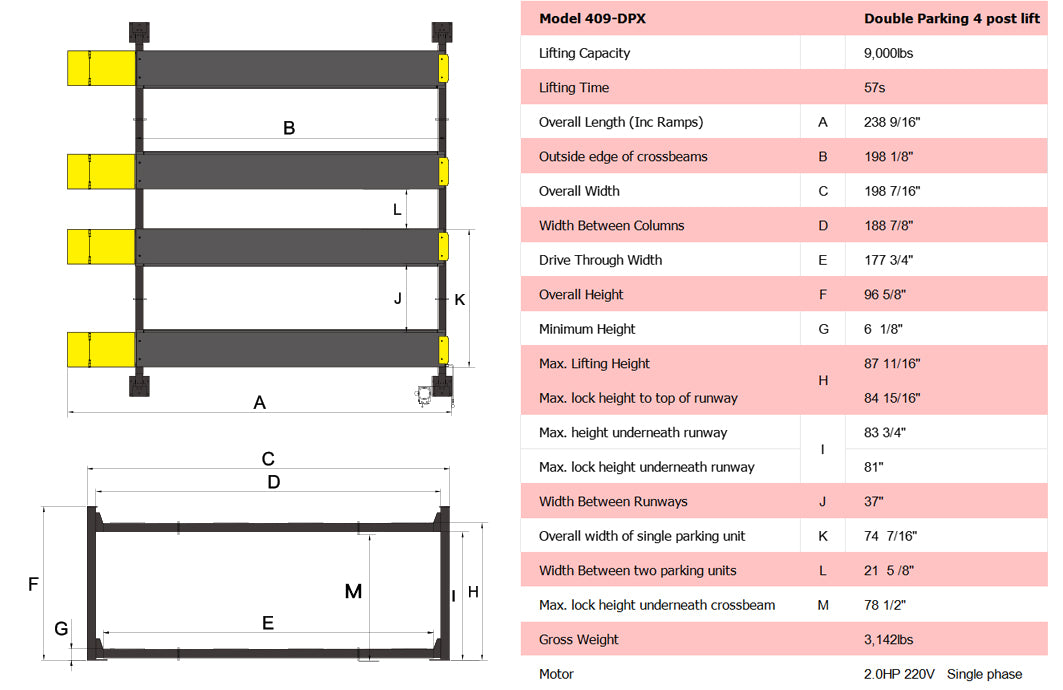

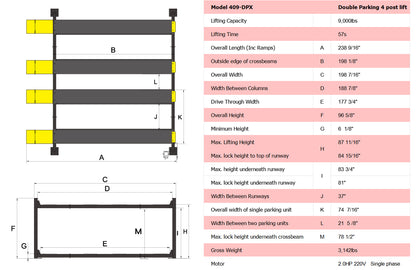

Product Specifications
Model 409-DPX
Lifting Capacity 9,000 lbs
Lifting Time 57 seconds
Overall Length (Inc. Ramps) 238 9/16″
Overall Width 198 7/16″
Max. Lifting Height 87 11/16″
Overall Height 96 5/8″
Minimum Height 6 1/8″
Drive-Thru Width 177 3/4″
Width Between Columns 188 7/8″
Width Between Runways 37″
Gross Weight 3,142 lbs
Motor 2.0HP 220V/60Hz, Single Phase

Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
