AMGO MRL09 9,000lb Mid Rise Scissor Lift

AMGO MRL09 9,000lb Mid Rise Scissor Lift

$4,710.00
$4,710.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 10 left
SKU: MRL09
Vendor: AMGO
Category: Scissor Lift
Tags: Automotive Lifts Car Lifts Scissor Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

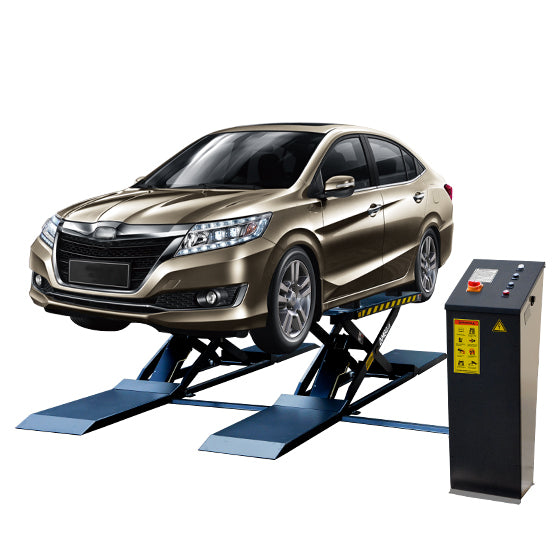

Elevate your garage efficiency with the AMGO MRL09 9,000 lb Mid-Rise Scissor Lift, designed for quick service and versatile vehicle access. This innovative lift features a two-stage runway design, allowing low-profile entry from either side and accommodating a wide range of vehicles, including low-clearance cars. With minimal maintenance required, the MRL09 is ideal for professional workshops and home garages seeking reliable performance and safety.

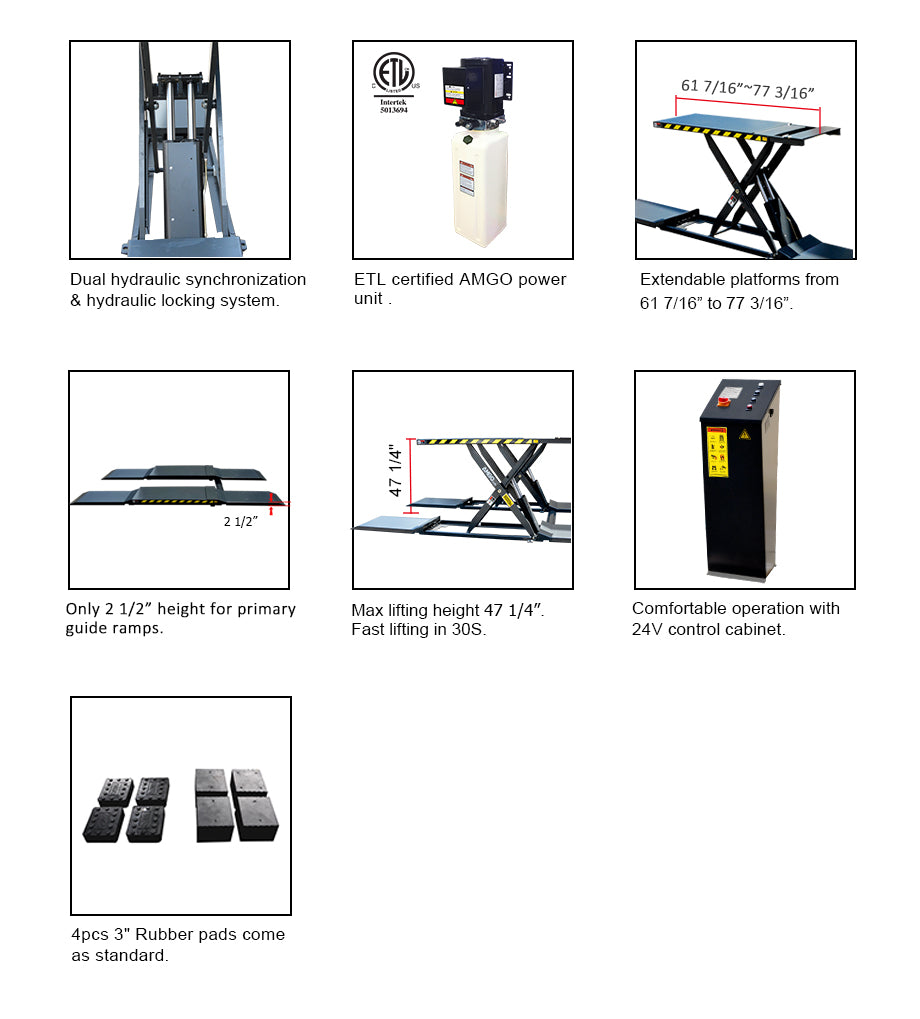

Product Features
  • 9,000 lbs (4,000 kg) lifting capacity
  • Mid-rise scissors lift with 24V safety voltage control
  • Dual hydraulic synchronization and hydraulic locking system
  • Thickened steel lifting scissors for enhanced strength
  • Adjustable platform length for vehicles with different wheelbases
  • Two-stage drive-in ramps for ultra-low chassis vehicles
  • Flush mount or surface mount installation options
  • Standard ETL certificated power unit
  • AMGO Global 5-3-2 Warranty: 5-year steel, 3-year hydraulic, 2-year electrical

Product Specifications Details
Model MRL09
Lifting Capacity 9,000 lbs
Lifting Time 29 seconds
Max. Lifting Height 47 1/4"
Minimum Height 5 1/2"
First Stage Ramp Height 2 3/4"
Overall Length (Inc. Ramps) 157 1/16"
Overall Width 76 3/4"
Width Between Runways 29 1/2"
Runway Length 61 3/8" - 77 1/8"
Gross Weight 1,788 lbs
Motor 2.0 HP
