AMGO OH-10 ALI Certified Overhead Two Post Lift

AMGO OH-10 ALI Certified Overhead Two Post Lift

$4,530.00
$4,530.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 12 left
SKU: OH-10
Vendor: AMGO
Category: Two Post Lift
Tags: ALI Certified Automotive Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

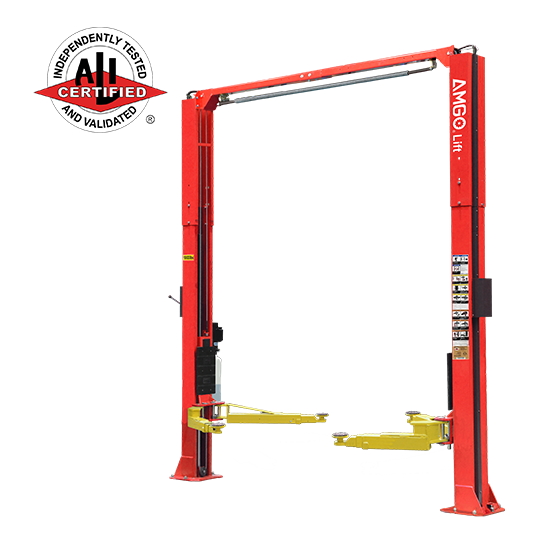

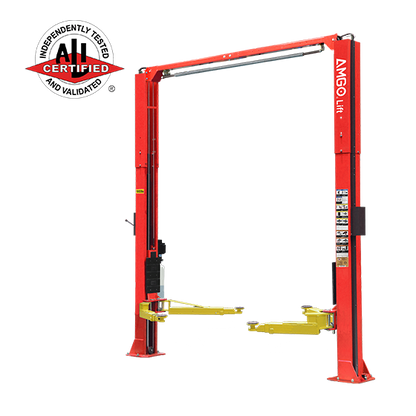

The AMGO OH-10 Two Post Lift is a professional-grade, ALI Certified overhead lift engineered for strength, efficiency, and safety. With a 10,000 lb lifting capacity and a Super-Asymmetric Arm design, this lift makes reaching vehicle lift points faster and easier while ensuring superior stability. The dual direct-drive hydraulic cylinders deliver smooth, reliable lifting action, completing a full lift in just 57 seconds. Built for professional shops and garages, the OH-10 provides unmatched durability and efficiency in a clear floor design for maximum workspace.

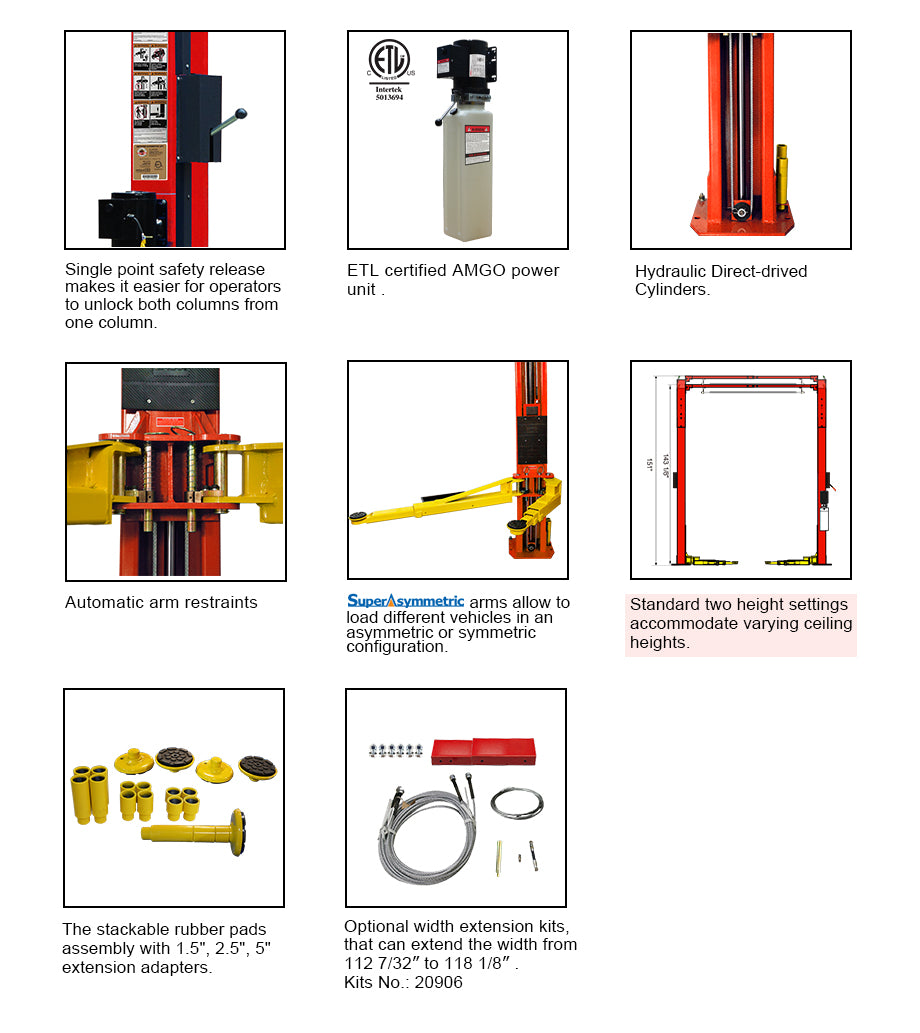

Product Features
  • 10,000 lb lifting capacity for professional automotive service
  • Dual direct-drive hydraulic cylinders for smooth performance
  • Super-Asymmetric Arm design for easier vehicle lift point access
  • Single-point safety release for convenient operation
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design allows unobstructed undercarriage access
  • Overhead safety shut-off device prevents vehicle damage
  • Stackable rubber pads included: 1.5″, 2.5″, and 5″
  • 5-year warranty on steel, 3-year on hydraulics, 2-year on electrical
  • CE approved and certified, meets EN-1493 safety standards
  • ALI Certified for the highest level of safety and compliance

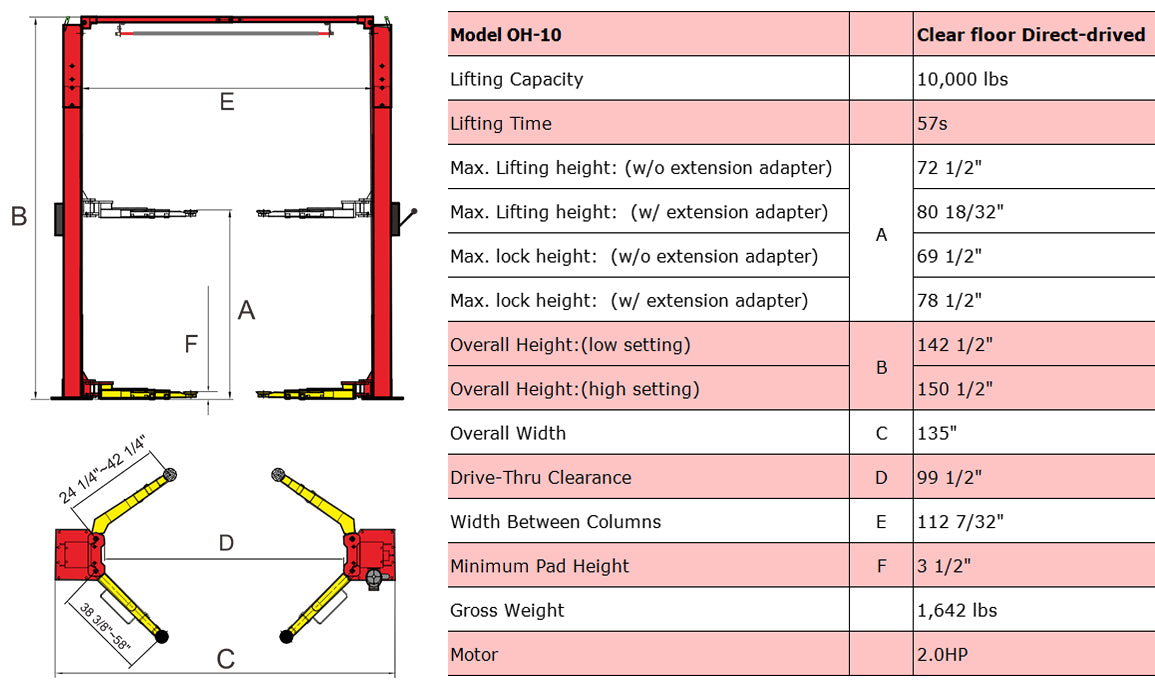

Product Specifications
Model OH-10
Lifting Capacity 10,000 lbs
Lifting Time 57 seconds
Max. Lifting Height (w/o extension adapter) 72 15/32″
Max. Lifting Height (w/ extension adapter) 80 15/32″
Max. Lock Height (w/o extension adapter) 69 5/8″
Max. Lock Height (w/ extension adapter) 78 5/8″
Overall Height 142 1/8″ / 151″
Overall Width 135″
Drive Thru Clearance 99 1/2″
Width Between Columns 112 7/32″
Minimum Pad Height 3 1/2″
Motor 2.0 HP
Gross Weight 1,642 lbs
QTY of Container 25 Units/20′GP
