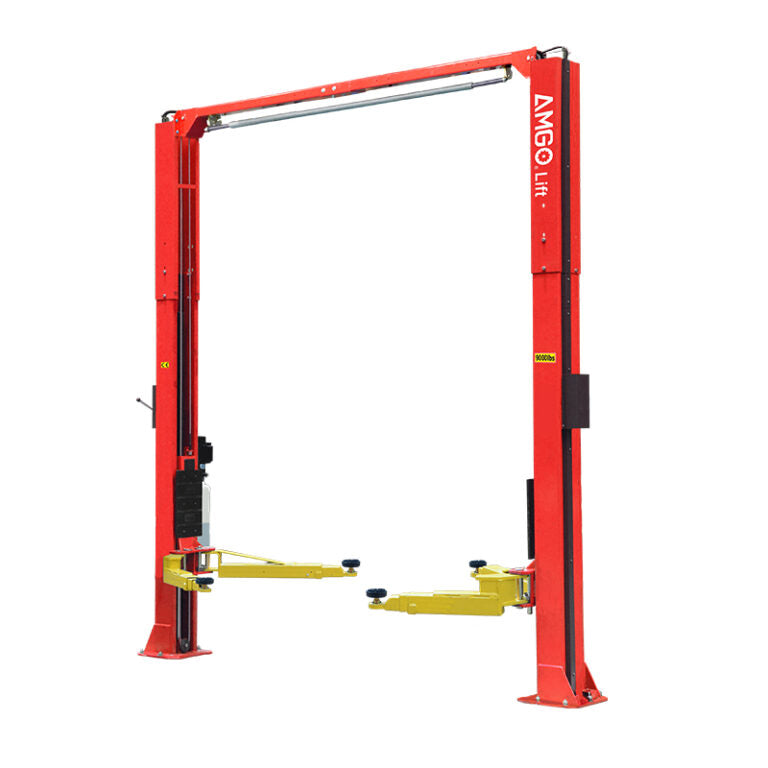

AMGO OH-9 Overhead 9,000lb Two Post Lift

AMGO OH-9 Overhead 9,000lb Two Post Lift

$2,745.00
$2,745.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 15 left
SKU: OH-9
Vendor: AMGO
Category: Two Post Lift
Tags: Automotive Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

The AMGO OH-9 Two Post Lift combines strength, efficiency, and safety in a clear floor design ideal for both professional shops and home garages. With a 9,000 lb lifting capacity and a Super-Asymmetric Arm design, this lift makes it easy to reach vehicle lift points quickly while providing maximum undercarriage access. Built with dual direct-drive hydraulic cylinders, the OH-9 delivers smooth, reliable operation and completes a full lift in just 57 seconds, making it a highly efficient solution for busy work environments.

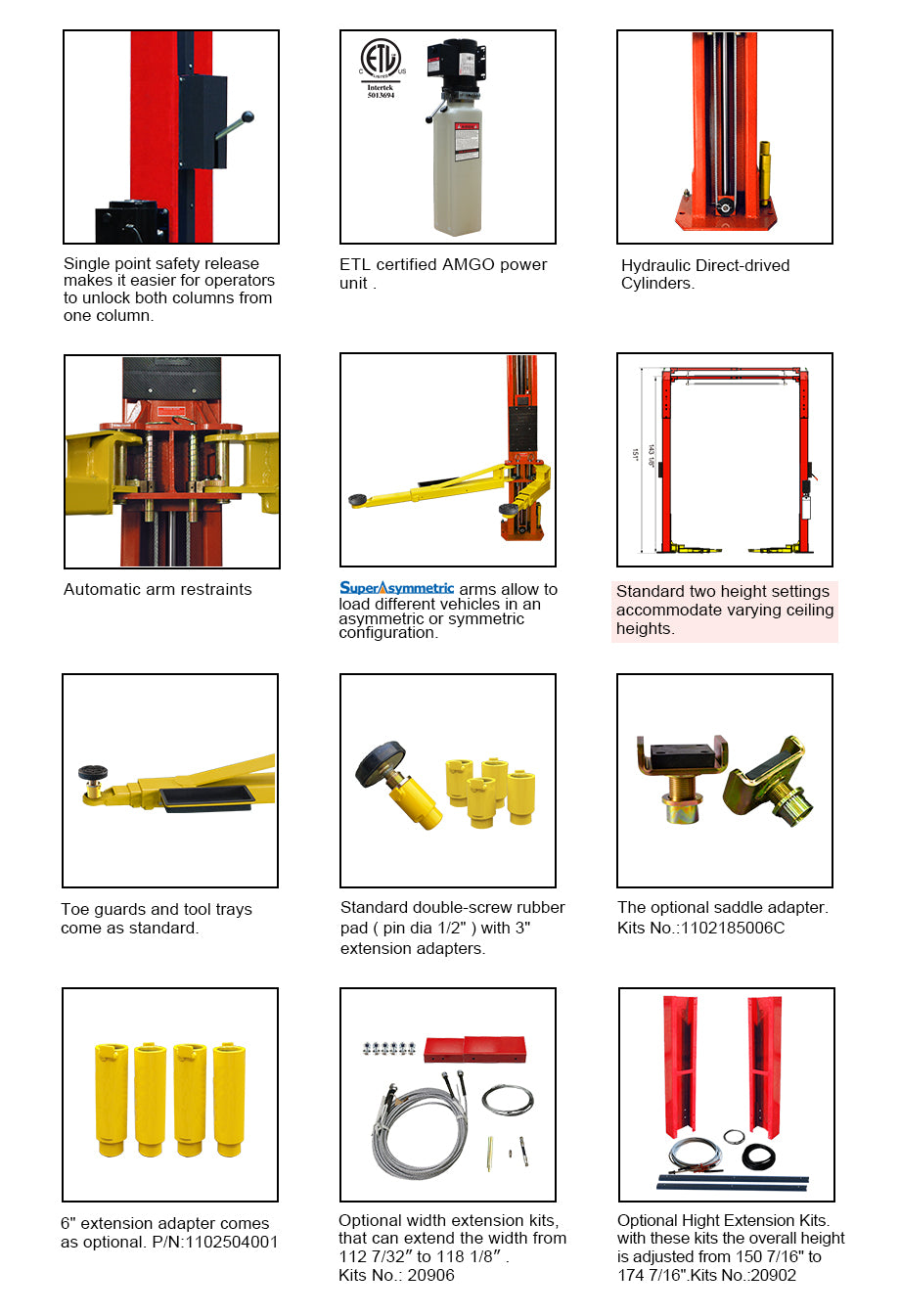

Product Features
  • 9,000 lb lifting capacity for a wide range of vehicles
  • Dual direct-drive hydraulic cylinders for smooth performance
  • Super-Asymmetric Arm design for easy vehicle lift point access
  • Single-point safety release for convenient column control
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design allows unobstructed workspace
  • Overhead safety shut-off device prevents vehicle damage
  • Stackable rubber pads included: 1.5″, 2.5″, and 5″
  • 5-year warranty on steel, 3-year on hydraulics, 2-year on electrical
  • CE approved and certified, meets EN-1493 safety standards

Product Specifications
Model OH-9
Lifting Capacity 9,000 lbs
Lifting Time 57 seconds
Max. Lifting Height (w/o extension adapter) 71 1/2″
Max. Lifting Height (w/ extension adapter) 80 1/2″
Max. Lock Height (w/o extension adapter) 69 5/8″
Max. Lock Height (w/ extension adapter) 78 5/8″
Overall Height 143 1/8″ / 151″
Overall Width 135″
Drive Thru Clearance 99 1/2″
Width Between Columns 112 7/32″
Minimum Pad Height 3 3/8″
Motor 2.0 HP
Gross Weight 1,369 lbs
QTY of Container 25 Units/20′GP | 50 Units/40′GP
