AMGO OHX-10H Overhead 10,000lb Two Post Lift

AMGO OHX-10H Overhead 10,000lb Two Post Lift

$4,365.00
$4,365.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 15 left
SKU: OHX-10H
Vendor: AMGO
Category: Two Post Lift
Tags: Automotive Lifts Car Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

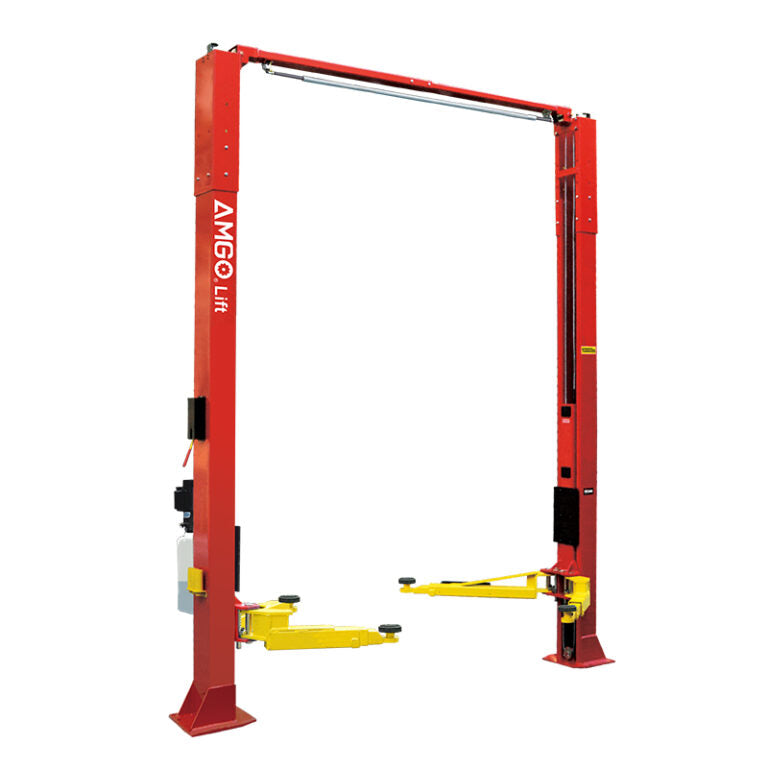

The AMGO OHX-10H Overhead Two Post Lift is engineered for professionals who demand safety, reliability, and flexibility in their shop. With a 10,000 lb lifting capacity and advanced safety features, this lift is ideal for routine maintenance, repairs, and heavy-duty service. Its clear-floor design provides maximum workspace efficiency, while adjustable height and width options make it versatile for a wide range of vehicles and garage layouts.

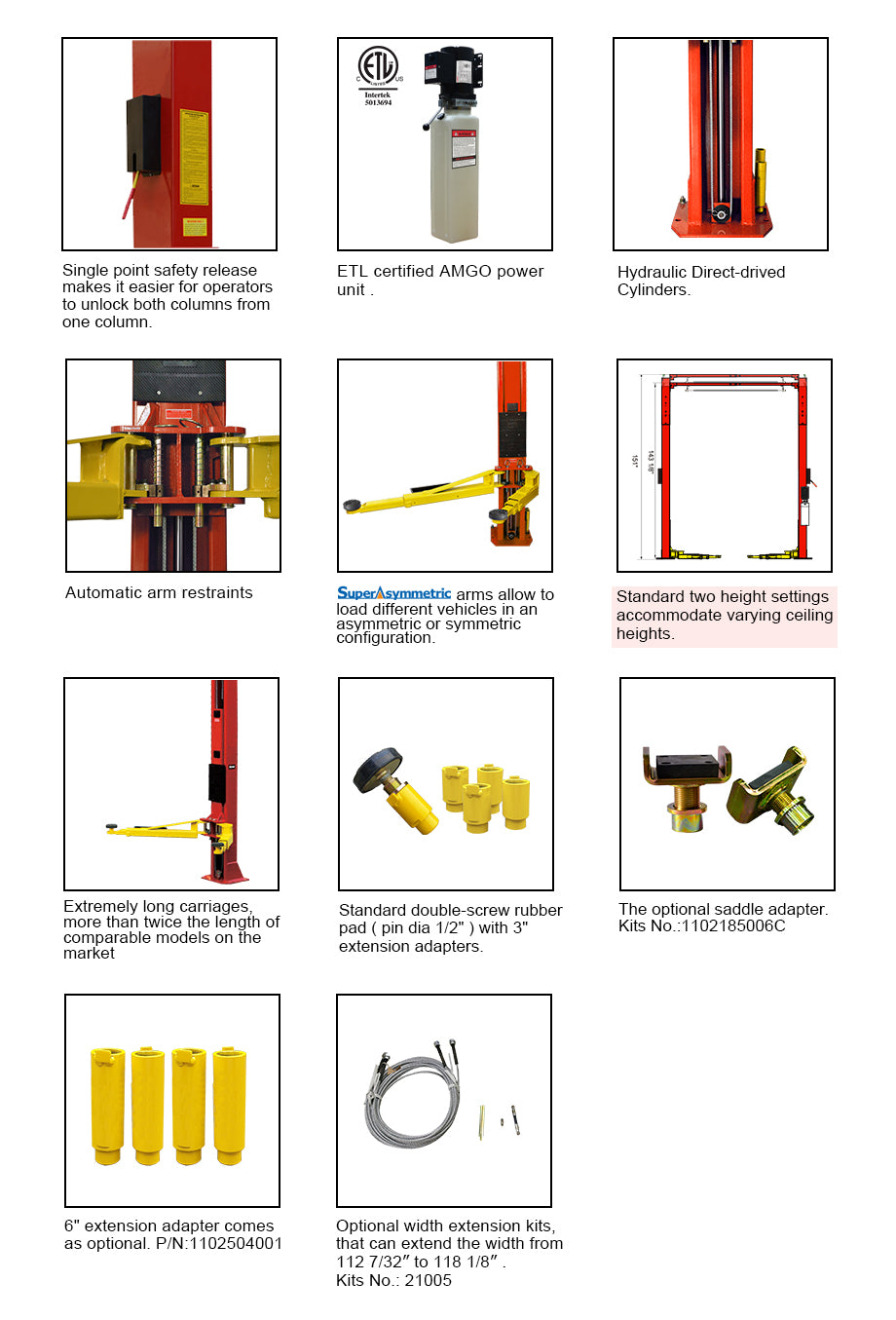

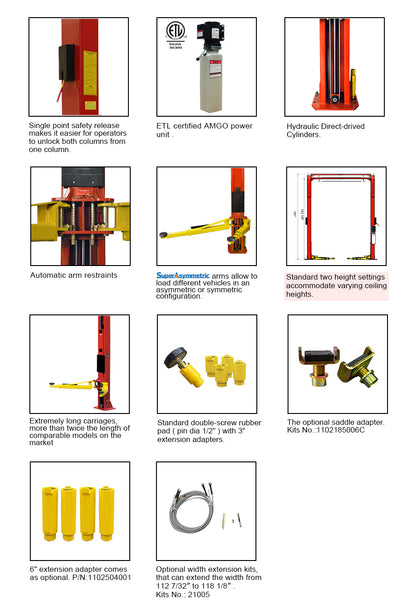

Product Features
  • 10,000 lb lifting capacity
  • Dual hydraulic cylinders with high-quality seals
  • Super-Asymmetric arms allow symmetric or asymmetric loading
  • 3/8″ aircraft-quality cable for synchronization
  • Single-point safety release with dual safety design
  • Automatic arm restraints for secure operation
  • Clear-floor design for unobstructed workspace
  • Overhead safety stop device prevents vehicle damage
  • Adjustable lift height and width options
  • Stackable adapters (1.5″, 2.5″, 5″) included
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings
  • Five-year steel warranty, three-year hydraulic warranty, two-year electrical warranty
  • CE approved and certified to EN-1493 standards

Product Specifications
Model OHX-10H
Lifting Capacity 10,000 lbs
Lifting Time 63 seconds
Max. Lifting Height (w/o adapter) 73 3/4″
Max. Lifting Height (with adapter) 87 3/4″
Overall Height 157″ or 168″ adjustable
Overall Width 134 15/16″ – 140 7/8″
Drive-Thru Clearance 99 13/16″ – 105 11/16″
Width Between Columns 112 19/32″ – 118 1/2″
Minimum Pad Height 3 3/8″
Motor 2.0HP
Gross Weight 1,739 lbs
