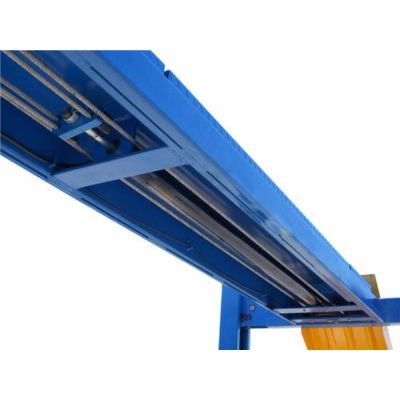

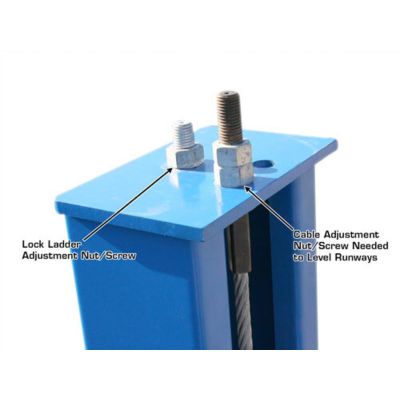

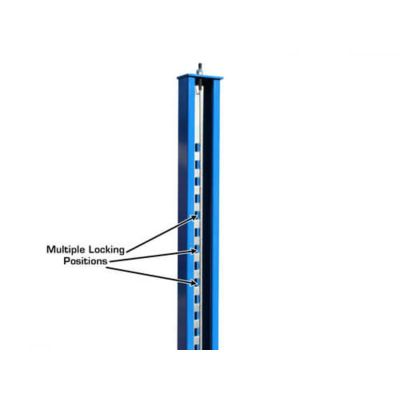

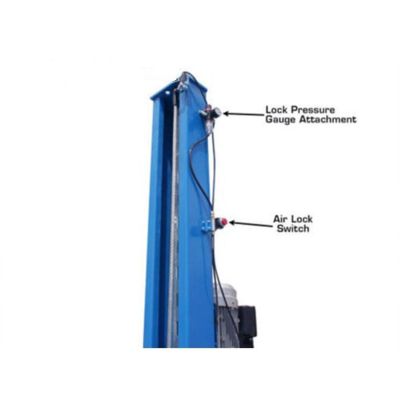

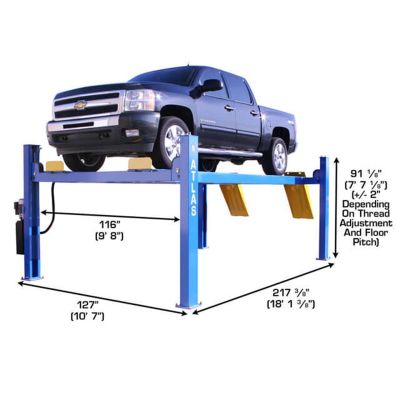

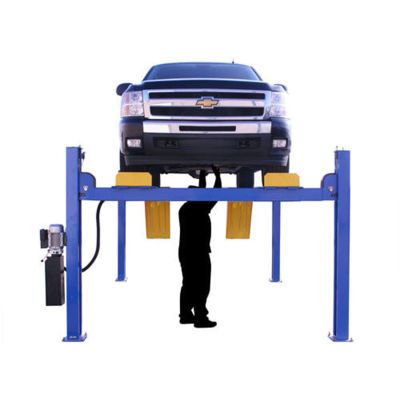

The Atlas® 414 is a 14,000 lb. capacity commercial-grade four-post lift built for professional-grade durability and versatility. With its extra tall, extra wide, and extra long design, this heavy-duty lift accommodates a wide range of vehicles, from trucks to long-wheelbase vans. The diamond-plated runways, powder-coated finish, and lock ladder design ensure safety and performance, while the oversized under-runway hydraulic cylinder and high-strength cable system deliver smooth and balanced lifting. Air-operated single-point lock release (external air required) and compatibility with rolling bridge jacks make this lift a true powerhouse for commercial shops and fleet service centers.
| Product Features |
|---|
| • 14,000 lb. lifting capacity • Heavy duty commercial-grade design • Extra tall, wide, and long dimensions • Diamond-plated runways • Single-point pneumatic lock release (air supply required) • Durable powder coat finish • Double lock safety system • Mounting hardware and steel ramps included • Runway and drive-off ramp extensions available (sold separately) • Under-runway oversized hydraulic cylinder • High-strength cable lifting system • Compatible with rolling bridge jacks (sold separately) • 220V single-phase power (30 amp breaker required) • 5-year structural / 2-year hydraulic warranty (parts only) |
|
 |
| Product Specifications | |
|---|---|
| Capacity | 14,000 lb. |
| Lifting Height | 80" (6' 8") |
| Overall Width (w/o Motor) | 130 7/8" (10' 10 7/8") |
| Overall Width (w/ Motor) | 138 7/8" (11' 6 7/8") |
| Overall Length w/ Ramp | 255" (21' 3") |
| Runway Length / Width | 208 5/8" x 20" |
| Width Between Runways | 46 7/8" (w/ Rails 44 3/8") |

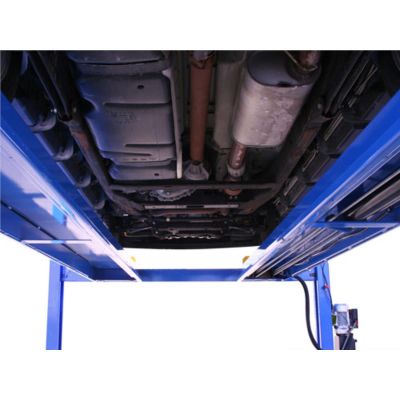

| Clearance Under Runways | 71 1/4" |
| Drive-Thru Width | 102 1/8" |
| Max Wheelbase | 197" (16' 5") |

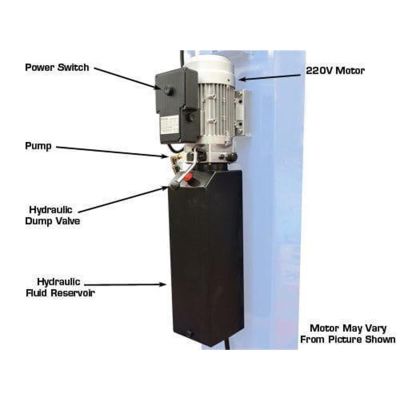

| Motor / Electrical | 220V, 1-phase, 30A |
| Air Requirement | 85–115 PSI (External Supply Required) |

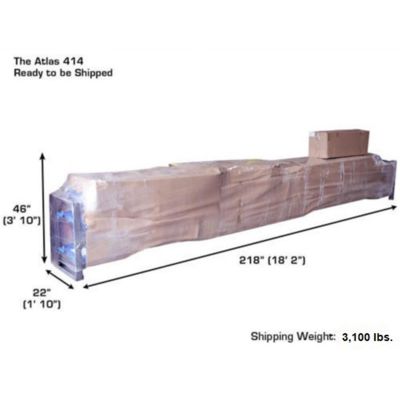

| Shipping Weight | 3,100 lbs. |
