Atlas 6045BC ALI Certified 99,000lb Capacity Battery Powered Mobile Column Lift System

Atlas 6045BC ALI Certified 99,000lb Capacity Battery Powered Mobile Column Lift System

Regular price $59,999.00
Regular price Sale price $59,999.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required (Billed Separately)

AvailabilityLow stock: 10 left

SKU: ATEML-6045BC
Vendor: Atlas
Category: mobile lifts

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

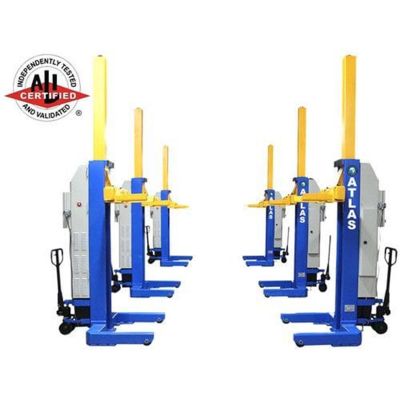

The Atlas® 6045BC is an ALI Certified battery-powered mobile column lift system designed for shops that need serious lifting power without sacrificing flexibility. With a combined capacity of 111,000 lbs. across six mobile columns, the 6045BC is perfect for servicing long wheelbase and heavy-duty vehicles. Each column is independently powered by a 2.2 kW 24V DC motor and dual rechargeable batteries, offering unmatched portability and ease of use. The hydraulic pallet jack mechanism and rugged base construction allow operators to move the columns with minimal effort—indoors or outdoors on properly rated concrete. An LCD screen on every column displays the exact lifting height, while electronic synchronization and dual safety systems ensure safe, precise operation. The 6045BC system is equipped with adjustable forks for tire diameters ranging from 19 to 44 inches, making it adaptable to a wide variety of vehicles. Whether you're lifting municipal trucks, buses, or fleet vehicles, the Atlas® 6045BC delivers professional-grade performance and reliability every time.

Product Features
ALI Certified for professional use
Six-column lift system with 111,000 lb. total capacity

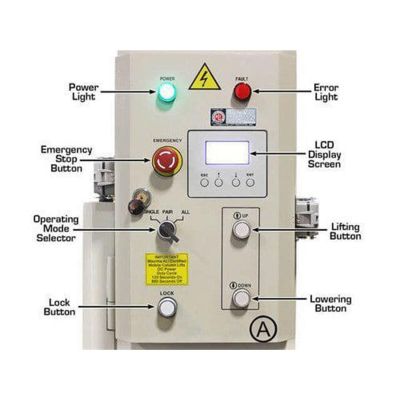

LCD screen on each column shows lifting height
Electronic synchronization ensures even lifting
Hydraulic flow control and mechanical locks for dual safety
Adjustable forks for tire diameters from 19" to 44"
Battery powered with onboard 110V charger
Portable with built-in pallet jack system
Emergency stop button on each column
2 Year Limited Warranty

Product Specifications
Lifting Capacity per Column 18,500 lbs.
Motor 2.2 kW 24V DC with two batteries per column
Max. Lifting Height 67" (5' 7")
Overall Height 145" (12' 1")
Resting Height 88.5" (7' 4 1/2")
Tire Diameter Range 19" to 44"
Shipping Weight (6 Columns) 9,600 lbs.
