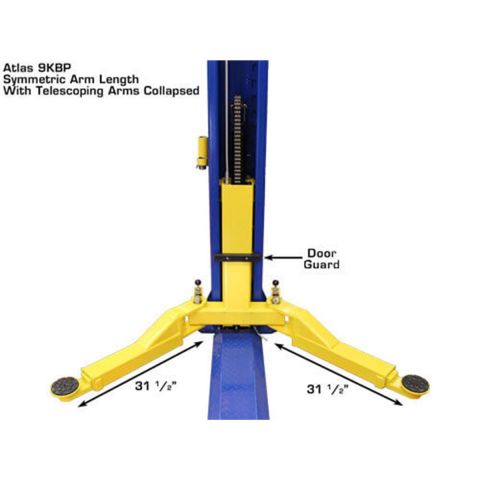

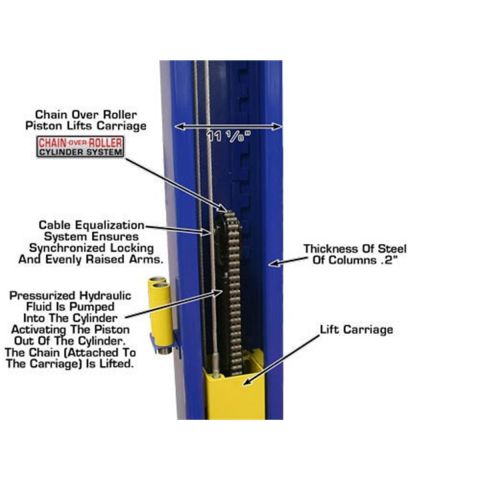

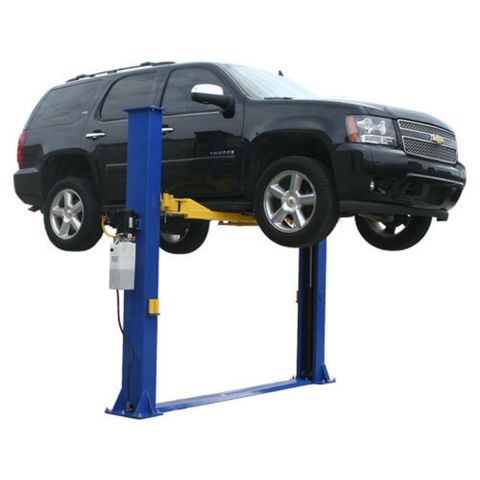

The Atlas® 9KBPX is a space-saving, baseplate-style two-post lift designed specifically for garages with low ceiling heights. With a total column height of just 9 feet 3 1/2 inches, it fits comfortably in garages with ceilings as low as 9 feet 6 inches. This 9,000 lb. capacity lift features a dual hydraulic chain-drive system and symmetric lifting arms, making it a solid choice for homeowners or small shops servicing cars, SUVs, and light-duty trucks.

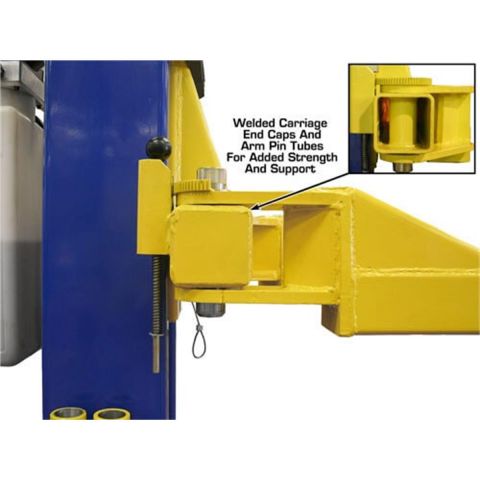

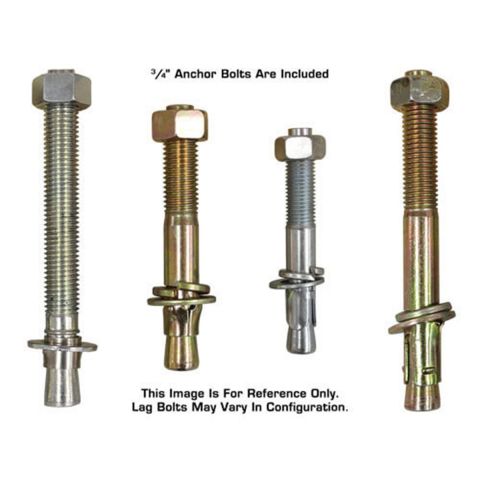

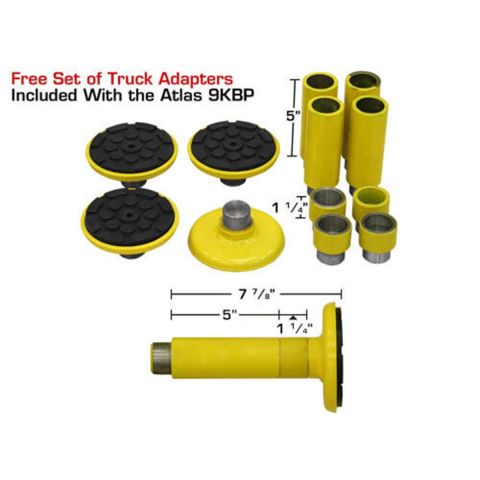

Built with durability and reliability in mind, the 9KBPX features a spring-loaded Secondary Lock System (SLS) for added safety. The package includes a free 8-piece truck adapter set, automatic arm restraints, dual point lock release, and all required mounting hardware. It’s not suitable for Diesel Dually or large commercial trucks, but it's ideal for most standard vehicle maintenance tasks.
| Product Features |
|---|
|
|
 |
| Product Specifications | |
|---|---|
| Lifting Capacity | 9,000 lbs. |

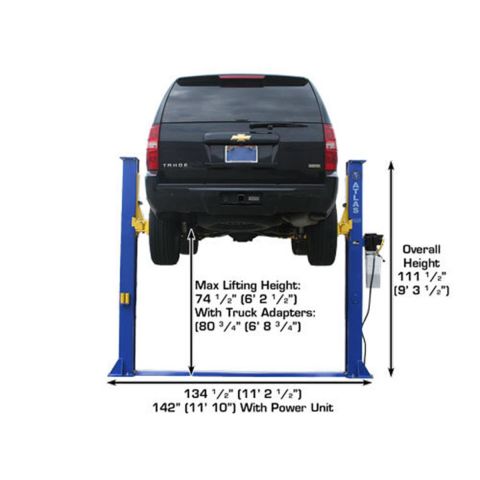

| Overall Floor Width | 134 1/2" (11' 2 1/2") |

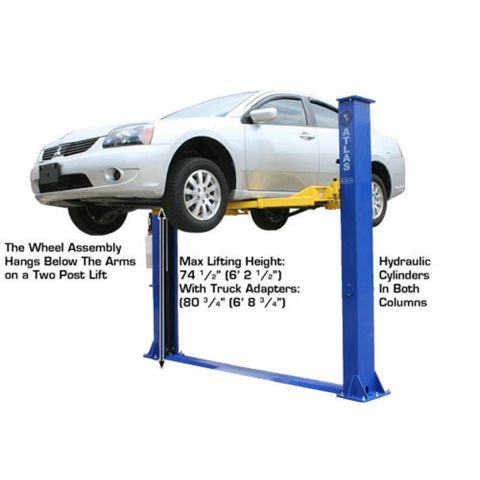

| Lift Height (w/o Adapters) | 74 1/2" |
| Lift Height (with Adapters) | 81" |
| Drive Thru Width | 101" (8' 5") |
| Electrical Requirement | 220V / 1 Phase / 30 Amp |

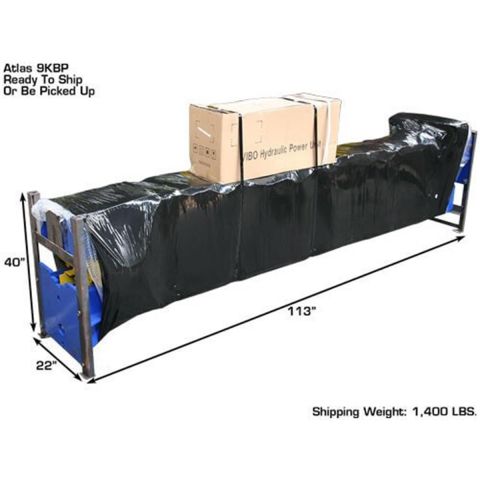

| Shipping Weight | 1,400 lbs. |
