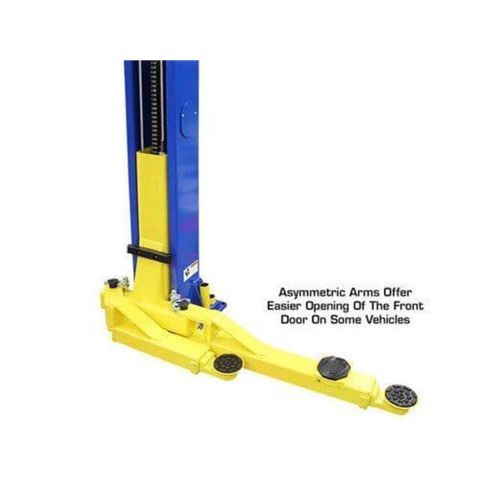

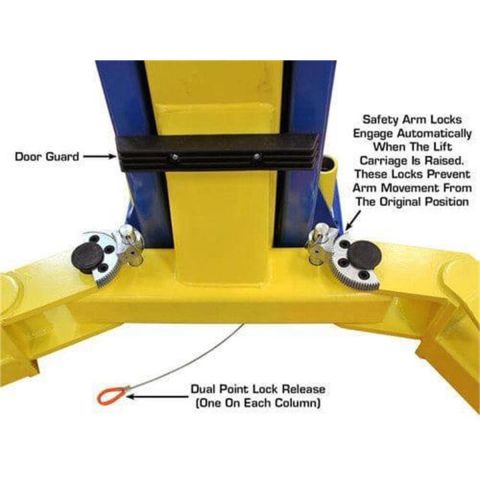

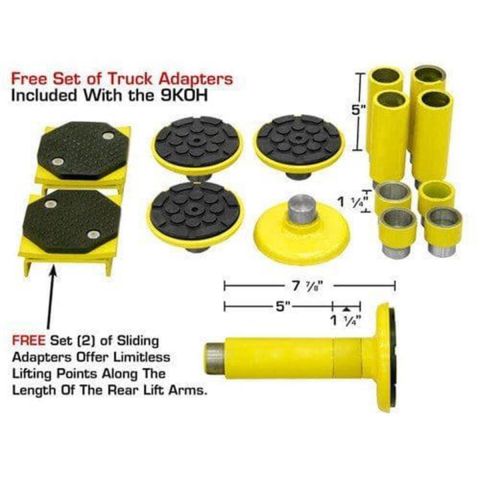

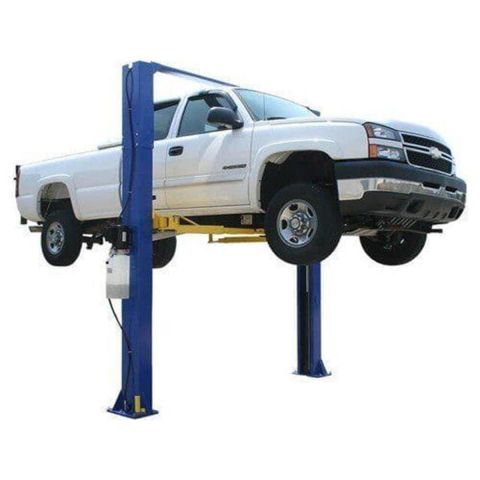

The Atlas® 9KOHX is a light-duty, economy-designed overhead two-post lift built for reliability and versatility. Featuring a clear-floor design and adjustable overall height (11' 6" or 11' 10"), this lift is ideal for standard garages. With dual chain-drive cylinders, automatic arm restraints, and a spring-loaded Secondary Lock System (SLS), it's the perfect solution for both home garages and small commercial shops. The innovative asymmetric/symmetric arm design allows flexibility when servicing low-profile vehicles or heavier trucks, and the low lift pad height accommodates a wide range of vehicles. The 9KOHX also includes a free truck adapter set and sliding arm adapters for added value and convenience.
Product Features | |
---|---|
9,000 lb. Capacity | |
Overhead, Clear-Floor Design |
![]() |
![]() |
Product Specifications | |
---|---|
Capacity | 9,000 LB. |

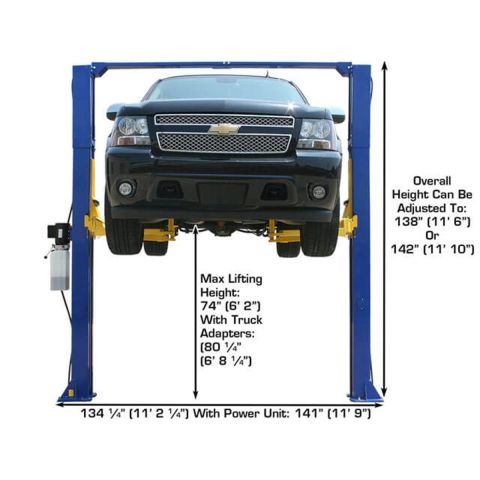

Overall Floor Width | 134 1/2" (11' 2 1/2") |

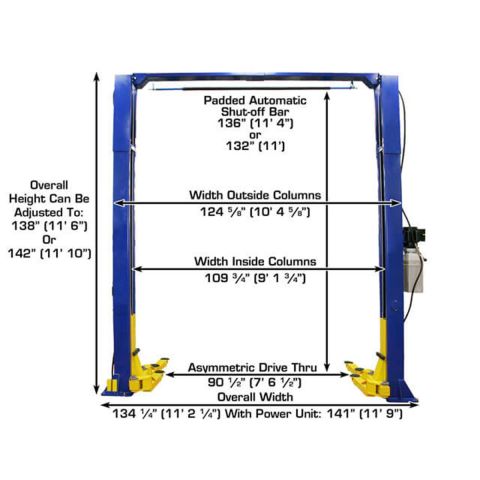

Outside Column to Outside Column | 124 7/8" (10' 4 7/8") |

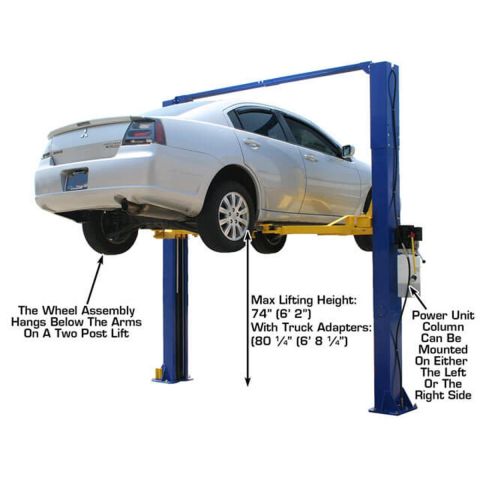

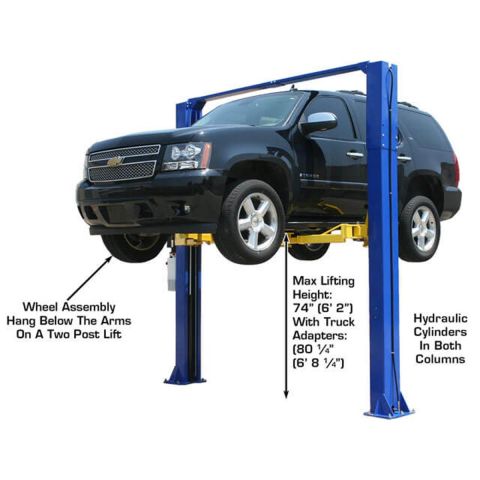

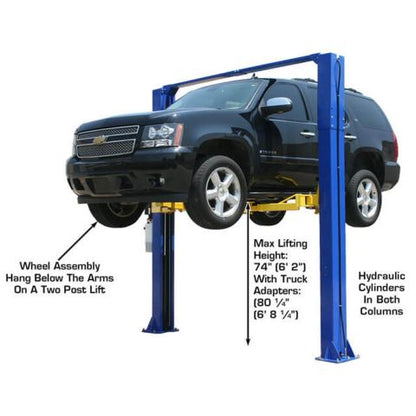

Max Lift Height (Without Adapters) | 74 1/2" |
Max Lift Height (With Adapters) | 81" |

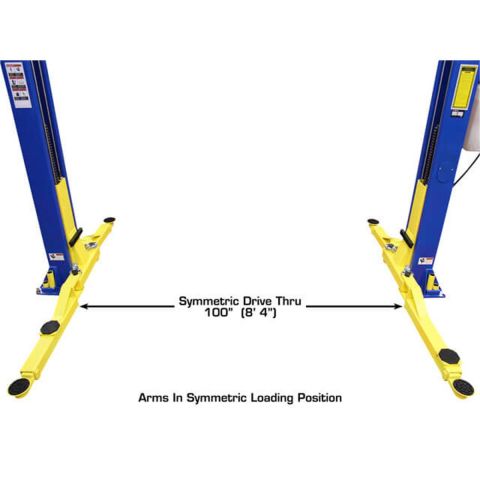

Drive Thru Clearance | 100" (Symmetric) / 90.5" (Asymmetric) |
Motor / Electrical | 220V Single Phase, 30 Amp Breaker Recommended |
