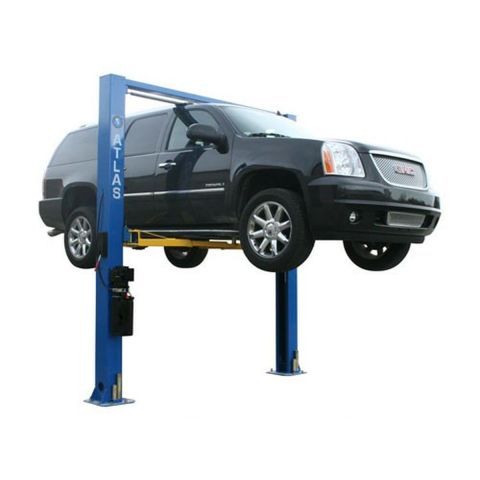

The Atlas® 9OHSC is a premium 9,000 lb. capacity overhead two-post lift engineered for both smaller commercial shops and serious DIY home garages. Its robust single-piece column design and extended carriages provide superior lifting stability, allowing you to confidently lift everything from compact cars to full-size SUVs. Standing at 142" tall, this open-floor lift delivers maximum clearance while maintaining a compact footprint. Equipped with dual hydraulic chain-drive cylinders, automatic arm restraints, and a single-point lock release system, the Atlas® 9OHSC offers reliability and convenience in every lift. It comes complete with a 12-piece truck adapter set and all mounting hardware—making it a powerful and value-packed solution for your shop or garage.
Product Features |
---|

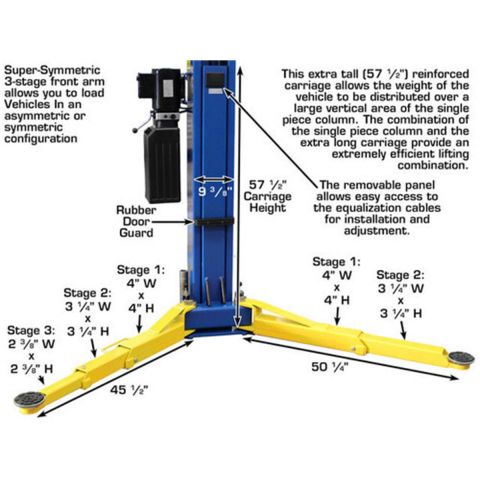

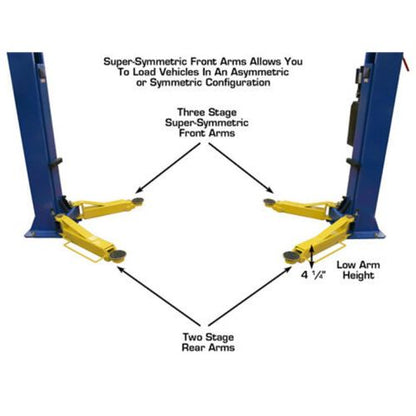

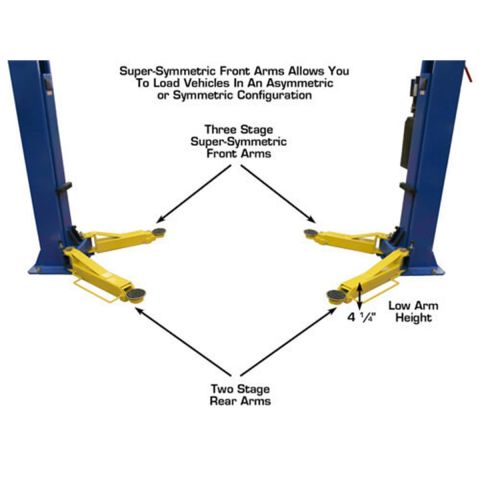

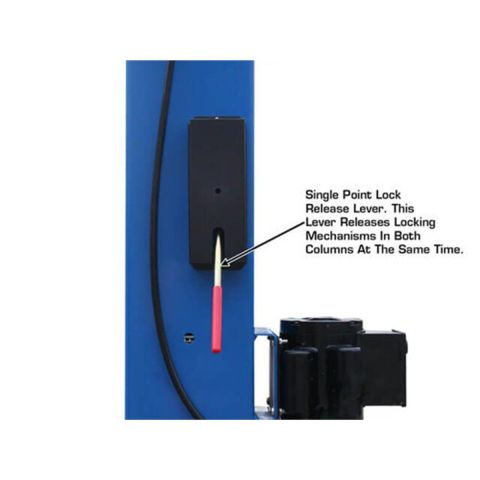

9,000 lb. Capacity Overhead, Open-Floor Lift Single-Piece Column Design Overall Height: 142" (11' 10") 3-Stage Front Arms / 2-Stage Rear Arms Automatic Arm Restraints Single-Point Lock Release Rubber Guards on Carriages Dual Hydraulic Chain-Drive Cylinders Free 12-Piece Truck Adapter Set Mounting Hardware Included Shipping Weight: 1,430 lbs. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only |
![]() |
![]() |
Product Specifications | |
---|---|
Capacity | 9,000 LB. |

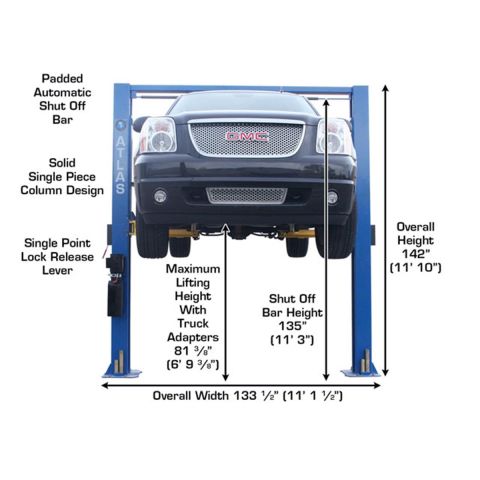

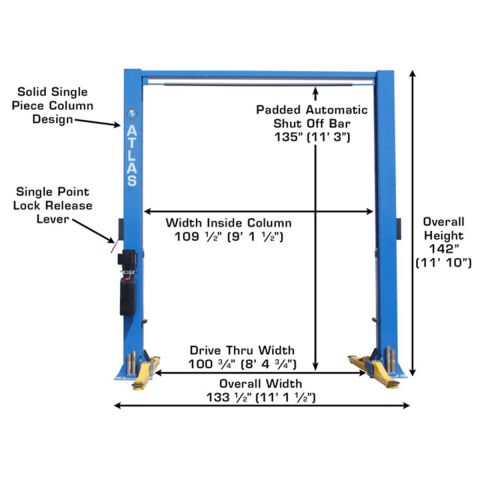

Overall Floor Width | 133 1/2" (11' 1 1/2") |
Outside Column to Column | 125 1/2" (10' 5 1/2") |

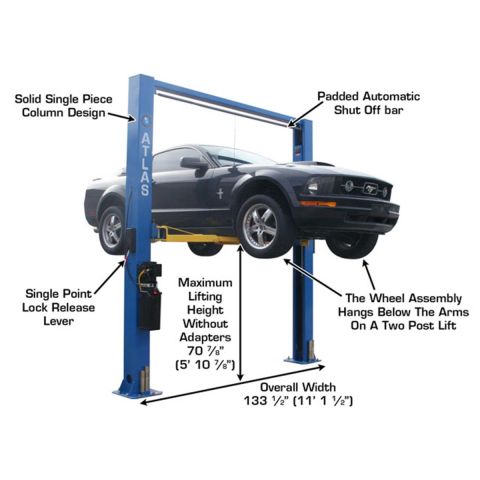

Max Lift Height (No Adapters) | 76 3/4" |

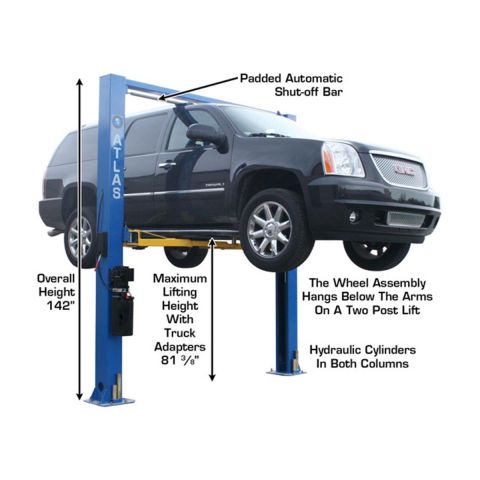

Max Lift Height (With Adapters) | 87 3/4" |
Minimum Arm Height | 4" |
Inside Column Height | 109 1/2" (9' 1 1/2") |
Drive Thru Clearance | 100 1/2" (8' 4 1/2") |

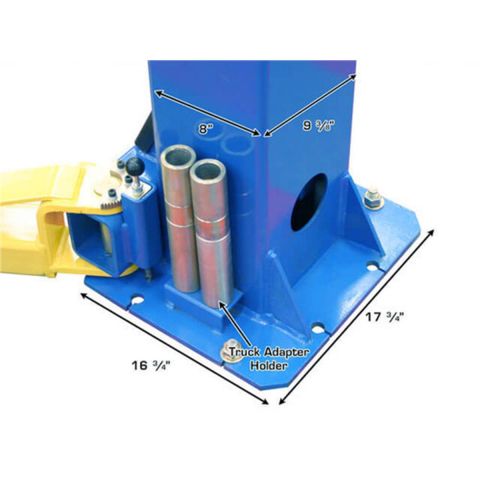

Column Dimensions | 8" x 9 3/8" |
Power Requirements | 220V Single Phase, 30 Amp Breaker |
Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |

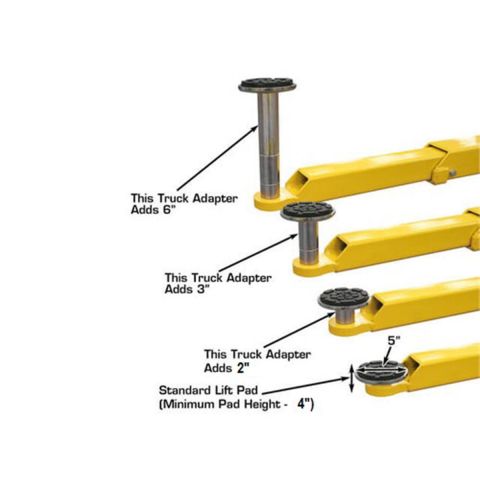

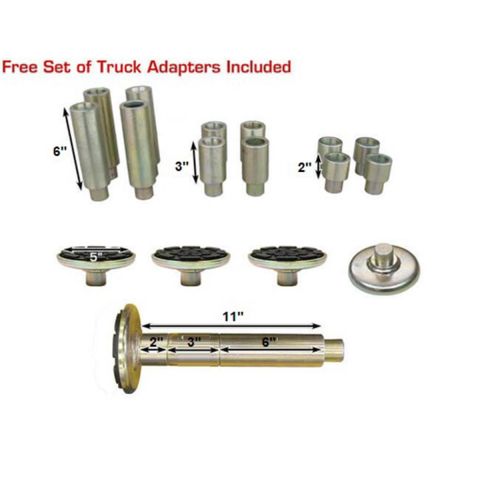

Adapter Heights | 4 Each – 2", 3", 6" |
Shipping Weight | 1,430 LBS. |
