Atlas BP10000X Commercial Grade Baseplate 2 Post Lift 10,000 lb. Capacity

Atlas BP10000X Commercial Grade Baseplate 2 Post Lift 10,000 lb. Capacity

Regular price $4,599.00
Regular price Sale price $4,599.00
Sold out

AvailabilityLow stock: 20 left

SKU: ATEATTD-BP10000X
Vendor: Atlas
Category: Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

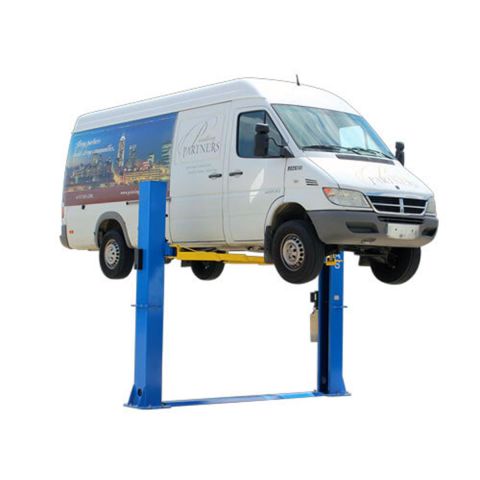

The Atlas® BP10000X is a heavy-duty, commercial-grade two-post baseplate lift designed for shops with low ceiling clearance that still need serious lifting power. With a 10,000 lb. lifting capacity and a compact 111 7/8" height, this open-top, baseplate-style lift is ideal for garages with ceilings under 12 feet. The BP10000X features a welded support gusset at the column center for increased strength and stability, plus super-symmetric arms for maximum flexibility in lifting everything from compact cars to one-ton trucks. Equipped with dual hydraulic chain-drive cylinders, automatic arm restraints, and a single-point lock release, this lift combines durability, ease of use, and safety. Finished in powder coat and complete with a 12-piece truck adapter set, the BP10000X is built for reliable performance in demanding environments.

Product Features
10,000 lb. Capacity
Commercial Grade

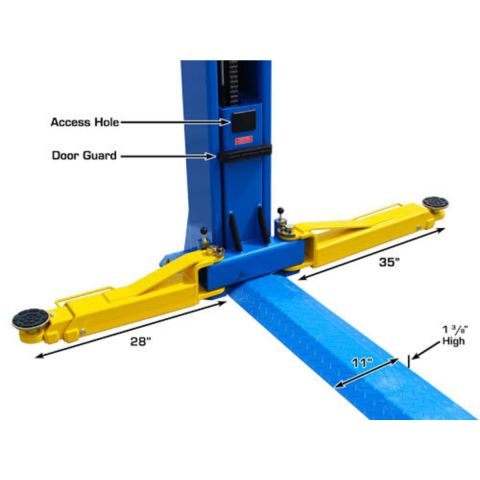

Baseplate, Open-Top Style Lift

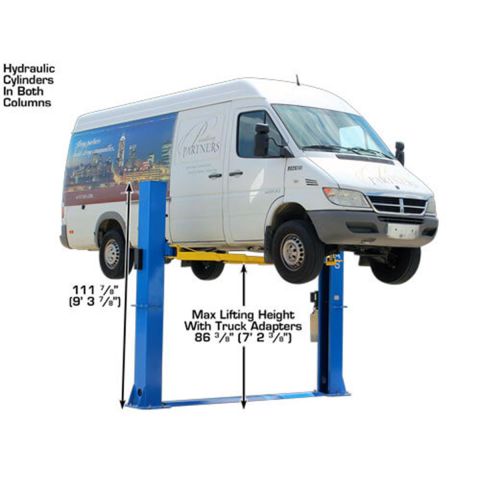

Overall Height: 111 7/8" (9' 3 7/8")

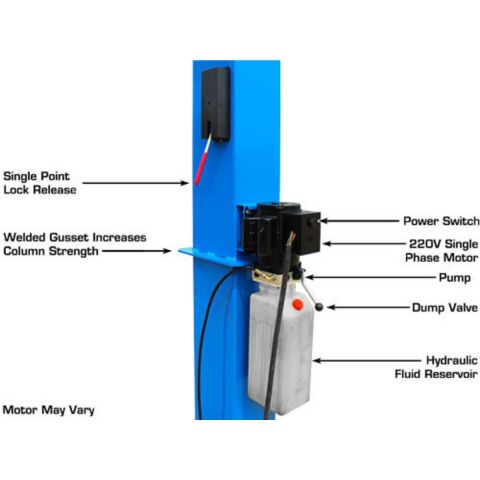

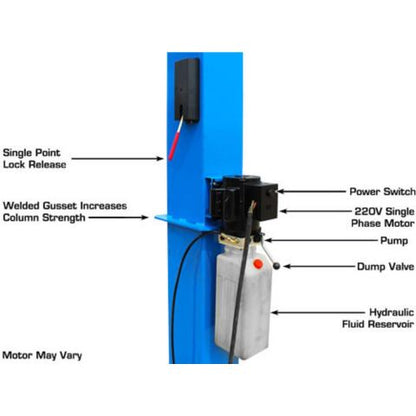

Single-Point Lock Release

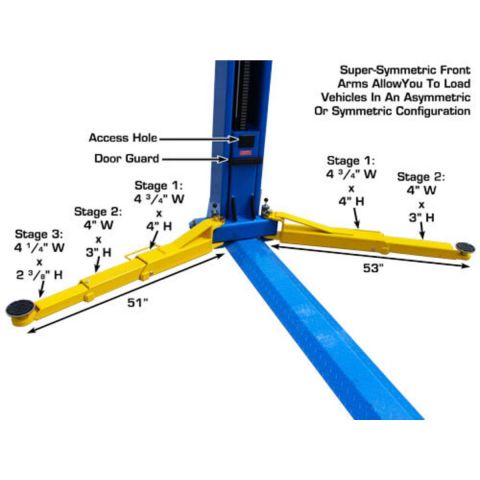

Super-Symmetric Arms

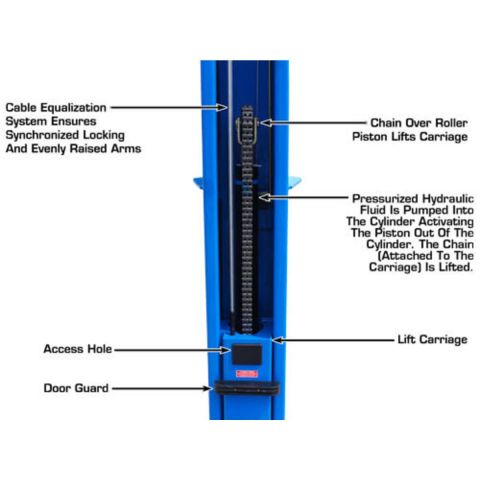

Dual Hydraulic Chain-Drive Cylinders
Welded Support Gussets for Extra Strength

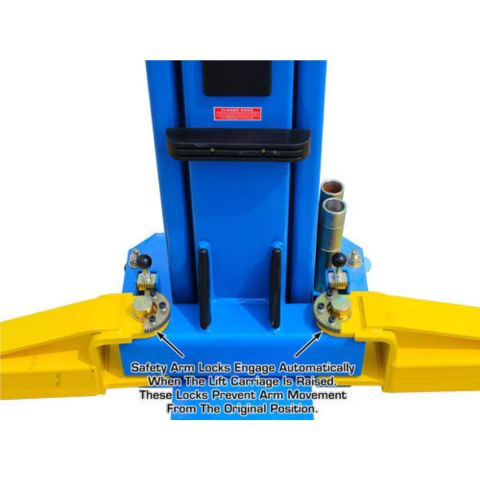

Automatic Arm Restraints
Durable Powder Coat Finish

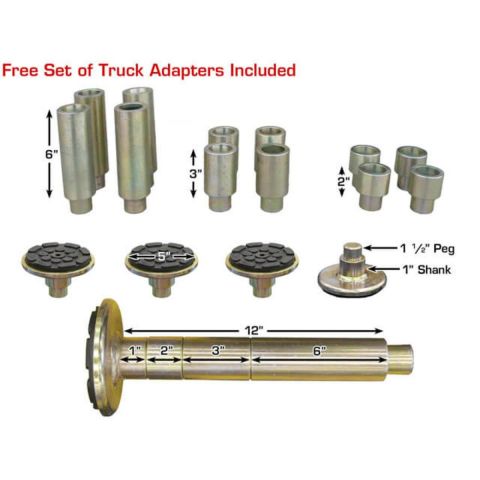

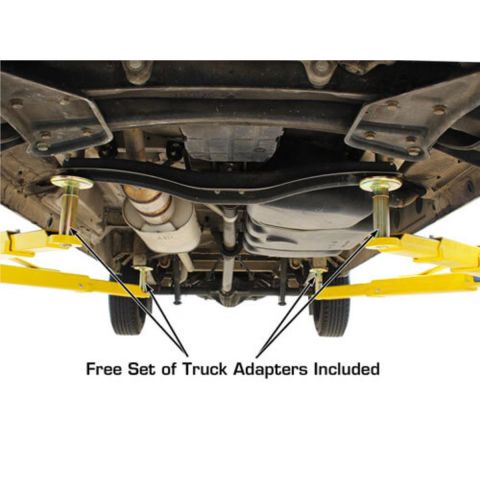

Free 12-Piece Truck Adapter Set

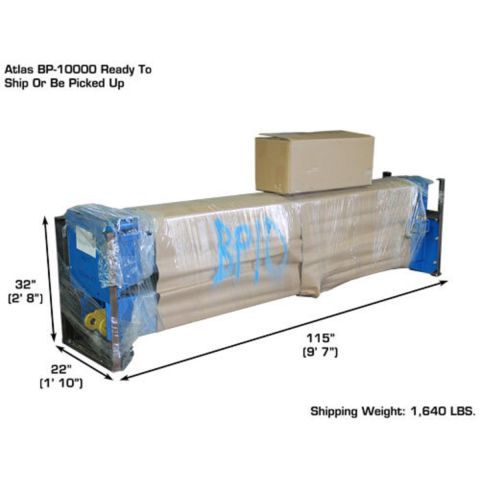

Shipping Weight: 1,640 lbs.
5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

Product Specifications
Capacity 10,000 LB.

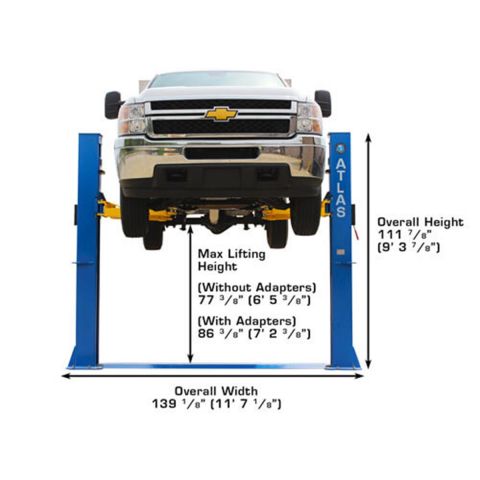

Overall Floor Width 139 1/8" (11' 7 1/8")
Outside Column to Column 134 1/2" (11' 2 1/2")

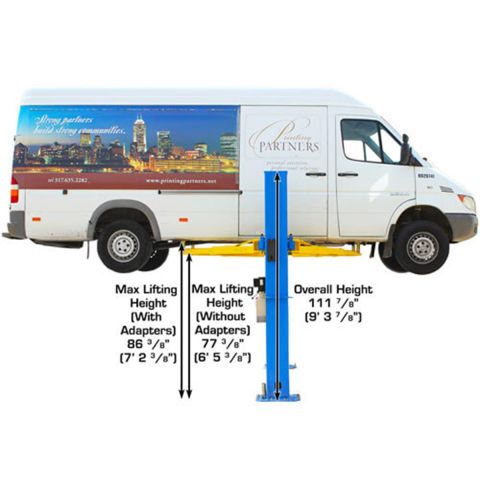

Max Lift Height (No Adapters) 77 3/8"
Max Lift Height (With Adapters) 86 3/8"
Minimum Arm Height 4"
Inside Column Height 112 1/4" (9' 4 1/4")
Drive Thru Clearance 101 1/4" (8' 5 1/4")

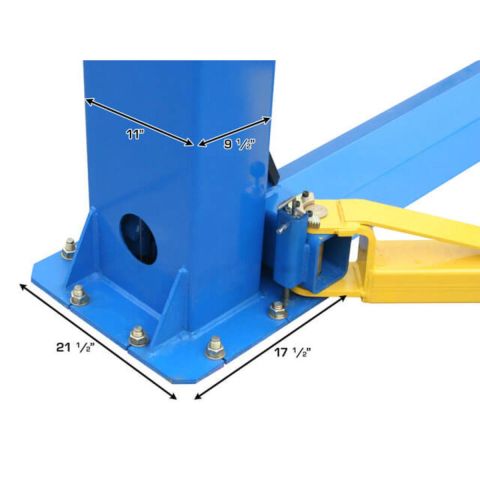

Column Dimensions 9 1/2" x 11"
Power Requirements 220V Single Phase, 30 Amp Breaker
Oil Requirement 3–5 Gallons AW32/AW46 (Not Included)
Adapter Heights 4 Each – 2", 3", 6"
Shipping Weight 1,640 LBS.
