Atlas BP8000 Baseplate 2 Post Lift 8,000 lb. Capacity

Atlas BP8000 Baseplate 2 Post Lift 8,000 lb. Capacity

Regular price Starting at $3,099.00
Regular price Sale price Starting at $3,099.00
Sold out
Regular price $3,099.00
Regular price Sale price $3,099.00
Sold out
Select Pickup or Delivery for final price.

Availability:  In Stock

Fulfillment
SKU: ATEATTD-BP8000
Vendor: Atlas
Category: Two Post Lift

Shipping

Shipping and fulfillment options vary by product. Most lifts and equipment include a flat-rate freight charge that is displayed on the product page or at checkout.

Certain oversized or specialized products require a custom freight quote due to size, weight, destination, or other delivery requirements. When a freight quote is required, it will be clearly identified on the product page.

For products marked “Freight Quote Required,” select the Freight Quote option on the product page or contact our team by phone or live chat. Submitting a freight quote request does not place an order or add the product to your cart.

View full product details

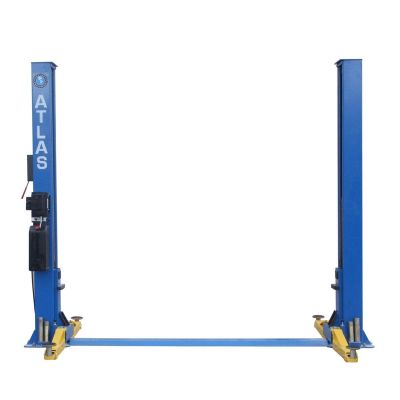

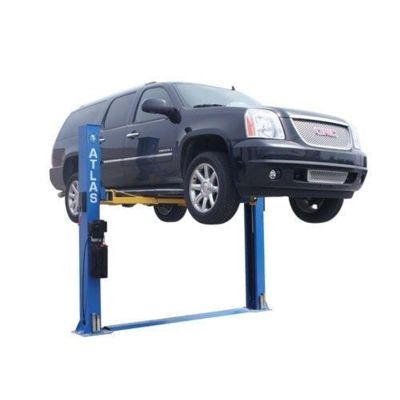

The Atlas® BP8000 is a hobbyist-grade baseplate two-post lift designed specifically for low-ceiling garages. With a total column height of just 108 inches, it's the ideal solution for residential or light-duty commercial applications where space is limited. Despite its compact size, the BP8000 includes premium features found on more expensive models—such as a single-point lock release, Super-symmetric arm design, and dual hydraulic chain-drive cylinders for stable lifting performance.

Its 8,000 lb. capacity is perfect for lifting most cars, SUVs, and light-duty trucks, while the included 12-piece truck adapter set makes servicing larger vehicles easier and safer. The BP8000 also features automatic arm restraints, a dual safety lock system, and a rugged powder coat finish for durability. If you're looking for a reliable lift that fits in a standard garage, the BP8000 delivers exceptional value and versatility.

Product Features
8,000 lb. Capacity
Designed for Low Ceiling Garages

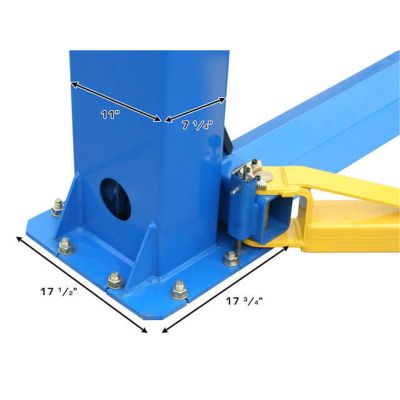

Baseplate, Open-Top Style

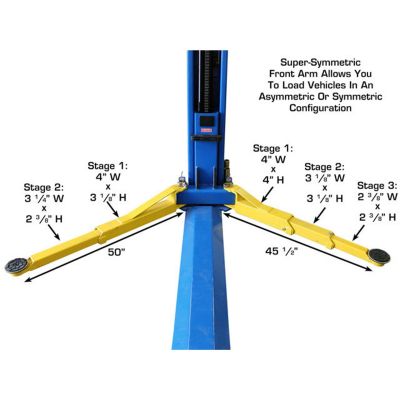

3-Stage Front / 2-Stage Rear Arms

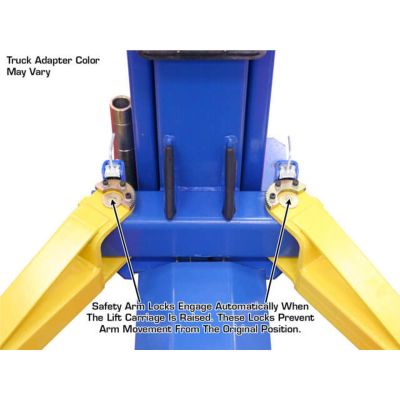

Automatic Arm Restraints
Single-Point Lock Release
Double Safety Lock System

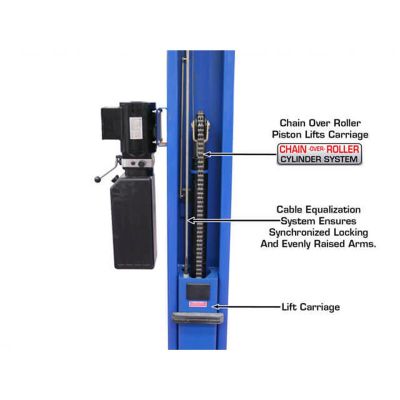

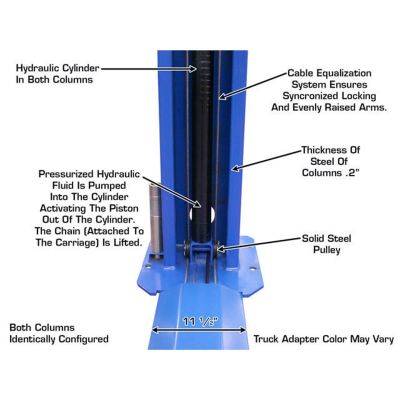

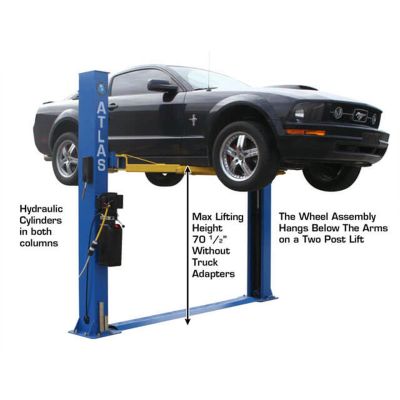

Dual Hydraulic Chain-Drive Cylinders

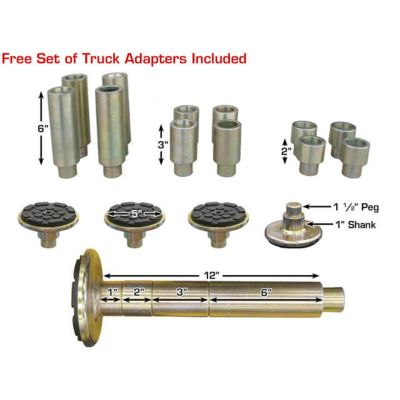

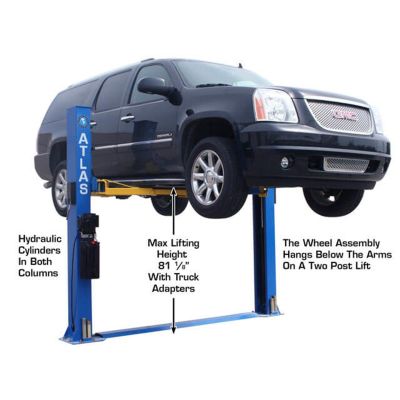

Includes 12-Piece Truck Adapter Set
Mounting Hardware Included
Powder Coat Finish
5 yr Structural / 2 yr Hydraulic Warranty

Product Specifications
Capacity 8,000 LB.
Outside Column to Column 124" (10' 4")

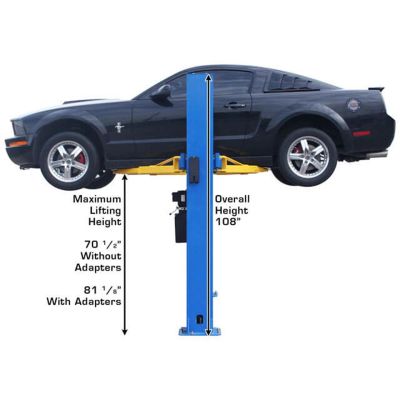

Maximum Lift Height (With Adapters) 86 1/2"
Inside Column Height 109 1/8" (9' 1 1/8")
Drive Thru Clearance 99" (8' 3")
Oil Requirement 3-5 Gallons AW32/AW46 (Not Included)

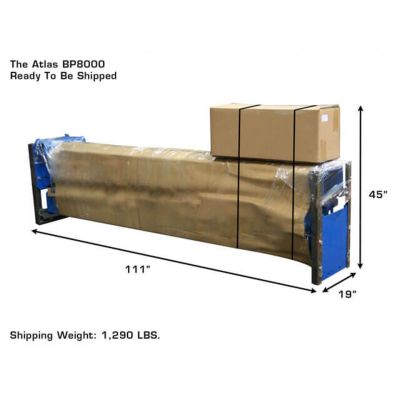

Shipping Weight 1,300 LBS.
