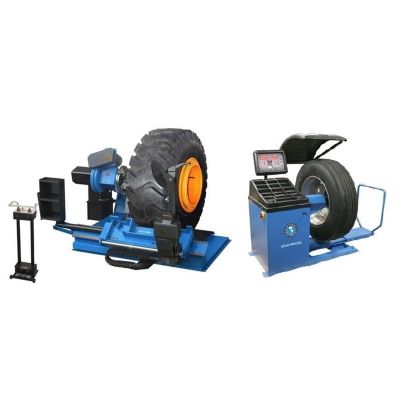

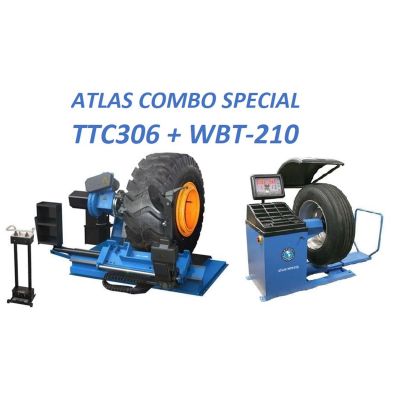

The Atlas® TC306 Tire Changer + WBT210 Wheel Balancer Combo is the ultimate heavy-duty package for truck, bus, agricultural, and off-road tire service. This combination is designed for professional shops and fleets requiring maximum capacity, reliability, and efficiency. The TC306 truck tire changer features a 2-speed hydraulic chuck, automatic bead tool and carriage positioning, and the ability to handle massive tires up to 98" in diameter and 53" wide. Paired with the WBT210 heavy-duty wheel balancer, this combo can handle everything from passenger car rims to 300 lb. semi-truck tires with exceptional accuracy and stability. Both machines are built for long-lasting performance in high-volume shop environments.
Atlas® TC306 Tire Changer - Product Features |
---|
2-Speed Hydraulic Chuck with 5 Rim Locking Positions |
Automatic movement of Bead Tool, Carriage, & Chuck Arm |
Handles rims from 14" to 56" and tires over 97" in diameter |
Accommodates tires up to 53" wide |
Electric/Hydraulic Self-Centering Four Jaw Chuck |
Heavy-duty Mount/Demount Head and Bead Breaker |
Optional wired mobile control unit available |
Includes alloy rim adapters, plastic protectors, and clamping extensions |
Atlas® WBT210 Wheel Balancer - Product Features |
---|
Balances car, light truck, and heavy-duty truck wheels up to 440 lbs |
Includes car/light truck and truck/bus cone sets |
Automatic start/stop when hood is lowered/raised |
Static and dynamic balancing modes with rapid optimization (OPT) |
Self-diagnosing and self-calibrating for easy maintenance |
Pneumatic wheel lift for safe heavy-wheel handling |
Includes plastic quick-release nut, steel wing nut, pliers, and caliper |
Atlas® TC306 Tire Changer - Product Specifications | |
---|---|
Max Tire Diameter | 98" (8' 2") |
Max Tire Width | 53" |
Rim Clamping Range | 14" - 46" (47" - 56" w/ extensions) |
Max Wheel Weight | 3,968 lbs |
Bead Breaker Force | 5,930 lbs |
Hydraulic Motor Power | 3 HP / 220V / 3-Phase |
Chuck Motor Power | 3.5-4 HP / 220V / 3-Phase |
Shipping Weight | 2,260 lbs |
Atlas® WBT210 Wheel Balancer - Product Specifications | |
---|---|
Max Tire Diameter | 47" |
Rim Size Range (Cars & Light Trucks) | 10" - 32" |
Rim Width | 1.5" - 20" |
Max Wheel Weight | 440 lbs |
Balancing Speed | 150 rpm (Car) / 90 rpm (Truck) |
Accuracy | 1g (Car) / 10g (Truck) |
Power Supply | 220V 1-Phase |
Shipping Weight | 725 lbs |
