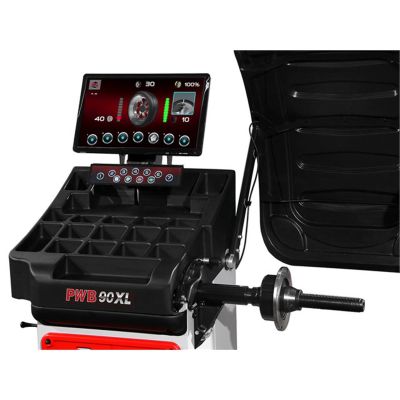

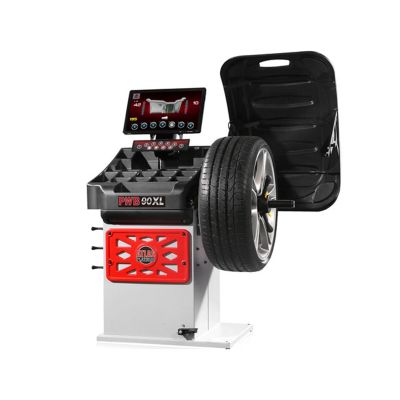

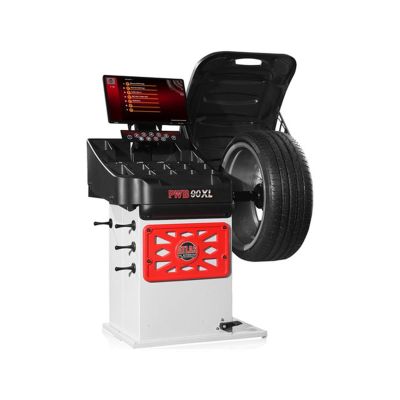

Atlas Platinum PWB90XL 3D Video Wheel Balancer with Laser Line

Atlas Platinum PWB90XL 3D Video Wheel Balancer with Laser Line

Regular price $4,849.00
Regular price Sale price $4,849.00
Sold out

AvailabilityLow stock: 25 left

SKU: ATEAP-PWB90XL
Vendor: Atlas
Category: Wheel Balancer

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

The Atlas® Platinum PWB90XL is the ultimate in wheel balancing precision, speed, and convenience. Built with advanced Italian engineering and high-end components, this premium machine features Super Automatic 3D Data Entry—using a single gauge for offset and diameter, and touchless sonar for rim width—eliminating the need for manual measurements. The integrated Laser Line ensures exact weight placement after spin, while the LED light illuminates the wheel interior for clear visibility. With intuitive software like OPTIMATCH for match-mounting and FES (Fast & Easy Split) for hiding weights behind spokes, the PWB90XL ensures zero/zero results the first time, every time. This balancer is built for professionals who demand top-tier performance, combining cutting-edge features with the unbeatable value Atlas® is known for.

Product Features
Platinum 3D Video Motorized Spin Balancer

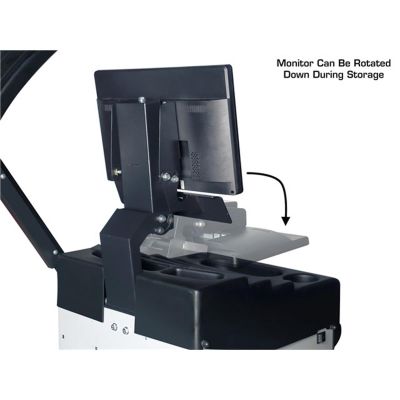

High-Resolution Video Monitor Display
Super Automatic 3D Data Entry with Touchless Sonar
Laser Line for Precise Weight Placement

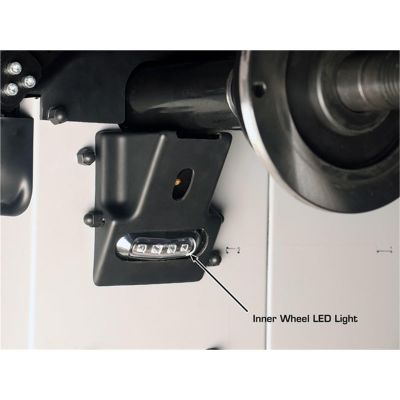

LED Light to Illuminate Wheel Interior
Static & Dynamic Balancing Modes
Optimatch, FES (Split), and OPF (Opposite Position) Functions
Special ALU-S and Other ALU Programs
Self-Diagnosing and Self-Calibrating
No Anchor-Down Installation Needed
Includes: Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, Measuring Calipers
2 Year Parts Only Warranty

Product Specifications
Max Tire Diameter 43"
Rim Sizes 10" – 30"
Rim Width 1 1/2" – 20"
Shaft Size 40mm
Max Wheel Weight 165 lbs.
Balancing Speed 130 RPM
Data Entry Super Automatic 3D
Measurement Standard or Metric
Accuracy 1 gram
Weight Position Resolution 1.4 Degrees
Self Calibration Yes
Cycle Time 7 Seconds
Power Supply 110V
Shipping Weight 290 lbs.
