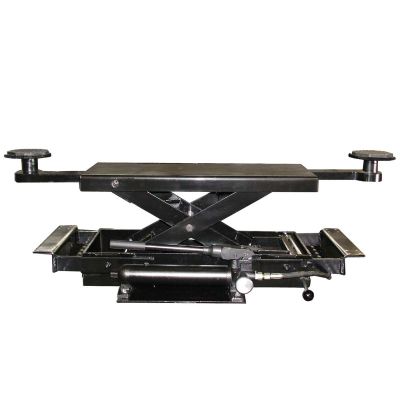

The Atlas® PROJACK35 Sliding Bridge Jack is a compact, manual hydraulic jack designed for hobbyist and light-duty four-post lifts. With a 3,500 lb. capacity, this sliding bridge jack is perfect for performing wheel service and suspension work on vehicles positioned on top of your four-post lift. Its adjustable telescoping arms extend over the lift runways, allowing access to a wide range of lifting points, far beyond the limitations of a standard jack tray.
Engineered for ease of use, the PROJACK35 features a low-profile, compact design, a scissor-style lift mechanism for level lifting, and multiple safety lock positions. The included truck adapter set increases lift pad height to handle pickups and larger vehicles, while the manual hand pump operation eliminates the need for an external air supply. Whether you’re working on your Atlas® Garage PRO8000, ALI Certified APEX8/APEX9, or other compatible four-post lifts, this bridge jack is a versatile and reliable solution for your shop or garage.
| Product Features |
|---|
| 3,500 lb. lifting capacity |

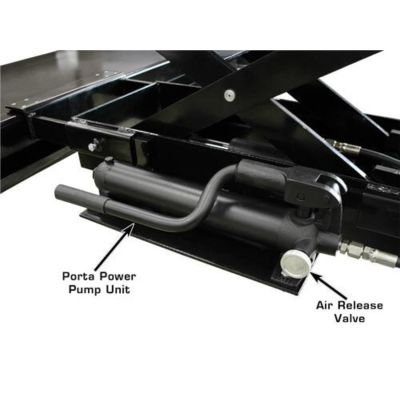

| Manual, hand pump operated – no air supply required |
| Compact, low-profile design with smooth rolling action |
| Scissor mechanism for level lifting |
| Adjustable width to fit many 4-post lifts |
| Adjustable lift arms for multiple lifting points |
| Multiple safety lock positions |

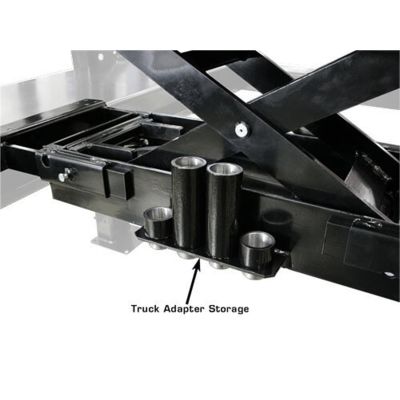

| Includes 4-piece truck adapter set |
| 1-year parts-only warranty |
|
 |
| Product Specifications | |
|---|---|
| Capacity | 3,500 lbs |

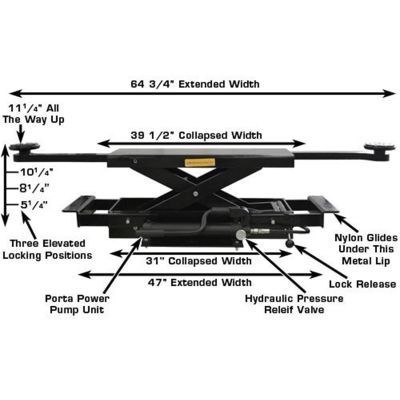

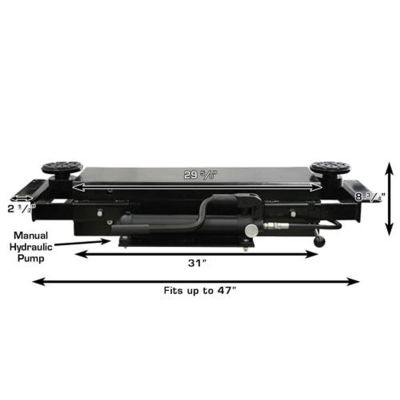

| Lower Extension Width (Between Runways) | 20 1/2" - 47" |

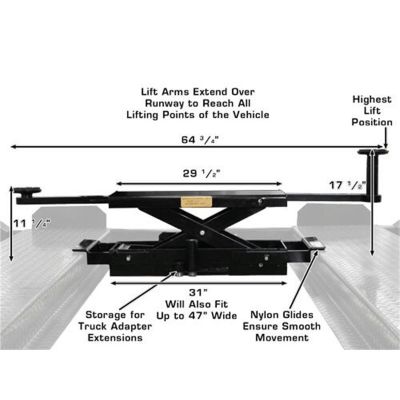

| Top Width (Arms Retracted/Extended) | 39 1/2" - 64 3/4" |

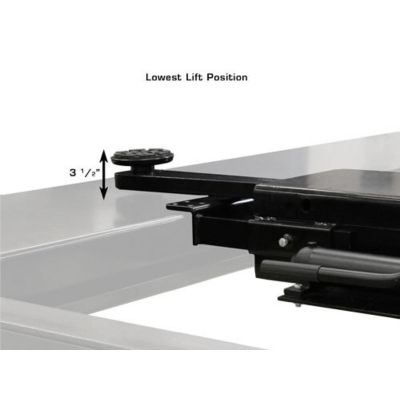

| Minimum Pad Height Above Runway | 3 1/2" |
| Max Height Raised (w/o Adapter) | 11" |
| Max Height Raised (w/ Adapters) | 17 1/4" |

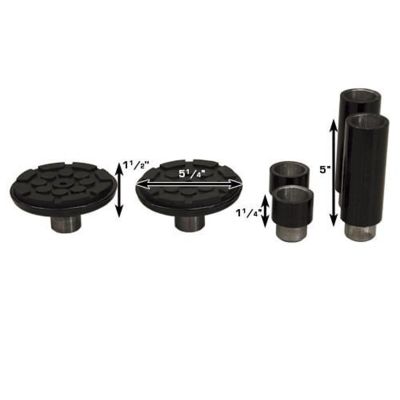

| Adapter Heights | 2 Each: 1 1/2", 5" |
| Arm Hole/Adapter Peg Size | 1 1/2" |

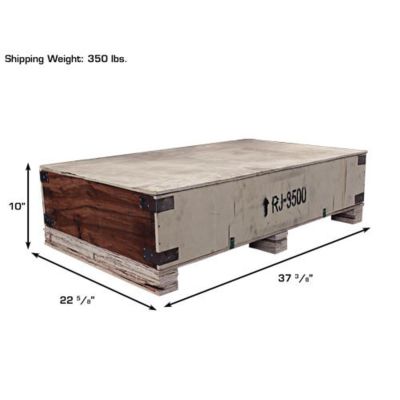

| Shipping Weight | 350 lbs |
