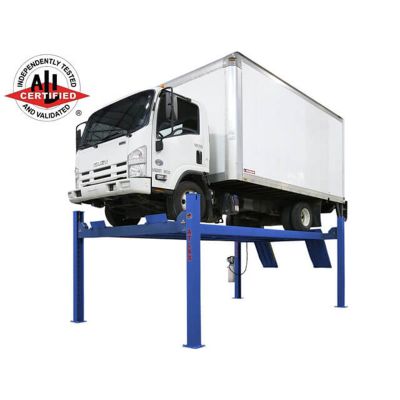

The Atlas® Platinum PVL-14 is a true commercial-grade four-post lift engineered for professional automotive shops and serious DIYers who demand top-tier performance. With an ALI Certified 14,000 lb. lifting capacity, the PVL-14 is built to accommodate a wide range of vehicles—from sedans and SUVs to light and medium-duty commercial trucks. Its extra-long, extra-wide, and extra-tall design provides unmatched flexibility and efficiency in any garage setup. Featuring a premium ALLY power unit, advanced lock ladder system, and the capability to support rolling bridge jacks, this lift combines safety, durability, and high-end performance in one heavy-duty package.
| Product Features |
|---|

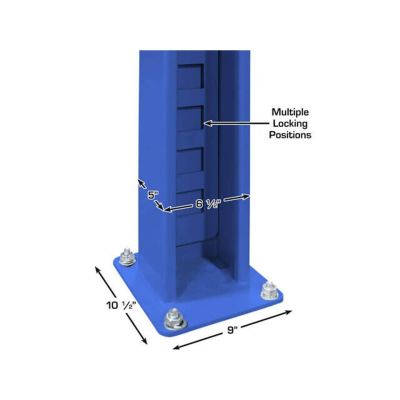

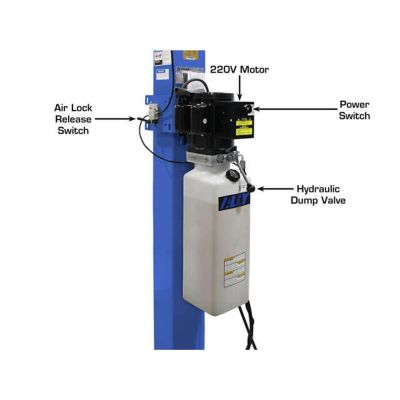

| ALI Certified with a 14,000 lb. capacity. Designed for commercial use with a heavy-duty build, adjustable lock ladder, and an ALLY certified power unit. Extra-tall and extra-wide to accommodate large vehicles, with included steel approach ramps and mounting hardware. Features an air-operated single-point lock release, powder coat finish, and tracks between runways for optional bridge jack use. |
| Product Specifications | |
|---|---|
| Capacity | 14,000 lb. |

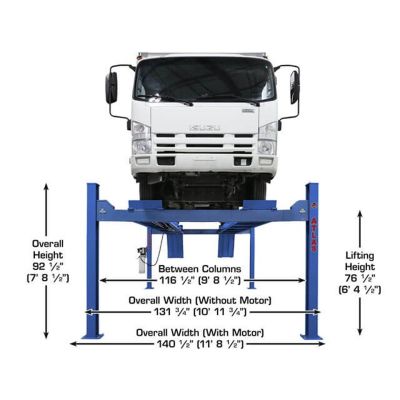

| Lifting Height | 76 1/2" (6' 4 1/2") |

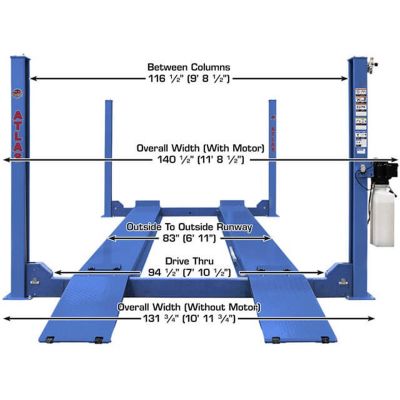

| Overall Width (Without Motor) | 131 3/4" (10' 11 3/4") |
| Overall Width (With Motor) | 140 1/2" (11' 8 1/2") |

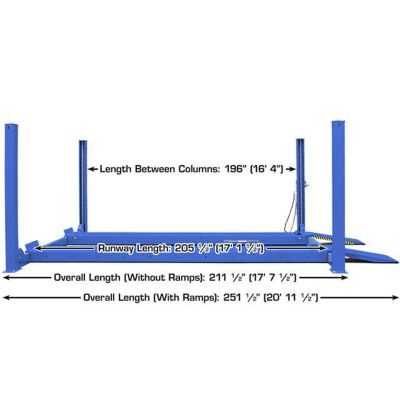

| Overall Length With Ramp | 251 1/2" (20' 11 1/2") |
| Length Between Columns | 196" (16' 4") |

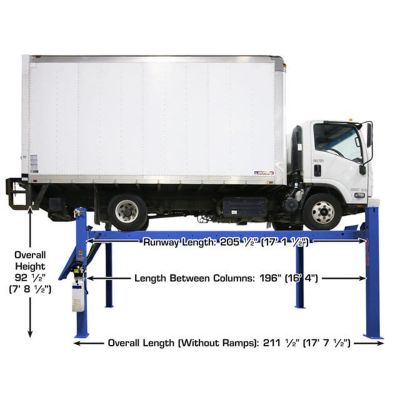

| Runway Length | 205 1/2" (17' 1 1/2") |

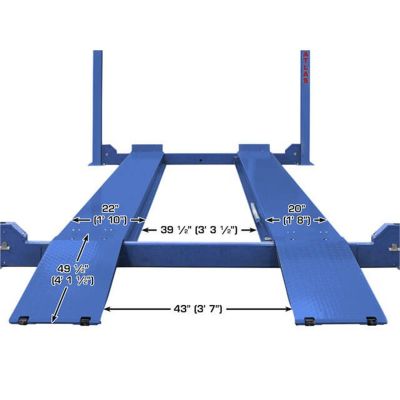

| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway to Runway | 83 1/8" (6' 11 1/8") |

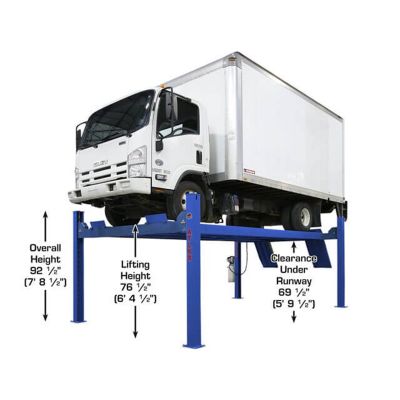

| Clearance Under Runways | 69 1/2" (5' 9 1/2") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |
| Height of Columns | 92 1/2" (7' 8 1/2") |
| Maximum Wheel Base | 195" (16' 3") |
| Drive Thru Width | 94 1/2" (7' 10 1/2") |
| Air Requirement | 85-115 PSI (External Supply) |
| Motor/Electrical | 220V, 1-Phase, 30 AMP Breaker |
| Oil Requirement | 3–5 Gal. AW32/AW46 (Not Included) |

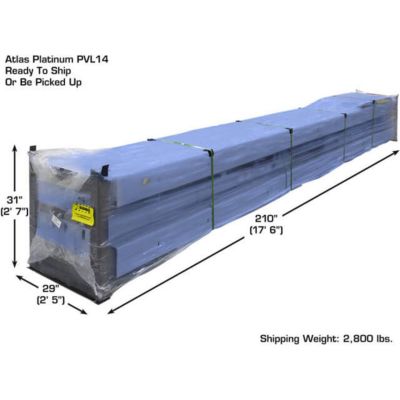

| Shipping Weight | 2,800 lbs. |
| Concrete Requirement | 6" Minimum Thickness at 3000 PSI |
