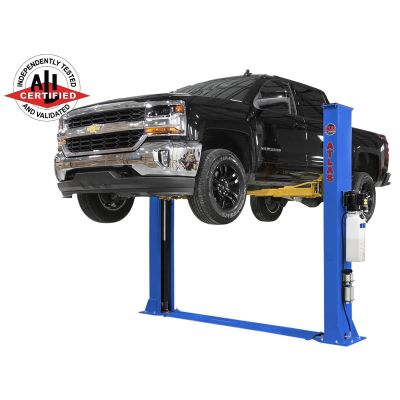

The Atlas® Platinum PVL9BP is an ALI Certified, baseplate-style two-post lift designed for commercial-grade performance in low ceiling environments. With a 9,000 lb. lifting capacity and an open-top design, this lift provides full versatility for both home garages and busy professional shops. The PVL9BP is built to handle everything from standard passenger vehicles to full-size pickups and light commercial vans.

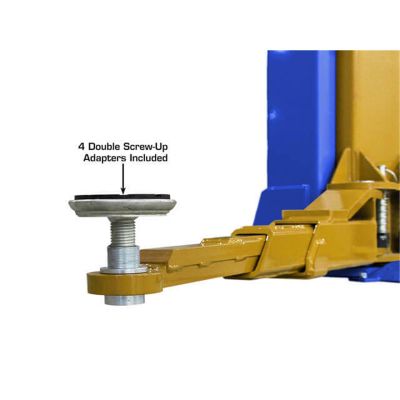

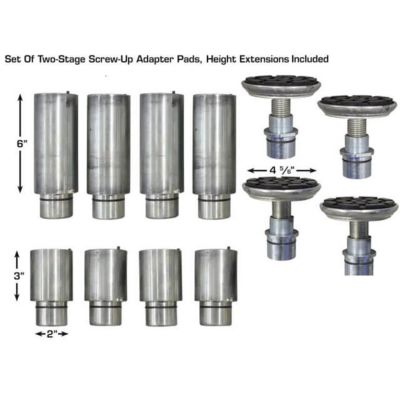

This Platinum model features a robust dual hydraulic chain-drive cylinder system, a Secondary Lock System (SLS), and three-stage symmetric arms for balanced lifting. The dual-point lock release and automatic arm restraints ensure maximum safety during operation. The included truck adapter set and double screw-up adapters allow precise lifting for a wide range of vehicle frame designs.

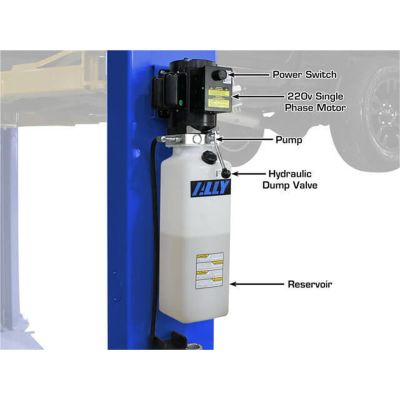

Equipped with the premium ALLY Power Unit, this lift delivers steady torque throughout the lifting cycle. This unit is MET-certified for both U.S. and Canadian standards and comes with a two-year limited warranty. If you're seeking reliability, strength, and ALI Certified safety features in a baseplate lift for a low-ceiling garage, the Atlas® Platinum PVL9BP delivers exceptional performance at a great value.
| Product Features | |
|---|---|
| ALI Certified & Commercial Grade | |
| 9,000 lb. Capacity | |

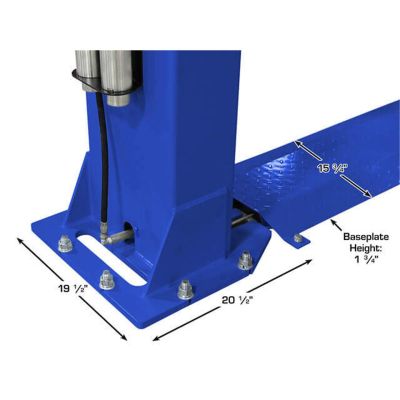

| Baseplate Design for Low Ceilings | |

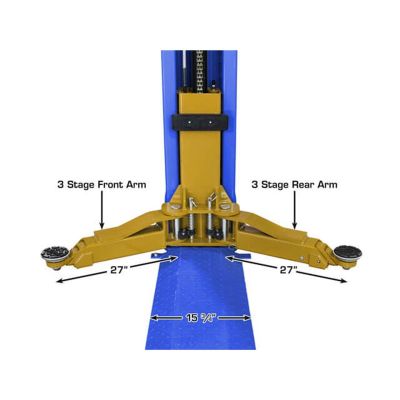

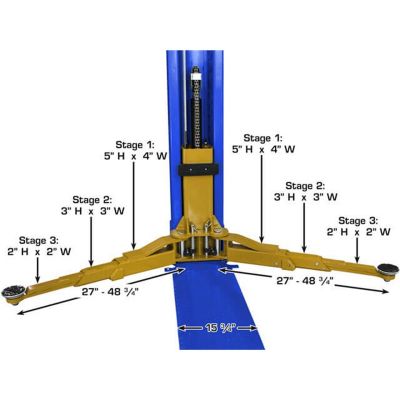

| 3-Stage Symmetric Arms | |
| Dual Hydraulic Chain-Drive Cylinders | |
| Premium ALLY Power Unit (MET Certified) | |
| Free 8-Piece Truck Adapter Set Included | |
|
 |
| Product Specifications | |
|---|---|
| Capacity | 9,000 LB |

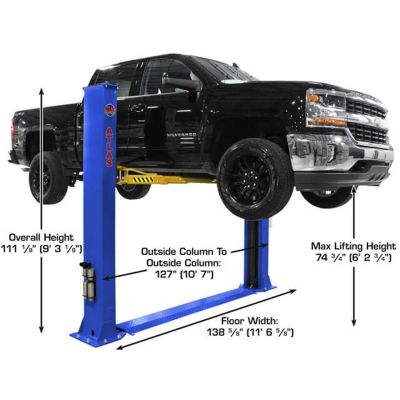

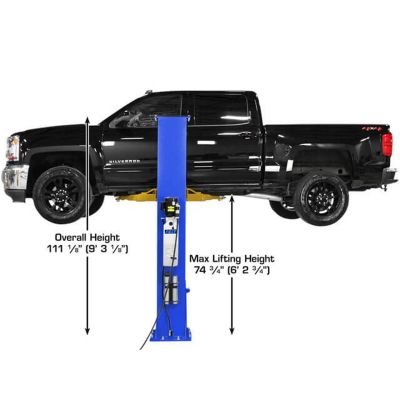

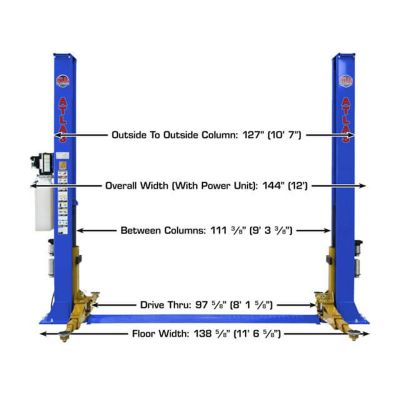

| Overall Height | 111 1/8" (9' 3 1/8") |

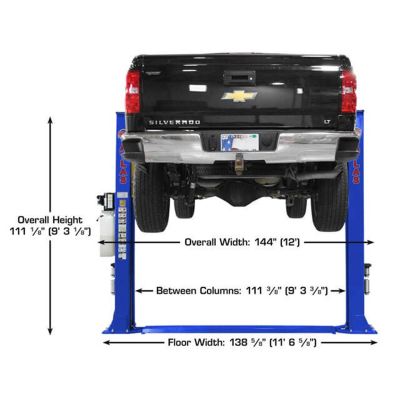

| Floor Width | 138 5/8" (11' 6 5/8") |
| Drive Thru Clearance | 97 5/8" (8' 1 5/8") |
| Max Lift Height (With Adapters) | 83 3/4" |
| Motor/Electrical | 220V Single Phase (30 Amp Recommended) |

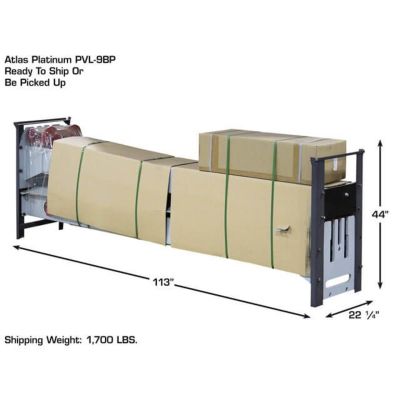

| Shipping Weight | 1,700 lbs. |
