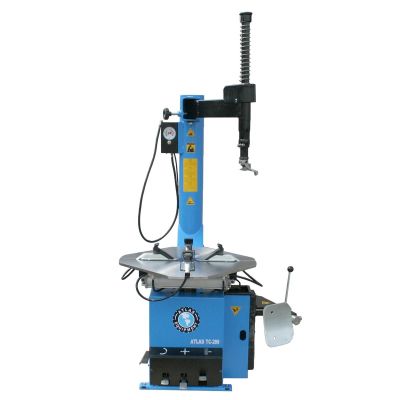

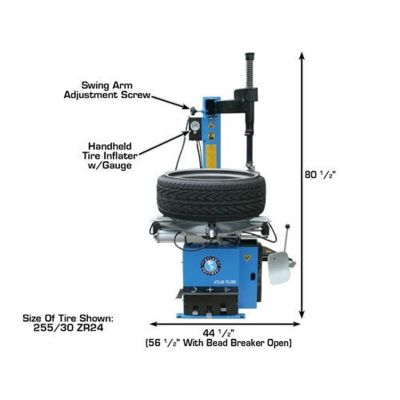

The Atlas TC289 Extra Large Rim-Clamp Tire Changer is a powerful and versatile machine built for general automotive shops, tire service centers, farms, and even serious DIYers. Designed with an oversized turntable and extra clearance, the TC289 easily accommodates the largest SUV and one-ton truck tires. With three adjustable jaw positions and a massive clamping range, this machine handles a wide variety of steel, aluminum, and alloy wheels.
Featuring an air-operated bead breaker, electric turntable, and built-in "Beadblaster" inflation system, the TC289 delivers efficient, damage-free mounting and demounting of even the toughest sidewall tires. It includes essential accessories such as an inflator box with pressure gauge, filter/regulator/lubricator system, lube bucket with brush, tire tool, and protective plastic covers for jaws and bead breaker shovel. With its metal mount/demount head and optional motorcycle/ATV adapters, the TC289 is built for flexibility and long-term reliability in any setting.
| Product Features |
|---|
| Large rim-clamp swing arm design |
| Extra-large turntable for maximum tire clearance |

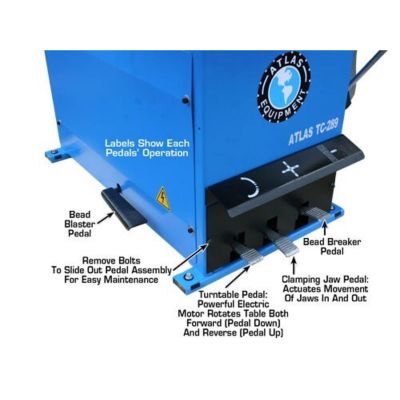

| Air-operated jaws and bead breaker (external air required) |
| Electric turntable with 885 ft/lbs torque |
| Adjustable jaws with three mounting positions |

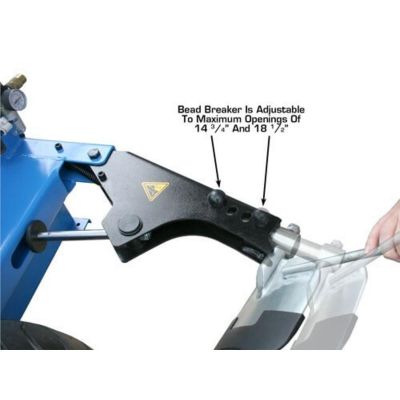

| Adjustable bead breaker plate (5,500 lb. force) |
| Metal mount/demount head with metal roller or plastic inserts |
| Inflator box with pressure gauge mounted on column |
| Filter, regulator, and lubricator included |
| Includes 20" tire tool, lube bucket with brush, and plastic jaw/shovel covers |

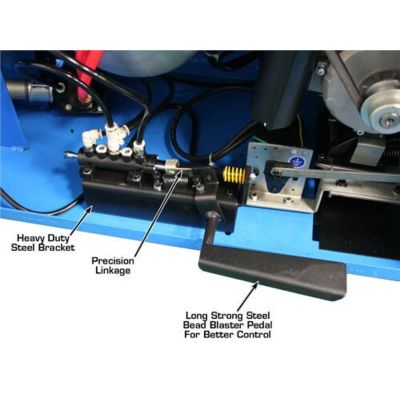

| Built-in "Beadblaster" system for difficult tire inflation |

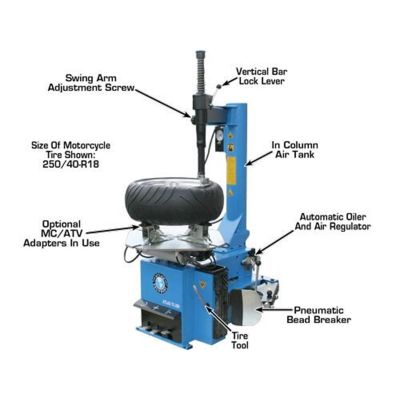

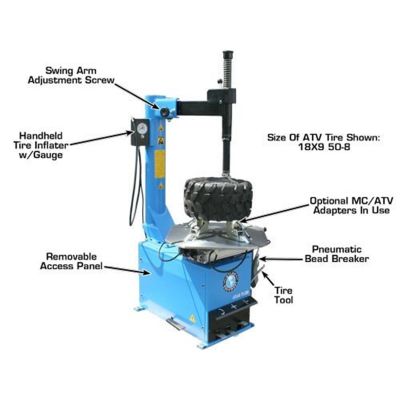

| Motorcycle and ATV adapters available (sold separately) |
| 1-Year Parts Only Warranty |
|
 |
| Product Specifications | |
|---|---|

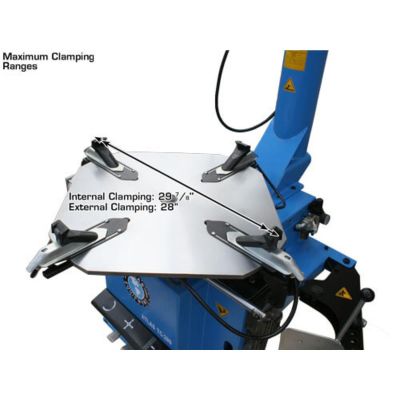

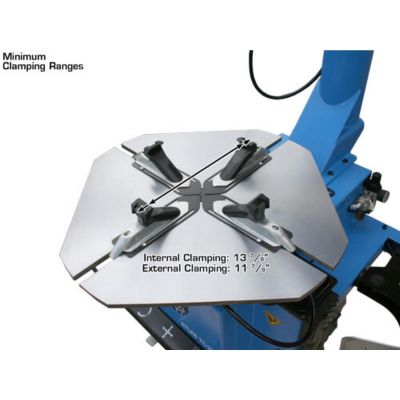

| External Rim Clamping Range: | 11 7/8" – 28" (3 positions) |
| Internal Rim Clamping Range: | 13 7/8" – 29 7/8" (3 positions) |
| Maximum Tire Diameter: | 47" |
| Maximum Wheel Width: | Up to 18.5" |
| Turntable Motor: | 1 HP |
| Air Requirement: | 90–110 PSI (Max 140 PSI) |
| Operating Voltage: | 110V |
| Shipping Weight: | 620 lbs. |
