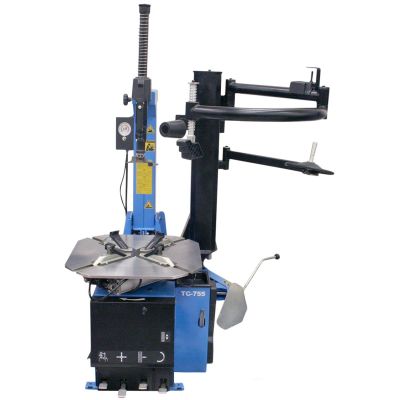

The Atlas® TC755EZ Tilt-Back Rim-Clamp Tire Changer is a premium machine built for high-volume tire shops and large dealerships. Designed for speed, power, and safety, the TC755EZ features a tilt-back column with pneumatic locking for fast tire mounting and dismounting. This model includes the versatile E-Z Assist Arm—combining a lifting disk, bead roller, and pressing block—making it ideal for tackling stiff sidewall and low-profile tires with minimal effort. With a wide clamping range and an extra-large turntable, it easily accommodates wheels up to 29 7/8" internally and 27 7/8" externally.
The built-in Beadblaster inflates difficult tires in seconds, while the powerful bead breaker and air-operated jaws ensure smooth operation with maximum protection for rims. The TC755EZ comes fully equipped with metal mount/demount head (with optional plastic inserts), inflator box, air filter/regulator/lubricator, and protective plastic covers—making it one of the most complete tire changers in its class.
Whether you're changing standard, aluminum, or chrome wheels, the Atlas® TC755EZ delivers the performance and reliability professionals demand.
| Product Features |
|---|

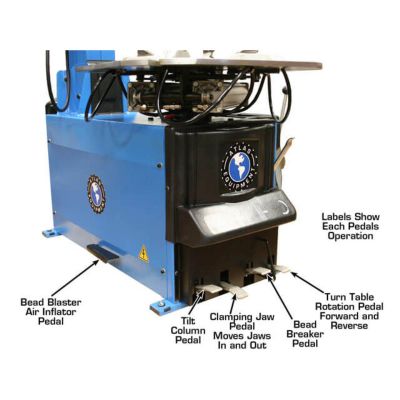

| Tilt-Back Column with Foot Control |

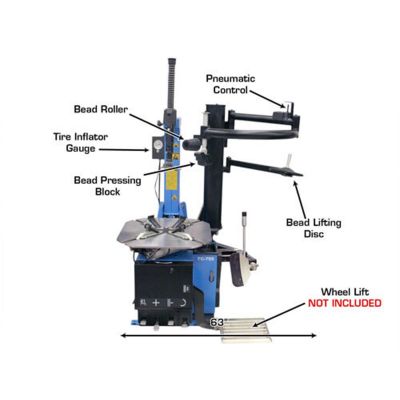

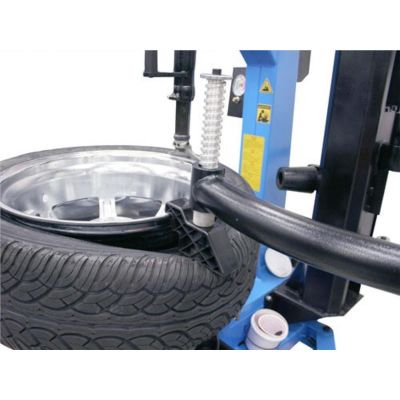

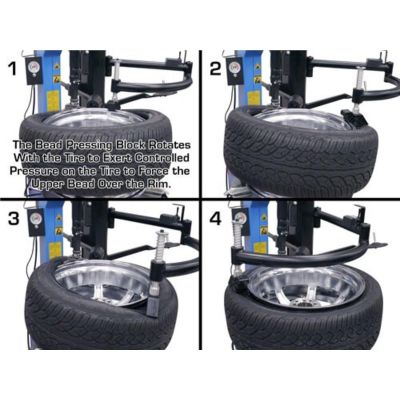

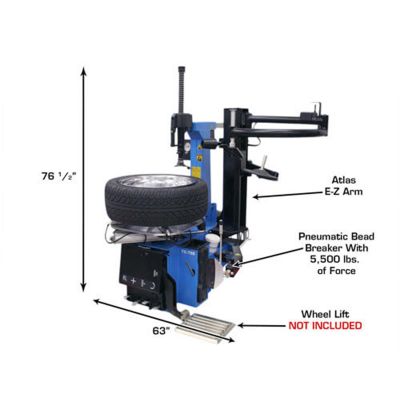

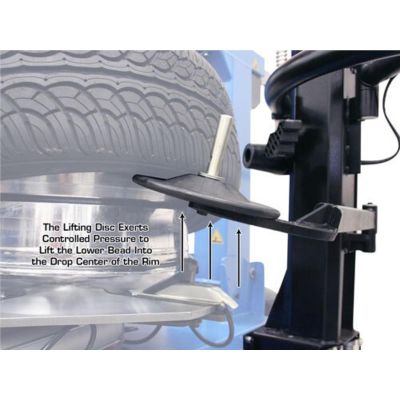

| EZ Assist Arm with Lift Disc, Bead Roller, and Pressing Block |
| Extra-Large Turntable for Larger Wheel Clearance |
| Air Operated Jaws and Bead Breaker (External Air Supply Required) |
| Electric Turntable with Adjustable Jaws (3 Mounting Positions) |
| Built-in Beadblaster Inflation System |
| Metal Mount/Demount Head with Optional Plastic Inserts |
| Includes Lube Bucket, Tire Tool, Filter/Regulator/Lubricator |
| Jaw Covers, Bead Breaker Cover, and Replacement Inserts Included |
| Rim-Friendly for Steel, Aluminum, and Alloy Wheels |
| 1 Year Parts Only Warranty |
|
 |
| Product Specifications | |
|---|---|
| External Rim Clamping Range | 11 7/8" – 27 7/8" |
| Internal Rim Clamping Range | 13 7/8" – 29 7/8" |
| Maximum Tire Diameter | 47" |

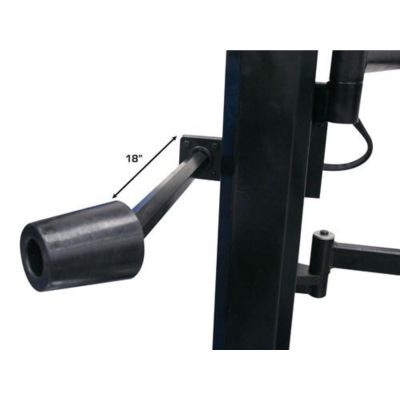

| Maximum Wheel Width (Bead Breaker) | 18" |

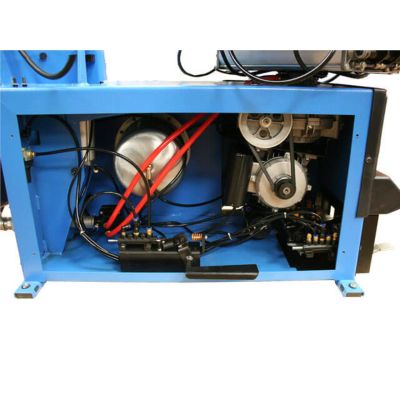

| Turntable Motor | 1 HP |
| Turntable Torque | 885 ft/lbs |

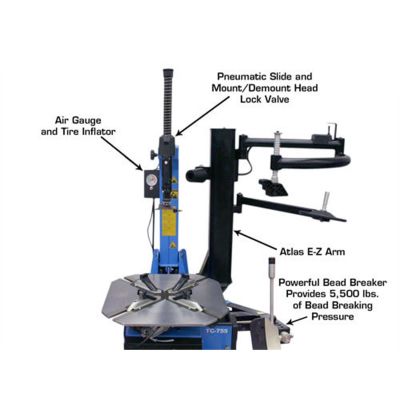

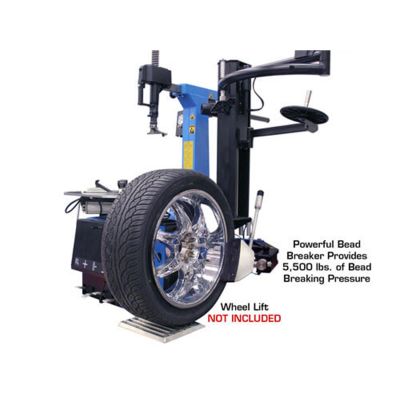

| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Max 140 PSI) |
| Voltage | 110V |
| Shipping Weight | 900 lbs |
