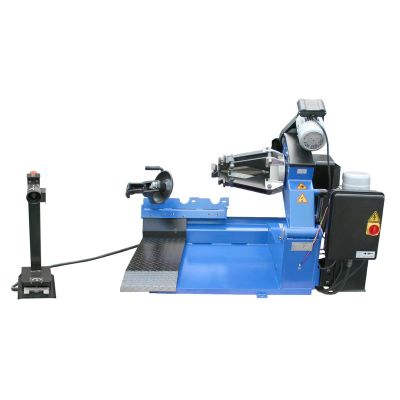

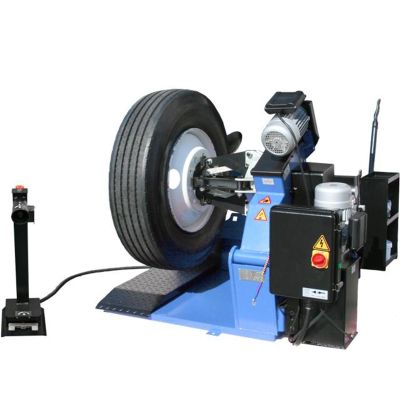

The Atlas® TTC301 Truck Tire Changer is built to handle the toughest and largest truck, bus, and agricultural tires with ease. With a rugged single-piece frame, hydraulic self-centering chuck, and wired remote control, this machine offers both strength and precision. Capable of servicing rims from 13" to 27" and tires up to 63" in diameter and 30.5" wide, the TTC301 is engineered for high-volume commercial shops and fleet maintenance facilities that demand performance and reliability. This unit includes essential accessories like rim clamps for steel and alloy wheels, an alloy rim adapter set with plastic inserts, and a heavy-duty tire tool to tackle even the most challenging jobs. If your shop regularly works with heavy-duty over-the-road truck tires or large farm equipment, the Atlas TTC301 delivers consistent, professional results every time.
| Product Features |
|---|
| Handles rims from 13" to 27" |
| Accommodates tire diameters over 63" |
| Max tire width: 30.5" |
| Electric/Hydraulic 4-Jaw Self-Centering Chuck |
| 5 Rim Locking Positions |
| Manual Mount/Demount Head |
| Wired Mobile Control Unit |
| Includes Heavy-Duty Tire Tool & Rim Adapters |
| Includes Plastic Inserts for Alloy Protection |
| Built for High Volume Truck Tire Shops |
| 1-Year Parts Only Warranty |
| Product Specifications | |
|---|---|
| Rim Clamping Range | 13" - 27" |
| Min Clamping w/ Adapters | 6 3/8" |
| Max Tire Diameter | 63" |
| Max Tire Width | 30.5" |
| Max Wheel Weight | 3,300 lbs. |
| Clamping Power | 6,614 lbs. |
| Bead Breaker Force | 4,112 lbs. |
| Hydraulic Motor Power | 2 HP (220V, 1PH) |
| Chuck Motor Power | 3 HP (220V, 1PH) |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Operating Pressure | 0 - 1885 PSI |
| Acoustic Pressure | 70 dBA |
| Shipping Weight | 1,390 lbs. |
