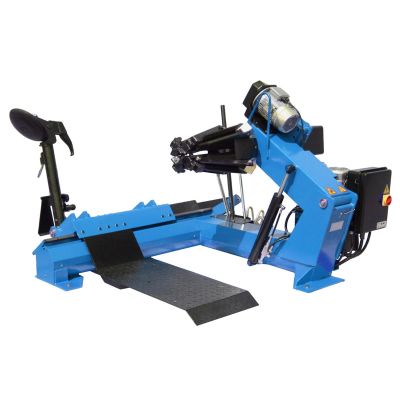

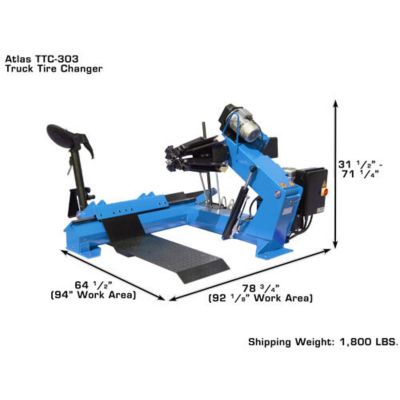

The Atlas® TTC303 Super Duty Truck Tire Changer is built to handle the biggest and toughest commercial, agricultural, and off-road tires with ease. Designed for high-volume truck tire shops and fleet service centers, this machine accommodates rims from 14" to 56" and tire diameters exceeding 90 inches, with a max tire width of up to 42 inches. Featuring an electric/hydraulic self-centering four-jaw chuck, five rim locking positions, and a wired mobile control unit, the TTC303 delivers powerful and precise performance in any demanding shop environment.
Its durable single-piece frame construction and solid floor plate offer unmatched stability, while the heavy-duty bead breaker and included tire tool simplify even the most stubborn tire removals. The TTC303 also comes standard with alloy rim adapters with plastic inserts and rim clamps for both steel and alloy wheels. With its 220V single-phase power setup and industrial-grade hydraulic and chuck motors, this machine is ideal for shops looking to expand their capabilities to super single, skidder, and agricultural tires. Built through a joint venture between top Italian and Asian manufacturers, the Atlas TTC303 stands as one of the most robust tire changers on the market today.
Product Features |
---|
Super Duty Truck Tire Changer |
Handles rims from 14" to 56" and tire diameters over 90" |
Accommodates tires up to 42" wide |

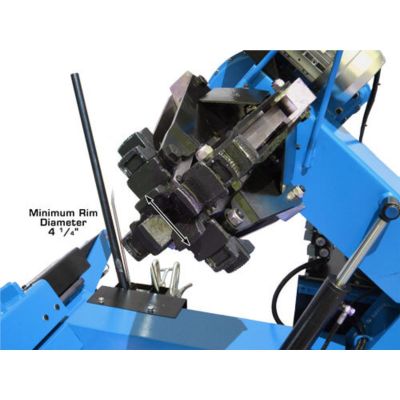

Electric/Hydraulic Self-Centering Four Jaw Chuck |
5 Rim Locking Positions |

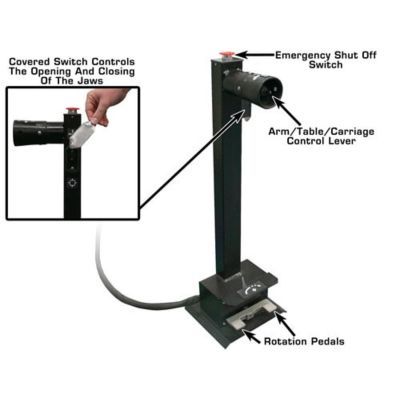

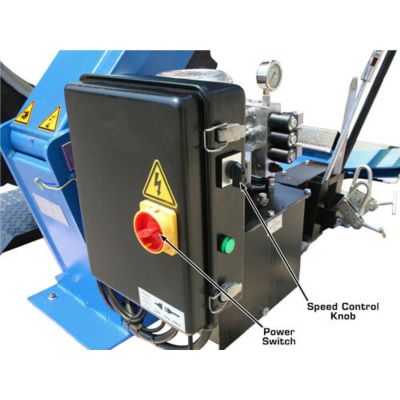

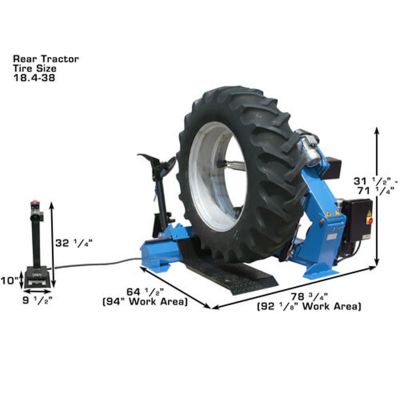

Wired Mobile Control Unit |

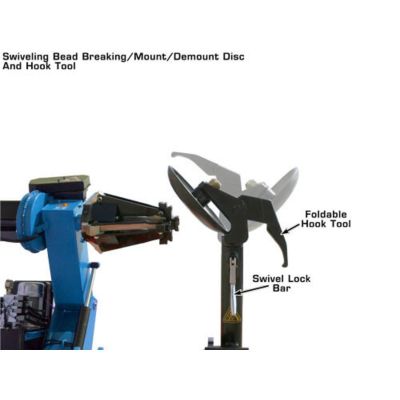

Bead Breaker and Mount/Demount Head |

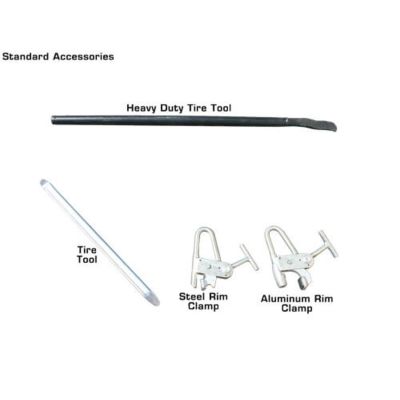

Heavy-Duty Tire Tool Included |
Rim Clamps for Steel and Alloy Wheels |
Alloy Rim Adapter Set w/ Plastic Inserts |

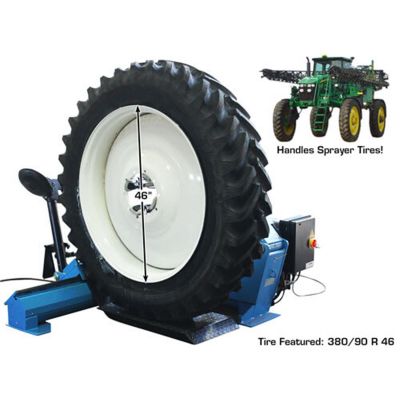

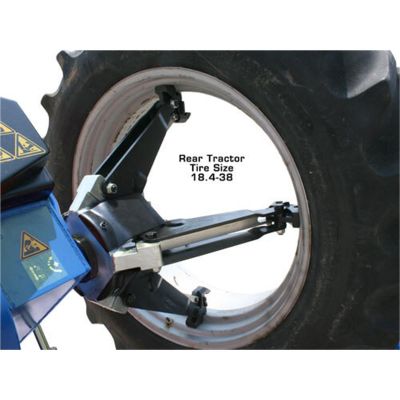

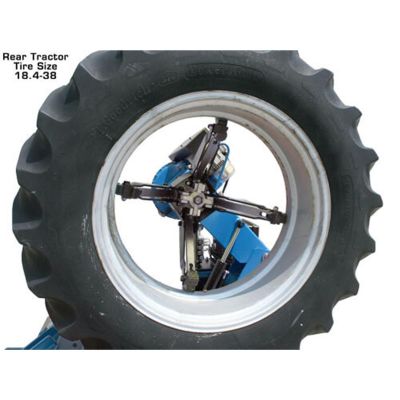

Built for Off-Road, Skidder, and Ag Tires |
1-Year Parts Only Warranty |
Product Specifications | |
---|---|
Max Tire Diameter | 90 1/2" (7' 6 1/2") |
Max Tire Width | 42" |

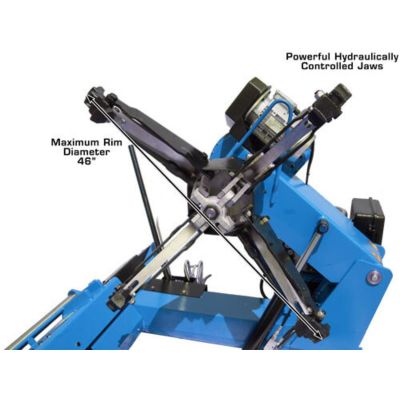

Rim Clamping Range | 14" - 46" |

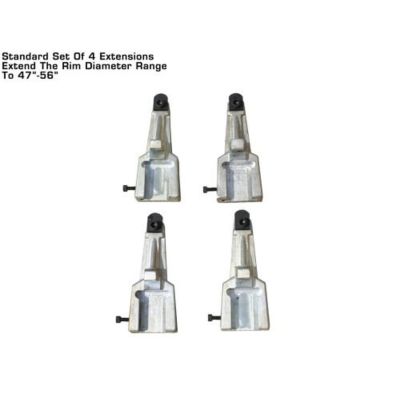

Rim Clamping w/ Extensions | 47" - 56" |
Max Wheel Weight | 3,300 lbs. |
Clamping Power | 13,173 lbs. |
Bead Breaker Force | 5,930 lbs. |
Operating Pressure | 0 - 1885 PSI |
Acoustic Pressure | <70 dBA |
Hydraulic Motor Power | 2 HP, 220V, 1 Phase |
Chuck Motor Power | 2 HP, 220V, 1 Phase |
Tool Arm / Head Positioning | Manual |
Construction | Single-Piece Frame w/ Solid Floor Plate |

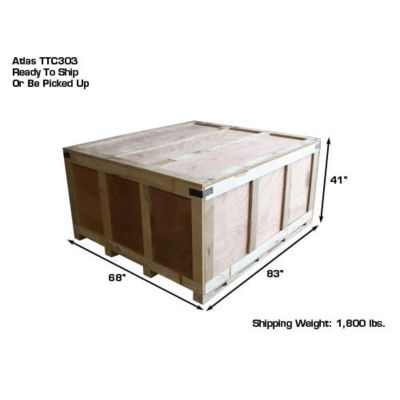

Shipping Weight | 1,800 lbs. |
