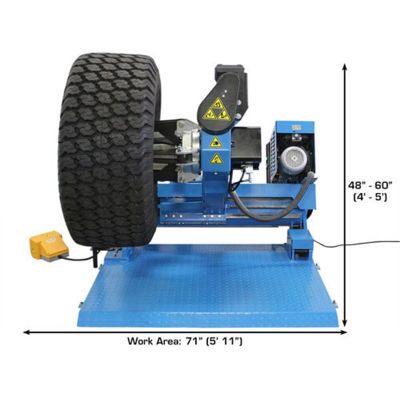

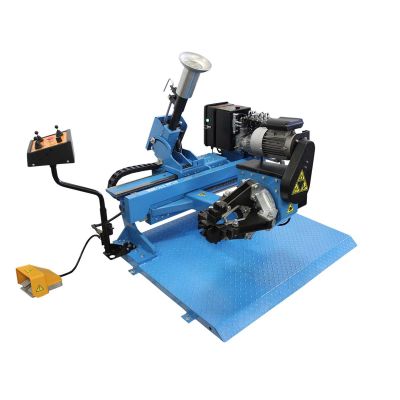

The Atlas® TTC305A is a fully automatic heavy-duty truck tire changer built for high-volume commercial tire shops. Capable of handling rims from 8" to 26" and tire diameters over 55", this tire changer is engineered for maximum efficiency, precision, and power. Designed in collaboration with leading Italian and Asian manufacturers, the TTC305A eliminates the need for manual tire irons with its advanced automatic positioning of the bead tool, carriage, and chuck arm. It’s the ideal solution for semi-truck, forklift, and 19.5 tire applications.
| Product Features |
|---|
| Fully automatic truck tire changer |
| Handles rims from 8" to 26" |
| Tire diameter capability in excess of 55" |
| Accommodates tires up to 30 1/2" wide |

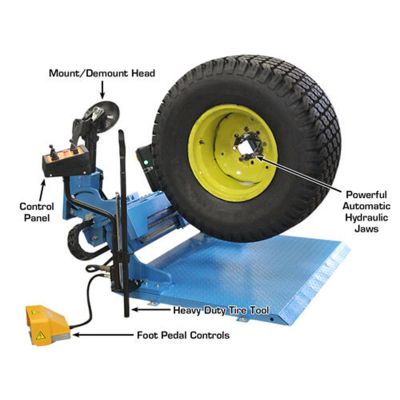

| Automatic movement of bead tool, carriage & chuck arm |

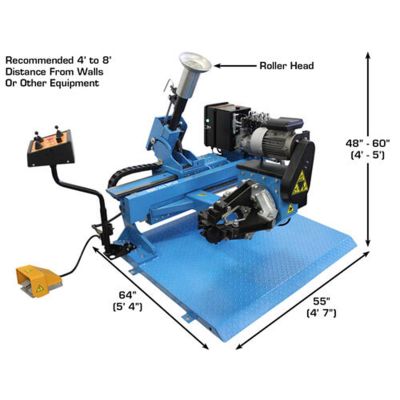

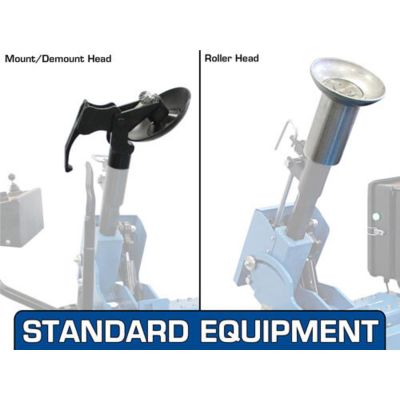

| Interchangeable mount/demount and roller heads |
| Electric/hydraulic self-centering four-jaw chuck |
| Five rim locking positions |

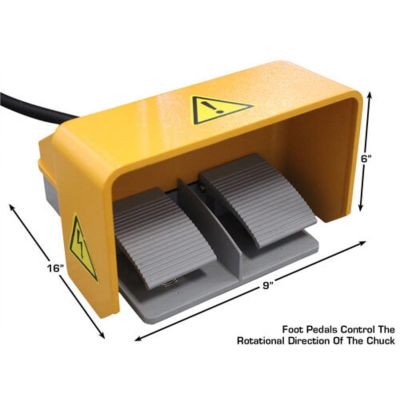

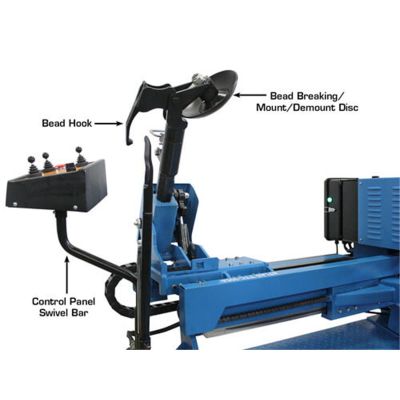

| Mounted control unit with additional foot pedals |

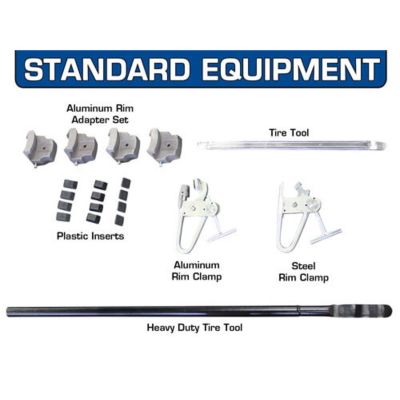

| Heavy-duty tire tool included |
| Includes clamps for steel and alloy wheels |
| Alloy rim adapter set with plastic inserts included |
| 1-year parts only warranty |
|
 |
| Product Specifications | |
|---|---|
| Max Tire Diameter | 55" |
| Max Tire Width | 30 1/2" |
| Rim Clamping Range | 8" - 26" (with adapters) |
| Max Wheel Weight | 838 lbs |
| Clamping Power | 6600 lbs |
| Bead Breaker Force | 3990 lbs |
| Operating Pressure | 0 - 1885 PSI |
| Acoustic Pressure | <70 dBA |
| Tool Arm & Head Positioning | Automatic |

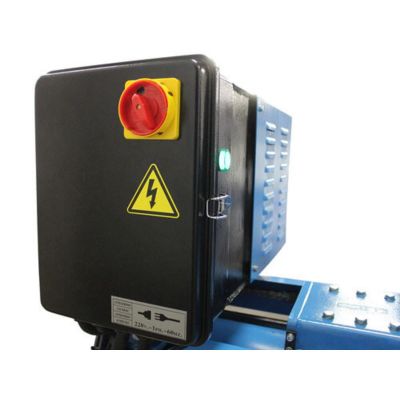

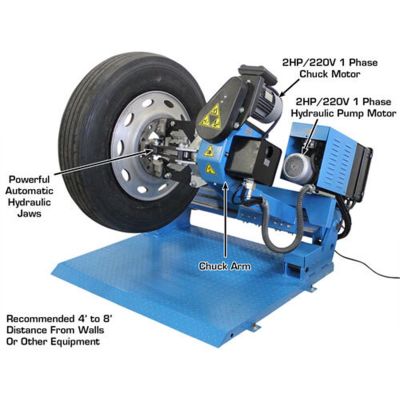

| Hydraulic Motor Power | 2 HP, 220V, 1-phase (30A breaker required) |
| Chuck Motor Power | 3 HP, 220V, 1-phase (30A breaker required) |
| Construction | Single-piece frame w/ solid floor plate |

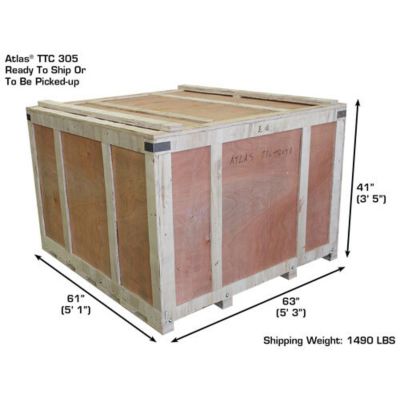

| Shipping Weight | 1,490 lbs |
