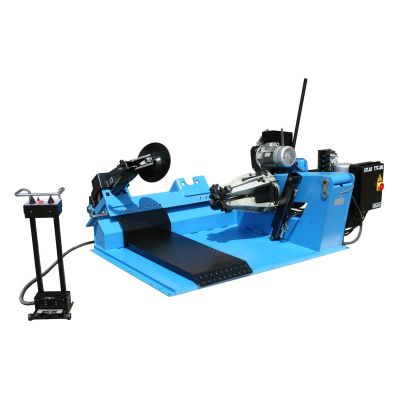

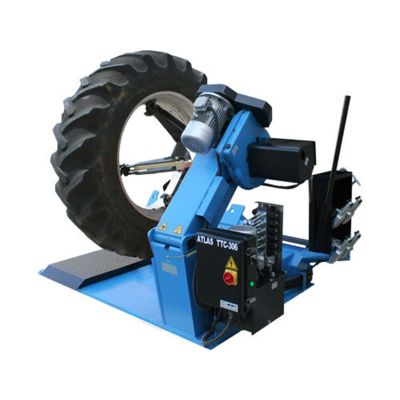

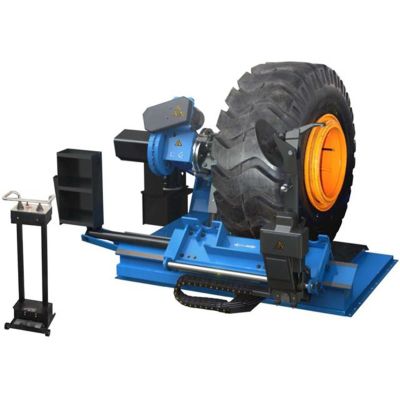

The Atlas® TTC306 Deluxe Automated Truck Tire Changer is built for the toughest commercial, agricultural, and off-road tire jobs. Designed with an extended clamping range and fully automatic features, this heavy-duty machine handles rim sizes from 14" to 56" and tire diameters in excess of 97", with a maximum width of up to 53". Whether you're servicing standard over-the-road truck tires, super singles, agricultural tires, or massive earthmover wheels, the TTC306 delivers the power, precision, and efficiency needed in high-volume shops. Featuring a powerful 2-speed hydraulic chuck, five rim locking positions, and automatic operation of the bead tool, chuck arm, and carriage, it simplifies the most demanding tire changes. Backed by industrial-grade construction and premium components, the TTC306 rivals machines priced over $20,000—at a fraction of the cost.

Product Features
Deluxe Automated Truck Tire Changer
220V, 3-Phase Power with 2-Speed Hydraulic Chuck
Automatic movement of Bead Tool, Carriage & Chuck Arm
Handles rims from 14"–56" and tires up to 53" wide
Tire diameters exceed 97"

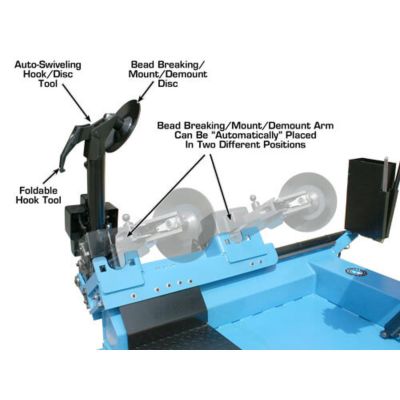

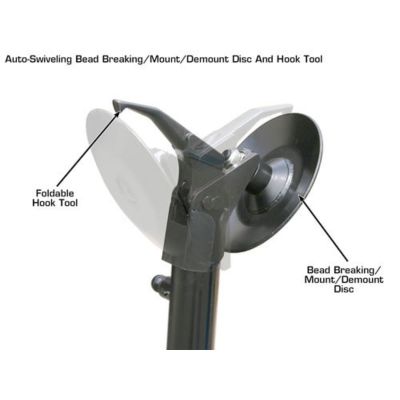

Bead Breaker & Mount/Demount Head

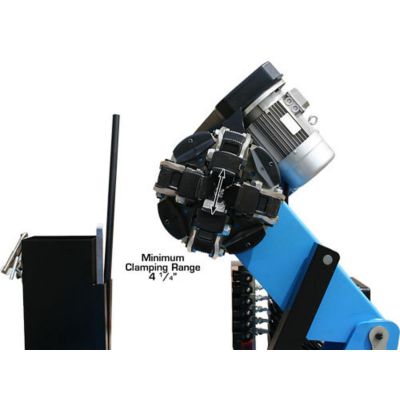

Electric/Hydraulic Self-Centering Four Jaw Chuck
Five Rim Locking Positions

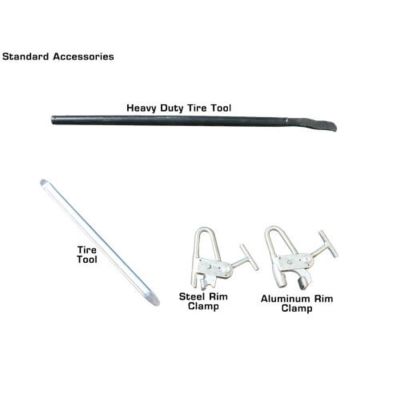

Heavy Duty Tire Tool Included

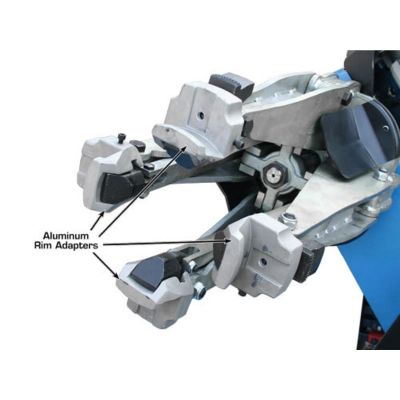

Clamps for Steel & Alloy Wheels + Alloy Rim Adapters

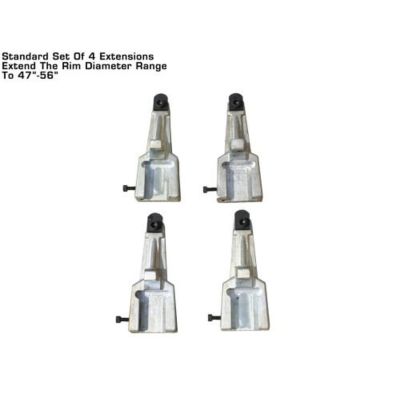

Clamping Extensions Included

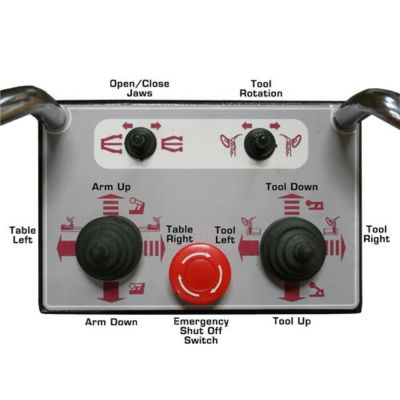

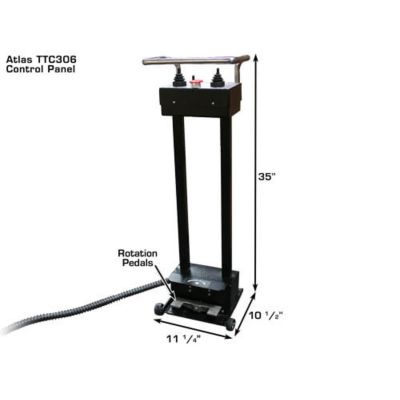

Wired Remote Console with Optional Wireless Upgrade
1-Year Parts Only Warranty
WILL CALL ONLY – No Freight Shipping Available

Product Specifications

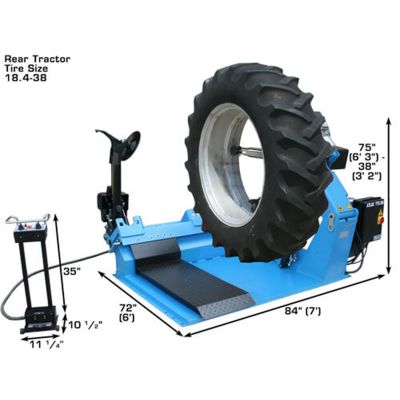

Max Tire Diameter 98" (8' 2")
Max Tire Width 53"
Rim Clamping Range 14" – 46"

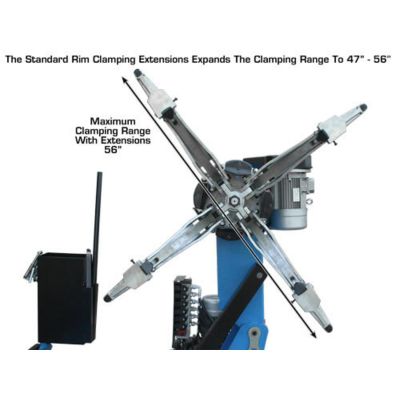

Clamping Range w/ Extensions 47" – 56"
Max Wheel Weight 3,968 lbs
Clamping Power 13,173 lbs
Operating Pressure 0 – 1885 psi
Bead Breaker Force 5,930 lbs
Tool Arm & Head Positioning Automatic
Construction Single Piece Frame w/ Solid Floor-Plate

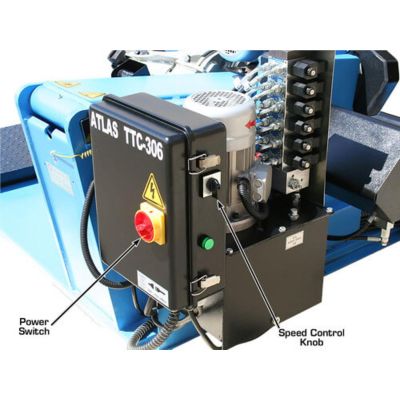

Hydraulic Motor Power 3HP, 220V 3-phase (30A breaker)
Chuck Motor Power 3.5–4HP, 220V 3-phase (30A breaker)
Shipping Weight 2,260 lbs
