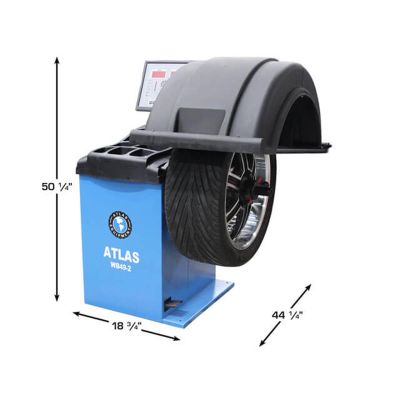

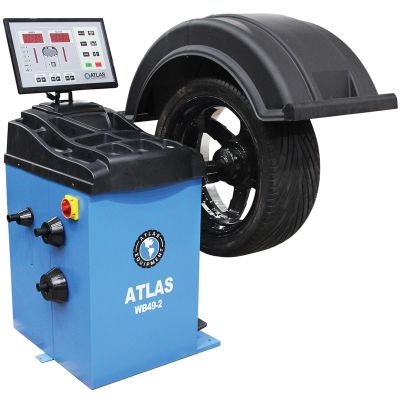

The Atlas® WB49-2 Premium 2D Computer Wheel Balancer is a top-tier solution for professional tire shops seeking speed, accuracy, and efficiency. Designed with advanced automatic 2D data entry, auto-positioning, and split-weight functionality, the WB49-2 ensures precise balancing while hiding weights behind spokes for a clean finish. The raised LED display, automatic LED rim light, and large weight tray enhance usability and visibility, making this balancer both high-tech and user-friendly.
Built for performance, the WB49-2 can handle rims up to 32" and wheels up to 150 lbs. With static and dynamic balancing modes, a self-calibrating system, and plug-and-play components, it’s built to deliver accurate results with minimal downtime. The machine also supports optional 3D data entry for even faster operation when paired with a width measuring gauge (sold separately). Whether you're servicing standard vehicles or light trucks, the WB49-2 is built to last and ready to deliver.
| Product Features |
|---|
| Computer-controlled motorized spin balancing |
| Automatic 2D data entry (3D compatible with optional gauge) |
| Split-weight function for hiding weights behind spokes |

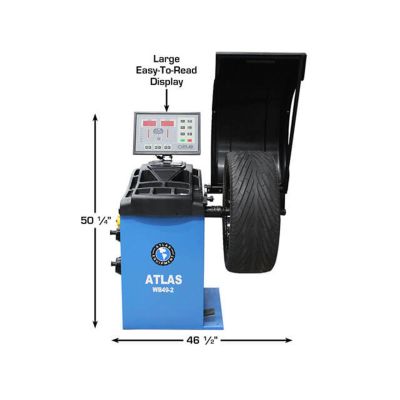

| Raised LED monitor display for better visibility |

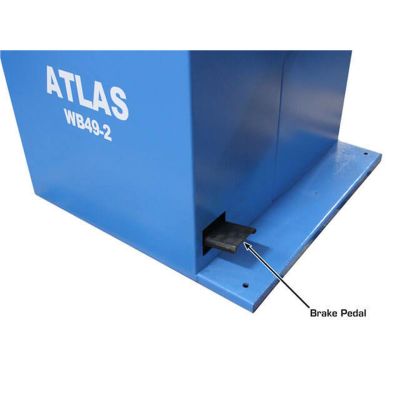

| Auto-positioning and pedal-operated brake |
| Self-diagnosing and self-calibrating system |
| Automatic LED light for rim illumination |
| Static and dynamic balancing modes with rapid optimization |
| No anchor-down installation required |

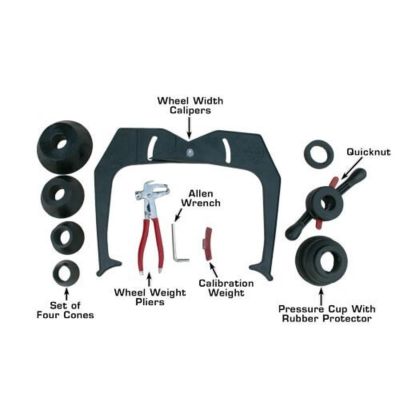

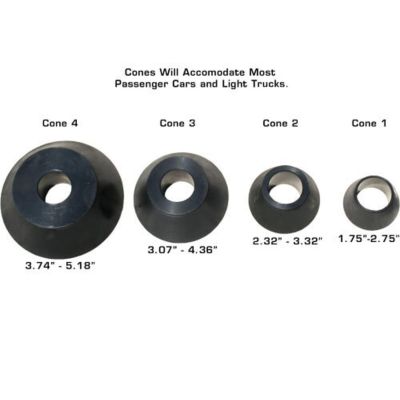

| Includes quick-release nut, 4 cones, calipers, pliers |
| 1-Year Parts Only Warranty |
|
 |
| Product Specifications | |
|---|---|
| Max Tire Diameter | 39" |
| Rim Size Range | 10" - 32" (Manual Entry over 23") |
| Rim Width Range | 1.5" - 20" |

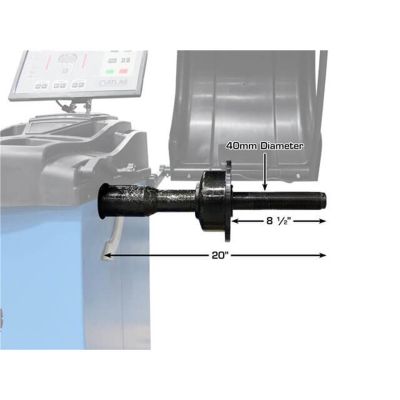

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs. |
| Balancing Speed | 150 RPM |
| Data Entry Method | Automatic 2D / Optional 3D |
| Measurement Units | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4° |
| Self Calibrating | Yes |
| Motor Power | 1/4 HP |
| Power Requirement | 110V |
| Shipping Weight | 400 lbs. |
