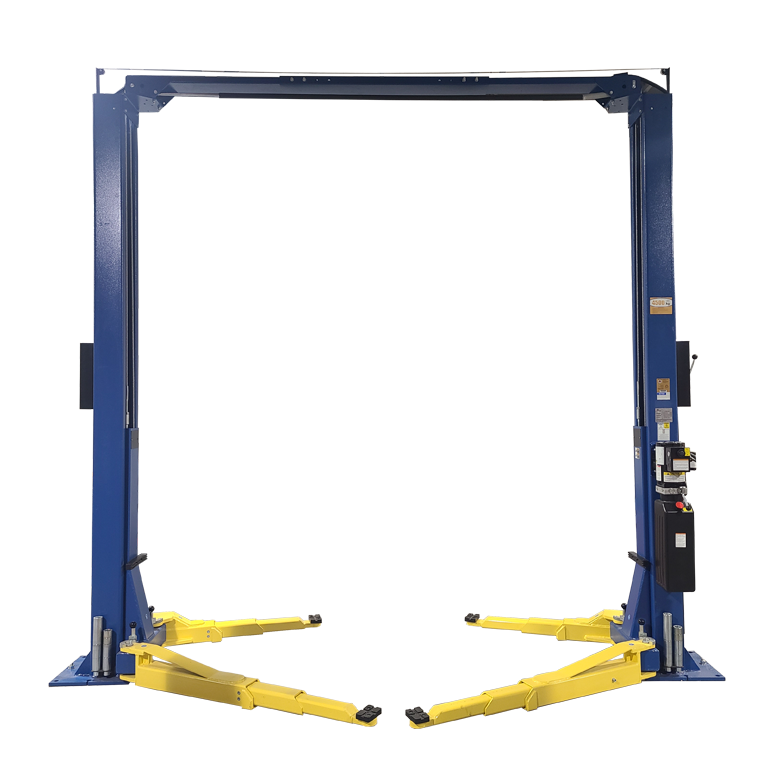

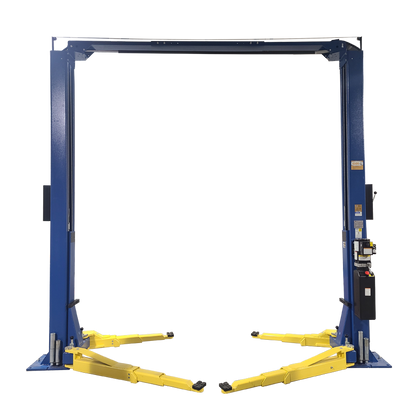

The Daytona BR10-20H-33 is a professional-grade 10,000 lb two-post overhead lift designed for automotive repair shops that demand dependable performance, versatile vehicle coverage, and certified safety. With ALI Certification, dual direct-drive hydraulic cylinders, and a three-stage arm design capable of both symmetric and asymmetric lifting, the BR10-20H-33 provides the flexibility needed to service a wide range of passenger vehicles, SUVs, and light trucks.
The BR10-20H-33 combines a heavy-duty hydraulic system with adjustable width configurations, allowing the lift to be installed in a narrow, medium, or wide position. Its automatic safety locks with a convenient single-point release provide straightforward operation, while the 70″ clearance under the arms offers excellent access for under-vehicle service. The included drop-in pads and 1.5″, 3″, and 6″ height extensions provide additional flexibility when positioning vehicles at their recommended lifting points.
Independently tested and ALI Certified, the Daytona BR10-20H-33 is built to meet rigorous industry standards for lifting safety and performance. Whether you're equipping a professional repair facility or upgrading a serious home garage, this lift delivers the capacity, adjustability, and versatility needed for demanding automotive service.
| Product Features |
|---|
| 10,000 lb lifting capacity |
| ALI Certified for independently tested lifting safety and performance |
| Professional two-post overhead lift design |
| Dual direct-drive hydraulic cylinders for powerful and reliable lifting |
| Three-stage arms support both symmetric and asymmetric vehicle lifting |
| Three adjustable overall width configurations |
| Automatic safety locks with convenient single-point release |
| 70″ clearance beneath the arms at full lifting height |
| 4″ minimum pad height for low-clearance vehicles |
| Drop-in lifting pads included |
| Includes 1.5″, 3″, and 6″ lifting pad extensions |
| Designed for professional automotive repair shops and serious enthusiasts |

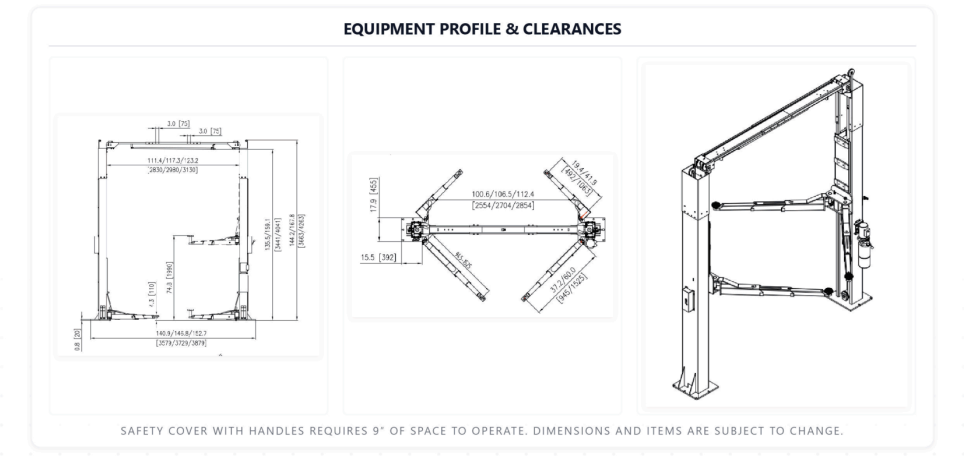

| Adjustable Width Settings | |
|---|---|
| Narrow | 140.43″ Overall Width |
| Medium | 146.34″ Overall Width |
| Wide | 152.24″ Overall Width |

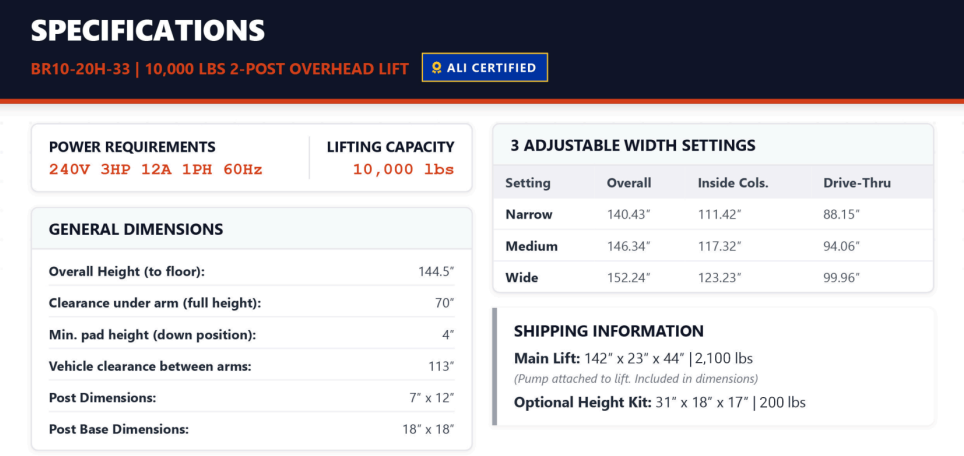

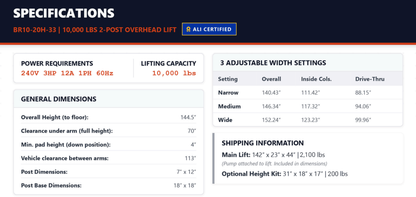

| Product Specifications | |
|---|---|
| Model | BR10-20H-33 |
| Lift Type | Two-Post Overhead Lift |
| Certification | ALI Certified |
| Lifting Capacity | 10,000 lbs |
| Power Requirements | 240V / 3 HP / 12A / 1PH / 60Hz |
| Overall Height | 144.5″ |
| Clearance Under Arm | 70″ |
| Minimum Pad Height | 4″ |
| Vehicle Clearance Between Arms | 113″ |
| Post Dimensions | 7″ × 12″ |
| Arm Configuration | 3-Stage Symmetric & Asymmetric |
| Hydraulic System | Dual Direct-Drive Hydraulic Cylinders |
| Safety Lock System | Automatic Safety Locks with Single-Point Release |
| Included Pad Extensions | 1.5″ / 3″ / 6″ |
| Shipping Weight | 2,100 lbs |
