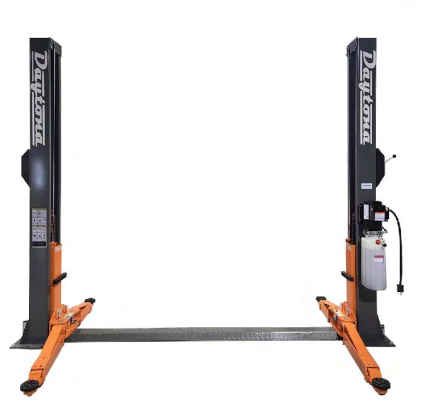

The Daytona LTPF12 is a heavy-duty 12,000 lb capacity two-post baseplate lift designed for professional automotive shops, service facilities, and serious home garages. Its floorplate configuration makes the LTPF12 particularly well suited for installations where overhead clearance is limited, while its 12,000 lb capacity provides the strength needed to service a wide range of cars, SUVs, and light trucks.
Built for dependable shop performance, the LTPF12 utilizes dual chain-drive hydraulic cylinders to provide reliable lifting power. Automatic safety locks with a convenient single-point release system make daily operation straightforward, while the three-stage front arms and screw-up pads provide flexible vehicle positioning and precise contact-point adjustment. With a lifting range from 4.33″ to 74.80″, the LTPF12 delivers excellent under-vehicle access while maintaining the practical advantages of a floorplate two-post design.
| Product Features |
|---|
| 12,000 lb lifting capacity for cars, SUVs, and light trucks |
| Two-post floorplate design ideal for lower-ceiling installations |
| Dual chain-drive hydraulic cylinders |
| Automatic safety locks with single-point release system |
| Three-stage front arms for flexible vehicle positioning |
| Screw-up lifting pads included for precise vehicle contact |
| 4.33″ minimum lifting height for low-profile vehicle access |
| 74.80″ maximum lifting height for substantial under-vehicle access |
| Heavy-duty construction designed for professional service environments |
| 240V, 3 HP hydraulic power system |
| Ideal for professional automotive shops, light-truck service, and home garages |
| Product Specifications | |
|---|---|
| Model | LTPF12 |
| Lift Type | Two-Post Baseplate Lift |
| Lifting Capacity | 12,000 lbs |

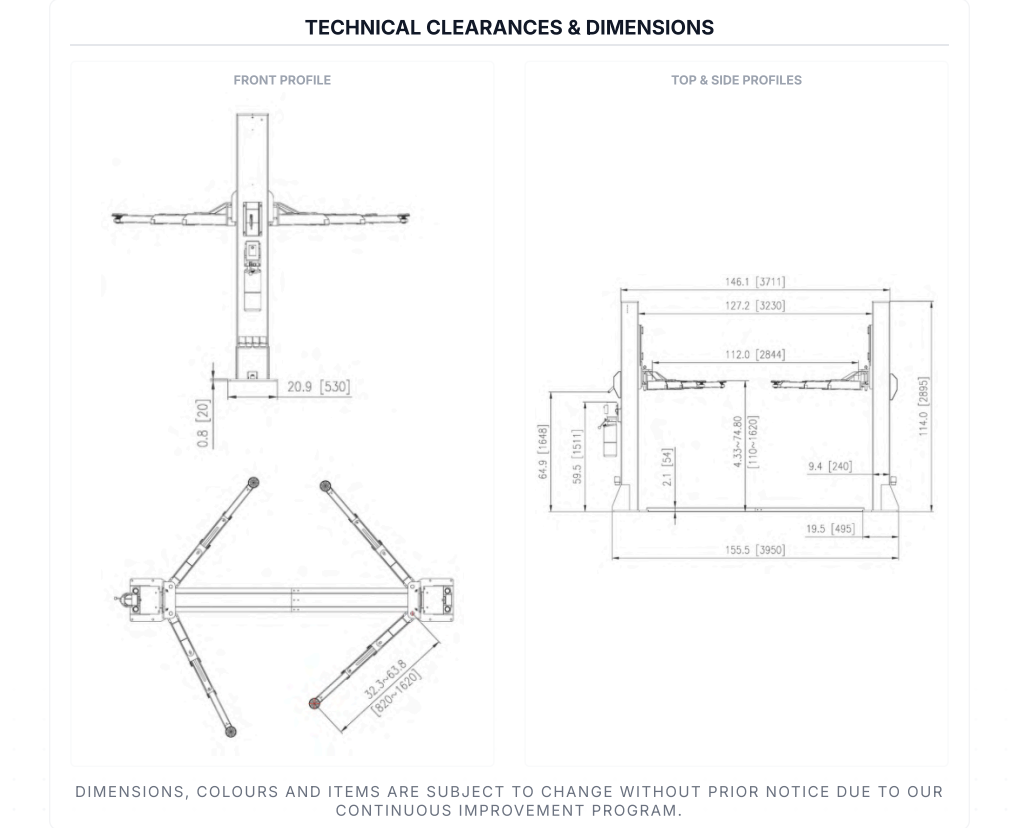

| Lifting Height | 4.33″ – 74.80″ |
| Overall Height | 114.0″ |
| Overall Width | 146.1″ |
| Power Requirements | 240V / 3 HP / 13 Amp / 1PH / 60Hz |
| Hydraulic System | Dual Chain-Drive Hydraulic Cylinders |
| Front Arms | Three-Stage Front Arms |
| Lifting Pads | Screw-Up Pads Included |
| Safety Lock System | Automatic Safety Locks with Single-Point Release |
| Shipping Weight - Lift | 2,200 lbs |
| Power Unit Motor Box | 31″ × 11″ × 12″ |
| Power Unit Weight | 60 lbs |
