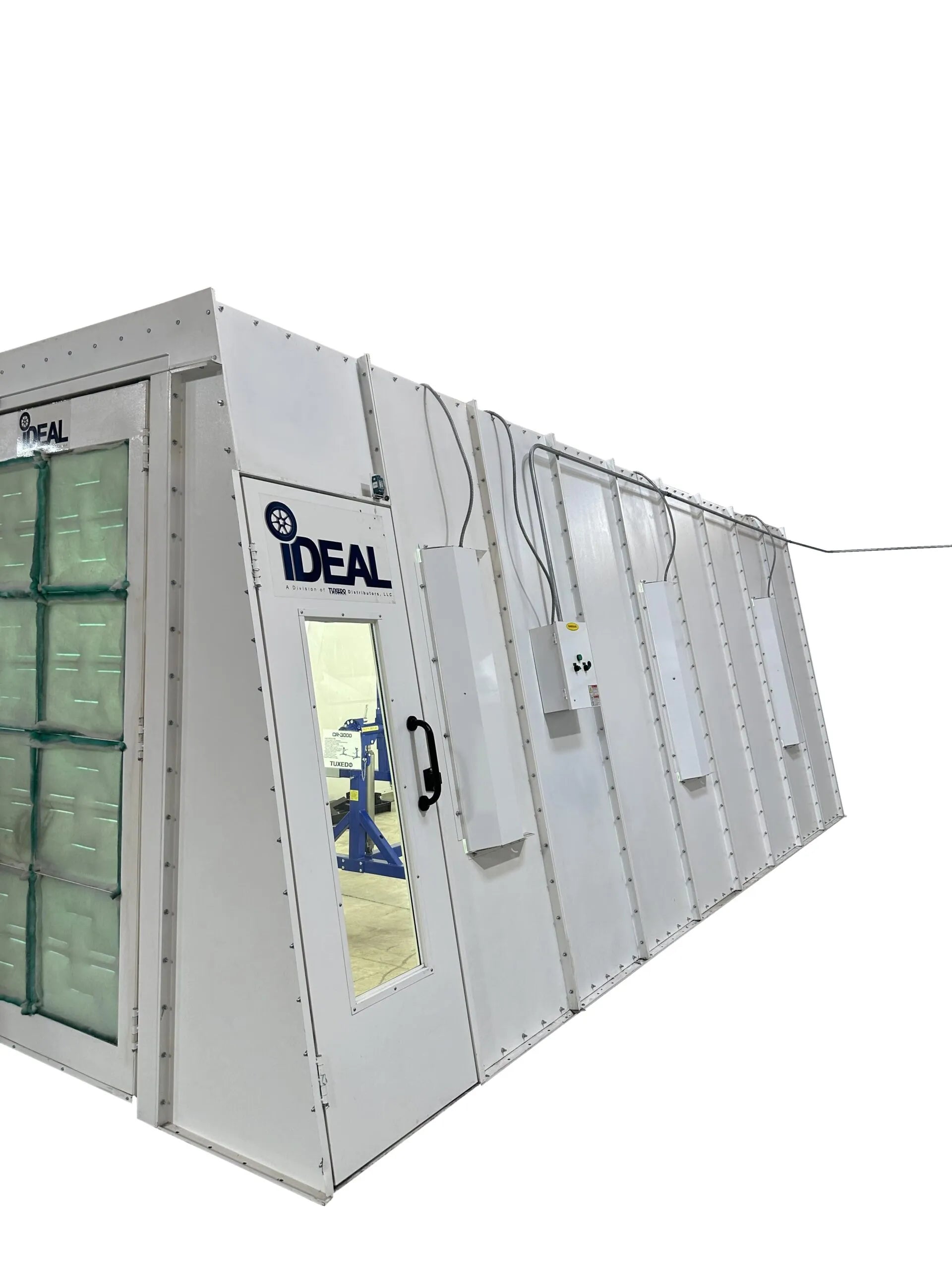

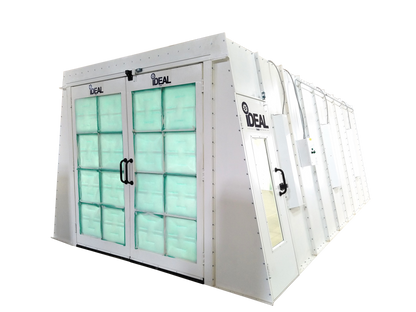

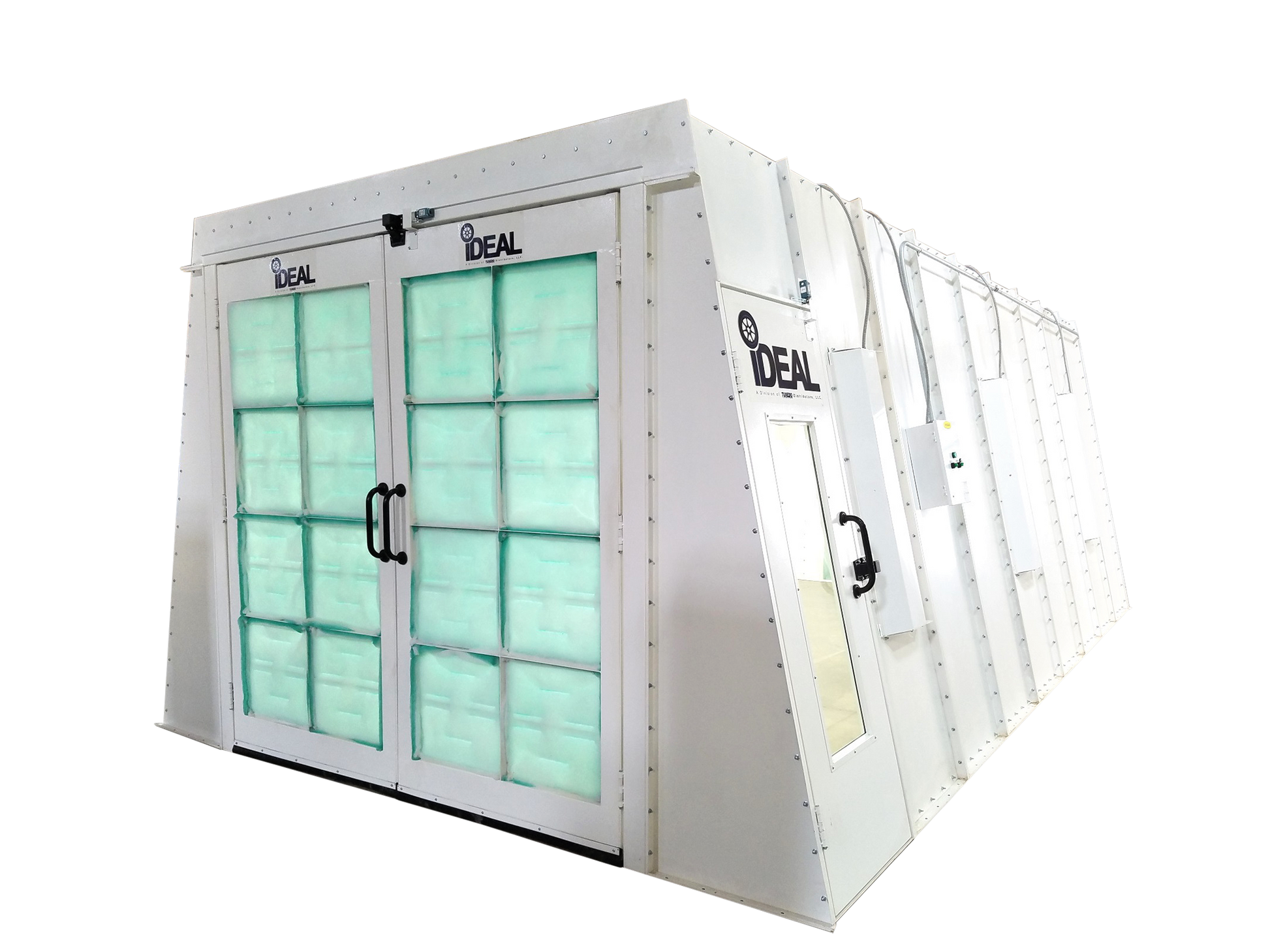

iDeal Cross Flow Paint Booth – Single & 3-Phase Options

The iDeal Cross Flow Paint Booth is a professional-grade spray booth designed for automotive refinishing, industrial coating, and high-volume paint operations. Available in both single-phase and 3-phase electrical configurations, this booth delivers powerful, consistent airflow, superior lighting, and a spacious work environment—ensuring flawless paint finishes every time.

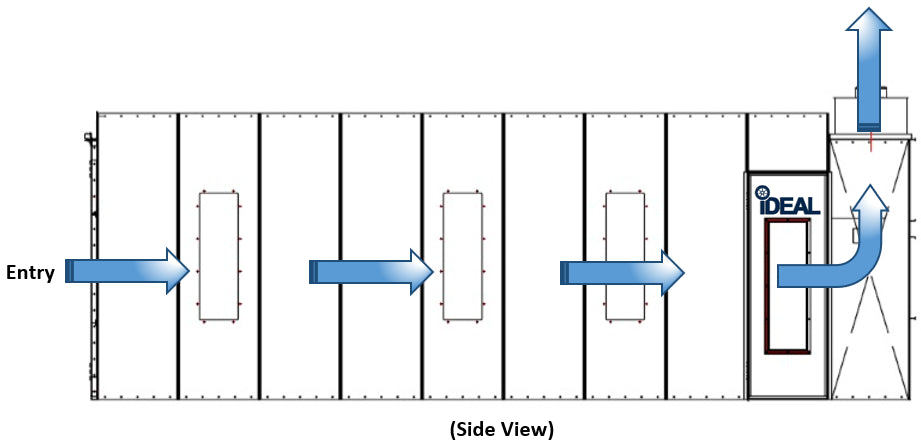

With optimal cross-flow ventilation generated by a heavy-duty tube axial fan, the iDeal Cross Flow Booth maintains even air distribution and reduces overspray, helping you achieve smoother, faster results. Its heavy-duty 18-gauge panel construction, bright white powder coat finish, and precision engineering make it a durable and low-maintenance addition to any shop. NFPA 33 compliant and equipped with premium AFC intake and exhaust filters, this booth provides a safe, code-compliant painting environment.

Optional upgrades like LED lighting, electric heaters, side personnel doors, and extension panels allow you to customize the booth to meet the demands of your workflow. Plus, with a deluxe control panel and manometer included, operation is simple, efficient, and precise. Typically ships within 48 hours, so you can start improving your paint quality without delay.

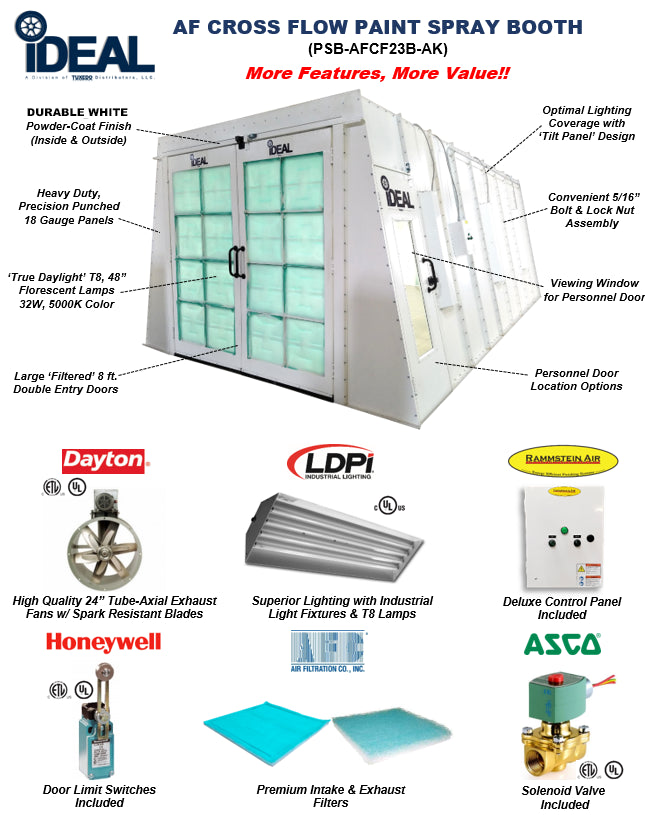

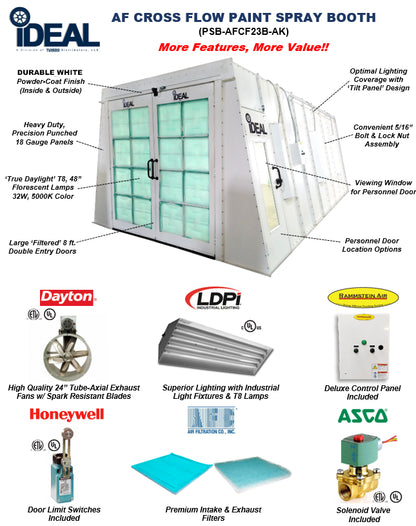

Product Features

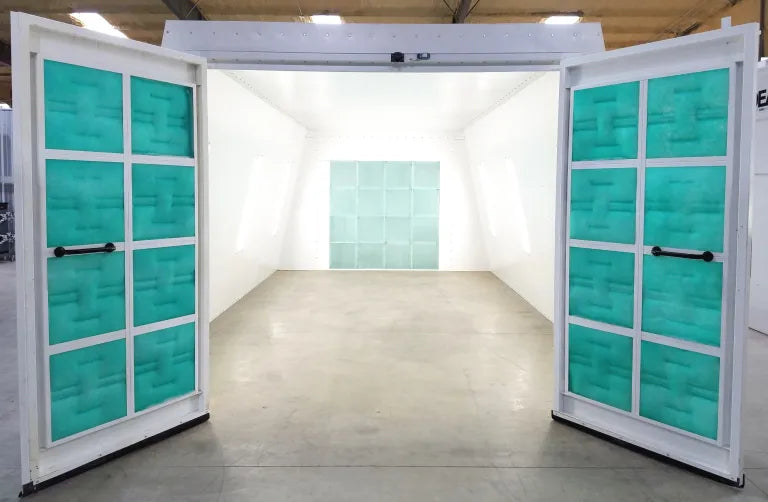

  • Spacious interior for large vehicles and high-volume projects
  • Optimal cross-flow ventilation with tube axial fan delivering high CFM airflow
  • Heavy-duty 18-gauge panel construction with bright white powder coat finish

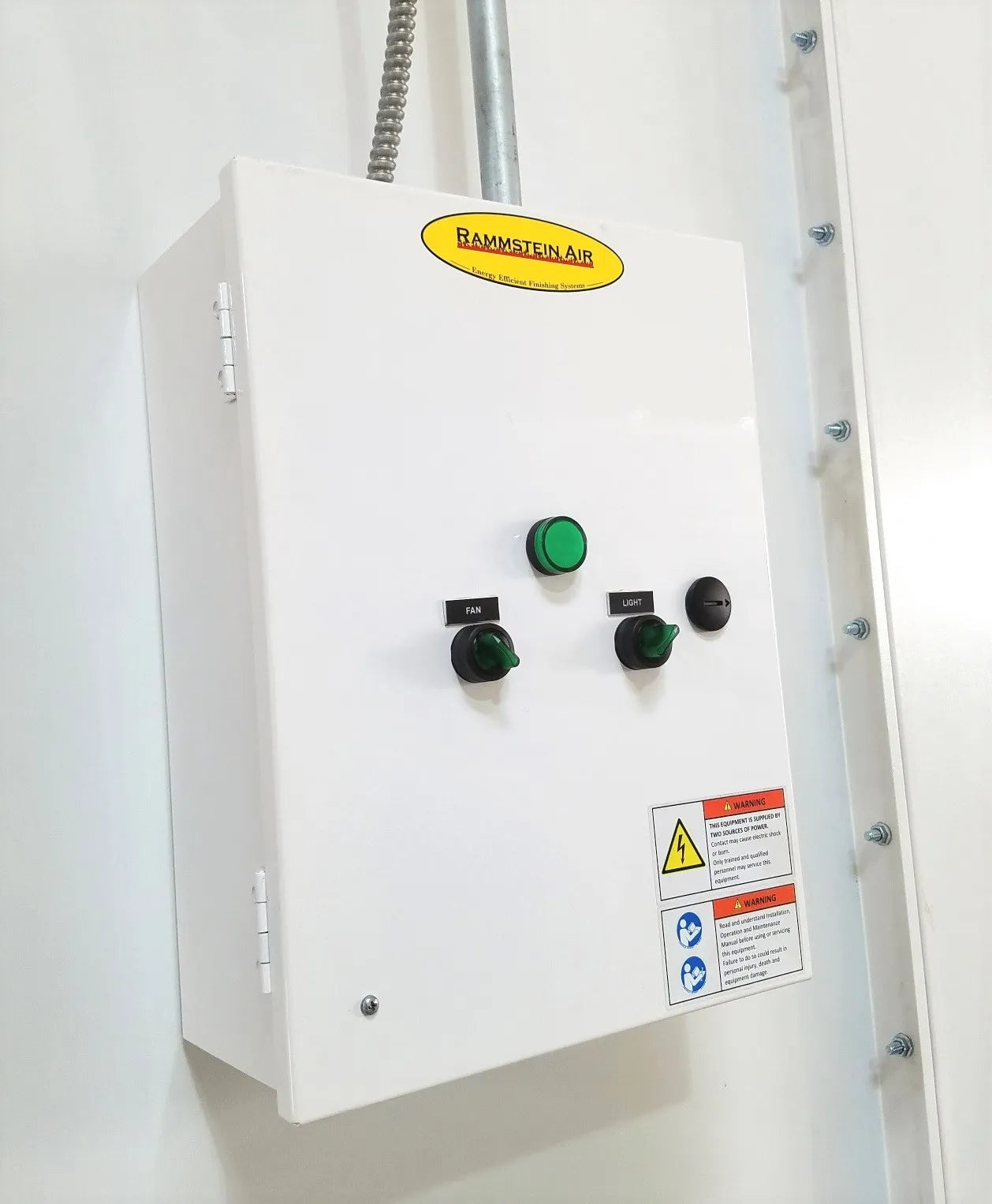

  • Deluxe control panel with manometer, solenoid valve, and hardware included
  • Premium AFC intake and exhaust filters for clean, safe painting
  • Optional electric heaters (single or 3-phase) and LED lighting upgrades
  • Side personnel doors and extension panels available for customization

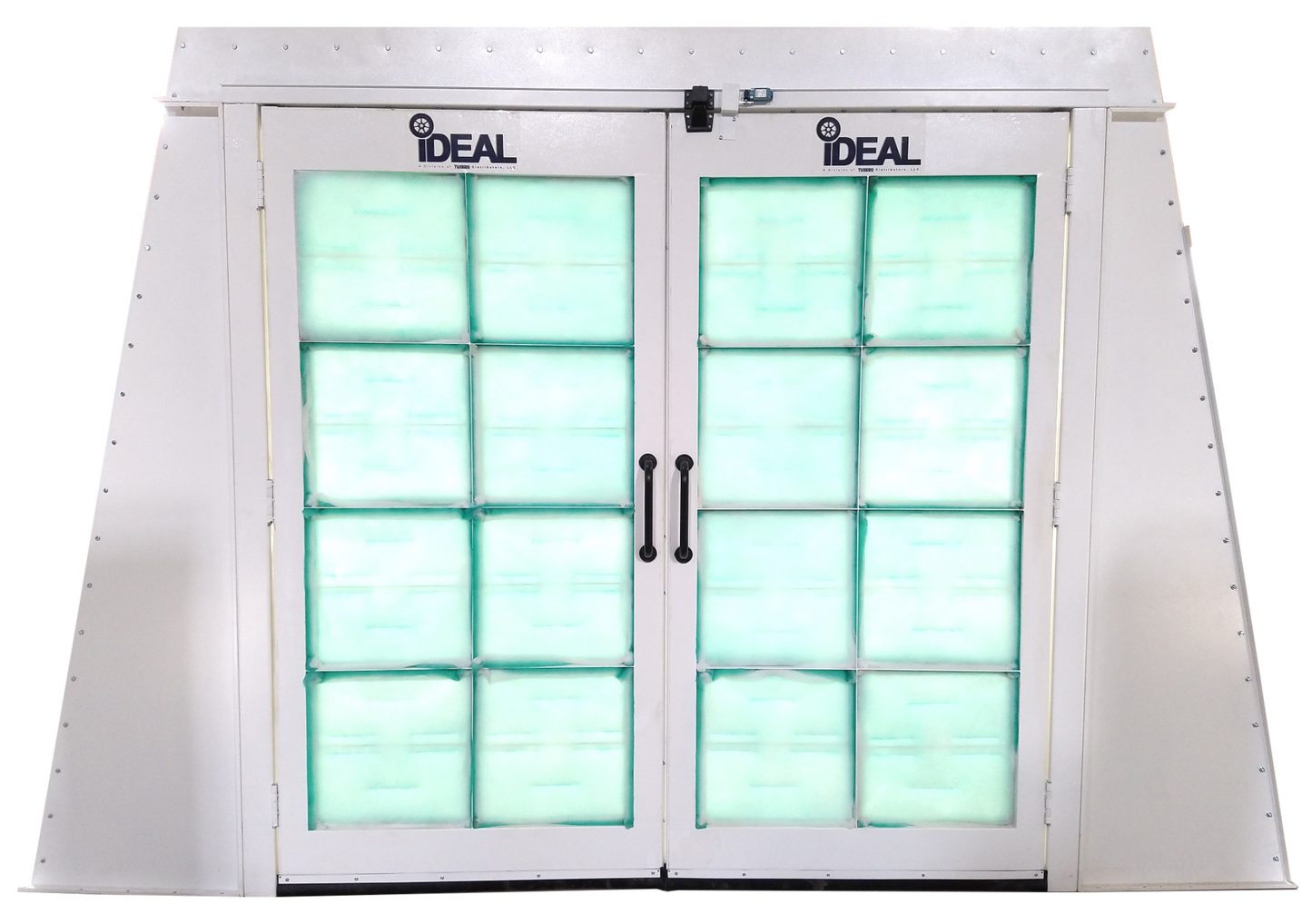

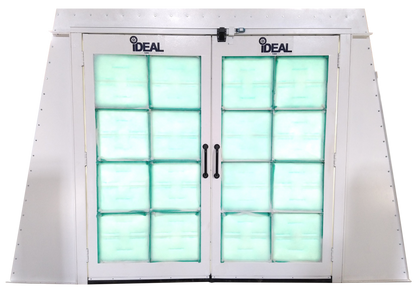

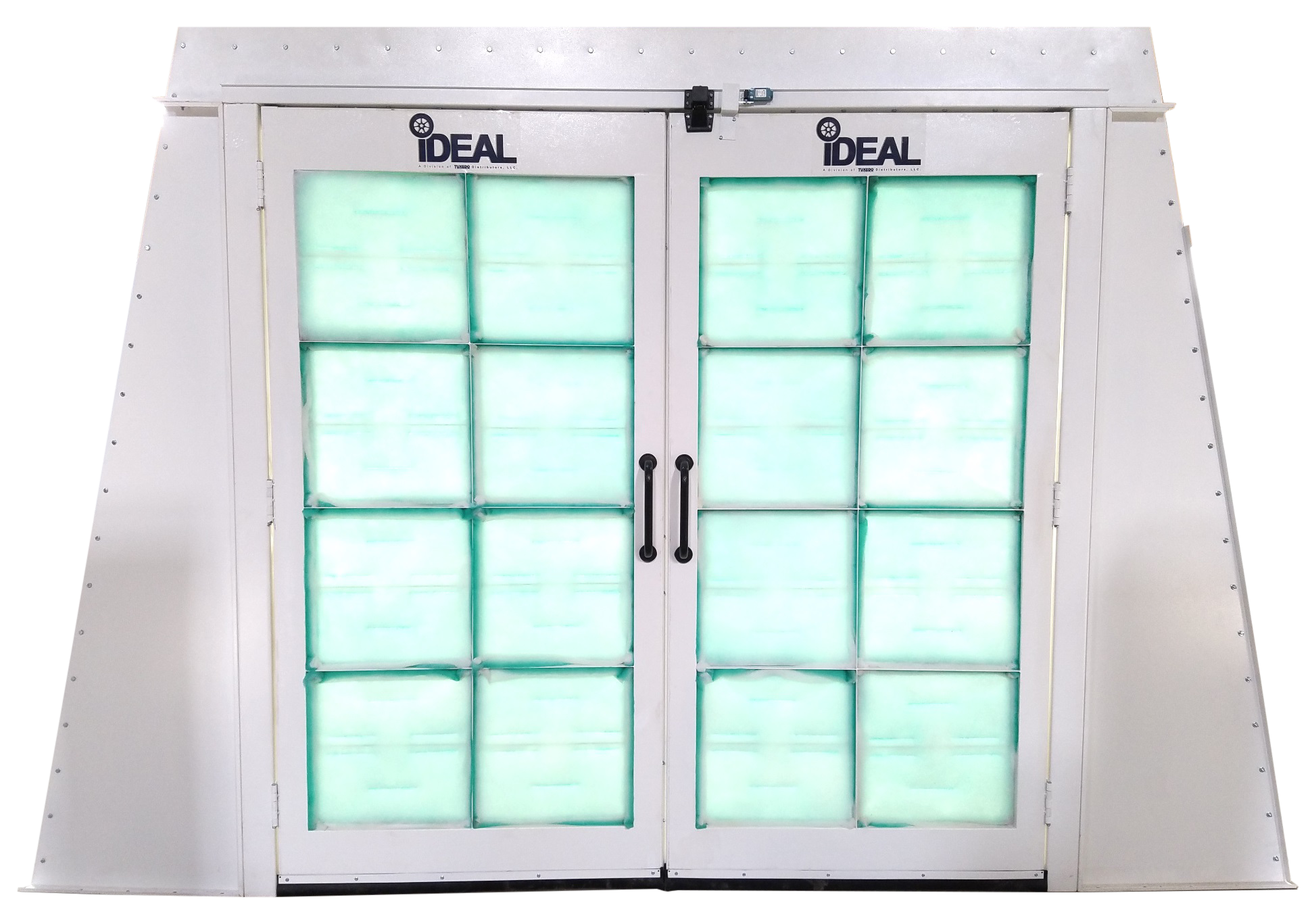

  • Double entry doors with shutoff switches for safety and efficiency
  • NFPA 33 compliant and UL-tested components for code-compliant operation
  • Fast shipping—typically within 48 hours
Product Specifications
Model iDeal Cross Flow Paint Booth
Inside Dimensions 22′-6″ L x 13′ W x 8′-6″ H
Outside Dimensions 25′-4″ L x 13′-4″ W x 8′-10″ H
Fan / Motor 24″ Tube Axial Fan, 3HP (3-phase) / Optional 1-Phase
Lighting 6 T8 / 4-bulb light fixtures with optional LED upgrade
Optional Items Electric heaters (1 or 3-phase), side personnel door kit, extension panels, LED lighting upgrade
Weight 3,620 lbs
Compliance NFPA 33 Standards, UL Listed Components
