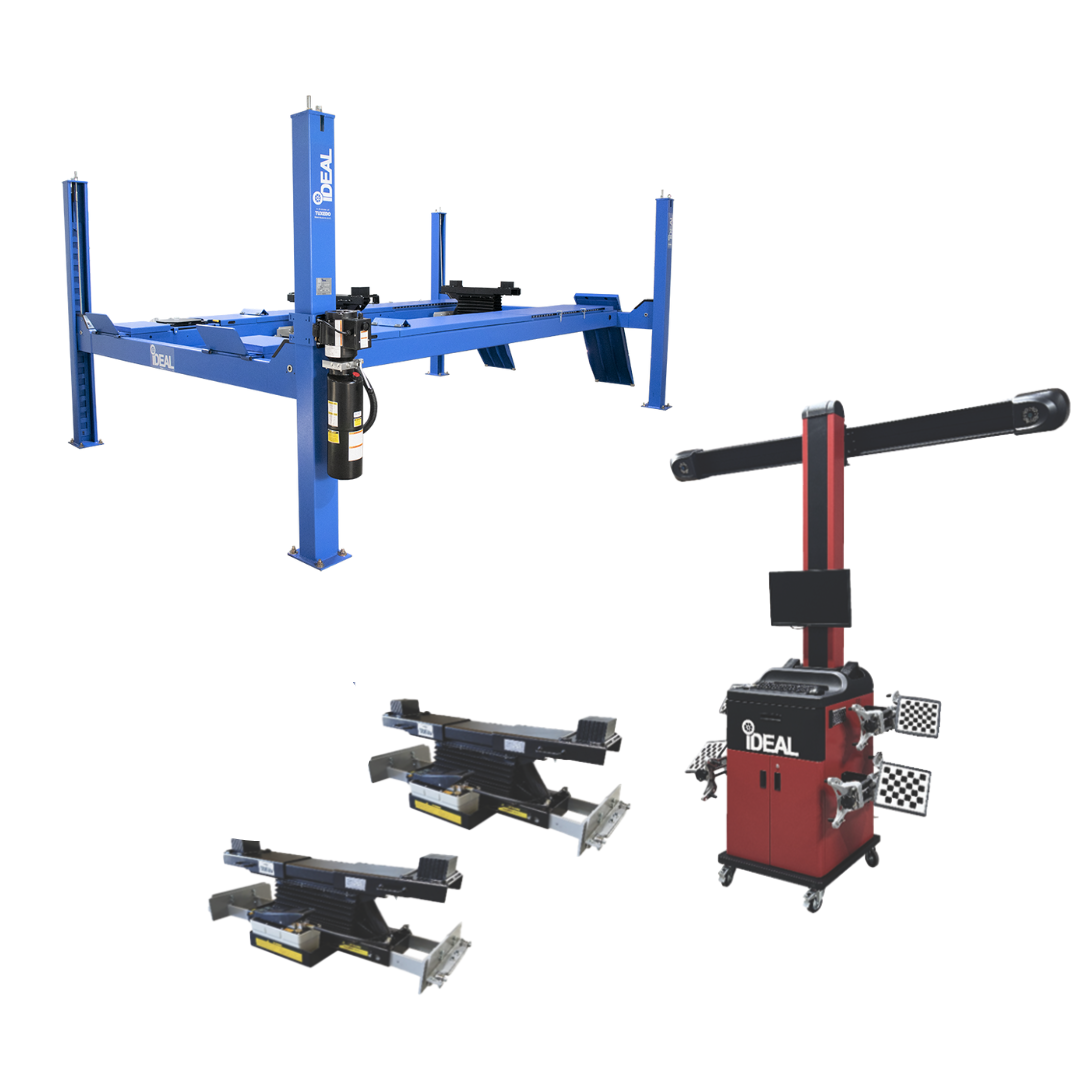

The iDEAL FP14K / Rolling 7,000 lb Jack / IWA-2000-K Wheel Aligner Combo Kit is the ultimate alignment solution for professional shops and dealerships. This all-in-one package combines the power of the FP14K 14,000 lb Four-Post Alignment Lift, the precision of the IWA-2000-K 3D Imaging Wheel Aligner, and the convenience of a 7,000 lb Rolling Air Jack—giving you a complete alignment station ready for any vehicle from compact cars to heavy-duty trucks.
The FP14K Alignment Lift features a 14,000 lb lifting capacity, heavy-duty cable lift system, and 18 locking positions for maximum stability and safety. Its wide 20” runways and extended 182.5” service wheelbase accommodate a full range of vehicles. The bolt-on runway alignment kit simplifies setup and ensures long-term reliability, while dual turntable positions, full-width slip plates, and self-chocking ramps provide precise alignment capability and technician safety.
Paired with the IWA-2000-K Wheel Aligner, this system delivers cutting-edge 3D imaging technology and alignment accuracy of ±0.01°. Operating on the Windows platform with Techno Vector 7 software, it provides a wide scope of measurement for vehicles up to 13 feet in wheelbase. The aligner’s high-resolution cameras, live readings, integrated vehicle database, and wireless operation make it efficient and user-friendly.
Completing the package, the 7,000 lb Rolling Air Jack glides smoothly along the lift rails, offering easy undercar access for suspension or brake work. Its air/hydraulic operation and telescoping arms provide reliable lifting and precise positioning for every job.
| Product Specifications | |
|---|---|
| Lift Model | FP14K 4-Post Alignment Lift |
| Capacity | 14,000 lbs |
| Max Wheelbase | 182.5” |
| Runway Width | 20” |
| Alignment Wheelbase (4-Wheel) | 103” – 157” |
| Lift Power | 220V / 20A / 1PH |
| Wheel Aligner Model | IWA-2000-K 3D Imaging |
| Accuracy | ±0.01° |
| Camera Type | Dual High-Resolution 3D Cameras |
| Operating System | Windows with Techno Vector 7 Software |
| Rolling Jack Capacity | 7,000 lbs (Air/Hydraulic) |
