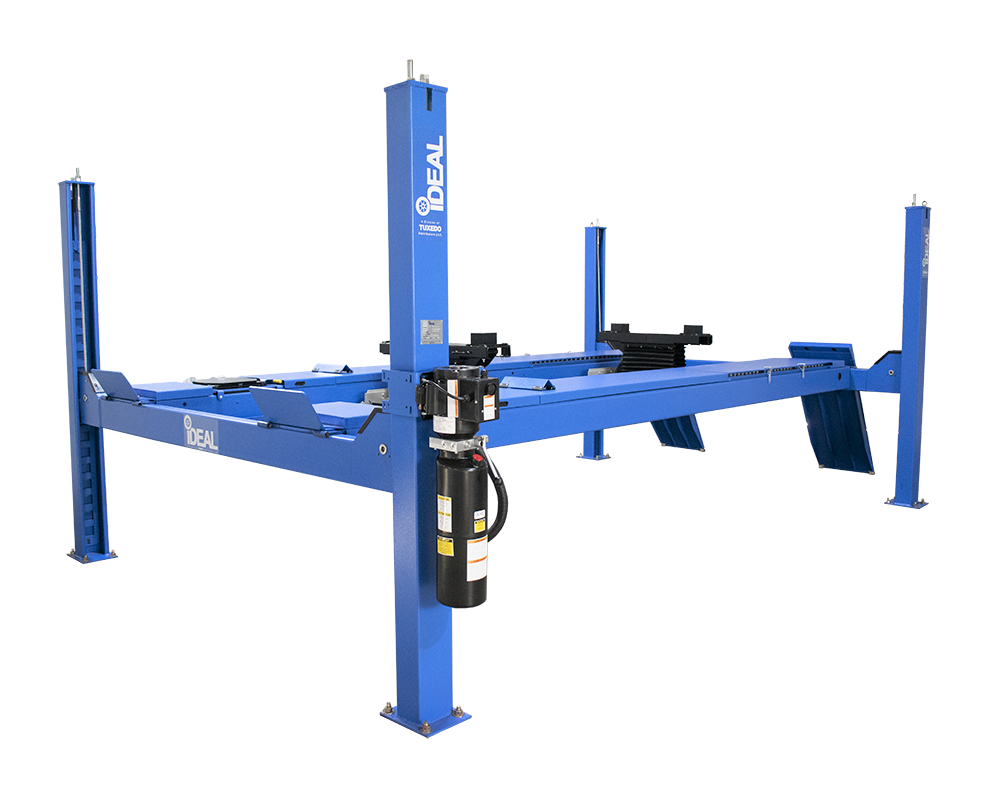

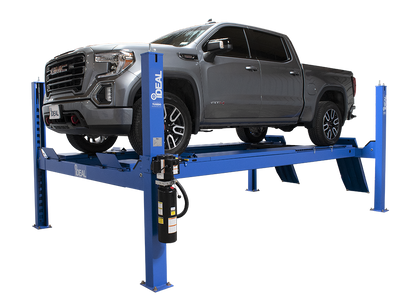

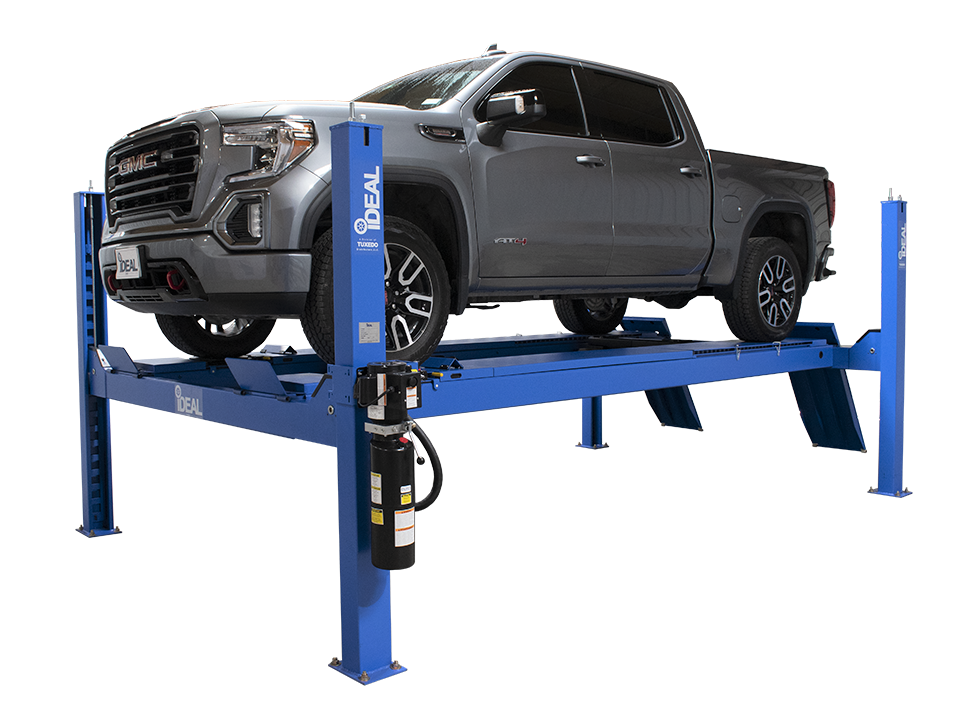

The iDEAL FP14KAC-X 14,000 lb Alignment Four Post Lift is a premium, high-performance lift designed for professional shops that demand precision and power. Built with a durable cable-driven system and a massive 14,000 lb capacity, this alignment lift effortlessly accommodates everything from cars to heavy-duty trucks. Its extended rise height of 79-1/2” provides excellent undercar access, while the bolt-on runway alignment kit ensures accurate, efficient alignment service for both two-wheel and four-wheel vehicles.

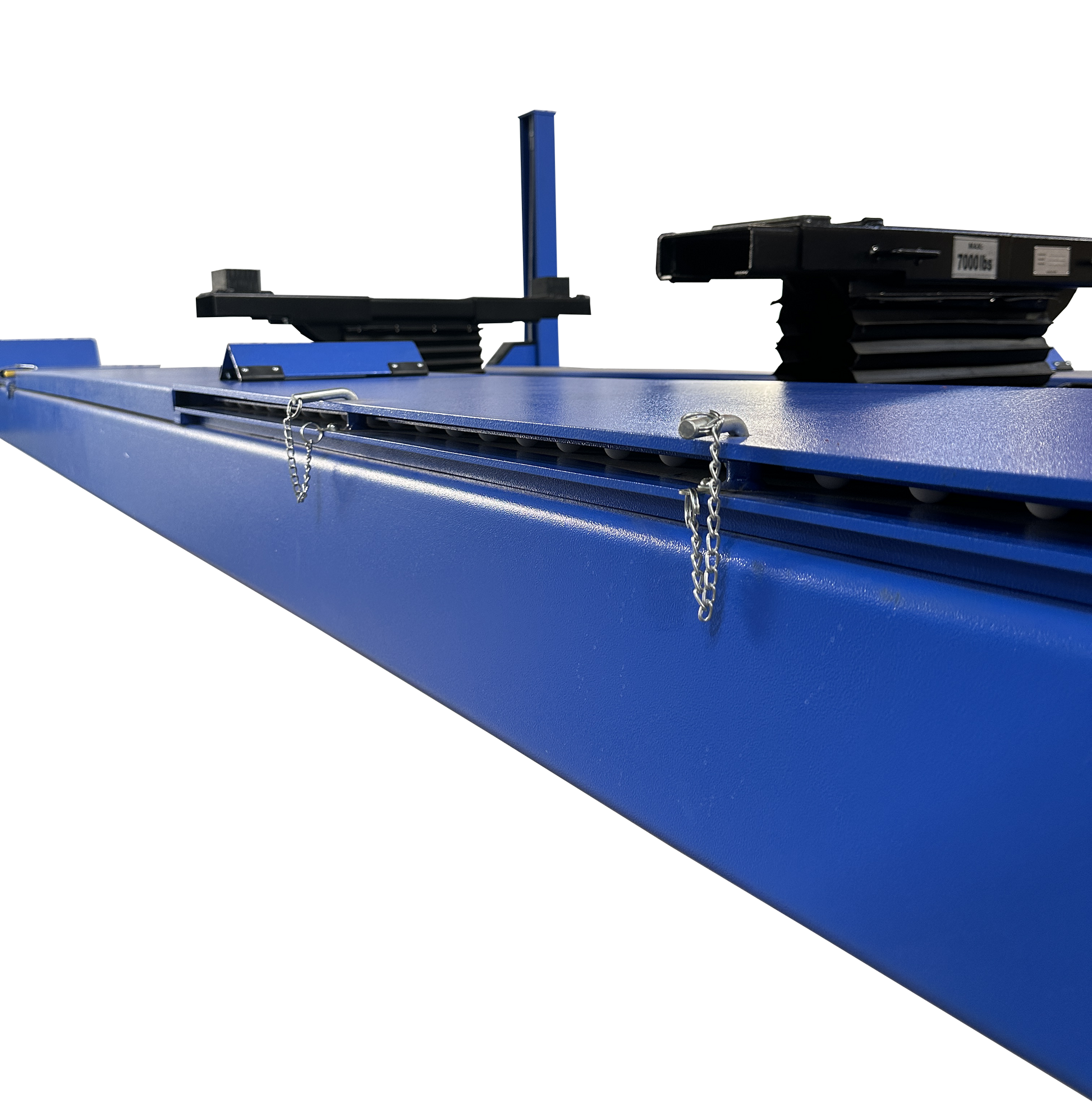

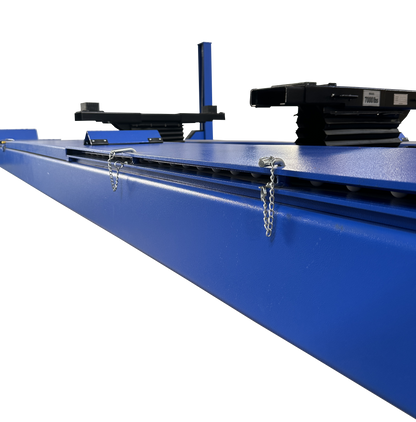

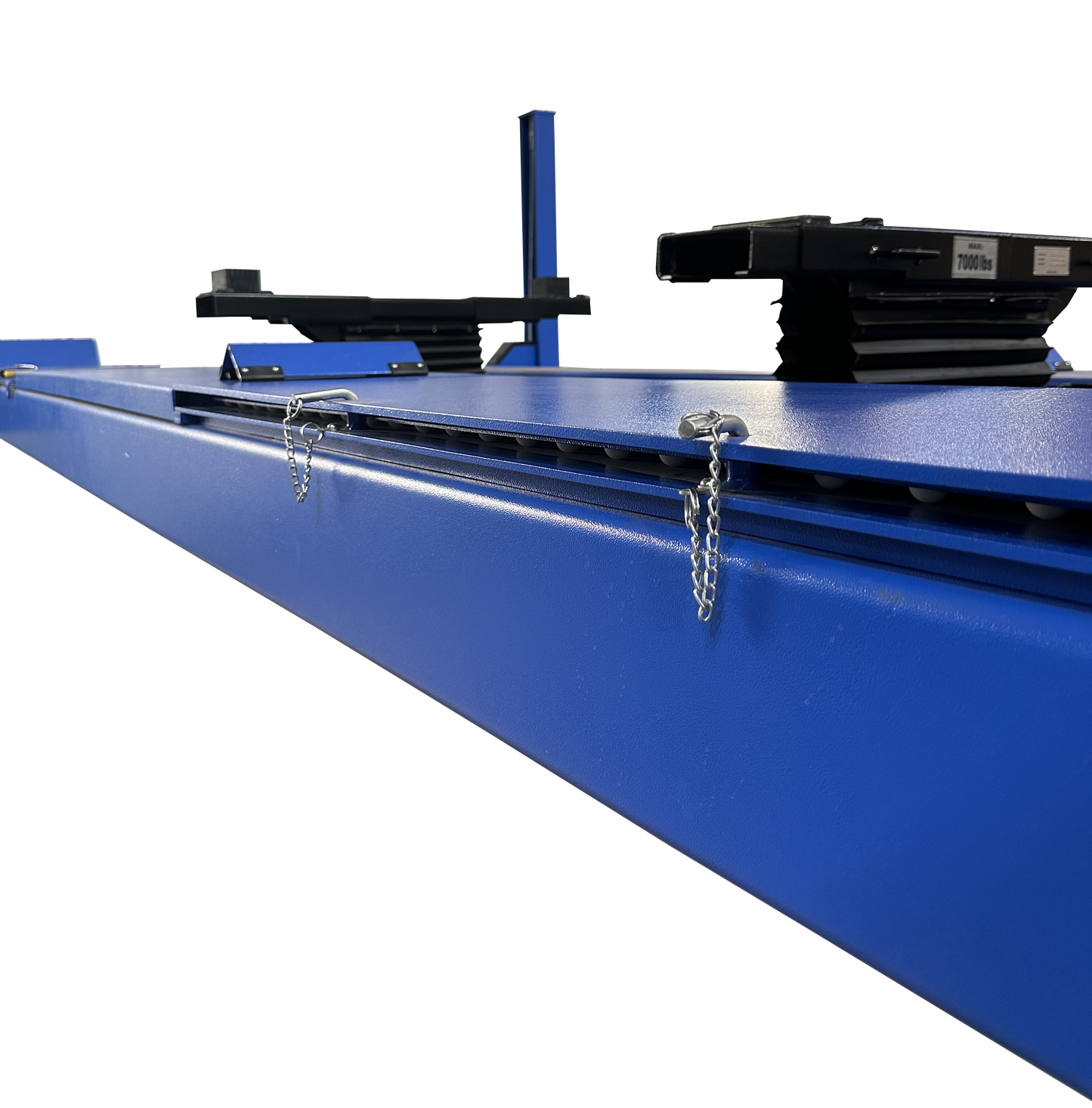

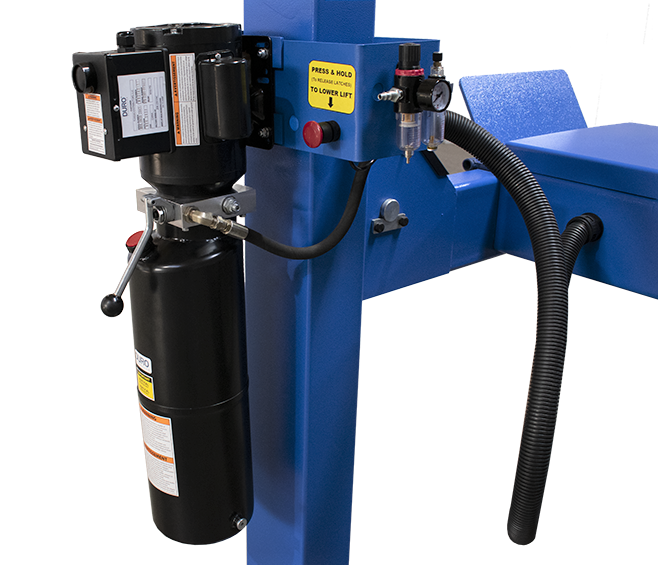

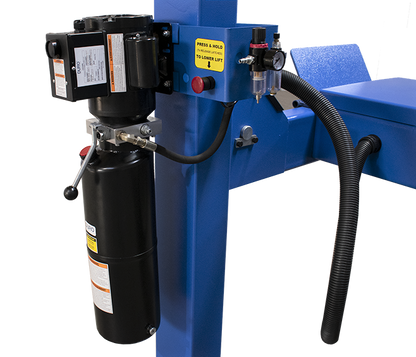

With 18 locking positions, a single-point pneumatic lock release, and fully adjustable lock stops, the FP14KAC-X guarantees safe and level lifting every time. Full-width rear slip plates, dual turntable positions with spacers, and self-chocking approach ramps make alignments smoother and faster. Built for longevity, this lift features a rugged powder coat finish, slack cable safety devices, and precision engineering backed by a 5-year structure warranty. If your shop needs a reliable, commercial-grade alignment lift with unmatched versatility, the iDEAL FP14KAC-X is the smart choice.
| Product Features |
|---|

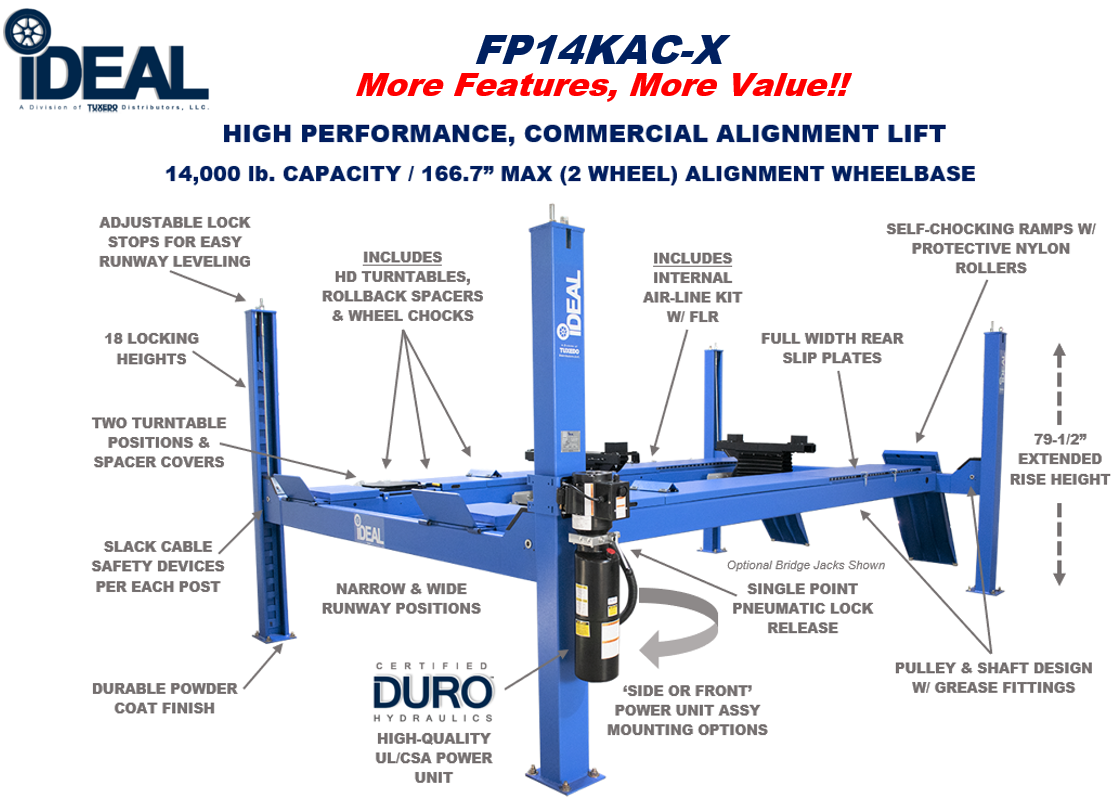

| • 14,000 lb lifting capacity • Commercial-grade cable lift system • Extended rise height for improved access • Bolt-on runway alignment kit • 18 locking height positions • Full-width rear wheel slip plates • Two turntable positions with spacer covers • Single-point pneumatic lock release • Adjustable lock stops for easy leveling • Slack cable safety devices • Self-chocking approach ramps with nylon rollers • Durable powder coat finish • Includes wheel chocks (1 pair) • Ideal for professional alignment and service shops |
| Product Specifications | |
|---|---|
| Model | FP14KAC-X |
| Capacity | 14,000 lbs |
| Overall Length (w/ Ramps) | 252-1/2" |
| Overall Width (w/ Power Unit) | 142" |
| Overall Height | 92-1/2" |
| Max Rise Height | 79-1/2" |
| Width Between Posts | 116-1/4" |
| Width Between Runways | 42" or 46" |
| Width of Runways | 20" |
| Max Wheelbase (Service) | 182.5" |
| Max Alignment Wheelbase (2-Wheel) | 166.7" |
| Max Alignment Wheelbase (4-Wheel) | 157" |
| Drive-Thru Clearance | 100" |
| Power Requirement | 220V – 20 Amp – 1PH |
| Shipping Weight | 3,892 lbs |
| Warranty | 5 Years Structure, 1 Year Parts |
