iDeal FP14KC-X 14,000 lb Four Post Service Lift

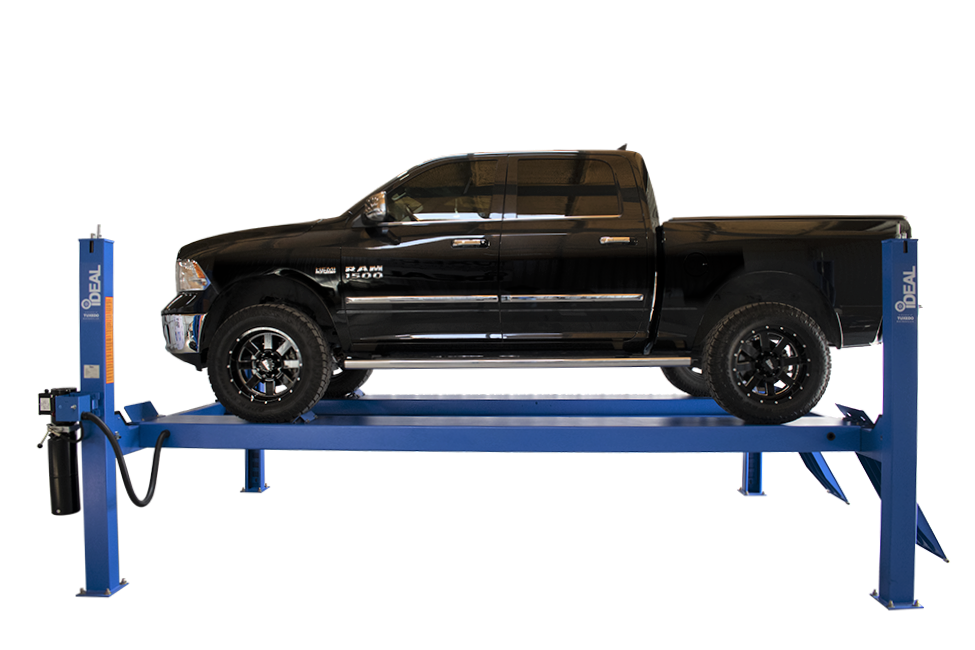

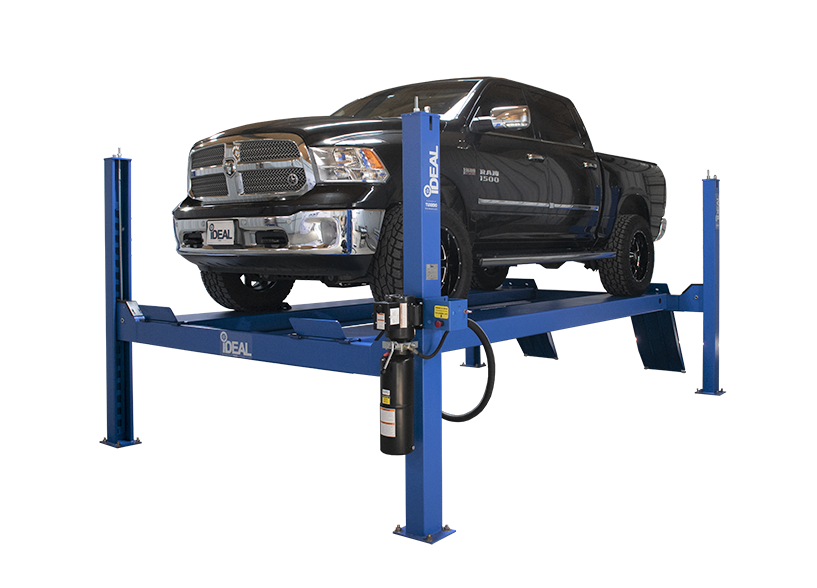

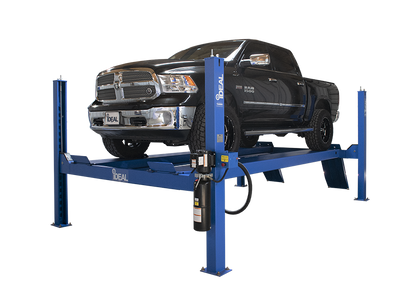

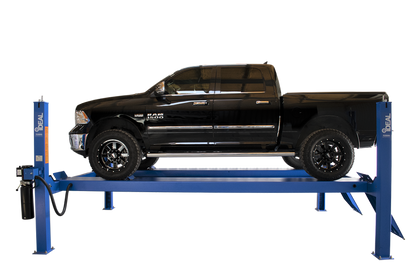

The iDeal FP14KC-X 14,000 lb Four Post Service Lift is a heavy-duty, commercial-grade lift engineered for precision, power, and performance. Designed to accommodate everything from passenger cars to full-size trucks, this model delivers unmatched versatility and strength in any professional automotive shop. With an extended runway length and a 14,000 lb lifting capacity, the FP14KC-X makes servicing large vehicles safer and easier than ever. Its smooth cable-driven design, single-point pneumatic lock release, and 18 locking height positions ensure stability, safety, and precision at every level.

Built for demanding shops, the FP14KC-X features a durable powder-coat finish, heavy-duty cable lift system, and wide 20" runways that can be adjusted for narrow or wide mounting positions. The integrated slack cable safety system and self-chocking approach ramps with nylon rollers provide superior safety and ease of use. With its reliable 220V power operation and 5-Year Structural Warranty, the iDeal FP14KC-X is the perfect combination of rugged strength, modern design, and long-term dependability.

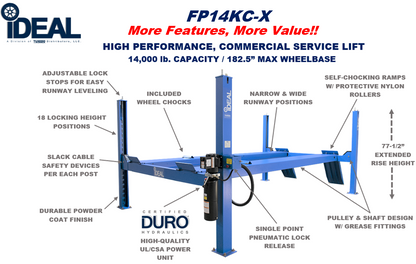

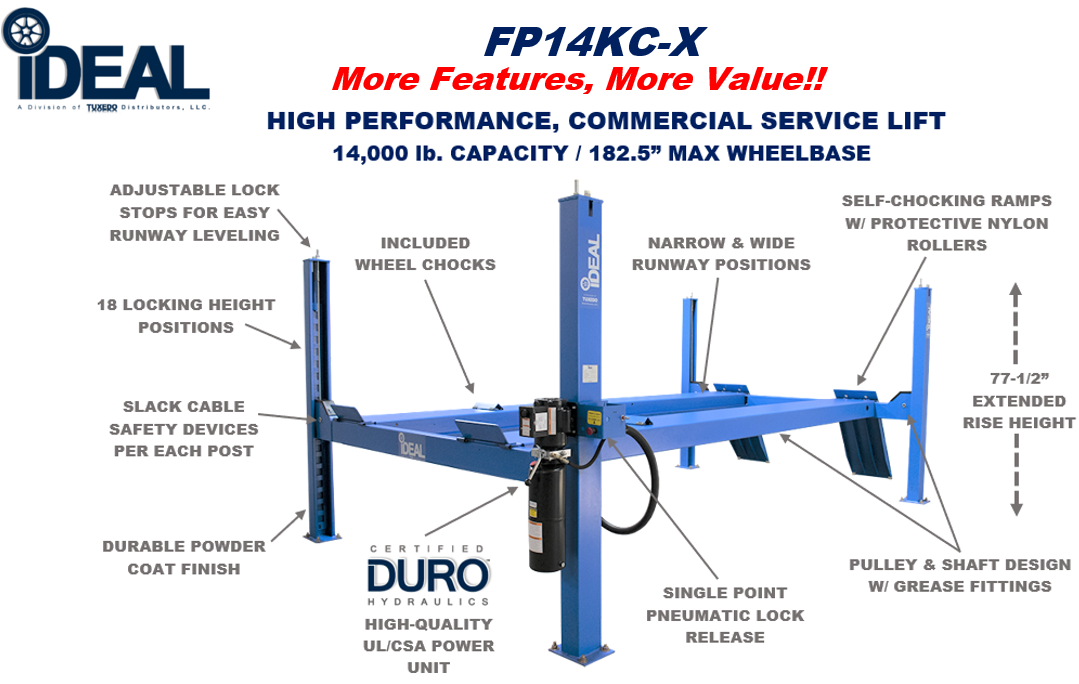

Product Features
  • 14,000 lb lifting capacity – ideal for commercial service and heavy-duty vehicle use.

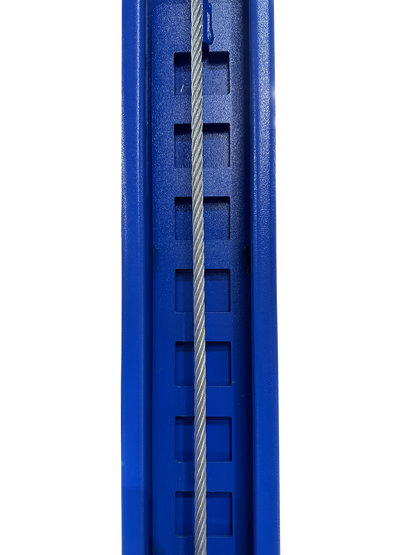

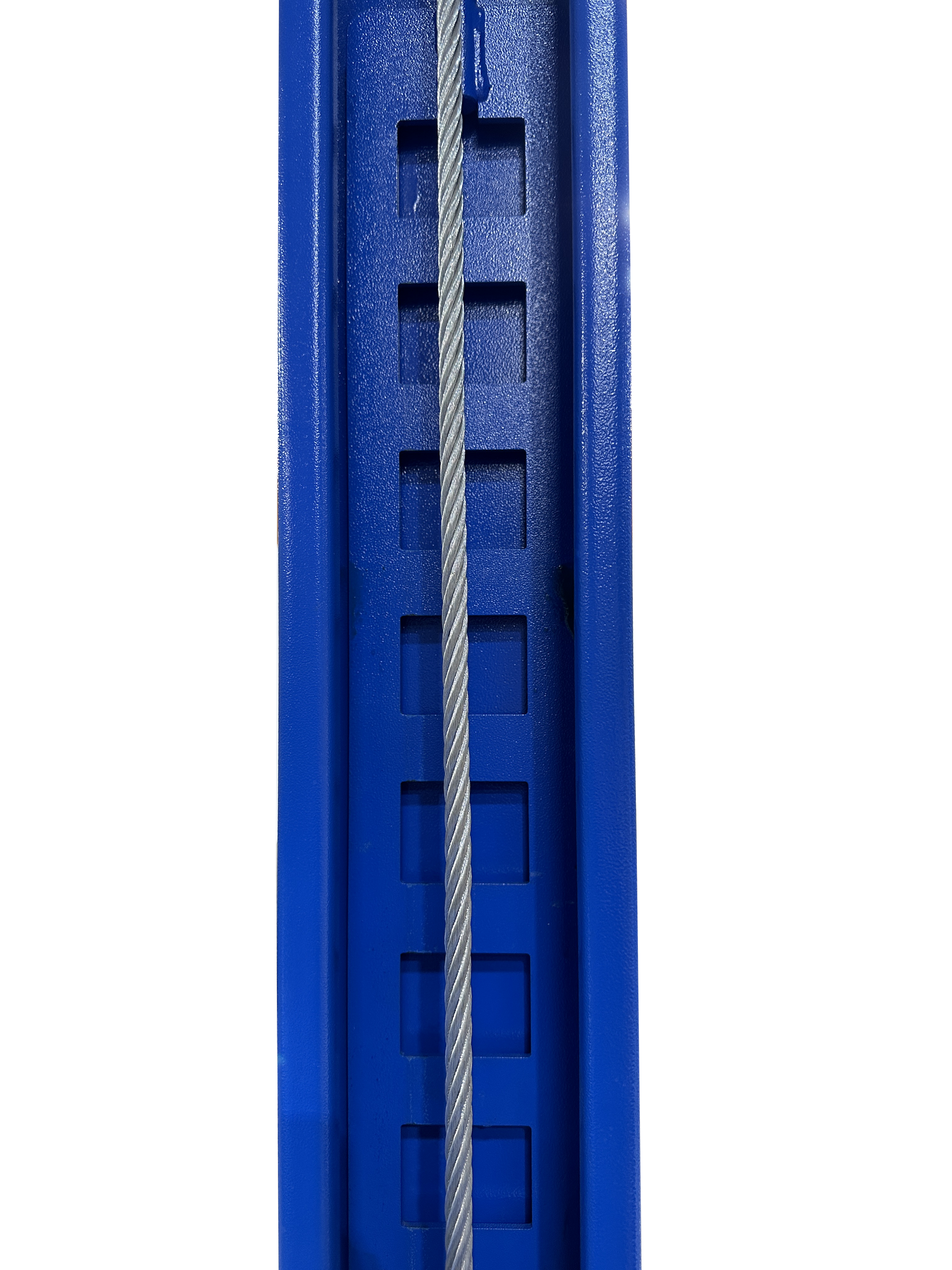

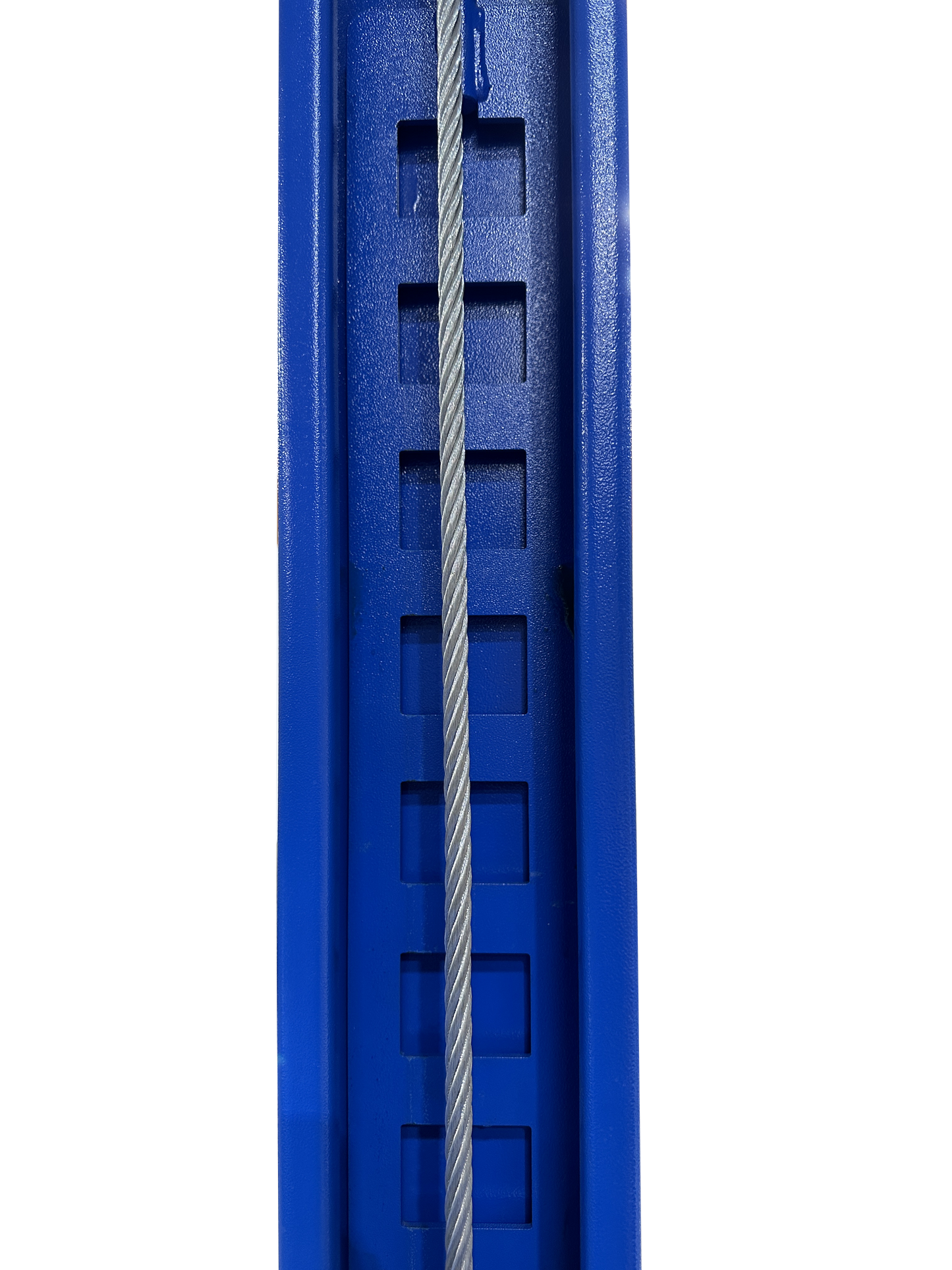

  • Durable cable-driven lift system for smooth, balanced lifting every time.
  • Extended 182.5″ wheelbase capacity – handles long trucks and vans with ease.
  • 18 locking height positions – fine-tuned control and safety at multiple heights.
  • Single-point pneumatic lock release – quick and efficient operation.
  • Fully adjustable lock stops for simple runway leveling.
  • Slack cable safety devices provide extra protection during lift use.

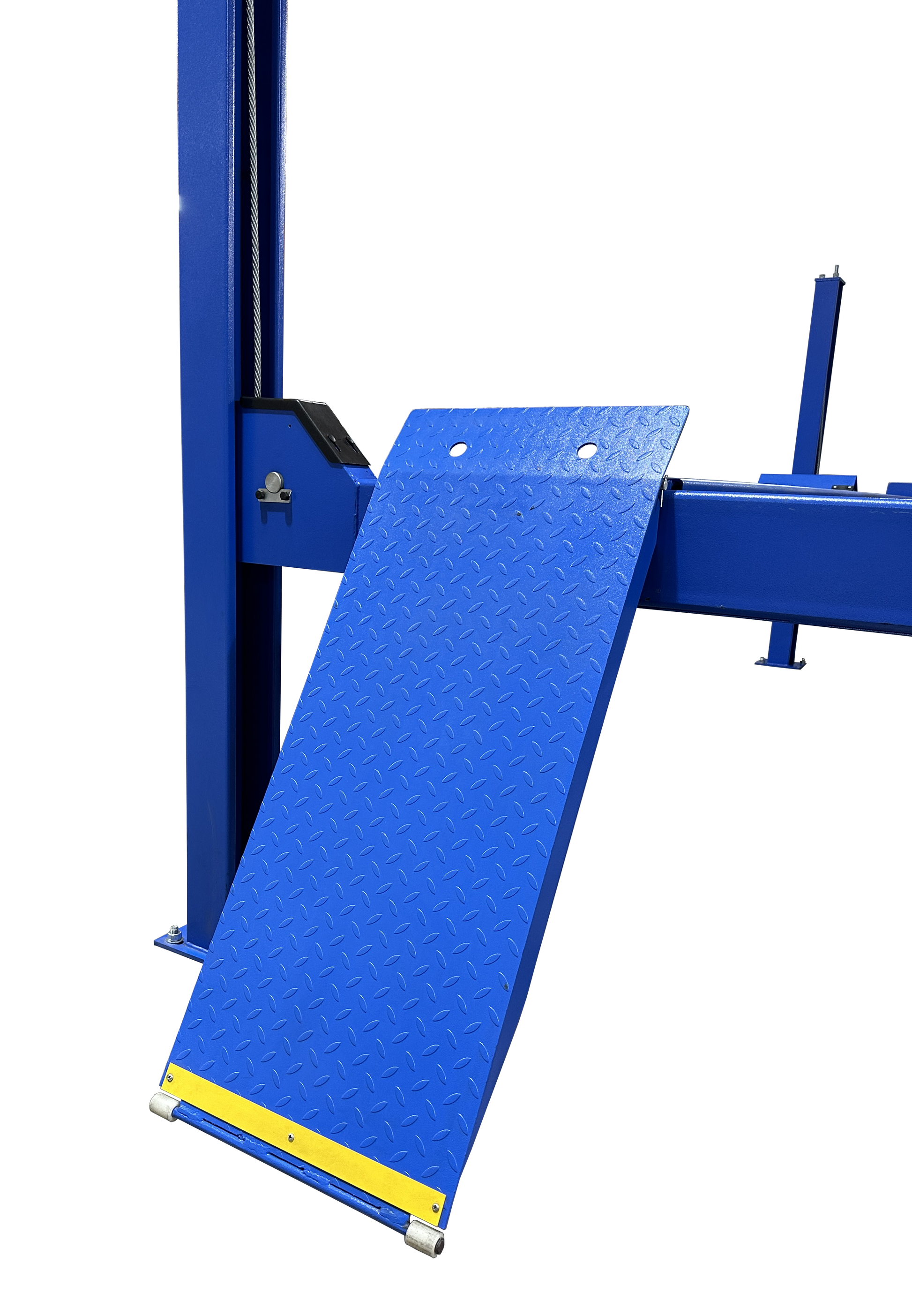

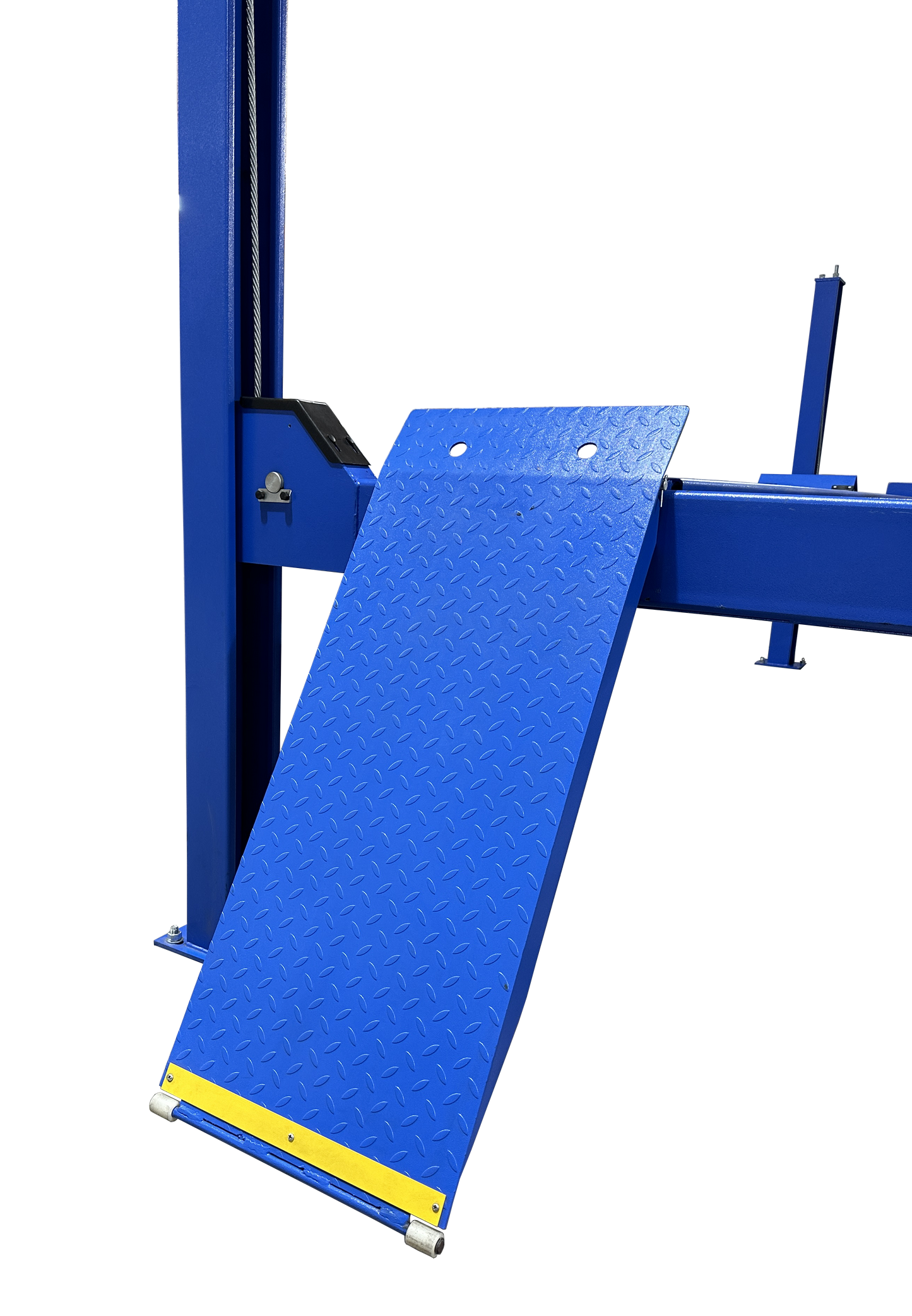

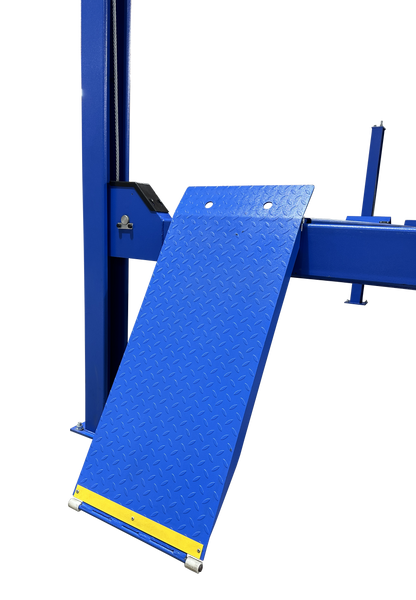

  • Self-chocking approach ramps with nylon rollers for smooth entry and exit.

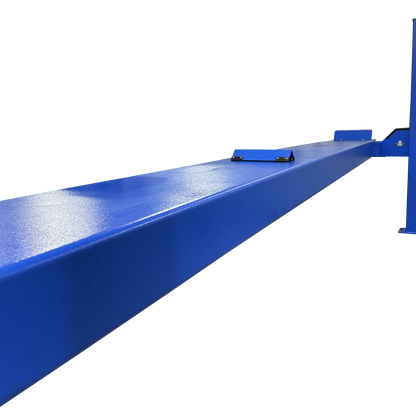

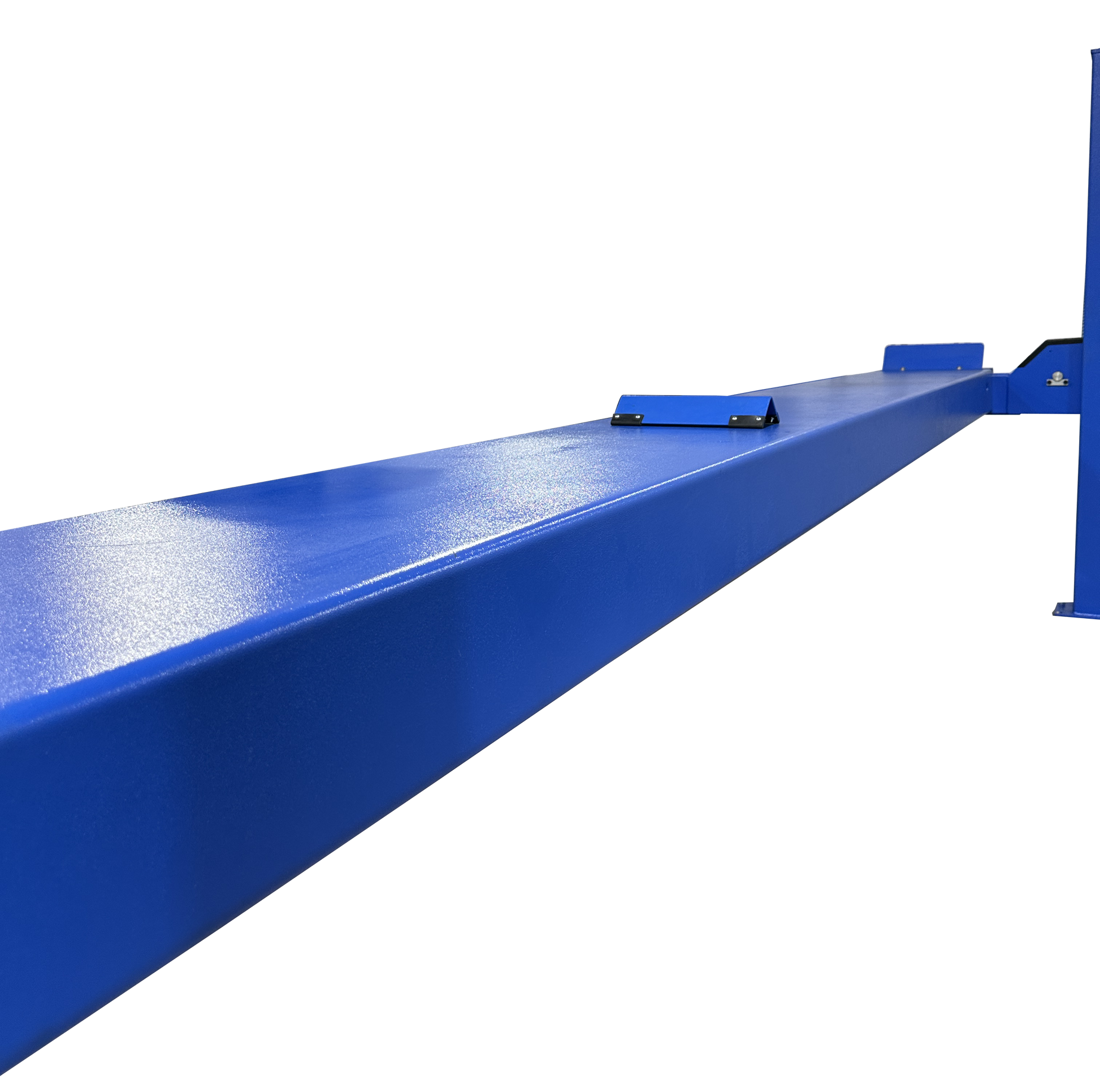

  • 20″ wide runways – adjustable for narrow or wide configurations.
  • Durable powder-coat finish resists corrosion and wear.
  • Includes wheel chocks for added safety and convenience.
  • Backed by a 5-Year Structural / 1-Year Parts Warranty for peace of mind.

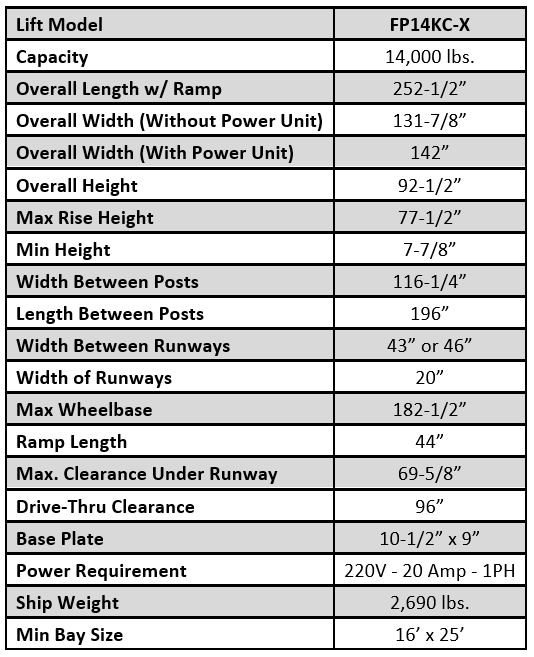

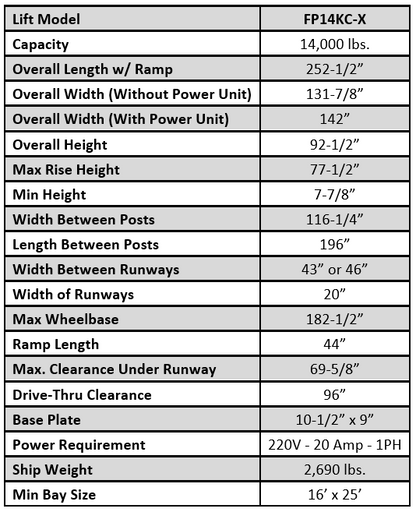

Product Specifications
Lifting Capacity 14,000 lbs
Max Rise Height 77.5″
Overall Length (with Ramp) 252.5″
Overall Width (without Power Unit) 131.9″
Overall Height 92.5″
Width Between Posts 116.25″
Runway Width 20″
Max Wheelbase 182.5″
Clearance Under Runway 69.6″
Drive-Thru Clearance 96″
Ramp Length 44″
Power Requirement 220V – 20 Amp – 1 Phase
Locking Positions 18
Shipping Weight 2,690 lbs
