The iDEAL IWA-60-8500-HD-K 3D HD Multi-Axle Wheel Alignment Machine delivers industry-leading precision and performance for heavy-duty vehicles. Designed for shops that service commercial fleets, buses, and trucks, this advanced 3D imaging aligner measures up to four axles at once—no lift required. Built on a powerful Windows platform and running Techno Vector 7 software, it ensures unmatched accuracy of ±0.01°, certified to CE standards.

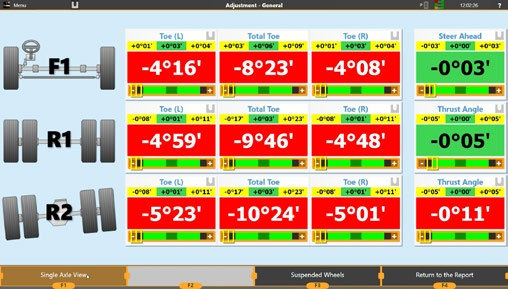

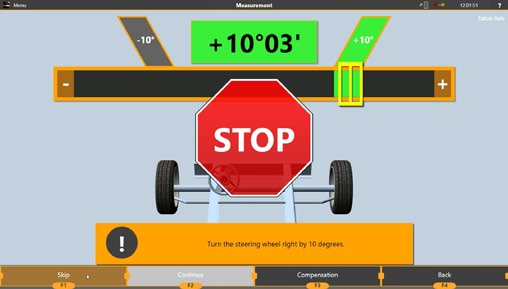

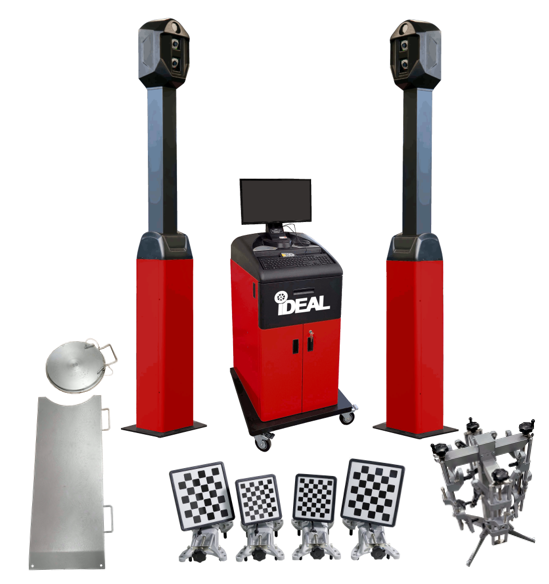

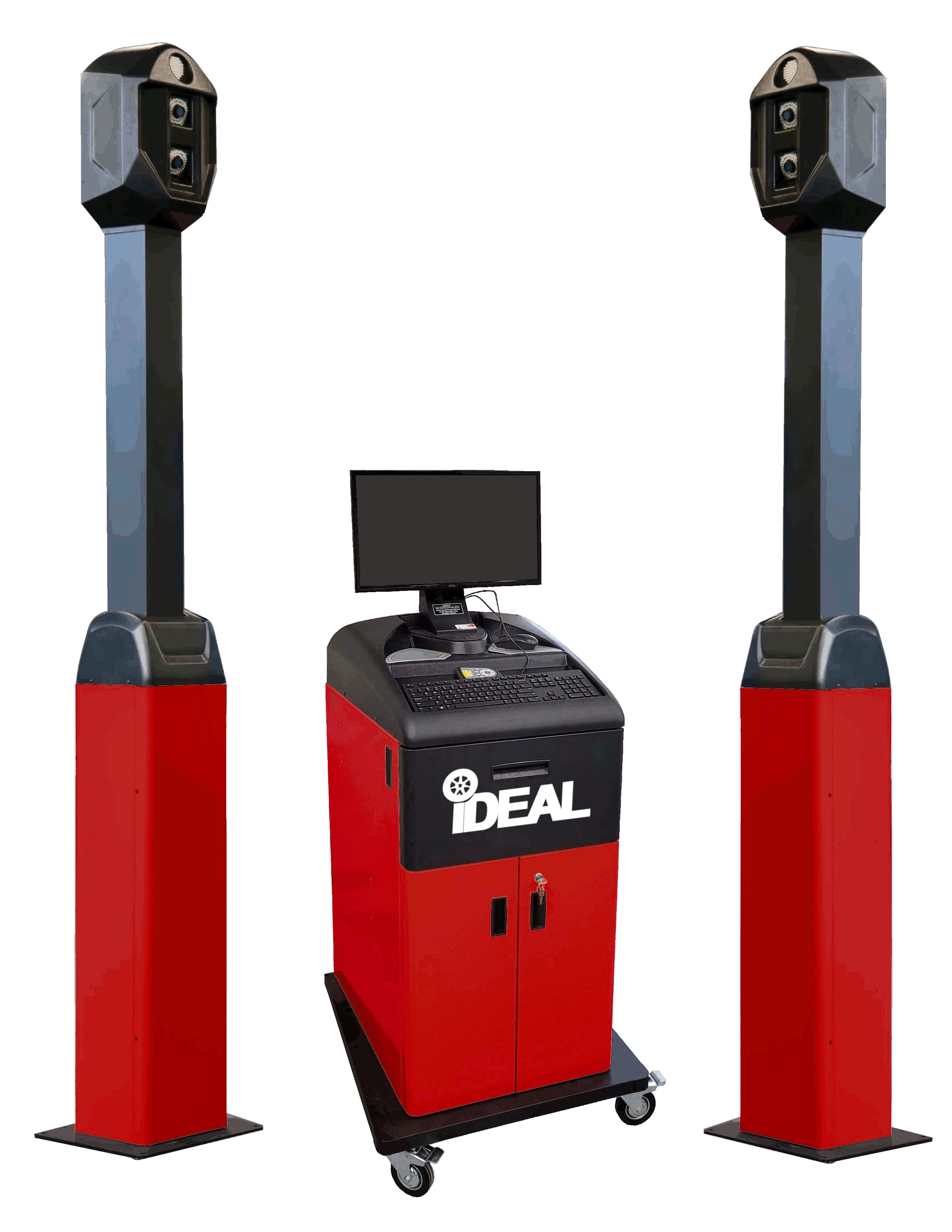

This floor-based alignment system features four high-resolution 3D tower cameras with extended range, capable of aligning vehicles up to 50 feet long and 13 feet wide. Its integrated quick-reference vehicle database, dynamic LED tower guides, and live measurement screens streamline every step of the alignment process. The included HD turntables, drive-on ramp sets, and mobile cabinet configuration make setup flexible for any shop layout—whether drive-through or dead-end bays.
With wireless remote control operation, real-time data displays, and comprehensive customer database management, the IWA-60-8500-HD-K provides technicians with everything they need for efficient, accurate multi-axle alignments. Complete with computer, monitor, keyboard, printer, and all necessary accessories, this unit arrives ready to perform.
| Product Specifications | |
|---|---|
| Model | IWA-60-8500-HD-K |
| Alignment Type | 3D HD Multi-Axle Imaging |
| Software | Techno Vector 7 (Windows Platform) |
| Accuracy | ±0.01° (CE Certified) |
| Max Vehicle Width | Up to 13 Feet |
| Max Wheelbase | Up to 50 Feet |
| Power Requirement | 120V / 15A / 1PH / 60Hz |
 |
 |
| Product Features |
|---|
|
