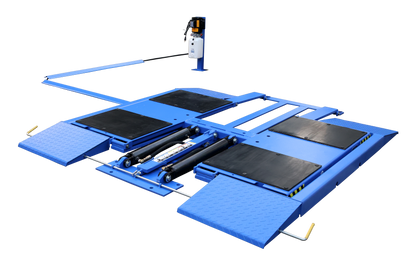

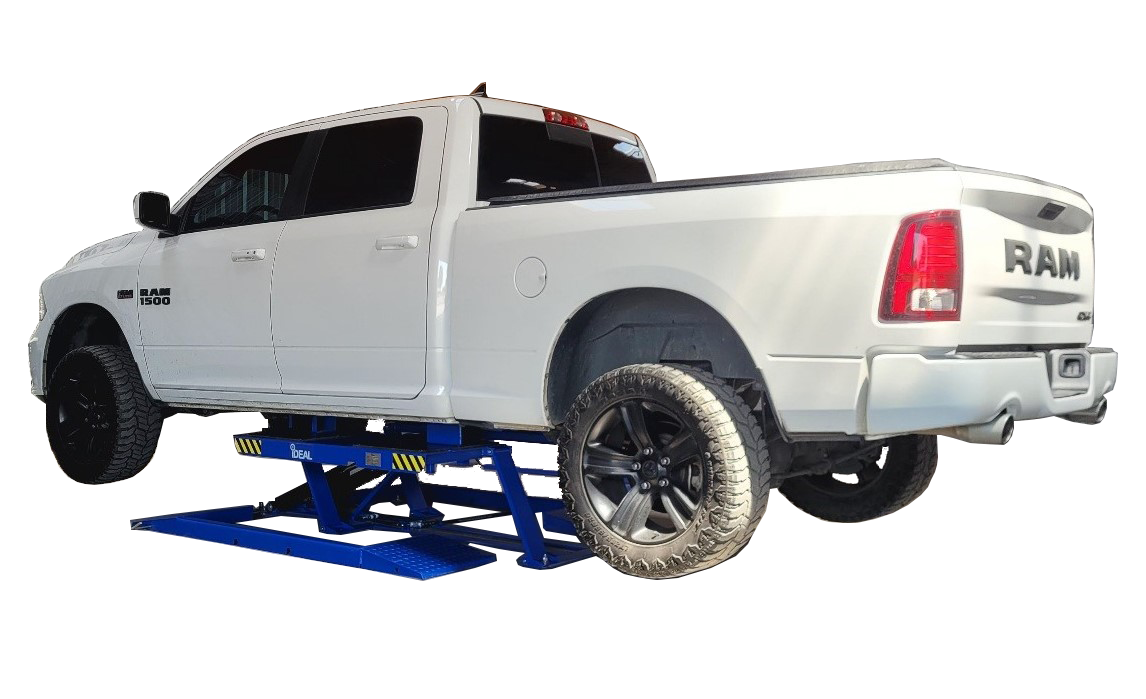

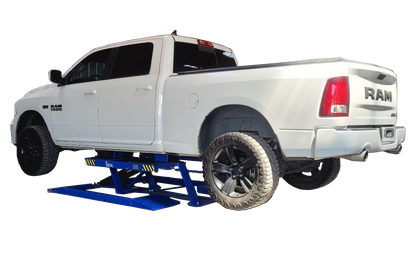

The iDEAL LR-10K-PAD Low-Rise Pad Lift is built for professionals who demand strength, speed, and versatility in their tire and wheel service operations. With an impressive 10,000 lb. lifting capacity, this heavy-duty lift easily accommodates cars, SUVs, and light trucks. Its low-profile pad design and wide platform make it perfect for quick service bays, body shops, and fleet maintenance facilities.

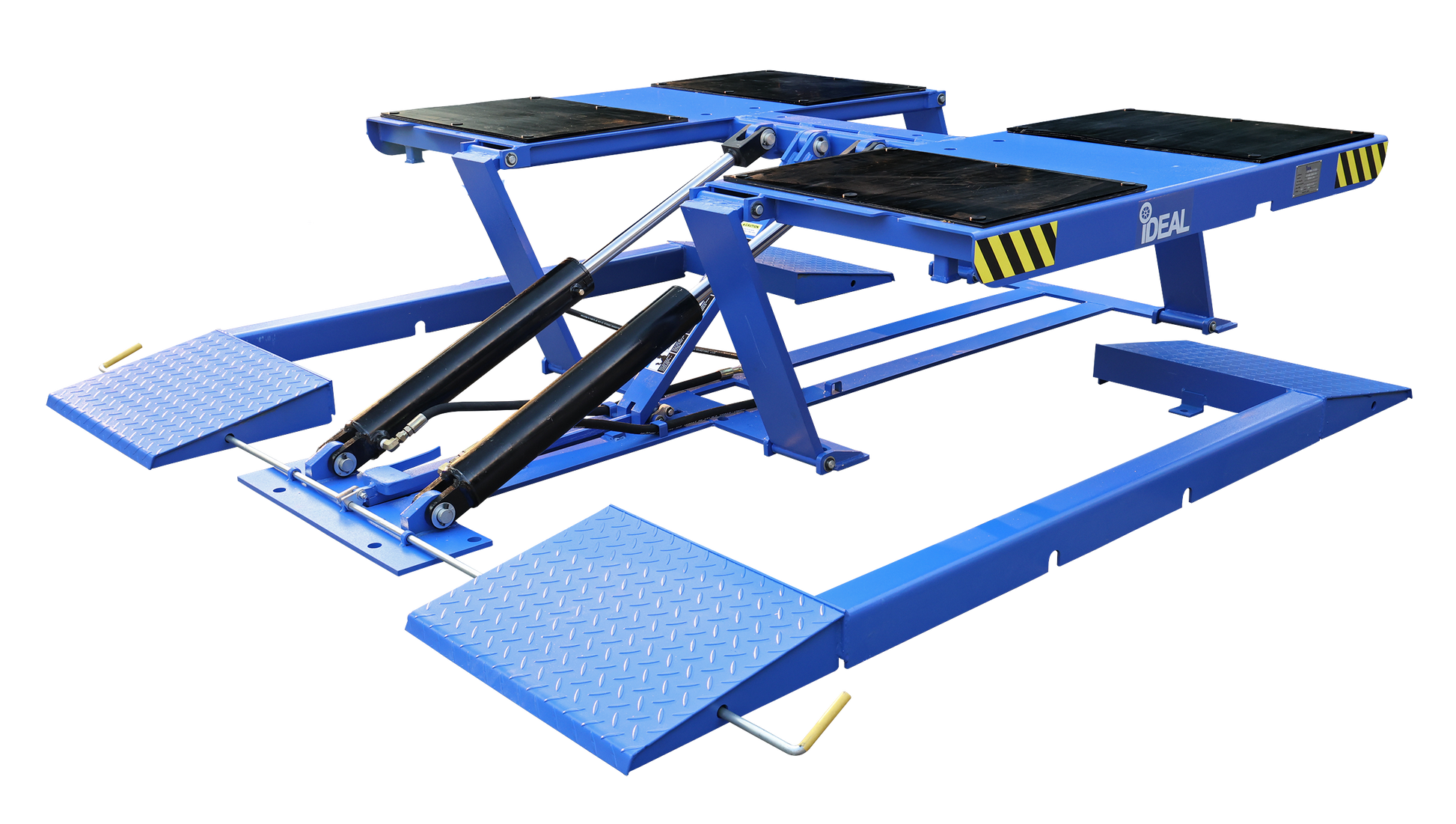

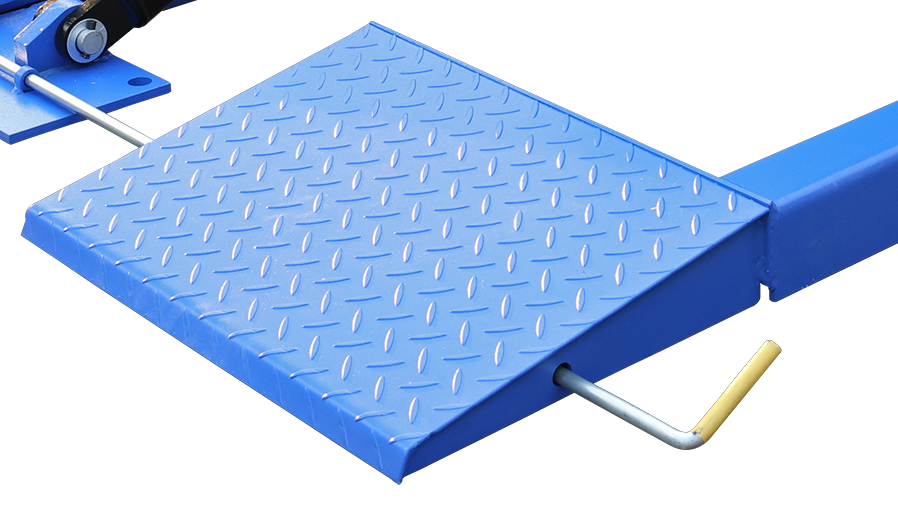

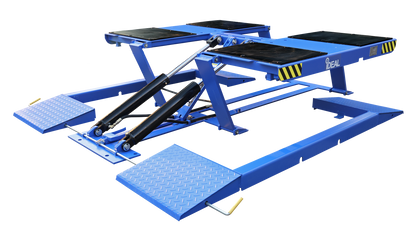

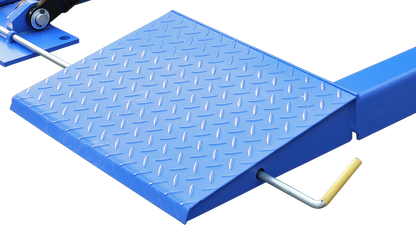

Featuring a smooth lift range from just 4-1/4” to 22-1/2” (extendable to 30-3/4” with tall adapters), the LR-10K-PAD provides excellent access to undercarriage components while maintaining compact, surface-mount efficiency. Dual hydraulic cylinders ensure stable and synchronized lifting, while heavy-duty rubber pads and diamond plate ramps enhance vehicle protection and operator safety. With three locking height positions and latch release handles on both sides, operation is fast, safe, and user-friendly. Designed for high-performance shops, the LR-10K-PAD combines commercial-grade durability with everyday practicality.
| Product Features |
|---|

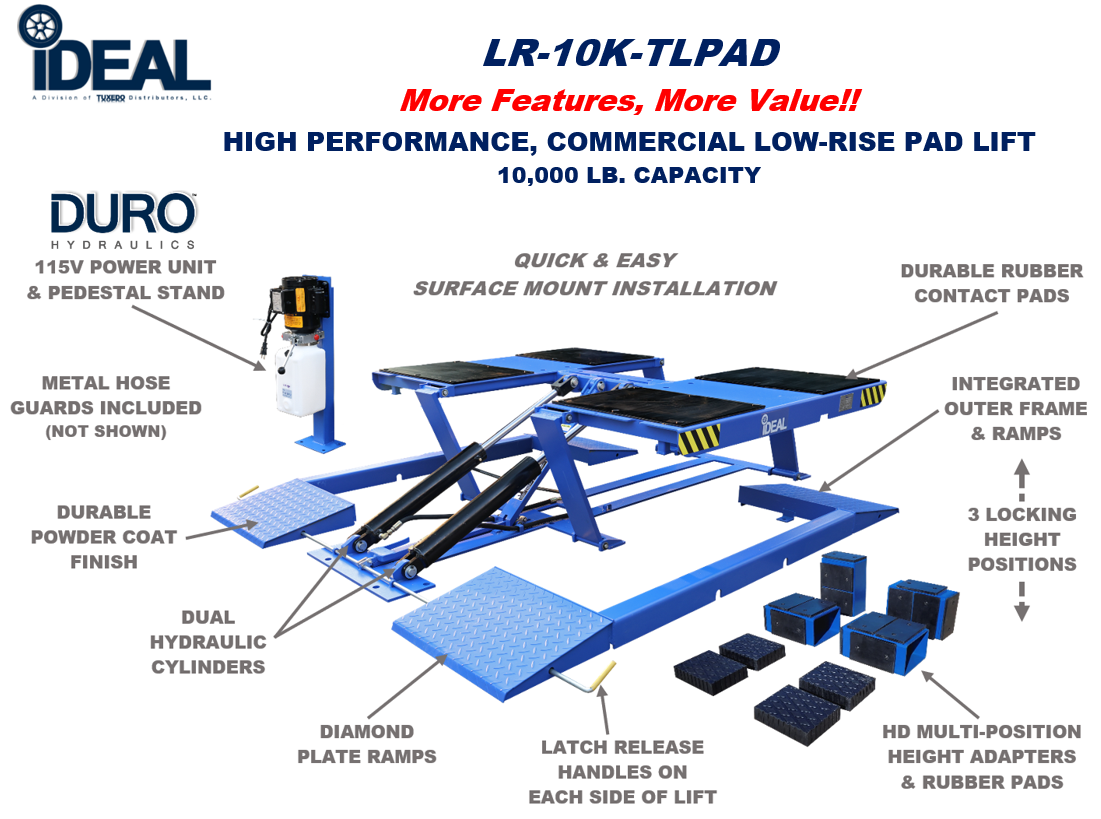

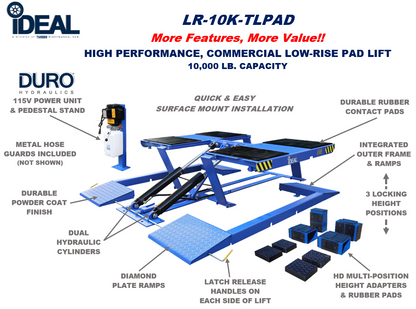

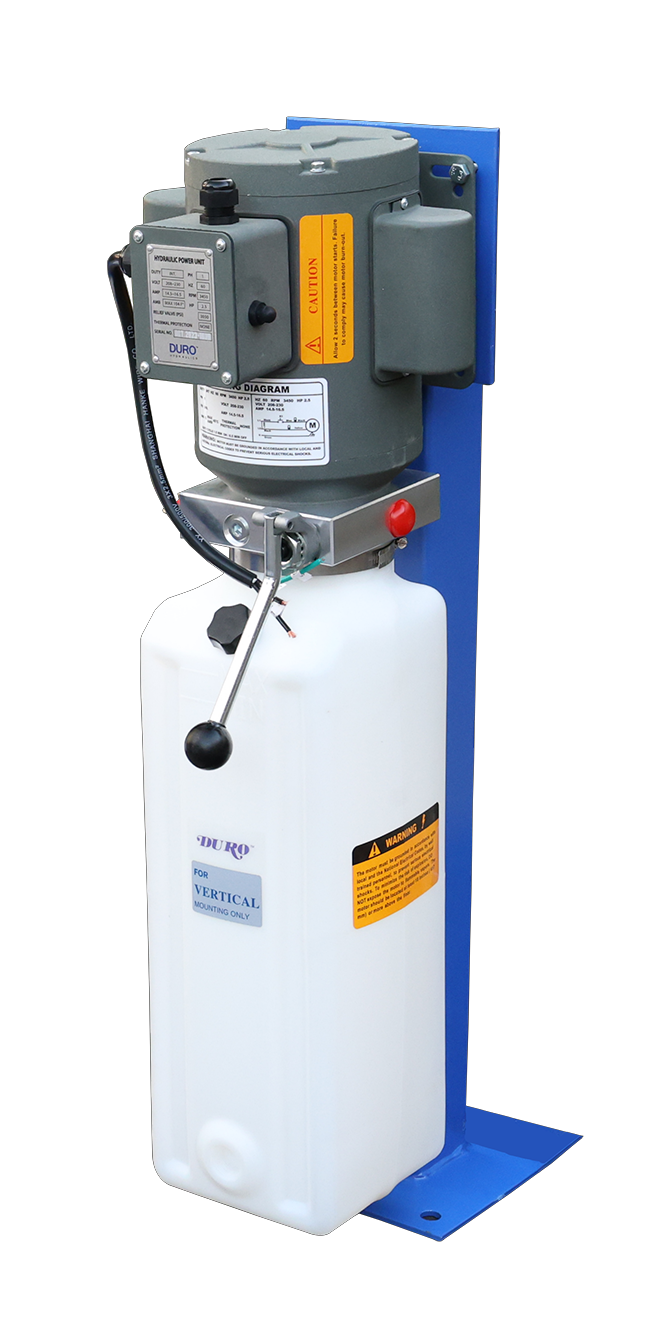

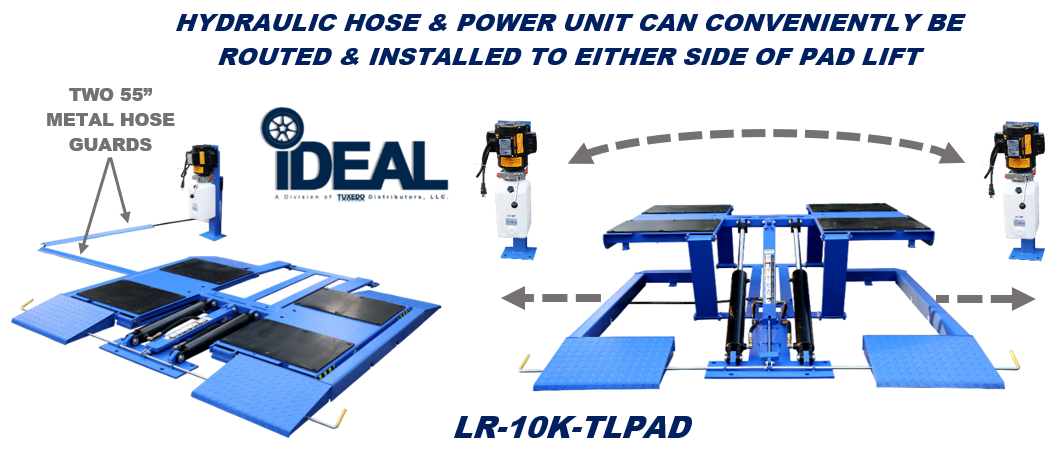

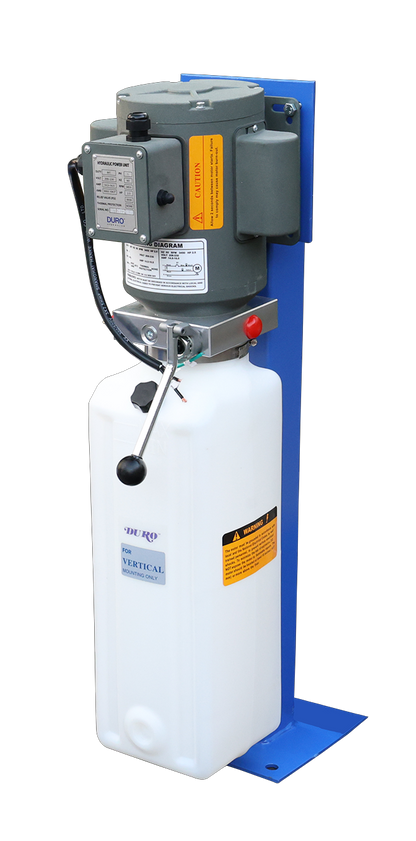

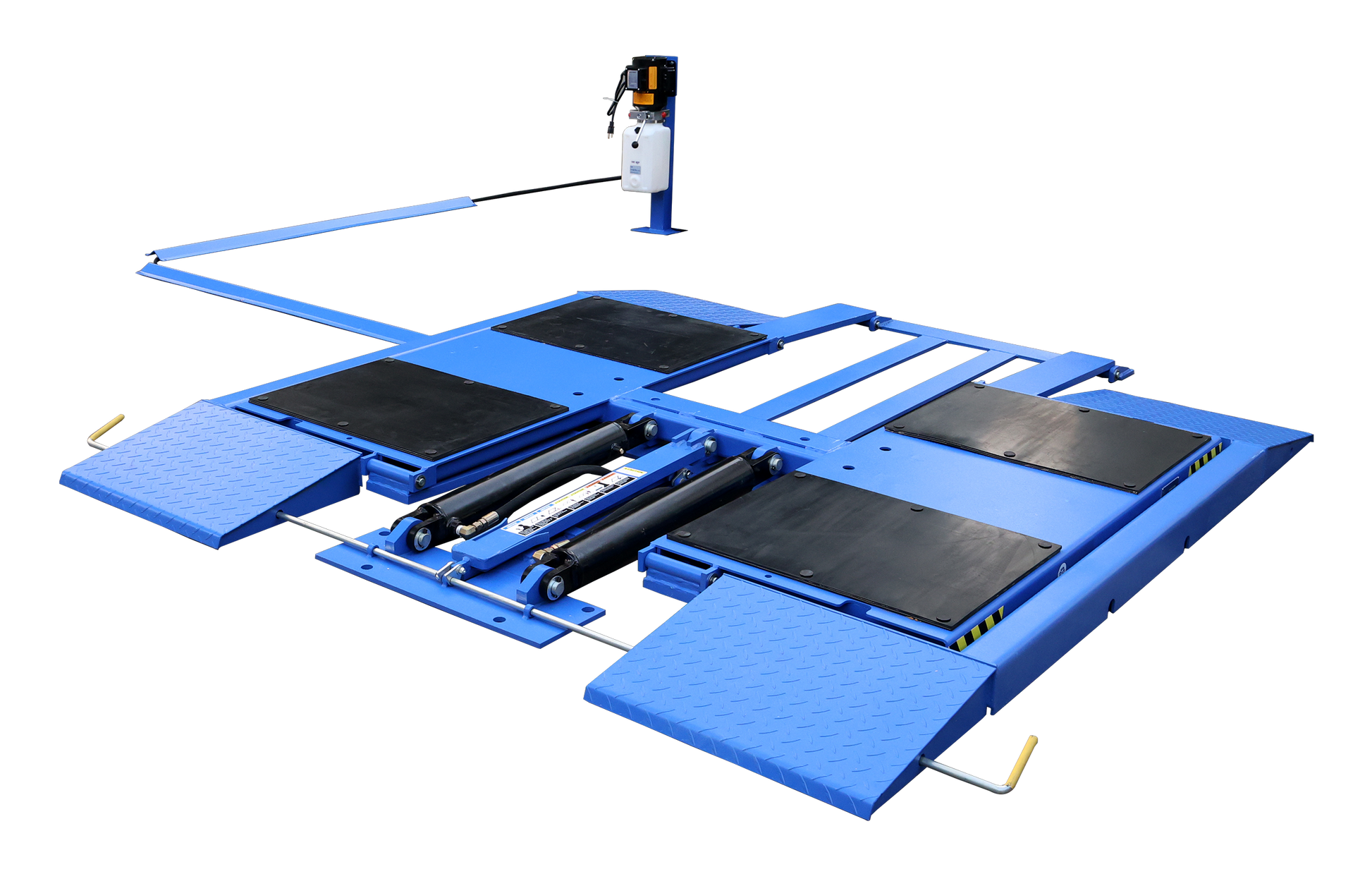

| • 10,000 lb. lifting capacity • Low-rise pad lift ideal for tire, wheel, and brake service • Surface-mount design for easy drive-on operation • Dual hydraulic cylinders for smooth, balanced lifting • Three locking height positions for added safety • Durable rubber contact pads and diamond plate ramps • Latch release handles on both sides for convenient operation • Power unit pedestal stand included • Includes tall adapters, metal hose covers, and rubber pads • Durable powder-coated finish for long-lasting protection • Optional 220V power unit for faster lift speed |
 |
 |
| Product Specifications | |
|---|---|
| Capacity | 10,000 lb |
| Overall Length | 91″ |
| Overall Width | 88-5/8″ |
| Maximum Lift Height | 22-1/2″ (30-3/4″ with tall adapter) |
| Minimum Lift Height | 4-1/4″ |
| Platform Pad Length | 51-1/4″ |
| Platform Pad Width | 24″ |
| Platform Outer Width | 70-3/4″ |
| Lift Speed (115V) | 60 seconds |
| Lift Speed (220V) | 36 seconds |
| Power Requirement | 115V - 1Ph - 20 Amp |
| Shipping Weight | 1,262 lbs |
