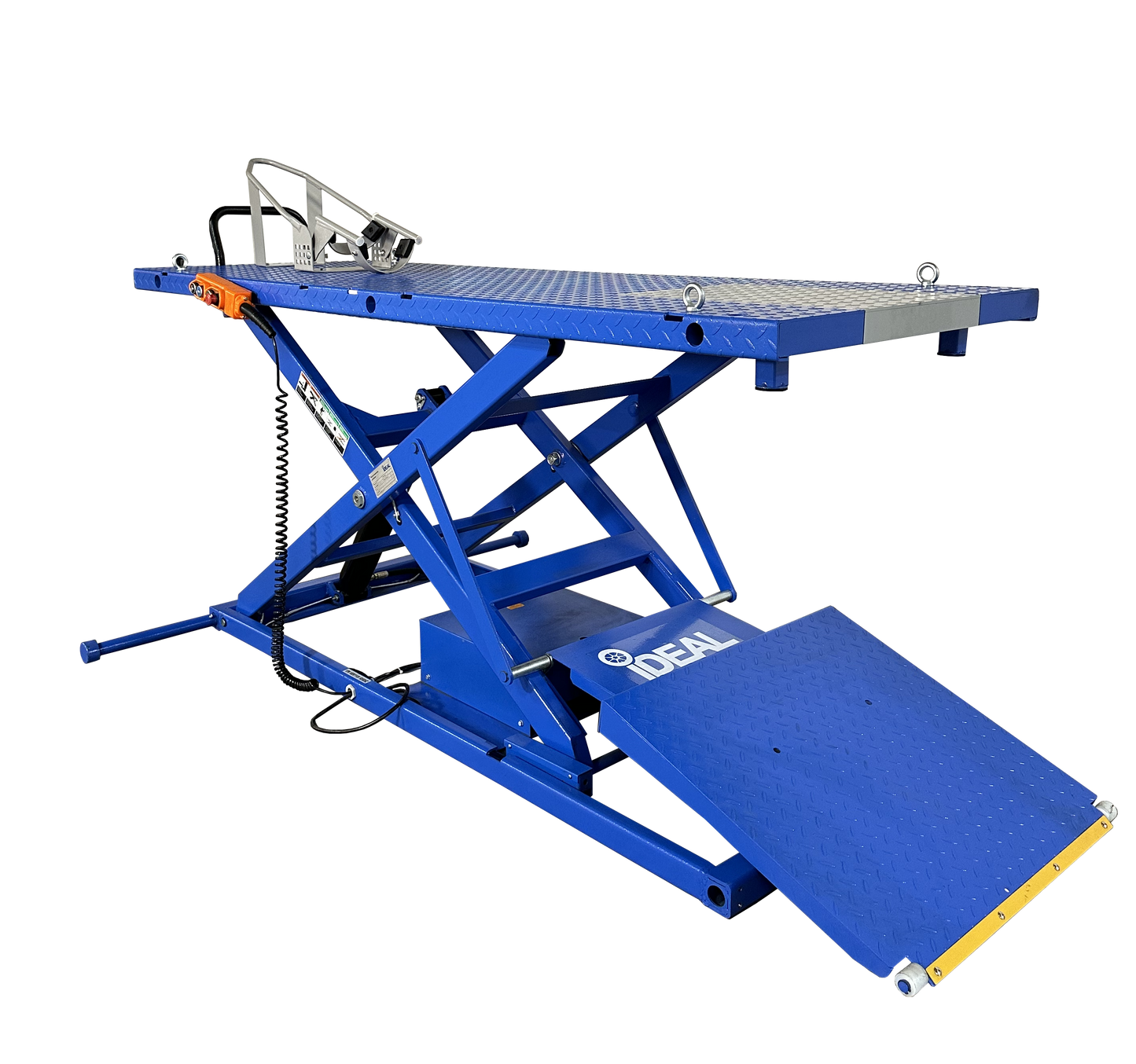

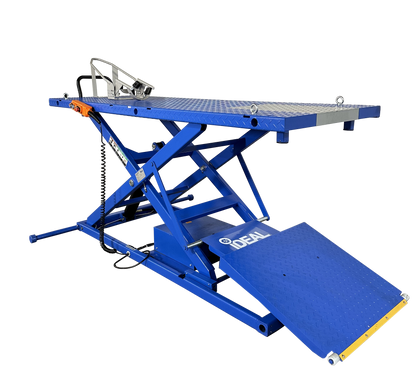

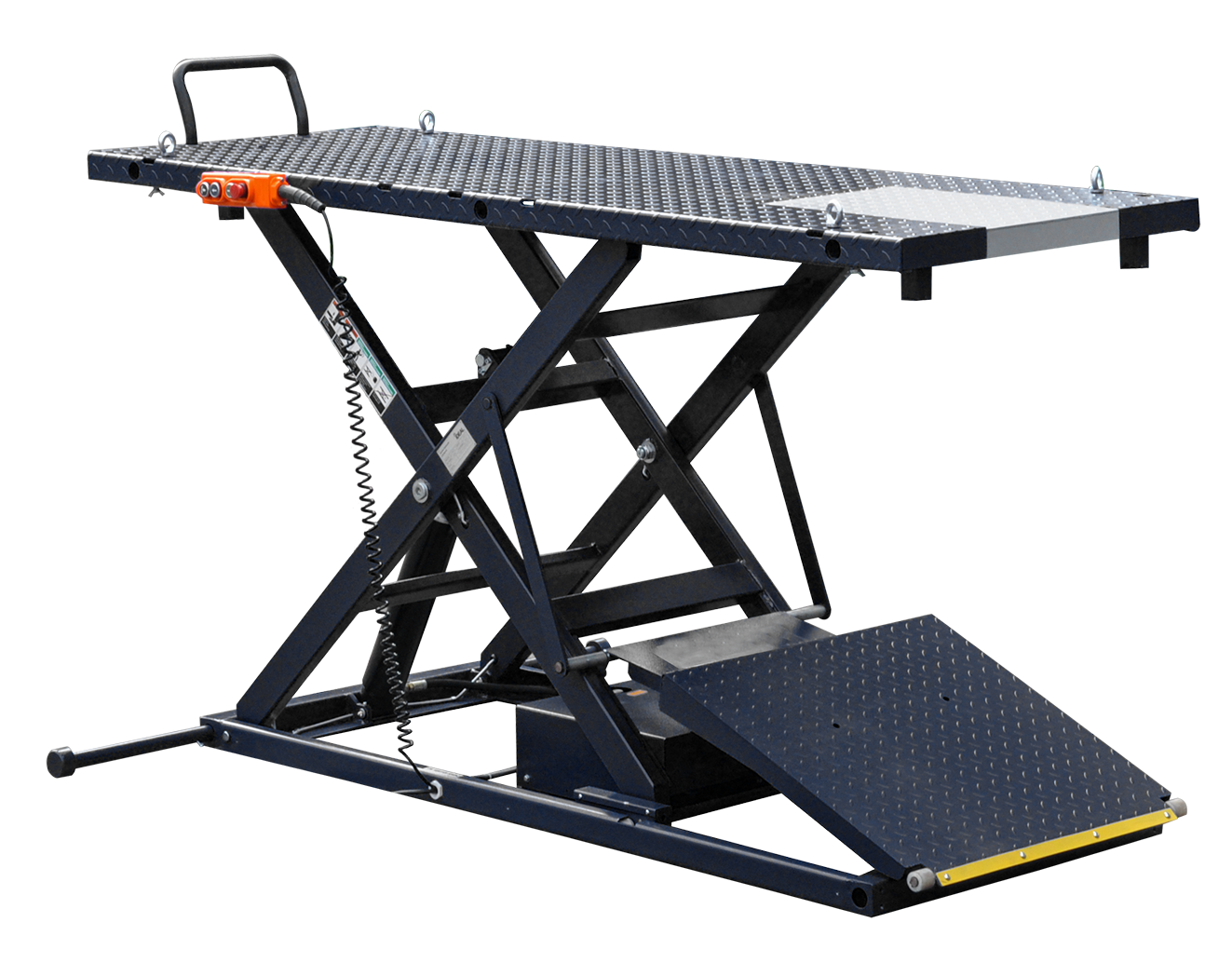

iDEAL M-2200IEH-XR Motorcycle Lift With Motor & Retractable Pump

iDEAL M-2200IEH-XR Motorcycle Lift With Motor & Retractable Pump

Regular price $3,440.00
Regular price Sale price $3,440.00
Sold out

AvailabilityLow stock: 25 left

SKU: M-2200IEH-XR
Vendor: iDeal
Category: Motorcycle Lifts

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

View full product details

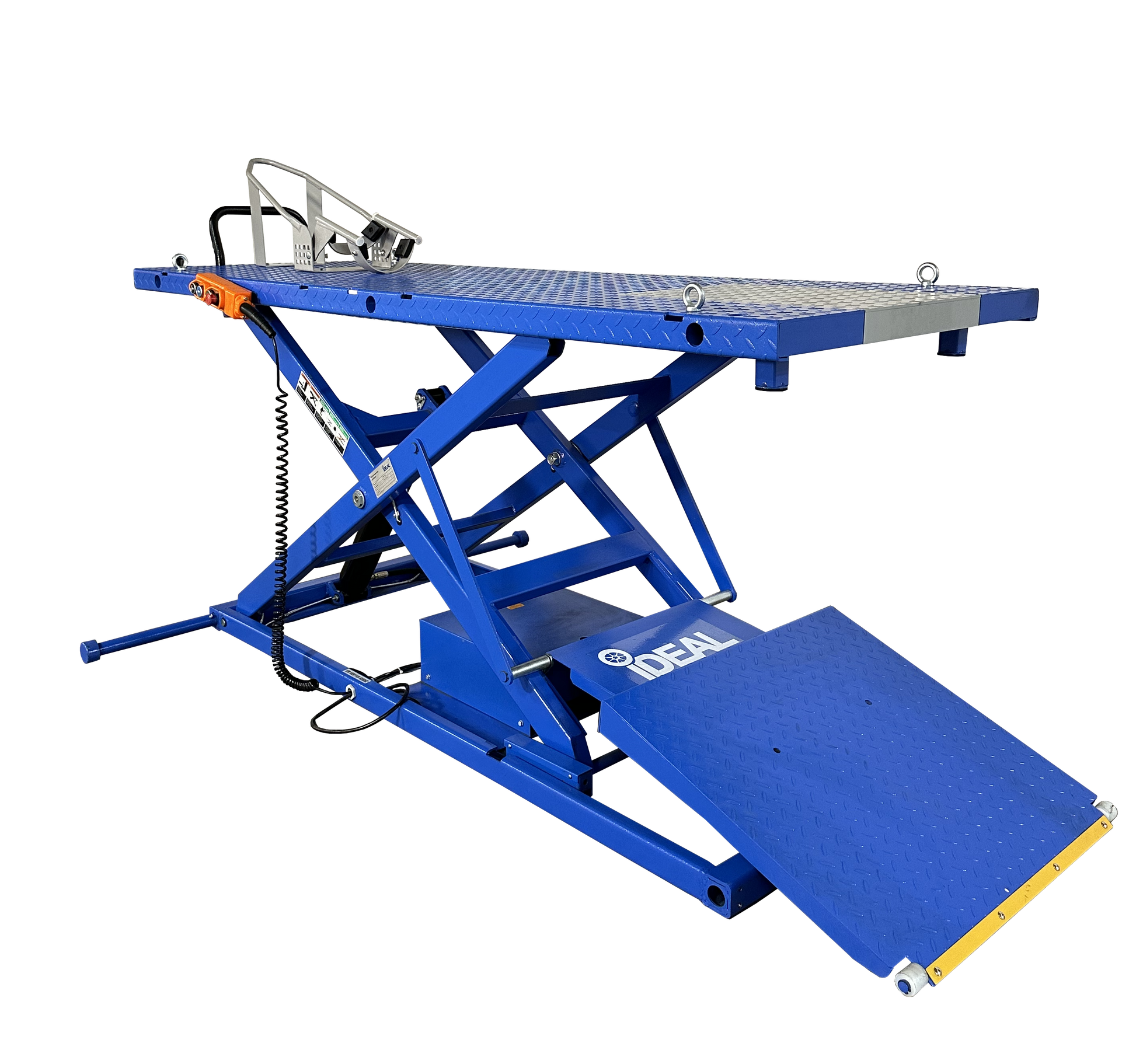

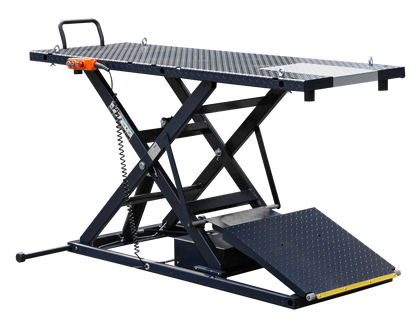

iDEAL M-2200IEH-XR Motorcycle Lift - 2,200 lb Capacity

The iDEAL M-2200IEH-XR Motorcycle Lift is the ultimate heavy-duty solution for professional motorcycle service shops and serious enthusiasts. Built for strength, precision, and convenience, this electric/hydraulic powerhouse delivers an incredible 2,200 lb lifting capacity—making it capable of handling the largest cruisers, touring bikes, and even small ATVs with ease. Powered by a 110V integrated electric/hydraulic motor, the M-2200IEH-XR raises your bike smoothly to an impressive 47.2" in under 30 seconds. No manual pumping, no wasted time—just pure performance at the push of a button.

This lift features a wide 31.5" x 88.6" working platform that provides maximum stability, complemented by a retractable ramp design for seamless loading and unloading. Its six locking positions ensure secure height adjustment, while the rear drop-down service panel allows for easy rear-wheel access. The M-2200IEH-XR also includes a wheel stop and single-point handheld control pendant for simple and safe operation. With a retractable pump system that keeps your workspace clean and organized, this lift offers both power and practicality in one professional-grade package. Whether you’re performing oil changes, engine work, or full rebuilds, the M-2200IEH-XR makes every job safer, faster, and easier.

Product Features
• 2,200 lb lifting capacity
• Integrated 110V electric/hydraulic power unit

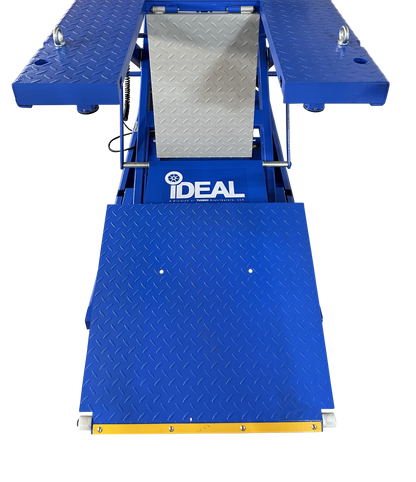

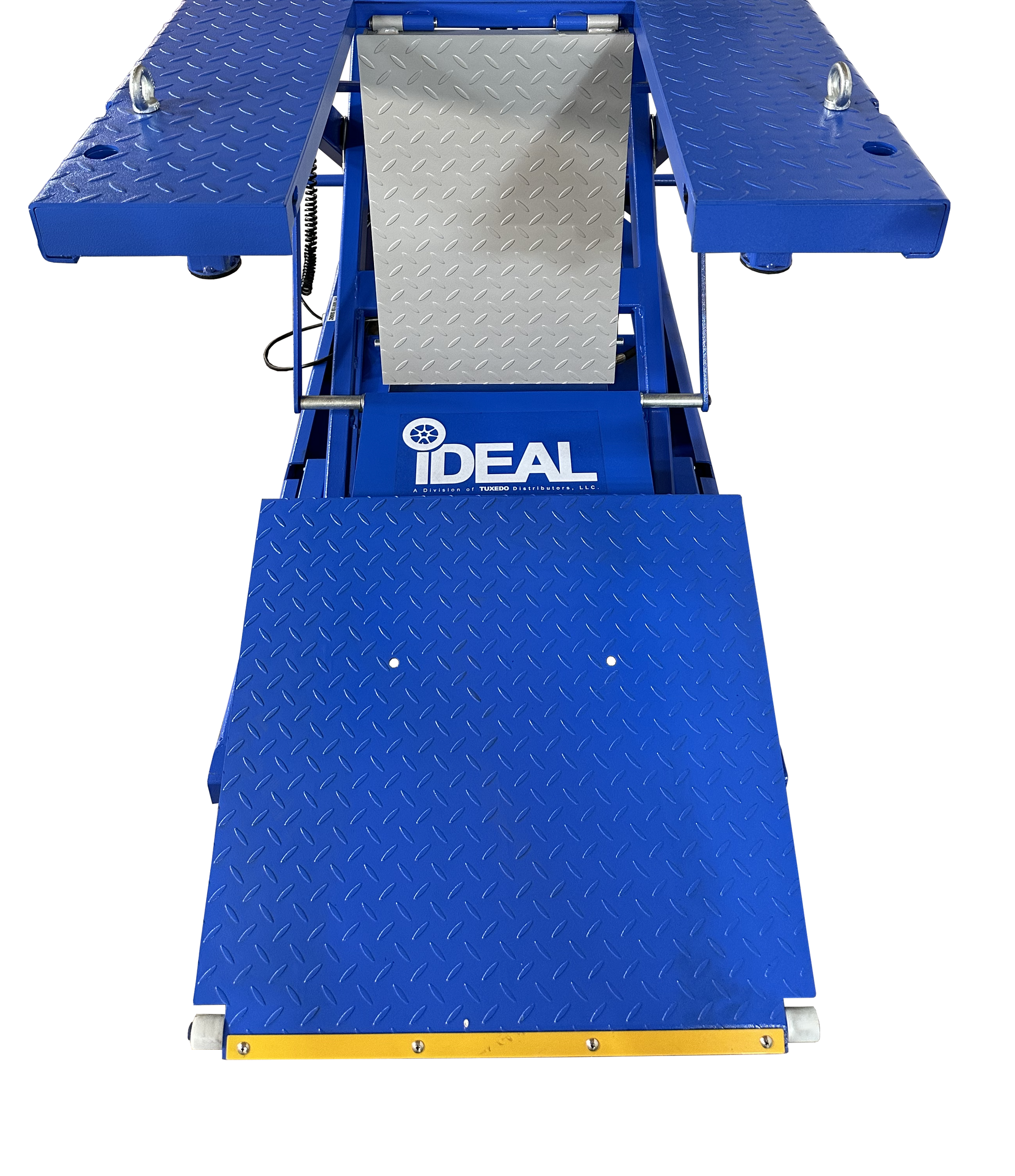

• Retractable ramp for easier loading and compact storage
• Six locking height positions for safety and flexibility

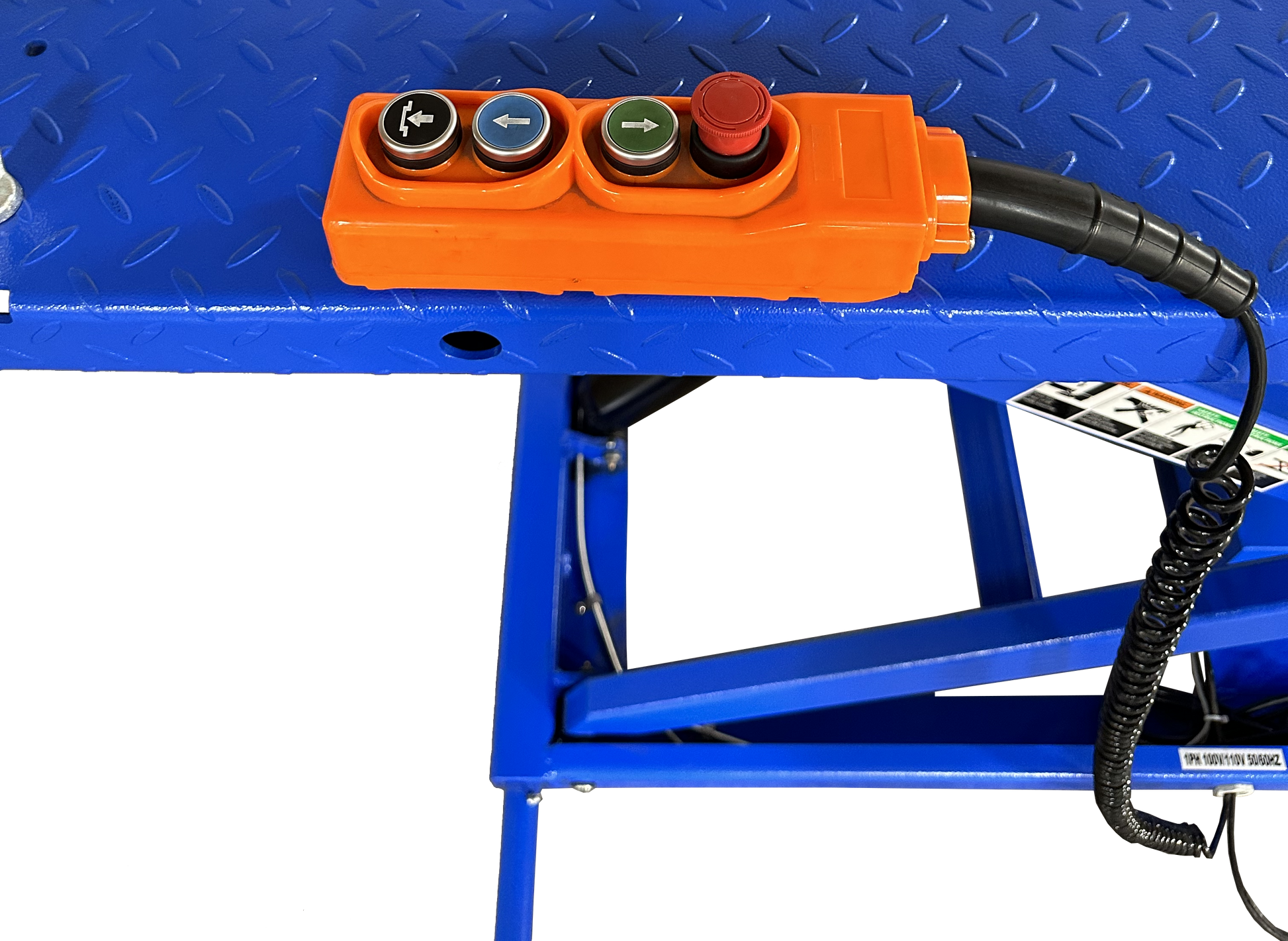

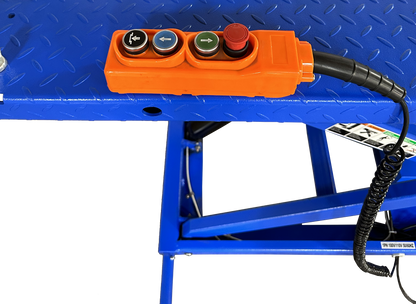

• Single-point handheld control pendant for lift and lock release
• Rear drop-down service panel for easy wheel access
• Heavy-duty steel platform with wide 31.5" surface
• Smooth 30-second lift and descent times

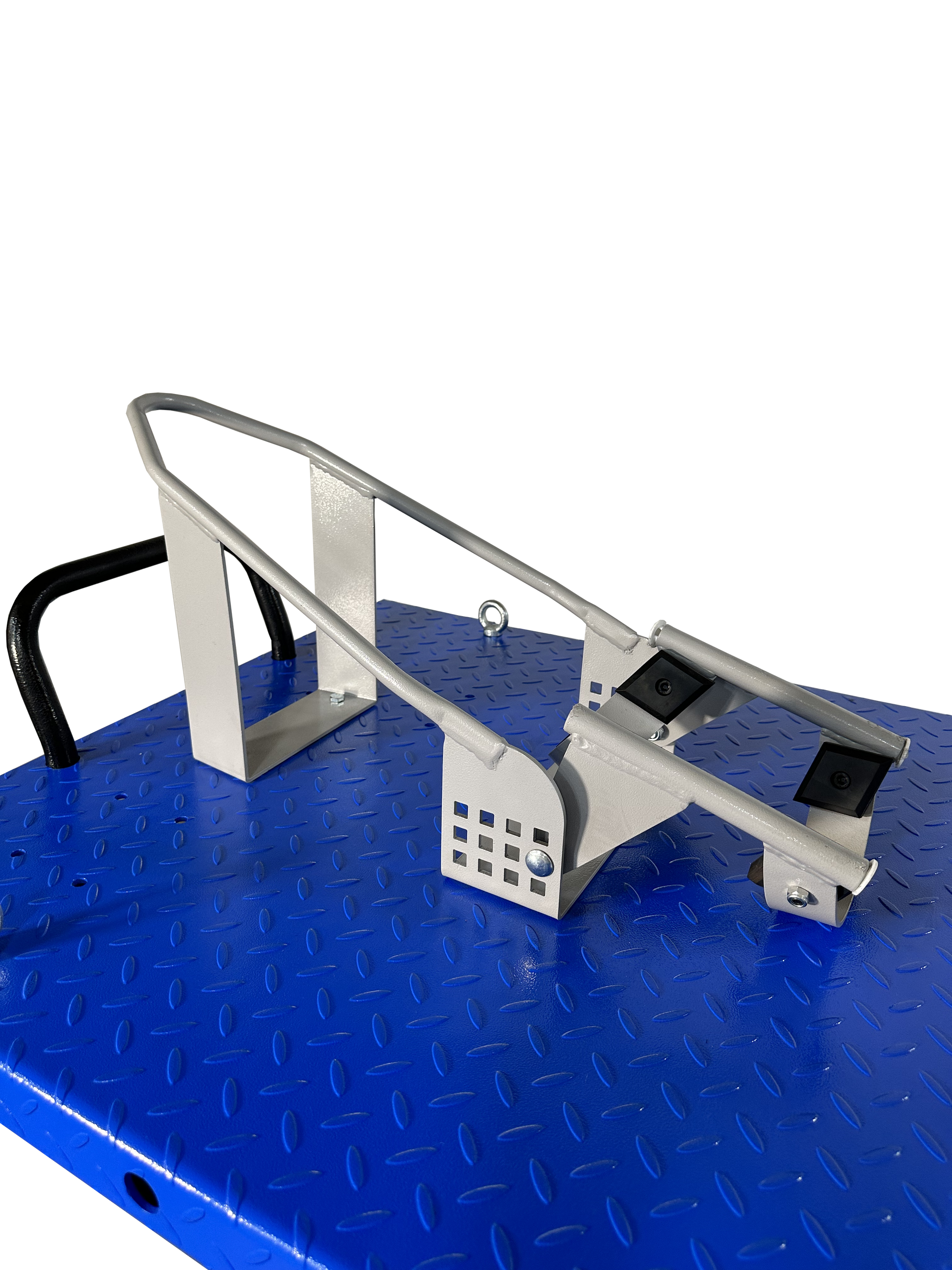

• Built-in wheel stop for added stability

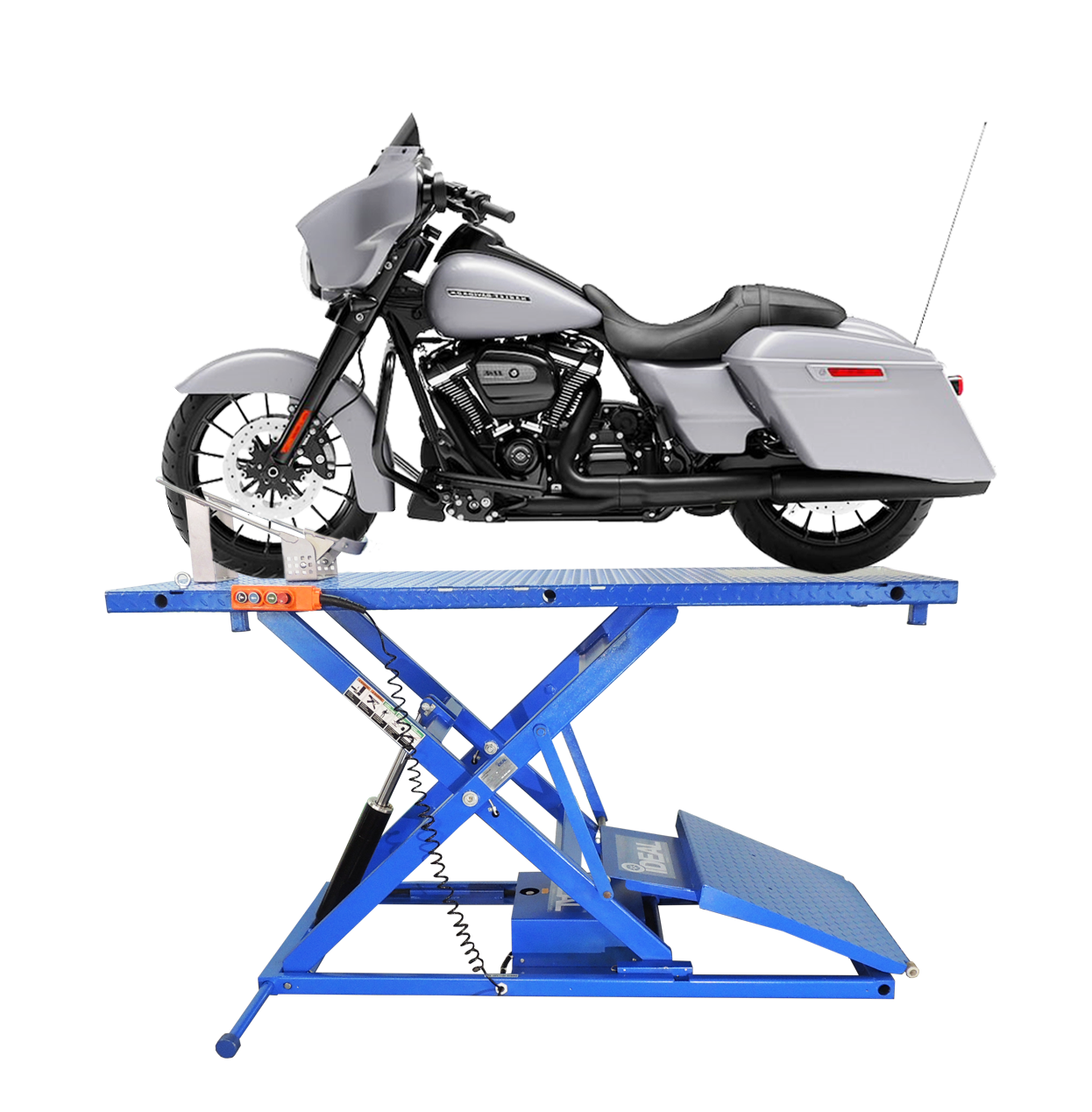

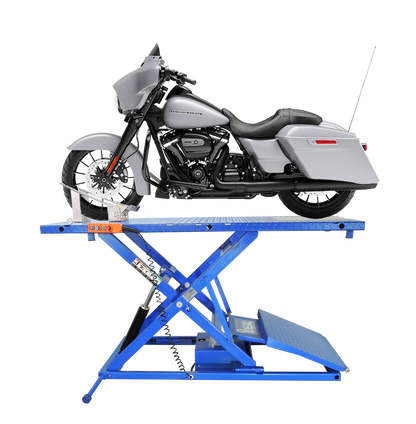

• Perfect for motorcycles, cruisers, and small ATVs
Product Specifications
Lifting Capacity 2,200 lbs
Max Lift Height 47.2″
Min Height 7″
Platform Size (L x W) 88.6″ x 31.5″
Overall Width (with Stabilizer Bar) 58.5″
Overall Length (with Ramp) 116.5″
Power Supply 110V / 60Hz / 1 Phase / 18A
Lift/Descent Time 30 Seconds
Shipping Weight 788 lbs
