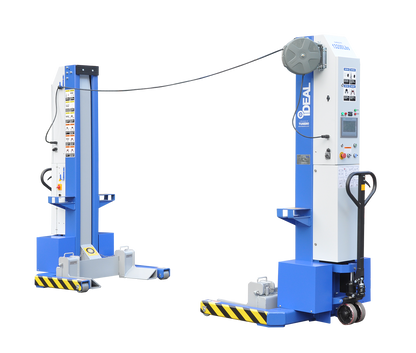

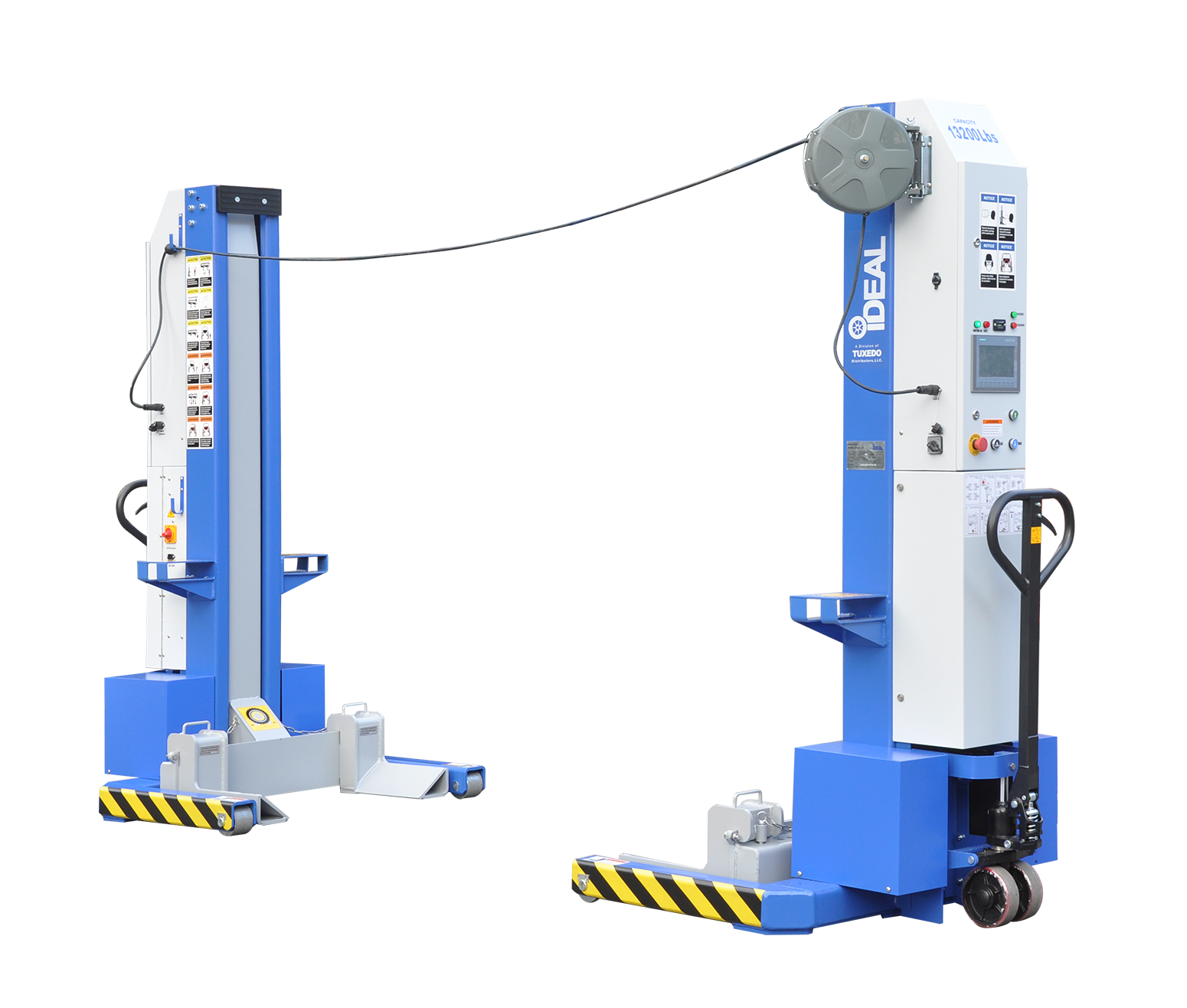

The iDEAL MSC-13K-B-226 Mobile Column Lift is a heavy-duty lifting solution designed for shops, fleets, and commercial facilities that need the flexibility to lift large vehicles without being limited to a permanent lift bay. This two-column configuration provides a combined 26,000 lb lifting capacity, with each column rated for 13,000 lbs, making it ideal for heavy-duty trucks, buses, commercial vehicles, and other large equipment.
Built for demanding professional environments, the MSC-13K-B-226 features a heavy-duty hydraulic system, large carriage bearings, adjustable lifting forks, and a pallet-jack-style wheel for easy positioning. A Siemens PLC and electro-optical encoder continuously synchronize the columns during operation, while the master controller allows individual or paired operation. Independent mechanical locking systems and emergency switches on each column provide additional protection during lifting and lowering.
The MSC-13K-B-226 combines portability, high capacity, and advanced controls in a compact mobile design. With a 67.1″ lifting height, adjustable forks, and a maximum distance of 32.8 feet between columns, the system can accommodate a wide range of vehicle sizes and configurations. The LCD display and keyboard provide clear access to lifting height and system information, making operation straightforward for professional technicians.
| Product Features |
|---|
| Two-column configuration with 26,000 lb combined lifting capacity |
| 13,000 lb capacity per column |
| Master controller allows individual or synchronized paired operation |
| Siemens PLC and electro-optical encoder provide continuous column synchronization |

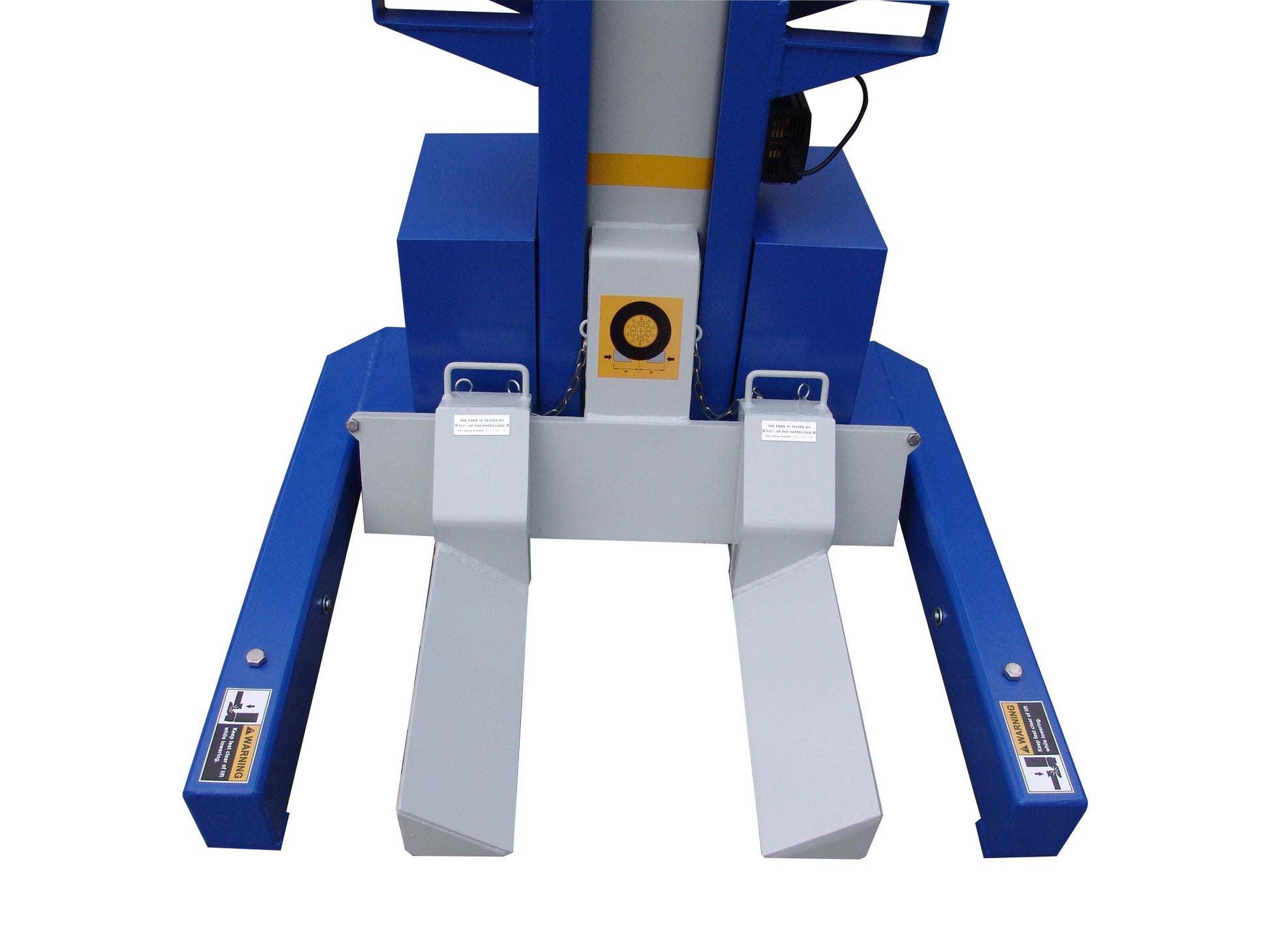

| Adjustable lifting forks accommodate a wide range of wheel sizes |
| Pallet-jack-style wheel design allows easy positioning of each column |
| Heavy-duty hydraulic lifting system |
| Large carriage bearings provide smooth and durable lifting operation |

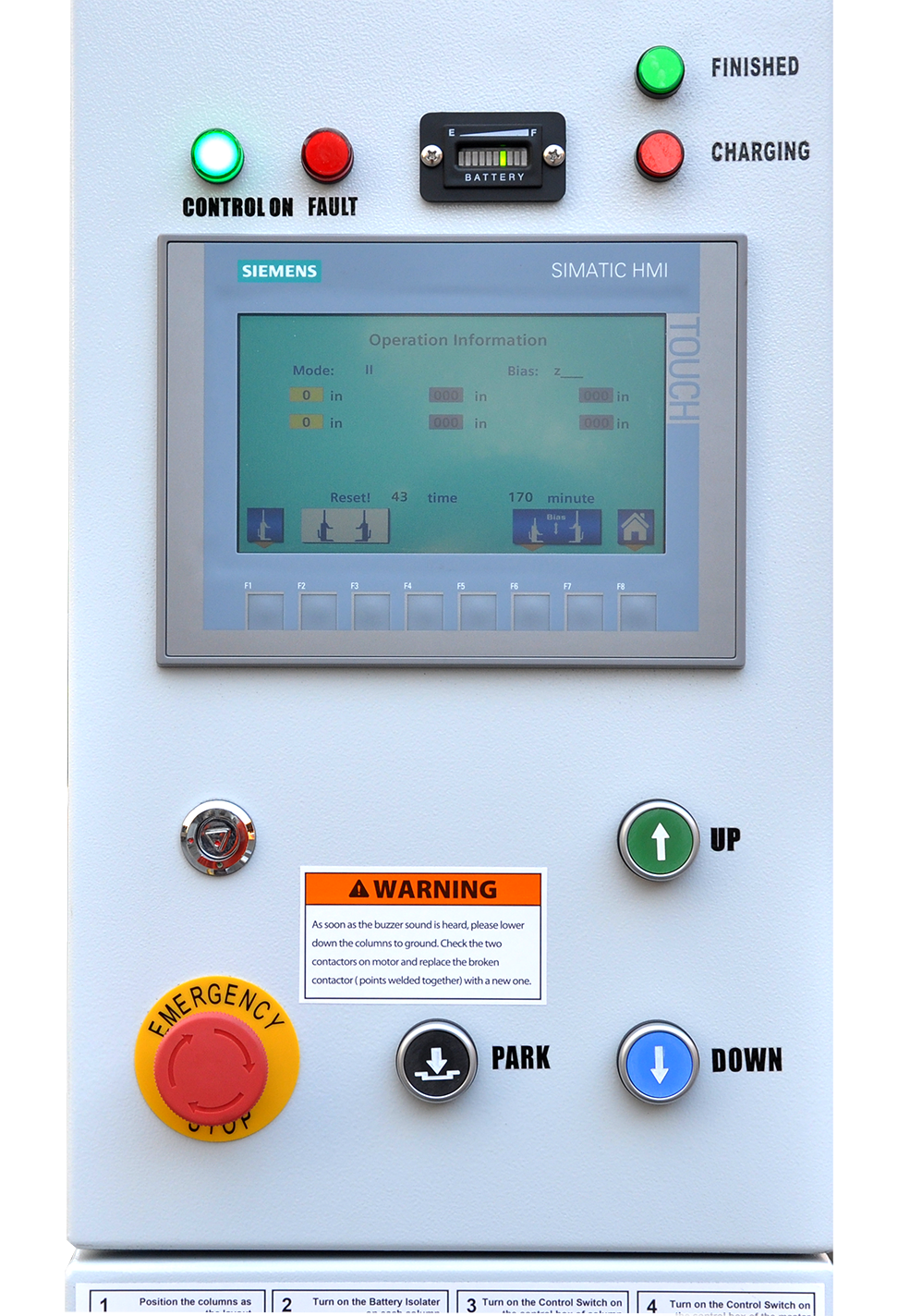

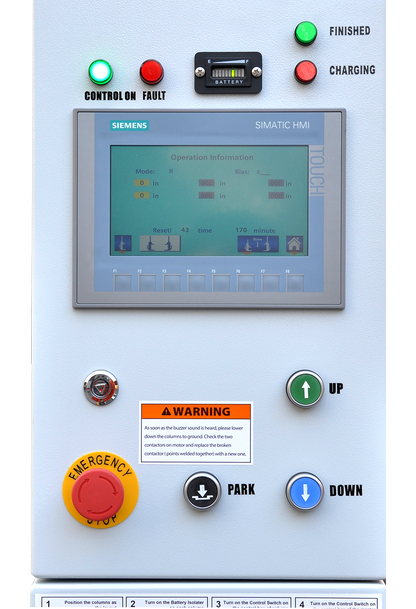

| LCD screen with keyboard provides clear system and lifting-height information |
| Independent mechanical locking system on each column |
| Emergency switch on each column for additional safety |
| 100-140VAC, 60Hz, single-phase power input per column |
| 24VDC power output per column |
| 110V battery charger power |
| Designed for indoor commercial and professional use |
| 5-year structural warranty and 1-year parts warranty under normal use |

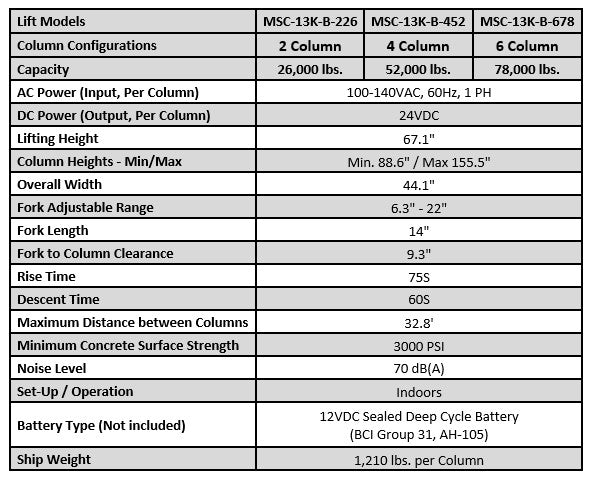

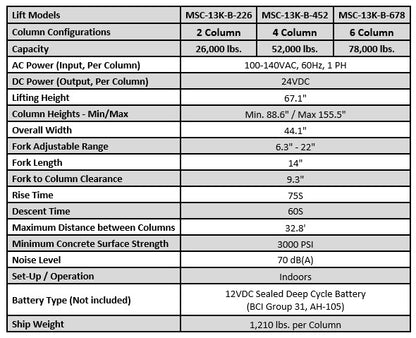

| Product Specifications | |
|---|---|
| Model | MSC-13K-B-226 |
| Column Configuration | 2 Columns |
| Capacity Per Column | 13,000 lbs |
| Combined Capacity | 26,000 lbs |
| AC Power Input Per Column | 100-140VAC, 60Hz, 1PH |
| DC Power Output Per Column | 24VDC |

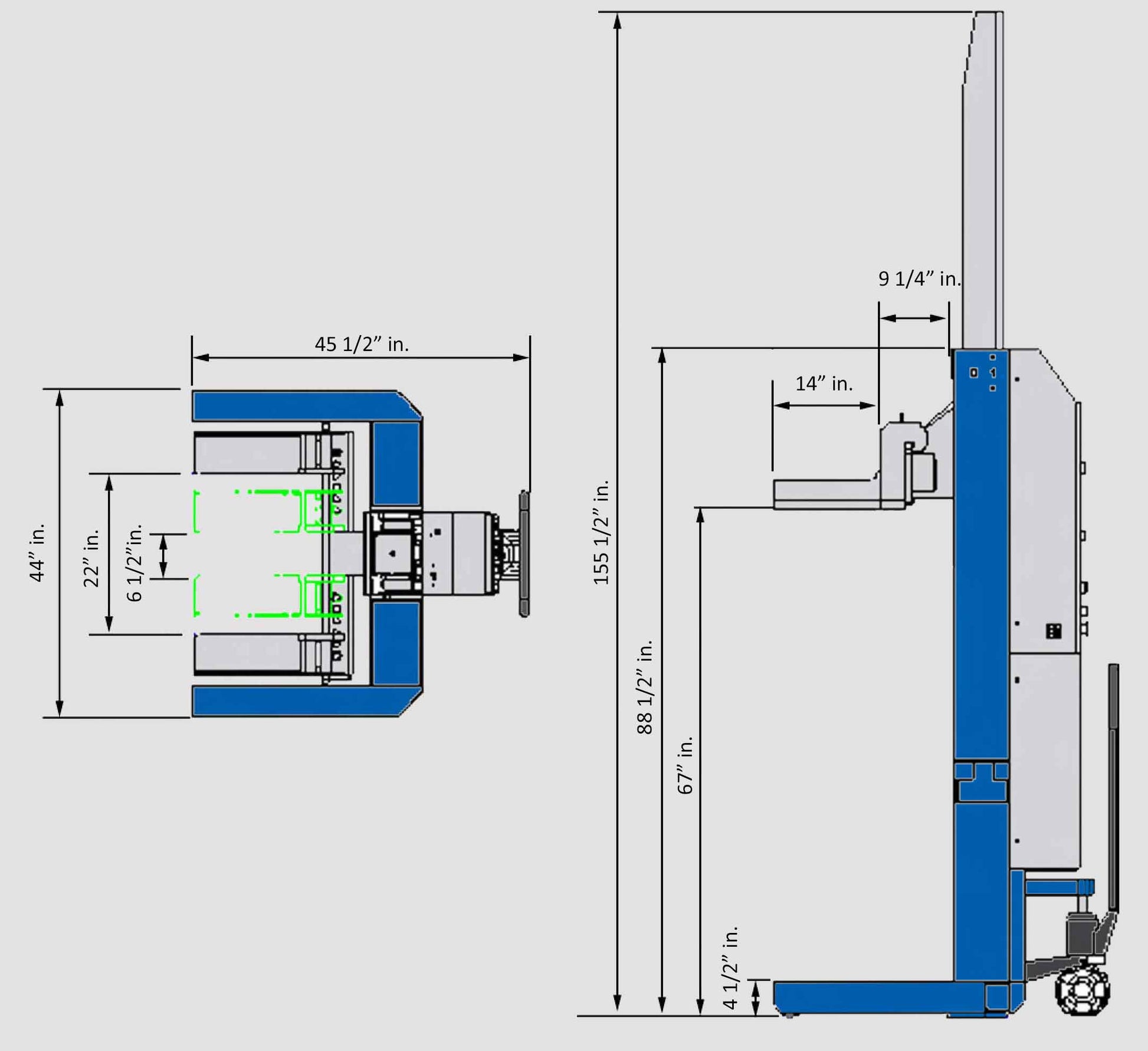

| Maximum Lifting Height | 67.1″ |
| Column Height - Minimum | 88.6″ |
| Column Height - Maximum | 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 6.3″ - 22″ |
| Fork Length | 14″ |
| Fork to Column Clearance | 9.3″ |
| Rise Time | 75 seconds |
| Descent Time | 60 seconds |
| Maximum Distance Between Columns | 32.8 ft |
| Minimum Concrete Strength | 3,000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type | 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH-105 (Not Included) |
| Battery Charger Power | 110V |
| Weight Per Column | 1,210 lbs |
| Total Weight | 2,580 lbs |
| 13K ALI Certification | Not ALI Certified |
