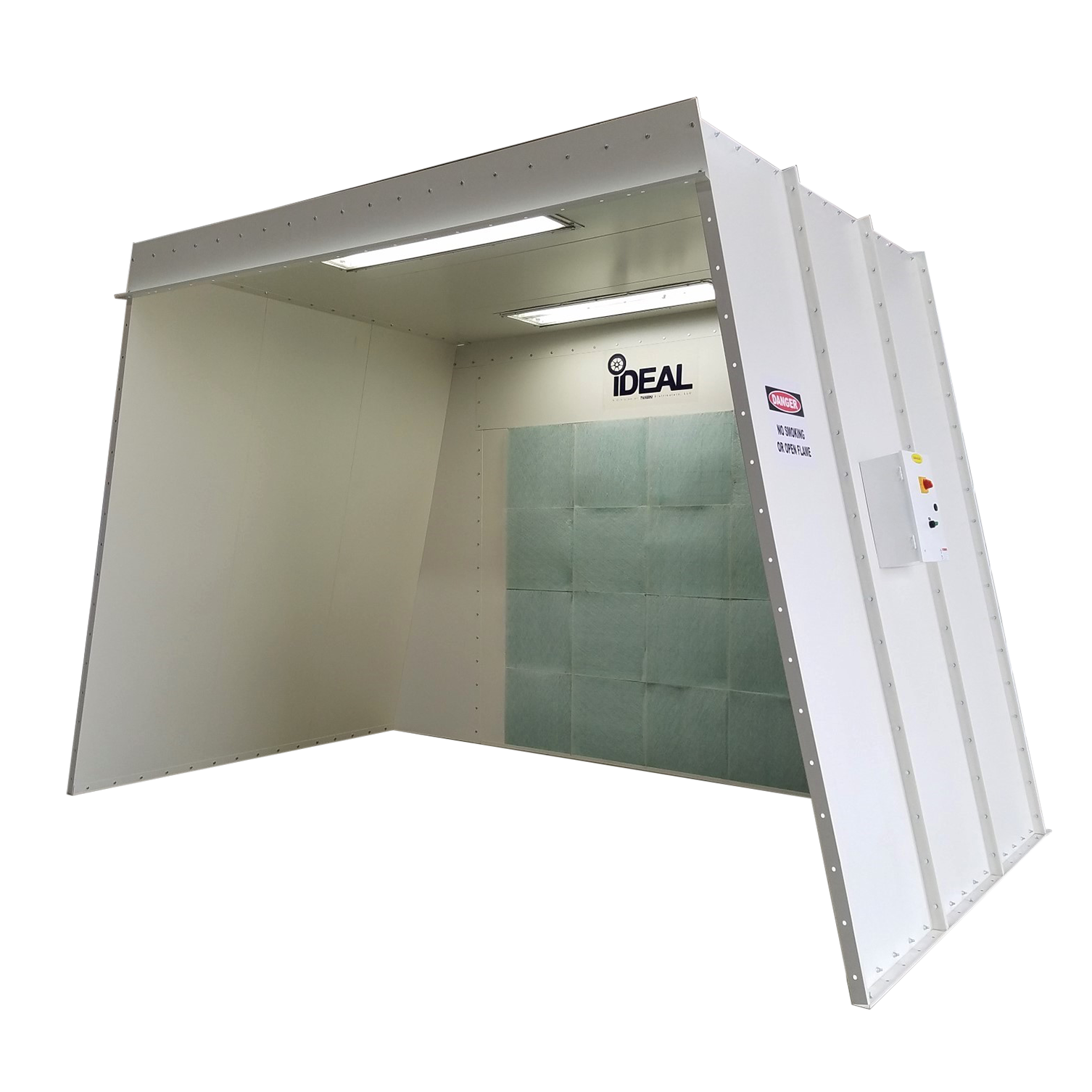

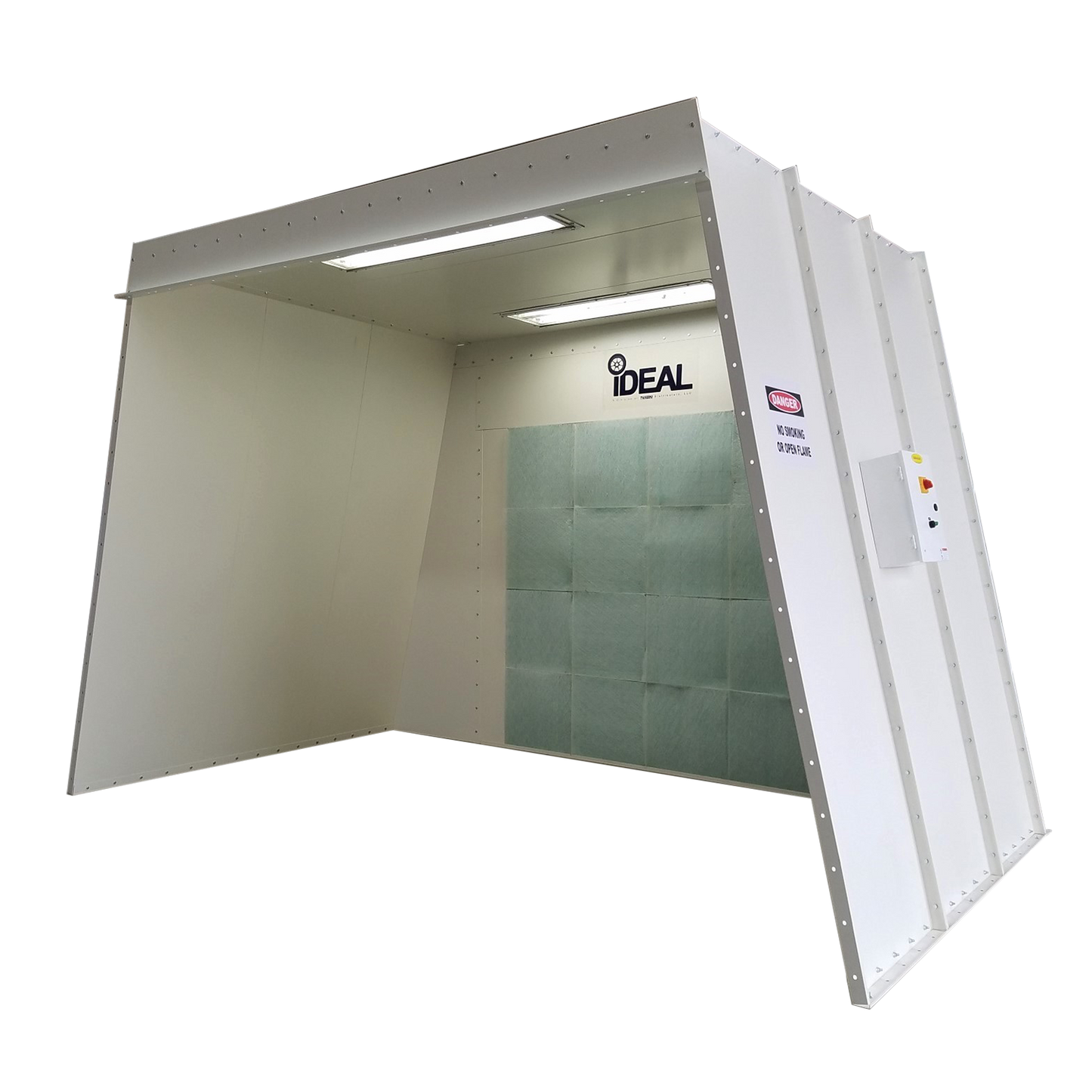

iDeal Open Face Paint Booth - Available in 1 Or 3 Phase

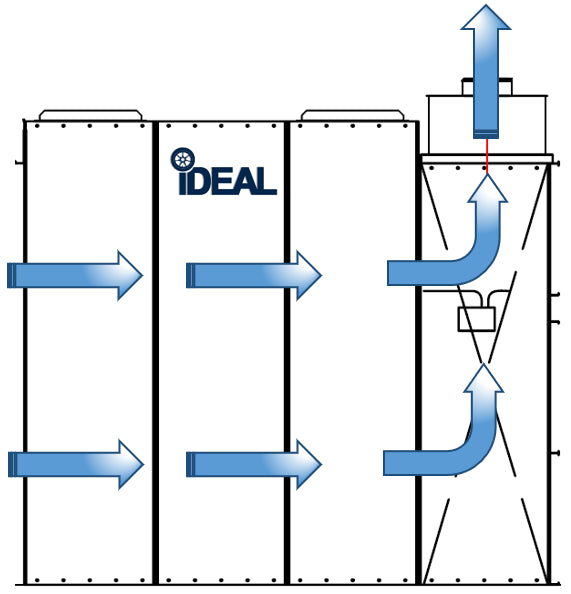

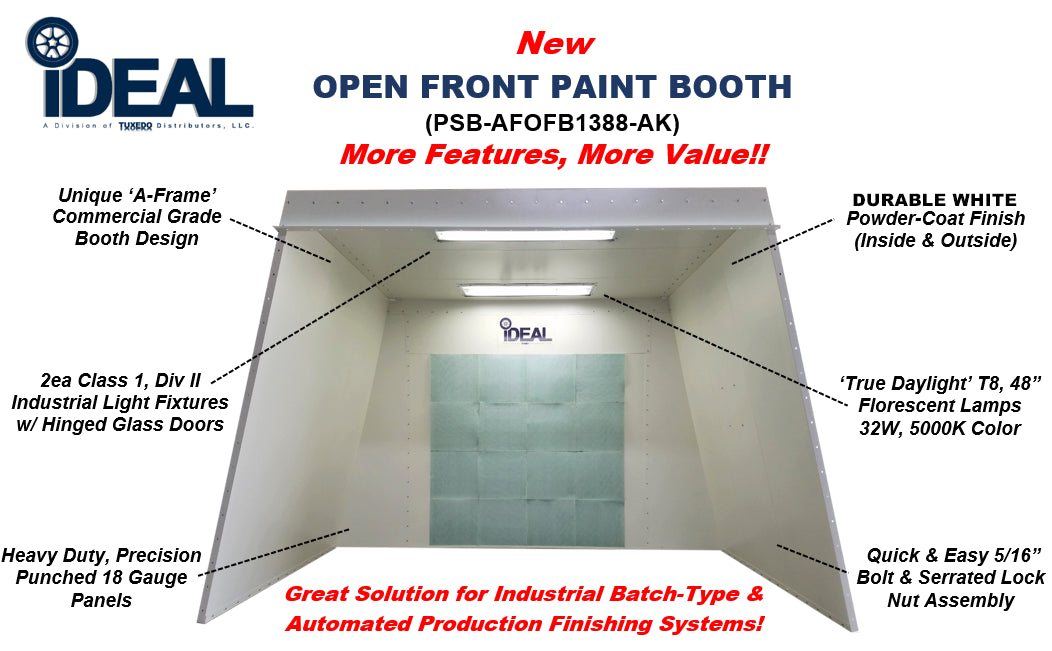

The iDeal Open Face Paint Booth – PSB-AFOFB1388-AK is a commercial-grade solution designed for professional painting facilities seeking superior airflow, lighting, and durability. With 7,983 CFM of optimal ventilation powered by a UL-listed Dayton 24" tube-axial exhaust fan, this booth ensures a safe and efficient painting environment. Two LDPI industrial light fixtures provide true 'daylight color' illumination for flawless paint application, while heavy-duty 18 gauge panels with a bright white powder coat finish offer lasting strength and a clean, professional workspace.

Product Features
  • Commercial-grade design for optimal airflow & lighting coverage

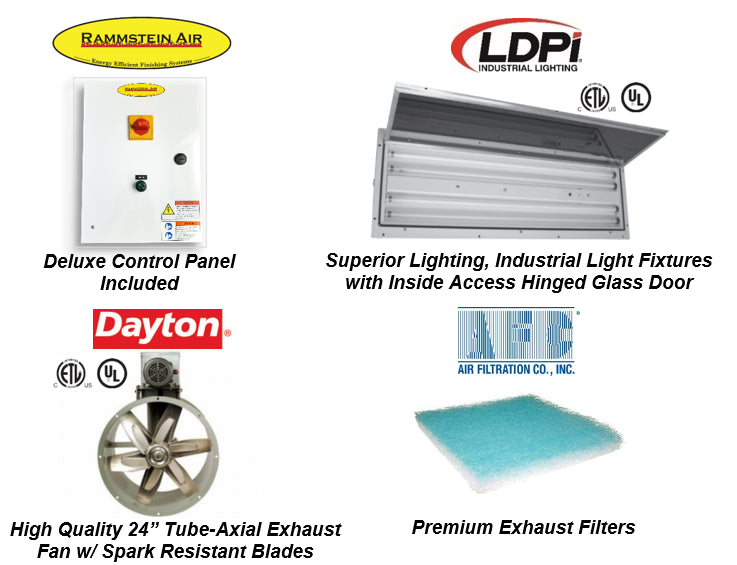

  • UL-listed Dayton 24" tube-axial exhaust fan with spark-resistant blades
  • NEMA-rated 2HP 3-phase 230/460VAC motor
  • Two LDPI industrial light fixtures with true 'daylight color' illumination
  • Heavy-duty 18 gauge precision punched panels with bright white powder coat finish

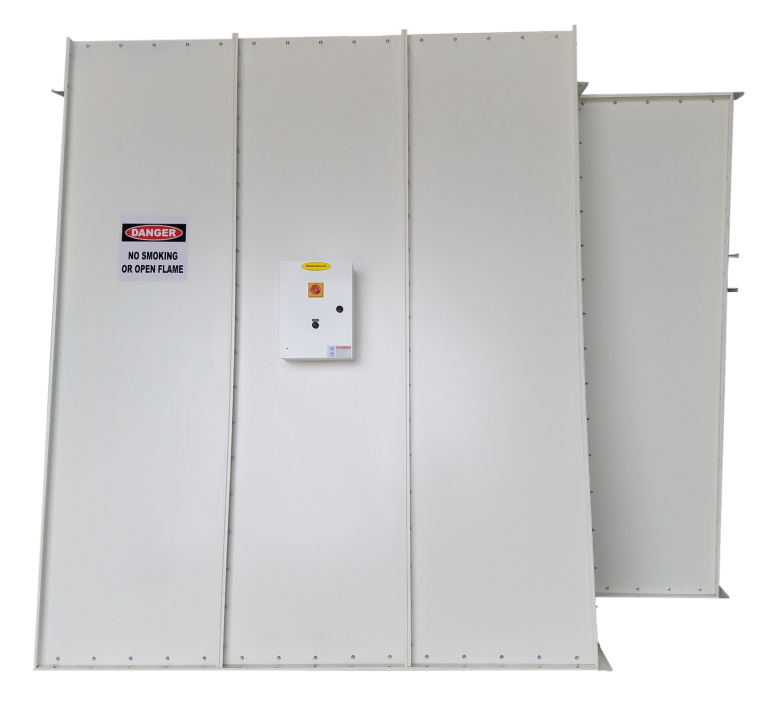

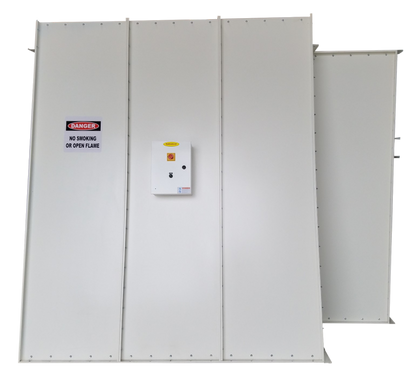

  • Deluxe control panel included for easy operation
  • Meets or exceeds OSHA & NFPA 33 regulations
  • All assembly hardware, manometer, and sealant included
  • Quick shipping: typically within 48 hours
Product Specifications Details

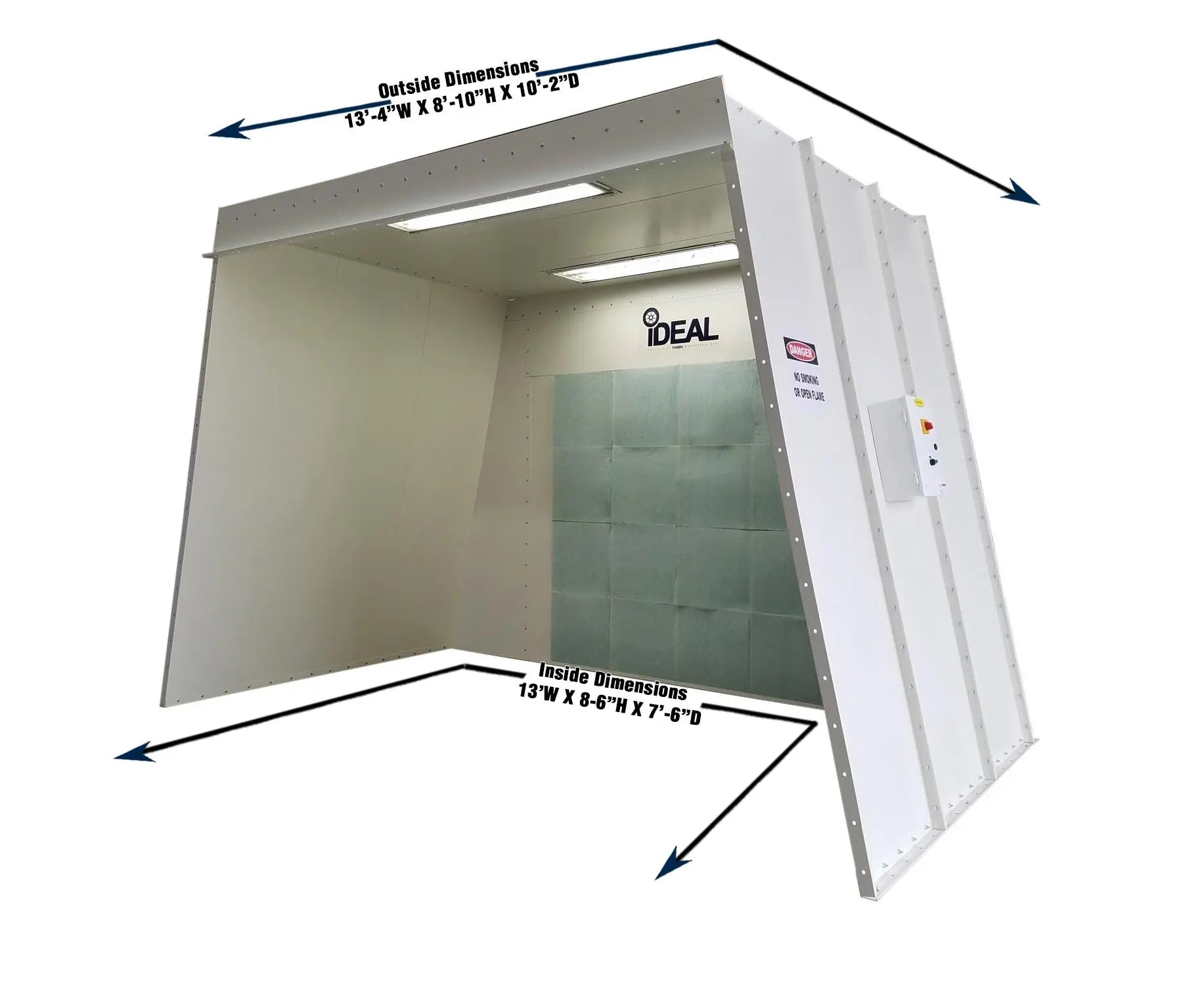

Inside Dimensions 13’ W x 8’ 6” H x 7’ 6” D
Outside Dimensions 13’ 4” W x 8’ 10” H x 10’ 2” D
Exhaust Fan 24” Tube Axial, 2HP, 3-Phase, 230/460VAC, 60Hz, Non-Spark, NEMA Rated
CFM 7,983 @ 0.5 Static Pressure
Lighting 2x LDPI Industrial Fixtures, 48” T8 Fluorescent, 32W, 5000K, UL & ETL Listed
Weight 1,358 lbs

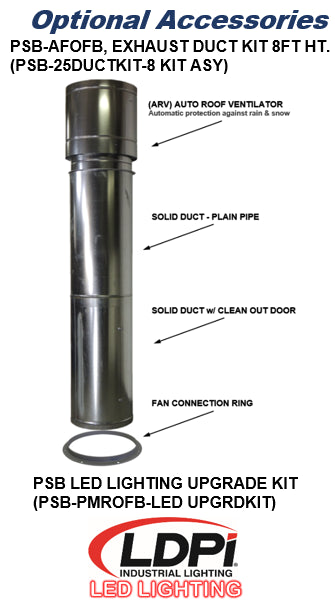

Optional Accessories 1 Phase Electrical Configuration, 8’ Exhaust Duct Kit, LED Lighting Upgrade Kit
