iDEAL Paint Mixing Room (Single Or Three Phase) - PSB-PMR1088-230V-AK

iDEAL Paint Mixing Room (Single Or Three Phase) - PSB-PMR1088-230V-AK

Regular price $8,620.00
Regular price $8,699.00 Sale price $8,620.00
Sold out

AvailabilityLow stock: 10 left

Power Configuration
Vendor: iDeal
Category: Paint Booth

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

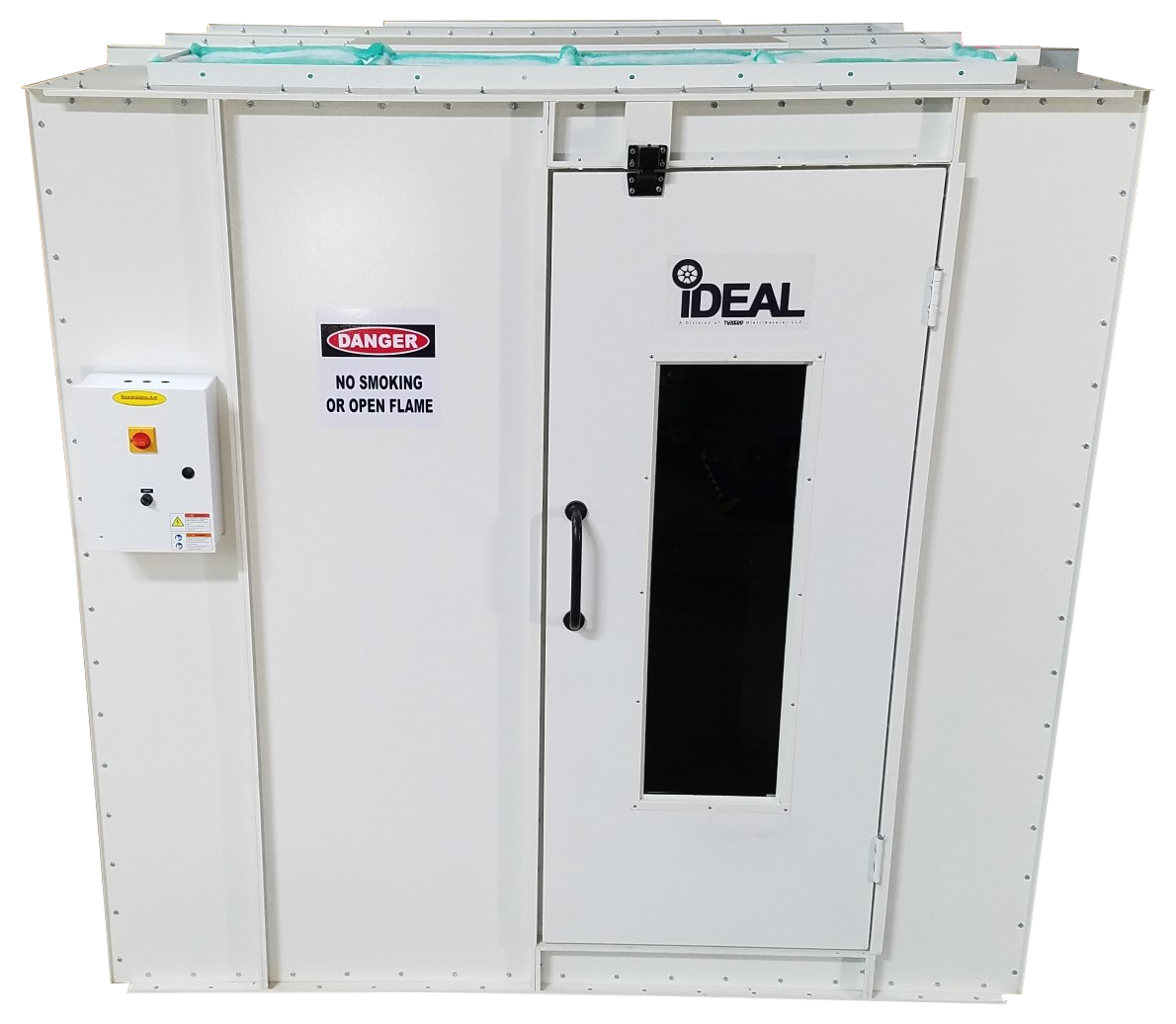

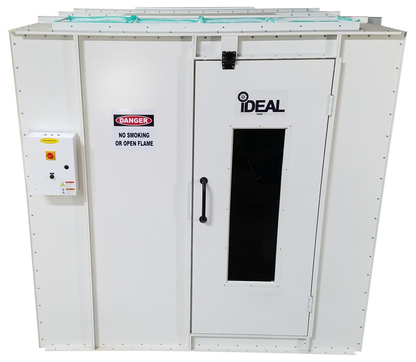

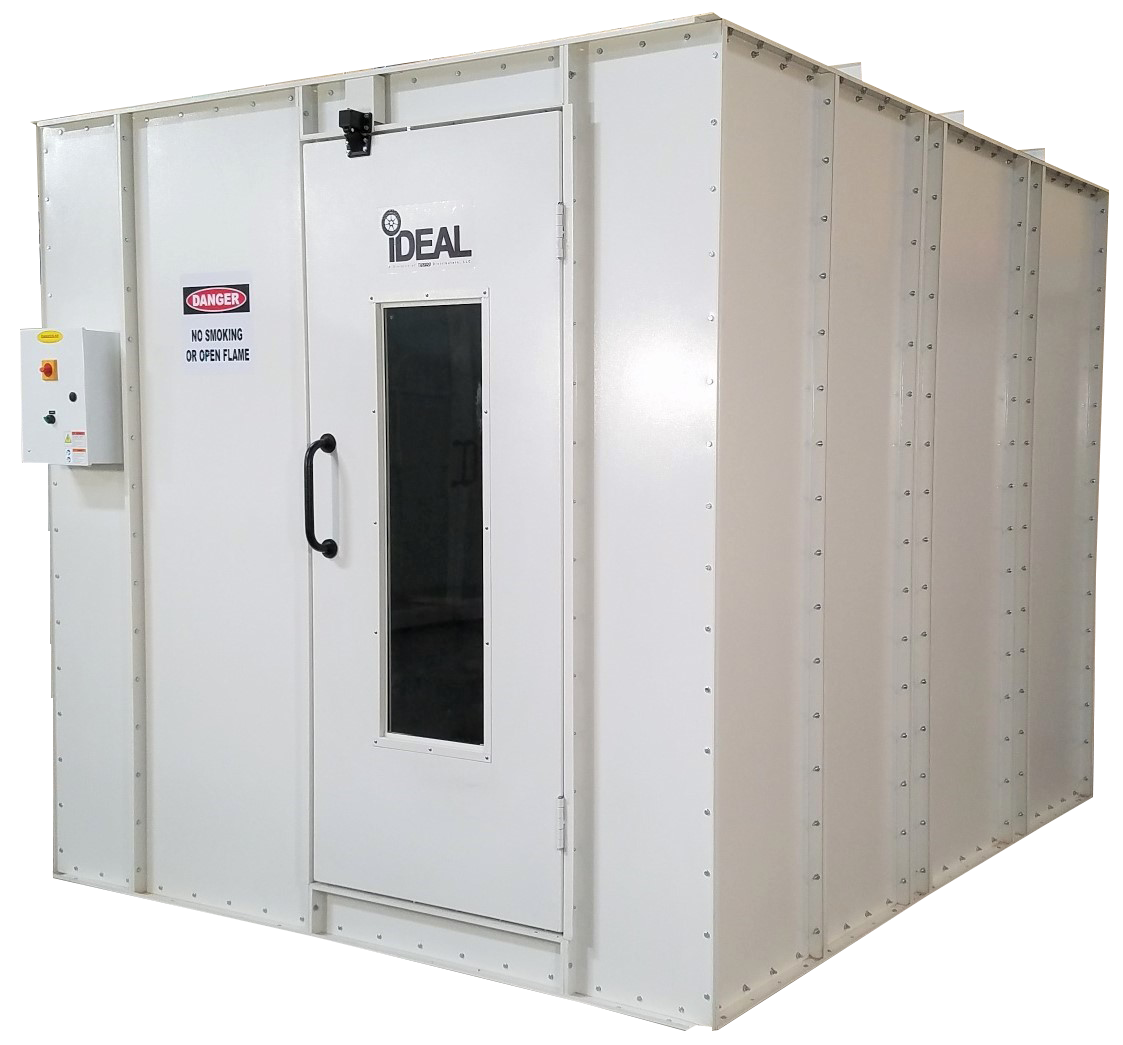

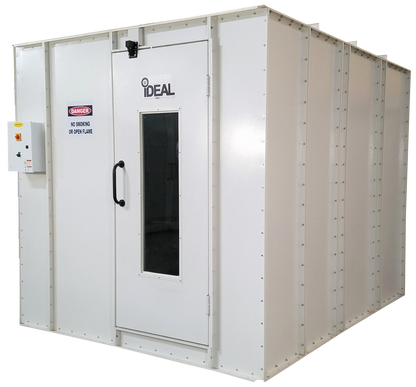

iDeal PSB-PMR1088-AK Paint Mixing Room

The iDeal Paint Mixing Room is designed for professionals who demand safety, precision, and efficiency when mixing paints and coatings. Built with premium airflow technology and high-intensity lighting, this commercial-grade unit provides a clean, well-lit, and properly ventilated workspace that meets or exceeds OSHA and NFPA 33 standards. Whether you’re mixing custom colors or prepping materials for your paint booth, the iDeal PSB-PMR1088-AK ensures a controlled environment that enhances productivity and safety. Featuring a durable white powder-coated finish, heavy-duty 18-gauge steel panels, and UL-listed industrial components, this mixing room is engineered for long-term reliability and superior performance.

Bright, energy-efficient LDPI industrial light fixtures deliver true daylight color rendering for accurate color matching, while the 12” UL-listed Dayton exhaust fan with spark-resistant blades ensures optimal ventilation and fume extraction. The modular design allows for flexible installation with optional side or front door placement, making it ideal for both small and large operations. With an included deluxe control panel and all necessary hardware, sealant, and filters, setup is fast and straightforward—ready to ship typically within 48 hours.

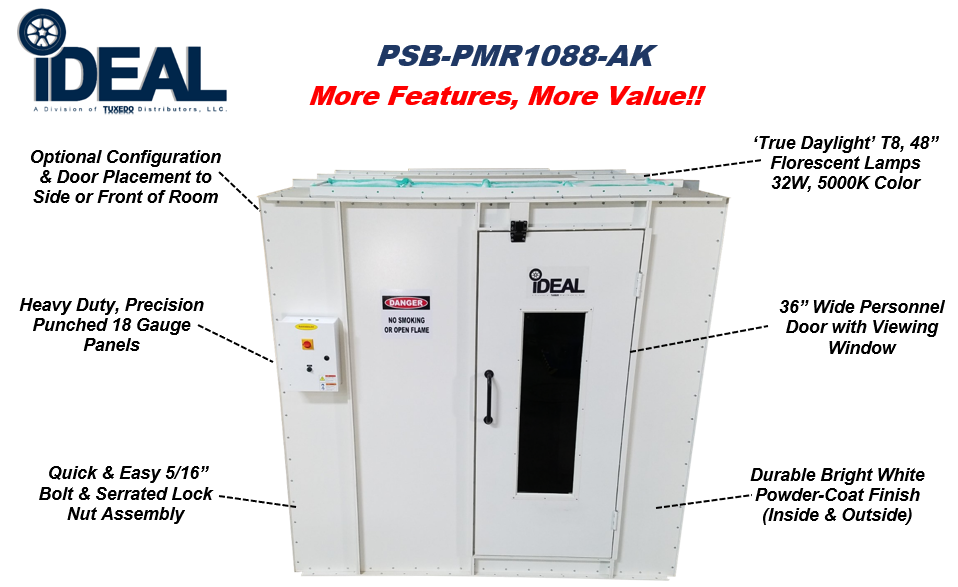

Product Features
  • Commercial-grade design for superior airflow and lighting coverage

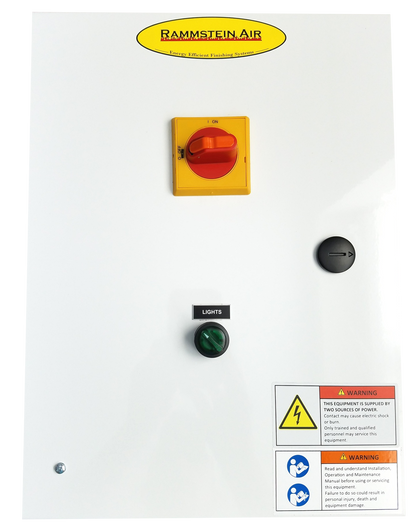

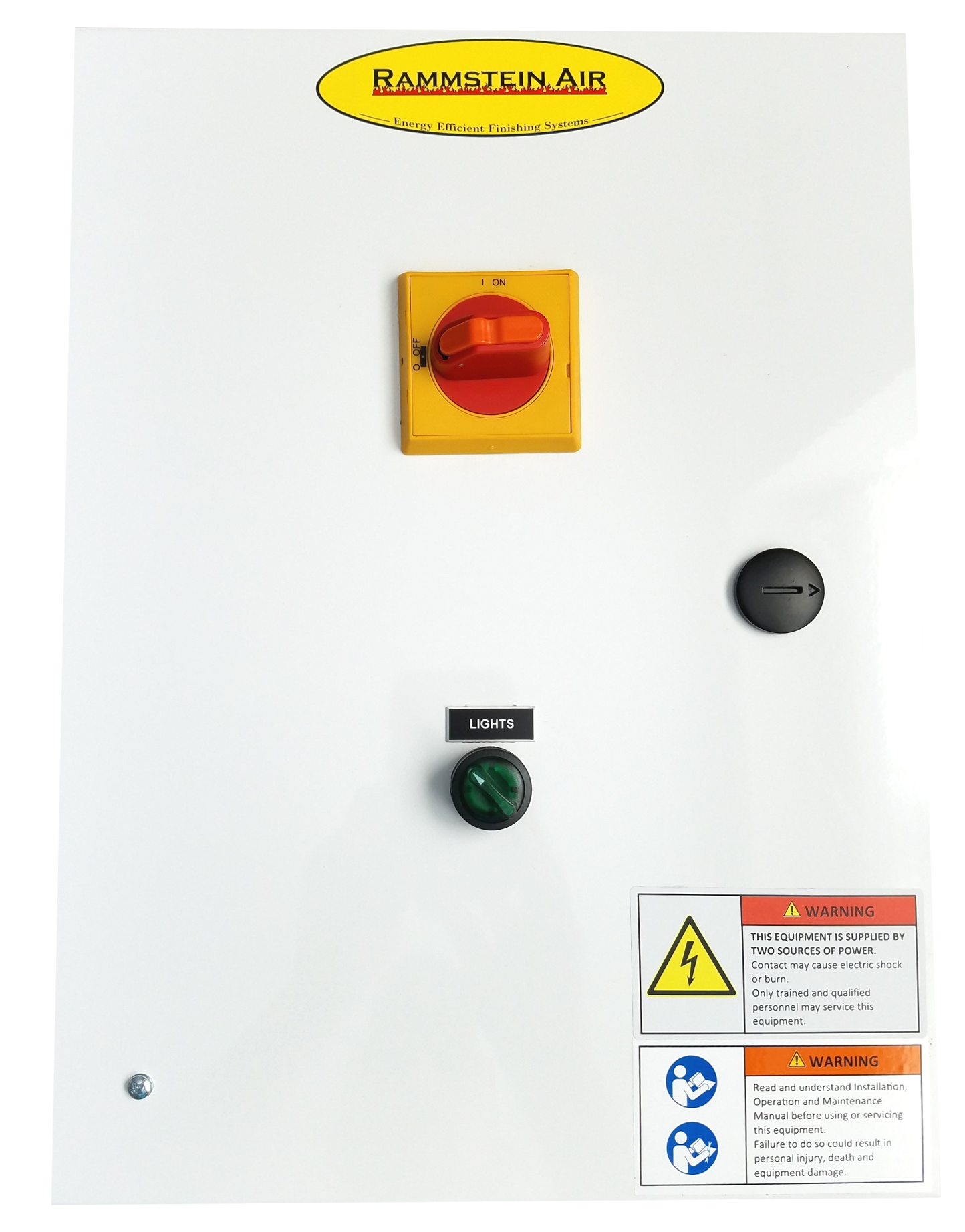

  • Includes deluxe control panel and all assembly hardware
  • Bright white powder-coated finish (inside and outside)
  • Optional door placement to side or front for flexible setup
  • Pre-hung 36” personnel door with viewing window
  • Heavy-duty precision punched 18-gauge steel panel construction
  • UL Listed Dayton 12” tube-axial exhaust fan with spark-resistant blades
  • NEMA rated 1/2 HP 3-phase motor (230/460V, 60Hz)
  • Premium AFC intake and exhaust filters for clean airflow
  • LDPI Industrial Light Fixtures (Class 1, Div 2) with hinged glass door access
  • True daylight color rendering (5000K, 2900 lumens per lamp)

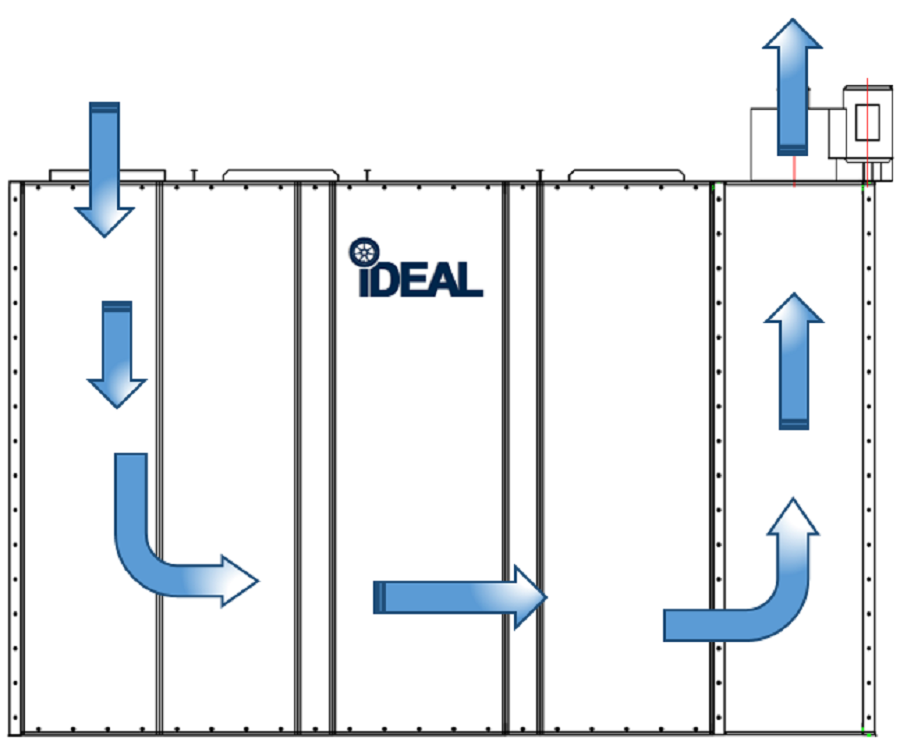

  • Optimal airflow: 1,429 CFM @ 0.5 static pressure
  • Ships typically within 48 hours
  • Meets or exceeds OSHA & NFPA 33 regulations
  • Easy to install, operate, and maintain

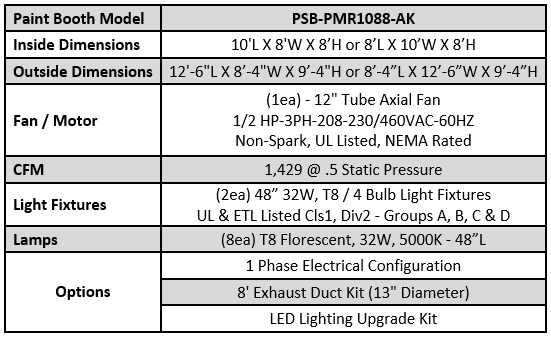

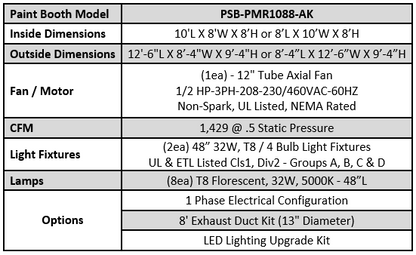

Product Specifications
Model PSB-PMR1088-AK
Inside Dimensions 10’L x 8’W x 8’H or 8’L x 10’W x 8’H
Outside Dimensions 12′-6″L x 8’-4″W x 9’-4″H or 8’-4”L x 12’-6”W x 9’-4”H
Airflow 1,429 CFM @ 0.5 static pressure
Fan / Motor 12" Tube Axial Fan, 1/2 HP, 3-Phase, UL Listed, NEMA Rated
Lighting (2) 48” LDPI Industrial Fixtures, 8 T8 Fluorescent Bulbs (32W, 5000K)
Optional Equipment Single-phase configuration, 8′ exhaust duct kit (13″ diameter)
