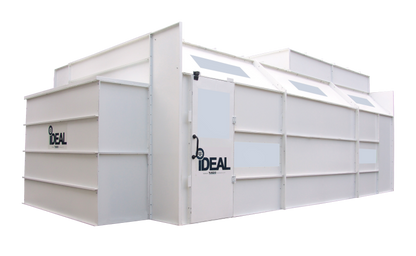

iDeal Semi Down Paint Booth - PSB-SEMIDD26B-AK

iDeal Semi Down Paint Booth - PSB-SEMIDD26B-AK

$21,980.00
$21,980.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 10 left

Power Confirguration
Vendor: iDeal
Category: Paint Booth
Tags: paint booth Semi Down Draft

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

View full product details

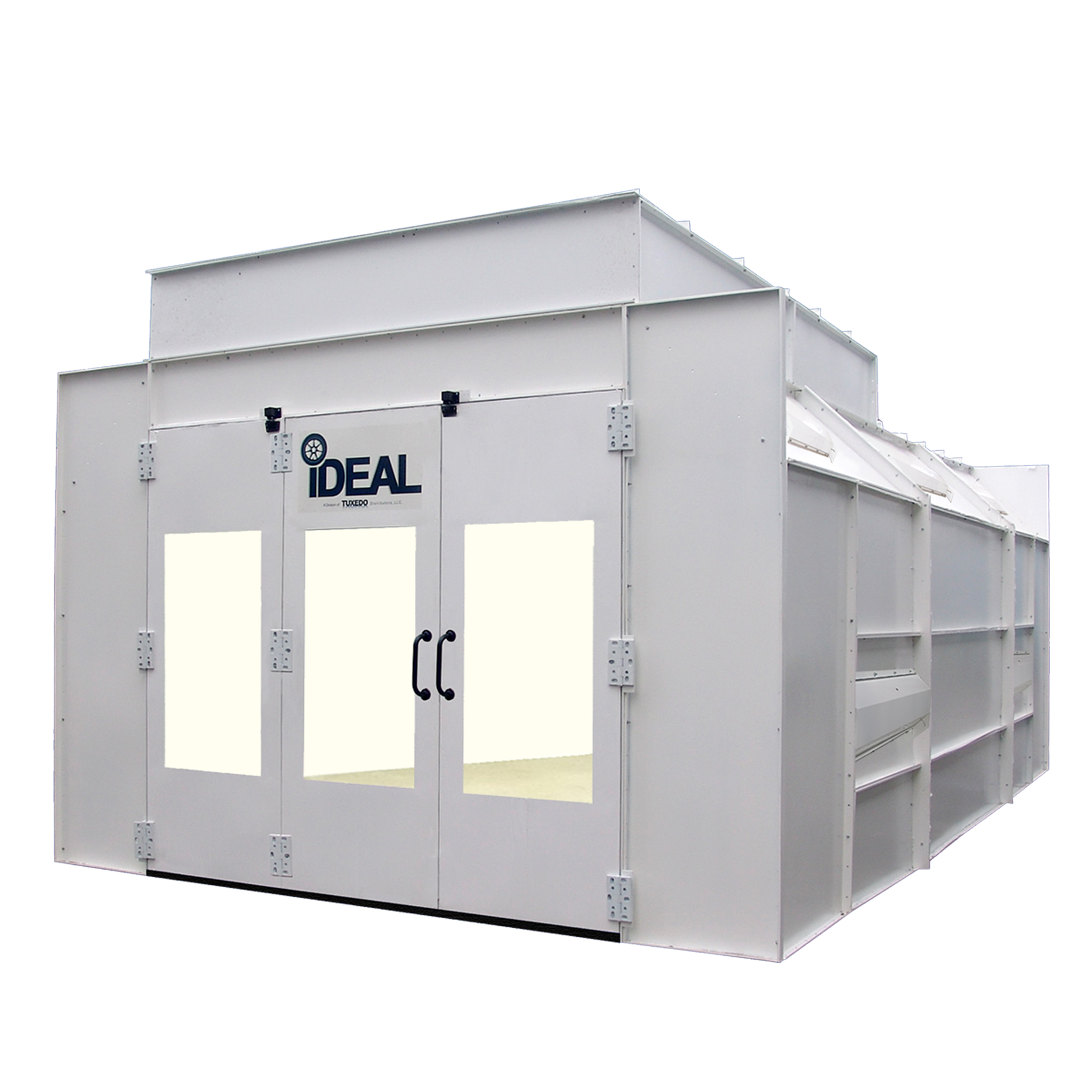

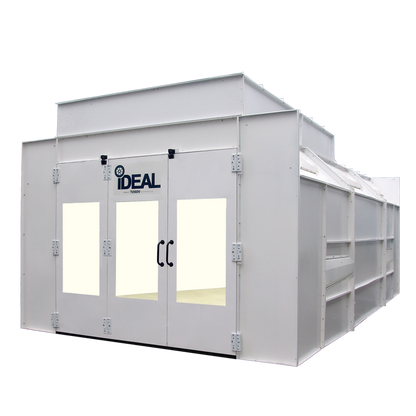

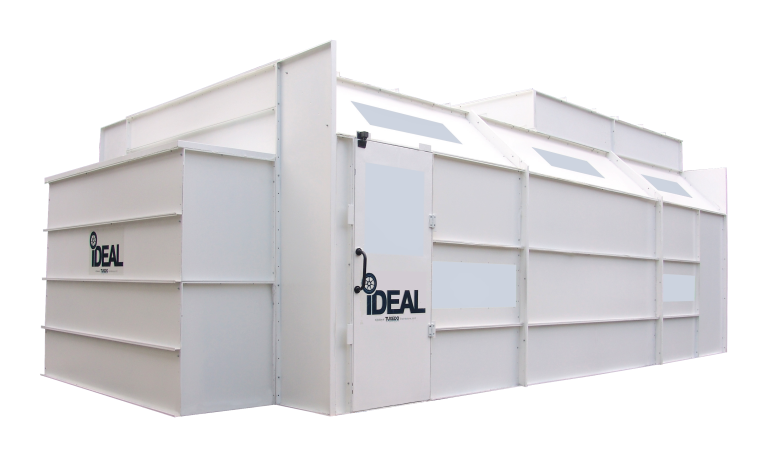

iDeal Semi Down Paint Booth - Available In Single or Three Phase

The iDeal Semi Downdraft Paint Booth – PSB-SEMIDD26B-AK is designed for professional automotive and industrial painting applications, delivering superior airflow, lighting, and safety for consistent, high-quality finishes. With a powerful UL-listed 30" tube-axial exhaust fan and premium AFC filtration system, this semi downdraft booth minimizes overspray while maintaining a safe and efficient workspace. Ten T8 light fixtures provide bright, even illumination, ensuring precise color matching and flawless paint jobs every time.

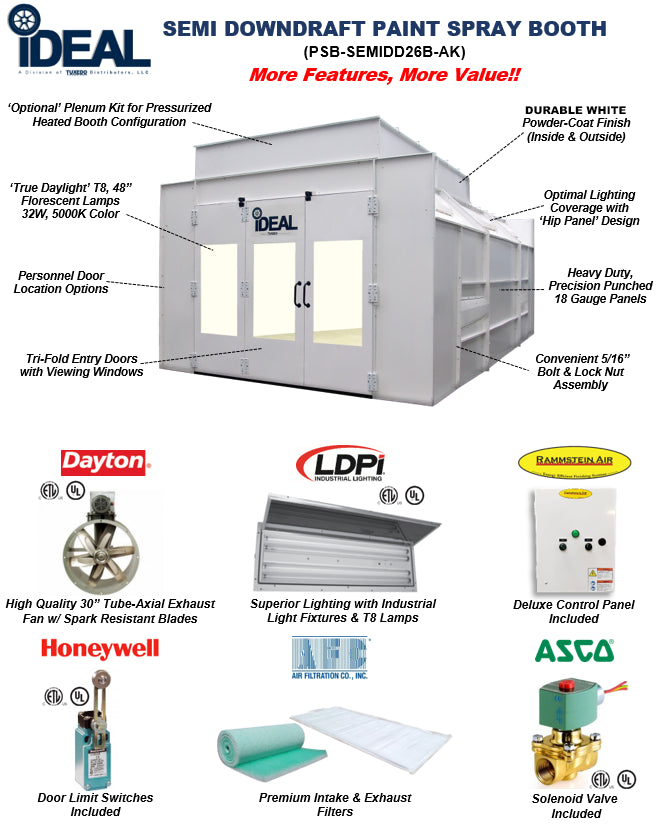

Product Features

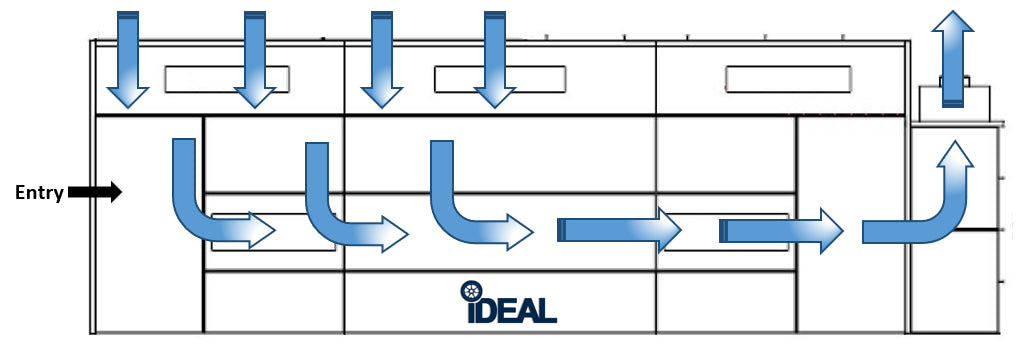

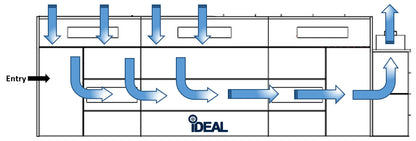

  • Commercial-grade semi downdraft design for optimal airflow & lighting
  • UL-listed Dayton 30" tube-axial exhaust fan with spark-resistant blades
  • NEMA-rated 3HP 3-phase 230/460VAC motor
  • Bright white powder-coated panels for a clean, professional workspace
  • Ten LDPI industrial T8 light fixtures with 5000K lamps for true color illumination

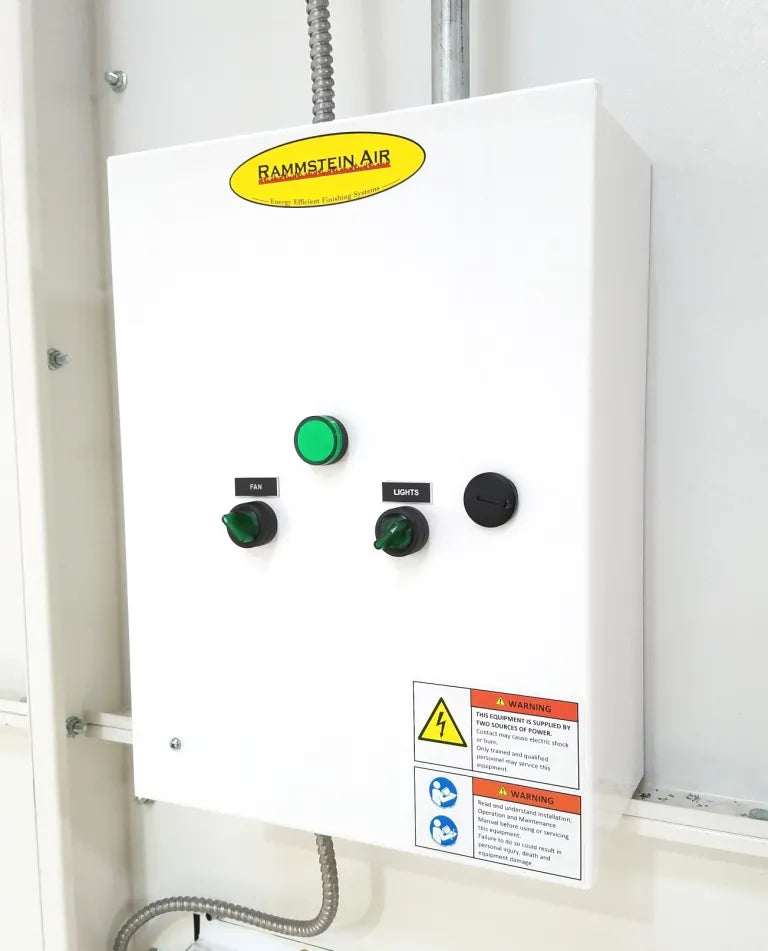

  • Deluxe control panel included for easy operation
  • Premium AFC intake and exhaust filters for efficient overspray capture

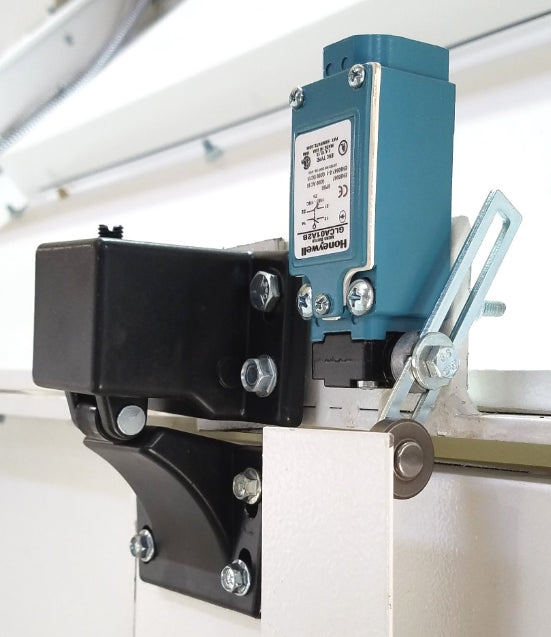

  • Tri-fold entry doors and personnel door with viewing windows and shutoff switches
  • Meets NFPA 33 and OSHA safety standards
  • All assembly hardware, manometer, solenoid valve, and sealant included
  • Ships typically within 48 hours
Product Specifications Details
Inside Dimensions 26’ L x 14’ W x 9’ 3” H
Outside Dimensions 29’ 4” L x 14’ 4” W x 9’ 7” H
Exhaust Fan 30" Tube Axial, 3HP, 3-Phase, 230/460VAC, 60Hz, Non-Spark, NEMA Rated
CFM 12,200 @ 0.5 Static Pressure
Lighting 10x LDPI Industrial T8 Fixtures, 32W, 5000K, UL & ETL Listed
Weight 4,675 lbs
Optional Accessories Booth heaters (gas or electric), exhaust extension kits, side personnel door kits, solid extension kits
