iDeal Side Down Paint Booth - PSB-SDD26B-AK

iDeal Side Down Paint Booth - PSB-SDD26B-AK

$24,470.00
$25,790.00 $24,470.00
Sold out
LTL Freight cost for continental USA is Freight Quote Required

Availability: Low stock: 10 left

Power Configuration
Vendor: iDeal
Category: Paint Booth
Tags: paint booth Side Down Draft

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

Tuxedo Warranty Policy

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

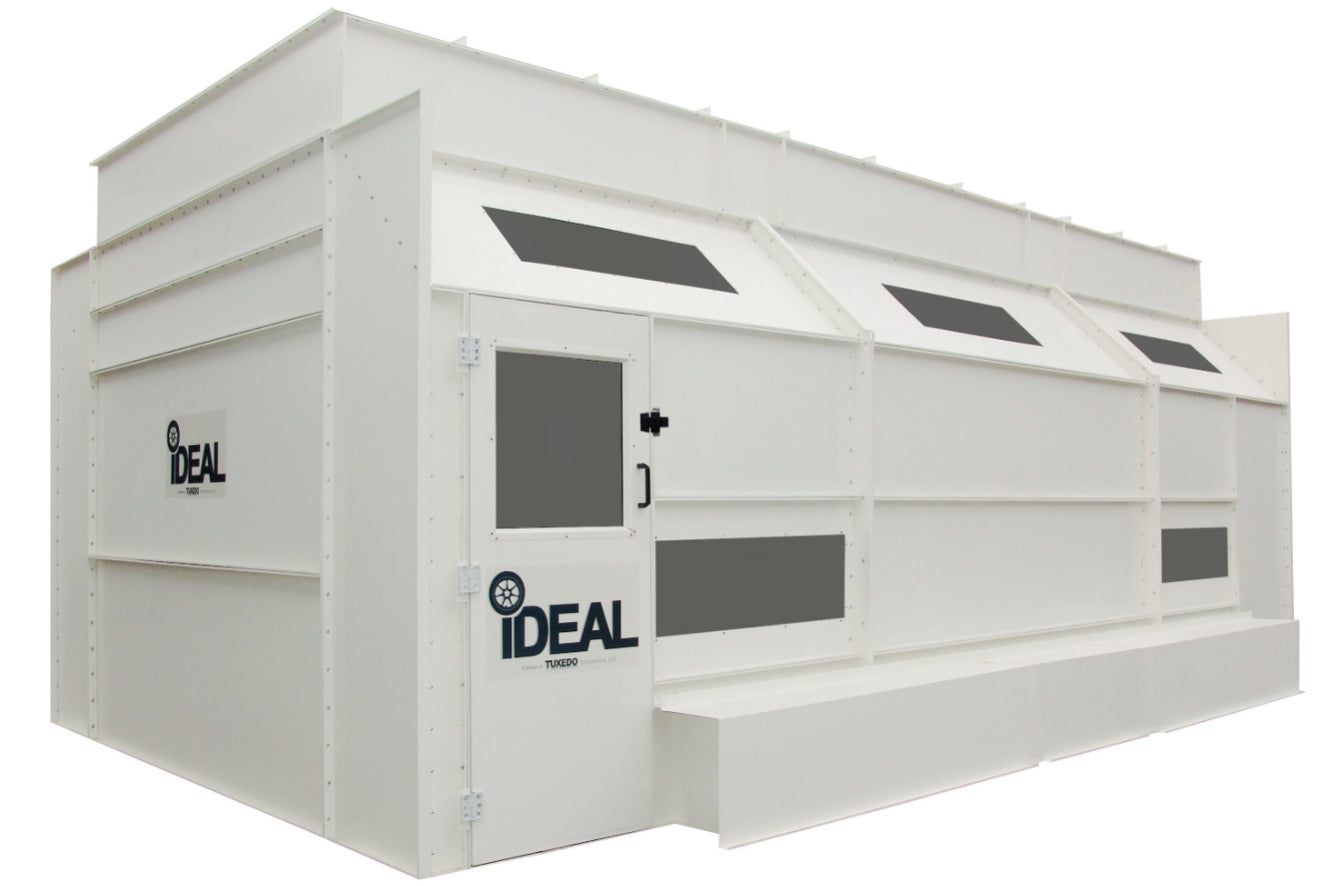

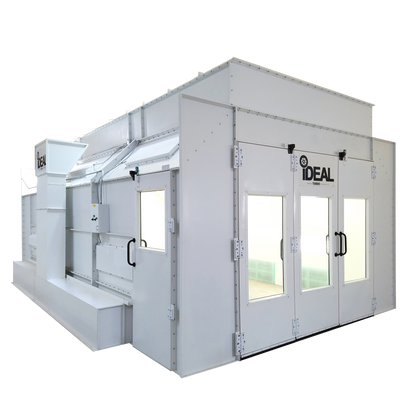

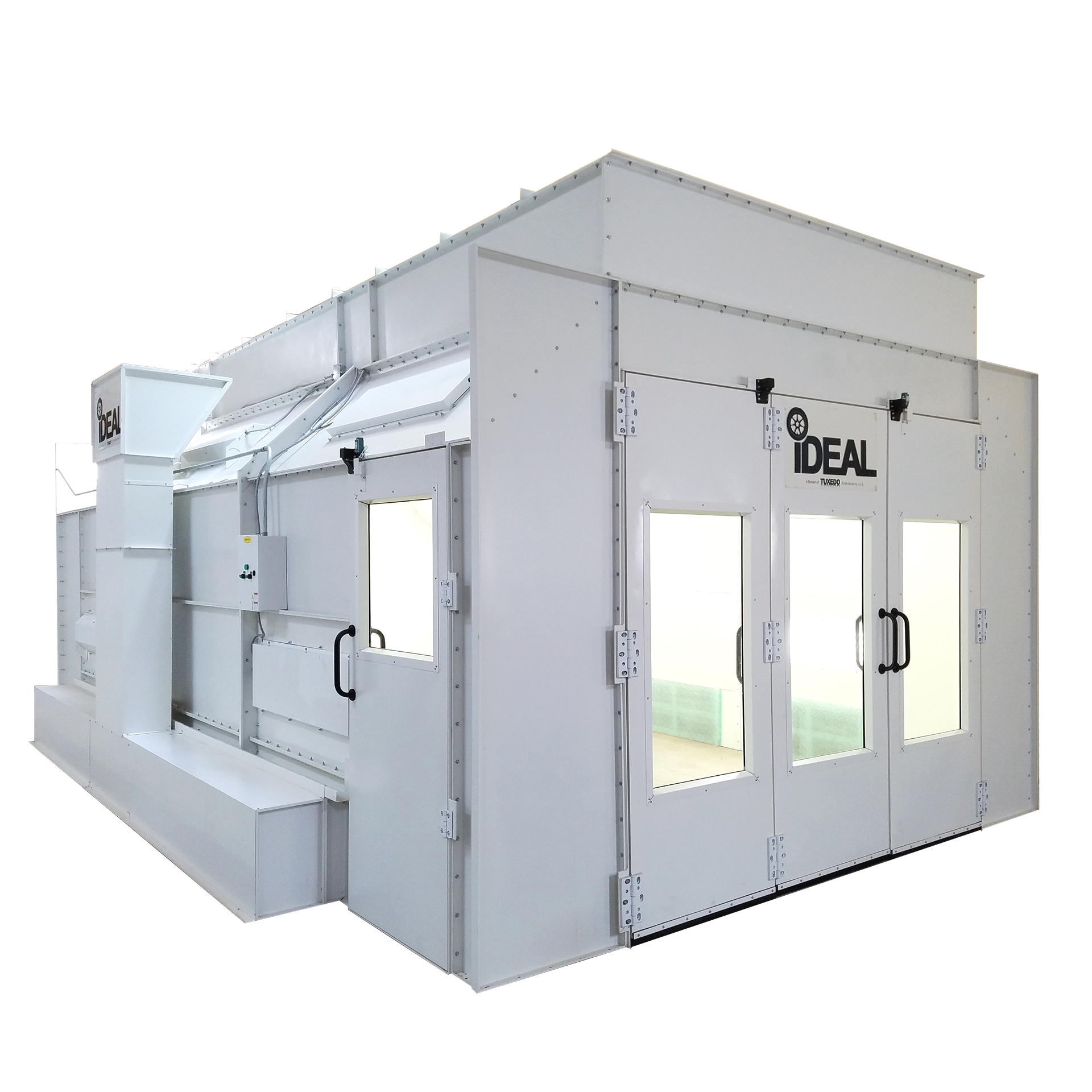

iDeal Side Downdraft Paint Booth - Available In Single Or Three Phase

The iDeal Side Downdraft Paint Booth – PSB-SDD26B-AK is engineered for industrial and professional automotive painting, providing maximum airflow, safety, and lighting for consistent, high-quality finishes. Equipped with dual 24" UL-listed tube-axial exhaust fans generating 14,000 CFM at 0.5 static pressure, this booth ensures efficient overspray removal and a clean working environment. Ten T8 industrial light fixtures illuminate every detail, while heavy-duty 18-gauge powder-coated panels deliver durability and a professional workspace. Ideal for large-scale projects, this booth combines performance, safety, and ease of use in one turnkey solution.

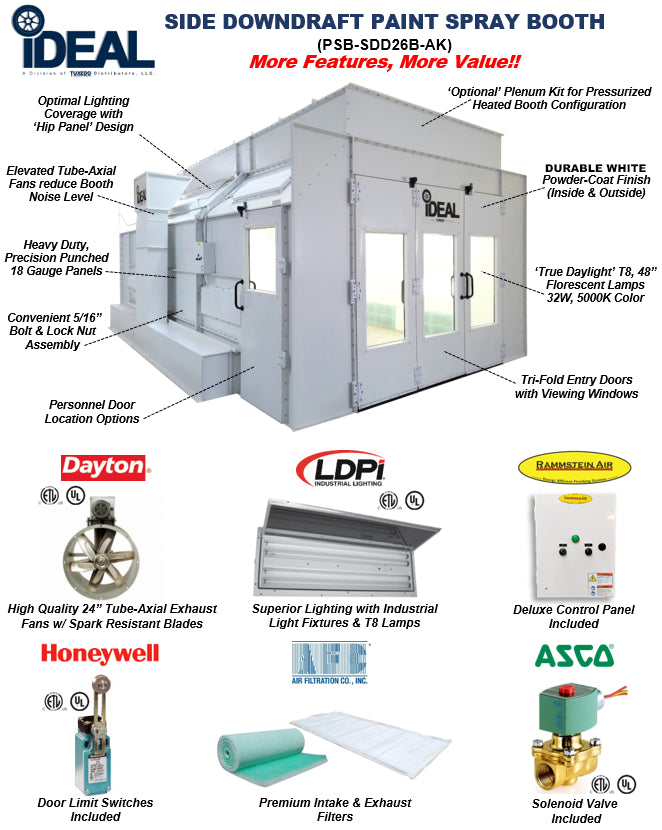

Product Features

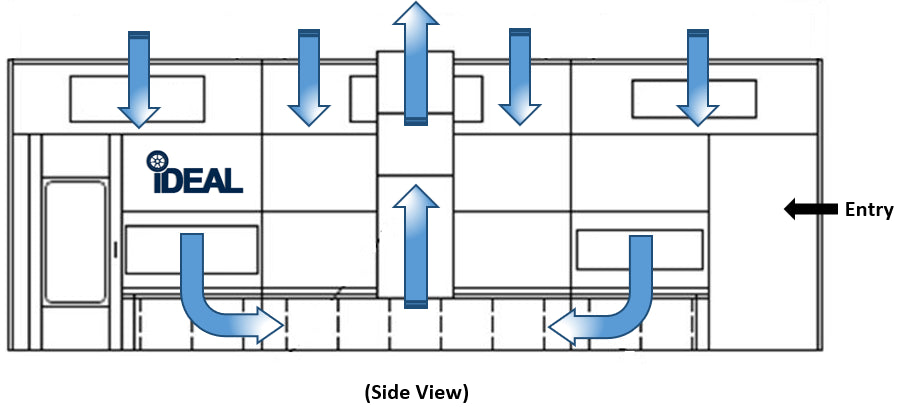

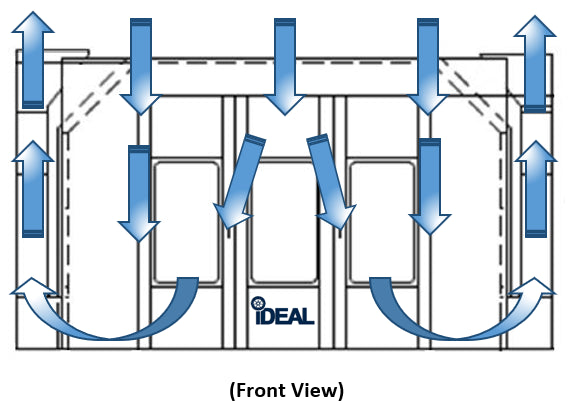

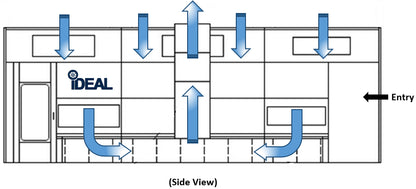

  • Commercial-grade side downdraft design for superior airflow & lighting coverage

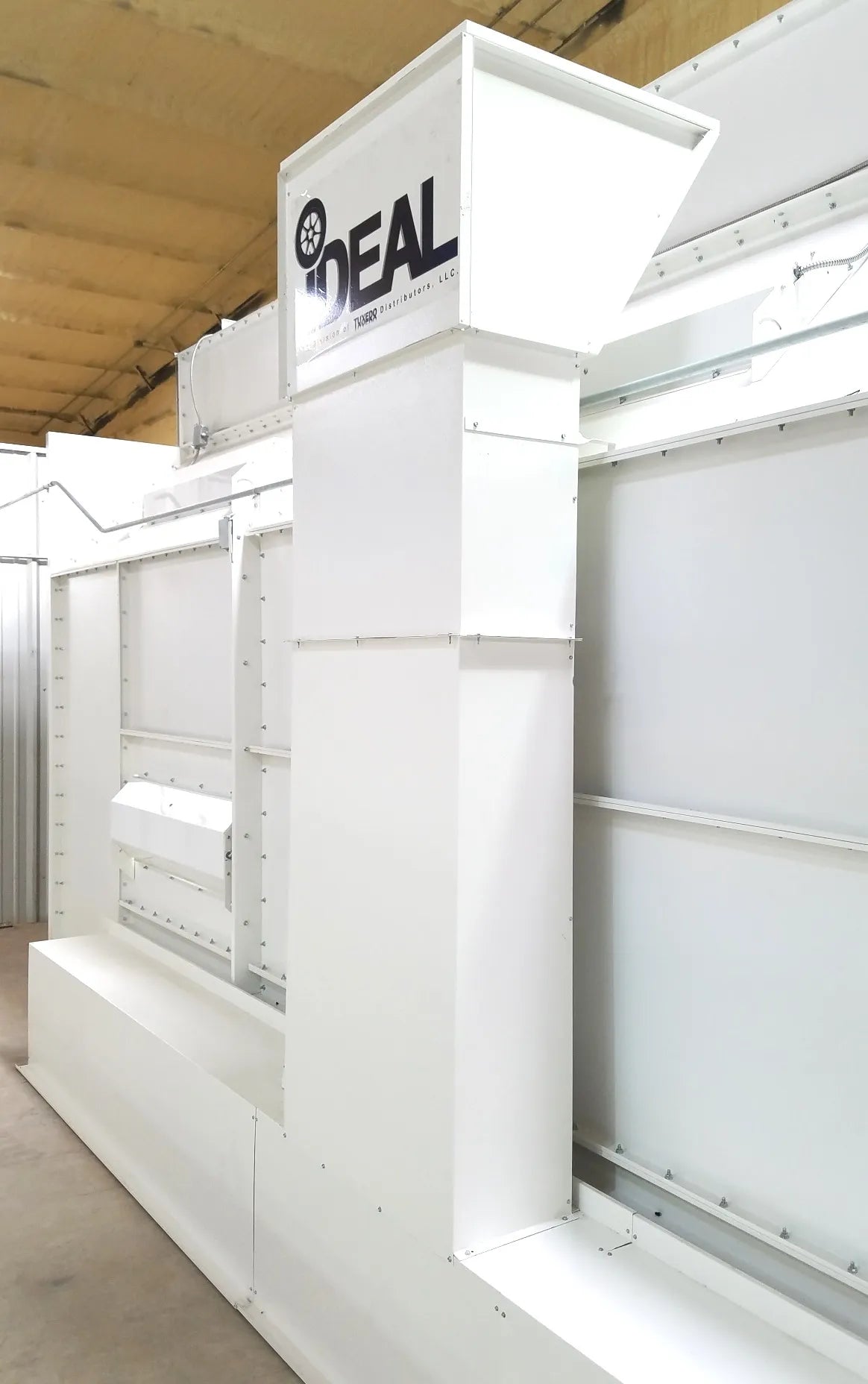

  • Dual UL-listed Dayton 24" tube-axial exhaust fans with spark-resistant blades
  • NEMA-rated 3HP 3-phase 230/460VAC motors
  • Bright white powder-coated interior & exterior for a clean, professional workspace
  • Ten LDPI industrial T8 light fixtures with 5000K lamps for true color illumination
  • Deluxe control panel included for simple operation
  • Premium AFC intake and exhaust filters for optimal overspray capture

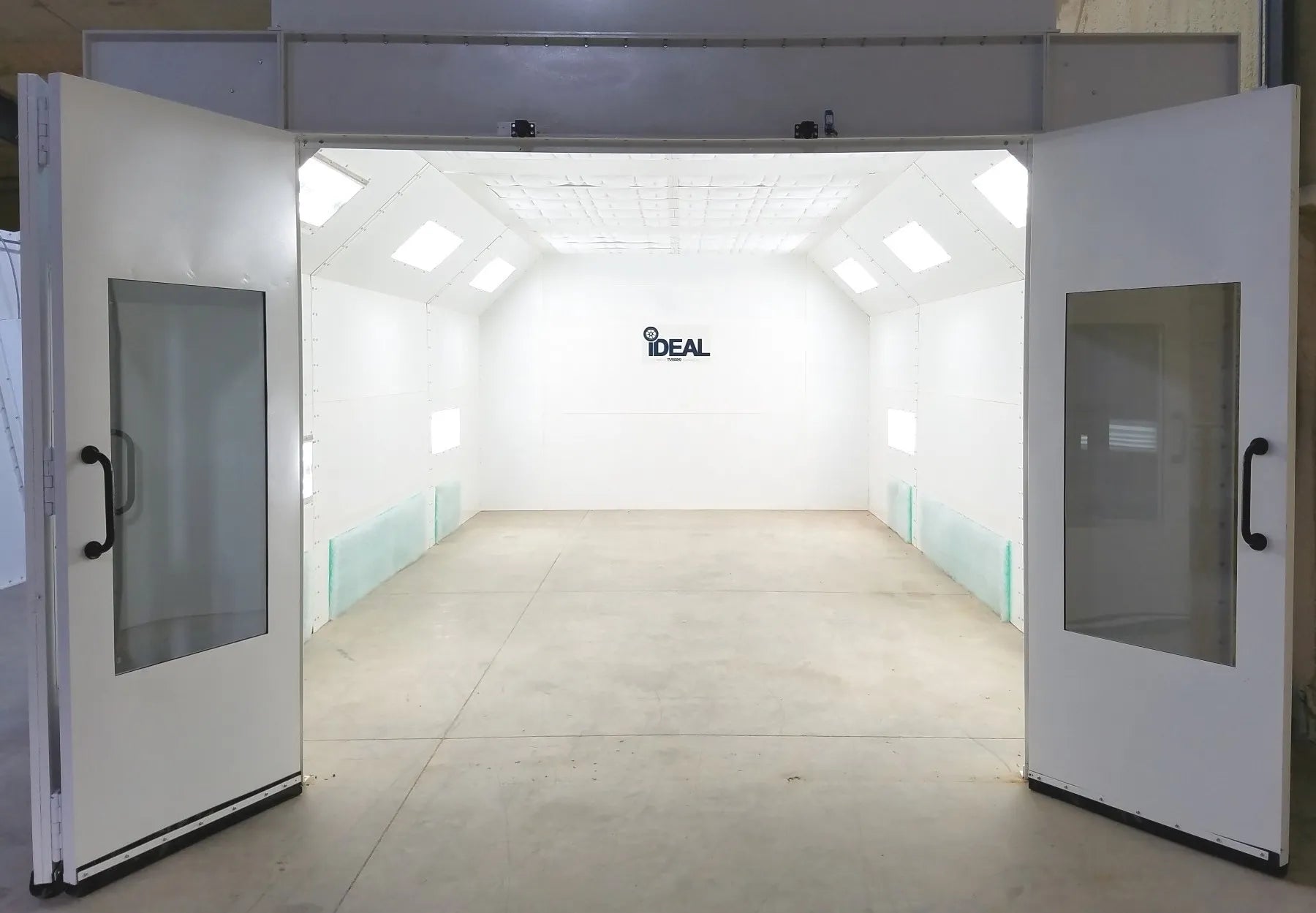

  • Tri-fold entry doors and personnel door with viewing windows and shutoff switches
  • Meets NFPA 33 and OSHA safety standards
  • All assembly hardware, manometer, solenoid valve, and sealant included
  • Typically ships within 48 hours
Product Specifications Details
Inside Dimensions 26’ L x 14’ W x 9’ 3” H
Outside Dimensions 26’ 4” L x 17’ 8” W x 9’ 5” H
Exhaust Fans 2x 24" Tube Axial, 3HP, 3-Phase, 230/460VAC, 60Hz, Non-Spark, NEMA Rated
CFM 14,000 @ 0.5 Static Pressure
Lighting 10x LDPI Industrial T8 Fixtures, 32W, 5000K, UL & ETL Listed
Weight 5,100 lbs
Optional Accessories Exhaust extension kits, side personnel door kits, drive-thru doors, gas or electric booth heaters
