iDEAL TP12KSC-DX ALI Certified 12,000lb Clear Floor Two Post Lift

iDEAL TP12KSC-DX ALI Certified 12,000lb Clear Floor Two Post Lift

Regular price $6,630.00
Regular price $6,699.00 Sale price $6,630.00
Sold out

AvailabilityLow stock: 15 left

SKU: TP12KSC-DX
Vendor: iDeal
Category: Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full product details

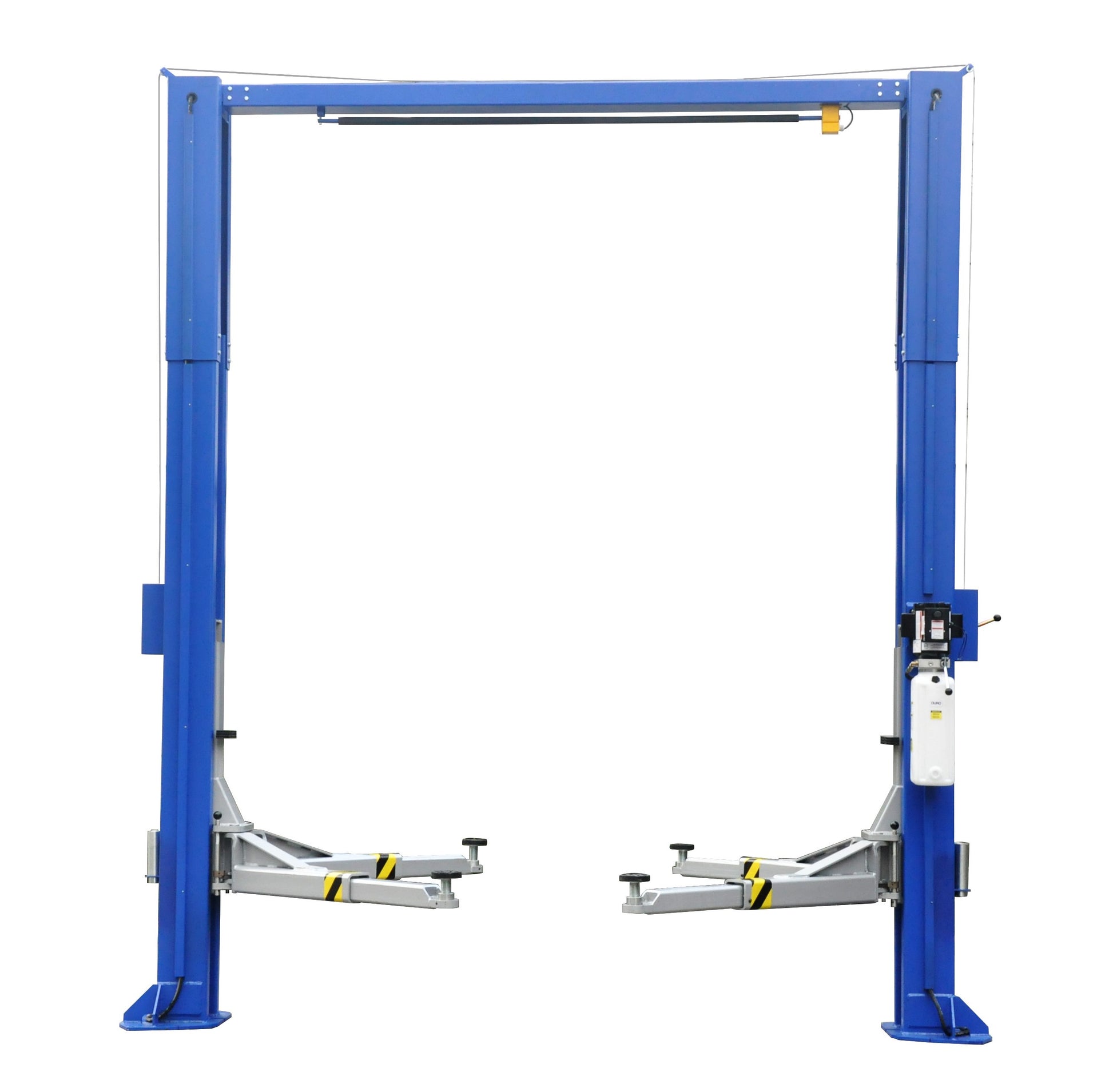

iDEAL TP12KSC-DX 12,000 lb Clear Floor Two Post Lift

The iDEAL TP12KSC-DX 12,000 lb Clear Floor Two Post Lift is engineered for heavy-duty performance, safety, and precision. ALI certified and designed for professional shops, this lift handles large trucks, SUVs, and commercial vehicles with ease. Its clear floor design provides unobstructed access for technicians, tools, and creepers, making every service job faster and more efficient.

Built with symmetric arms for balanced lifting and a robust 12,000 lb capacity, the TP12KSC-DX combines reliability with convenience. The new low-profile swing arms, adjustable height swivel pads, and spin-up lift pads accommodate a wide range of vehicles and frame heights. Direct drive push cylinders and a single-point cable lock release deliver smooth, controlled lifting, while rubber door guards and heavy-duty arm restraints protect both your vehicles and your workspace.

With a 75-inch maximum lift height and a generous 109-inch drive-thru clearance, this lift offers ample room to maneuver under and around vehicles. The MET, UL, and CSA certified Duro power unit ensures long-term dependable operation, and the included stackable adapters make height adjustments quick and easy. Upgrade your shop with the iDEAL TP12KSC-DX for efficiency, safety, and professional-grade performance.

Product Features
  • 12,000 lb lifting capacity for heavy-duty vehicles
  • ALI Certified for safety and performance
  • Clear floor design for unobstructed workspace
  • Symmetric arm design for balanced lifting
  • New low-profile swing arms and adjustable height swivel pads
  • Direct drive push cylinders with single-point cable lock release
  • Rubber door guards to protect vehicles
  • Heavy-duty arm restraint system

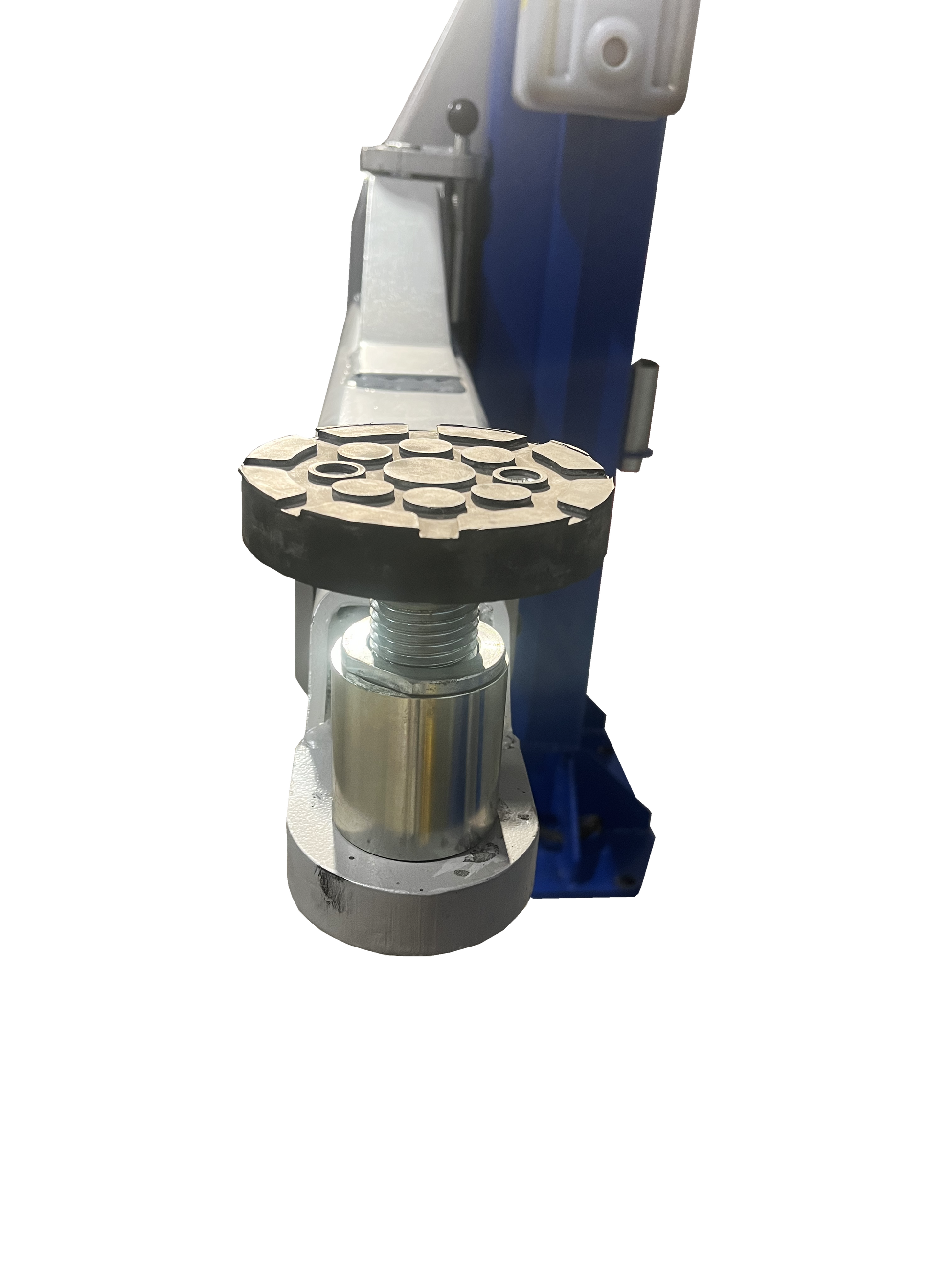

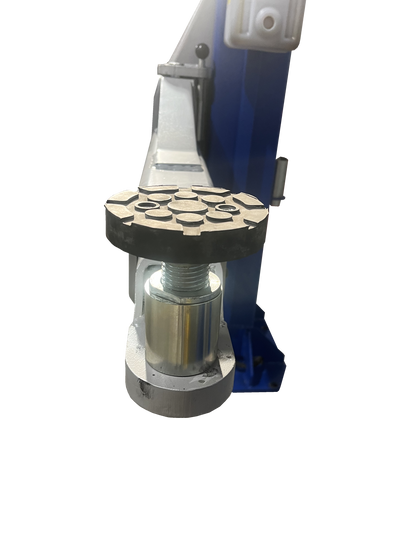

  • Spin-up lift pads with 5” minimum pad height
  • Stackable adapters included (2.6″ & 5″)
  • External hose guards for added protection

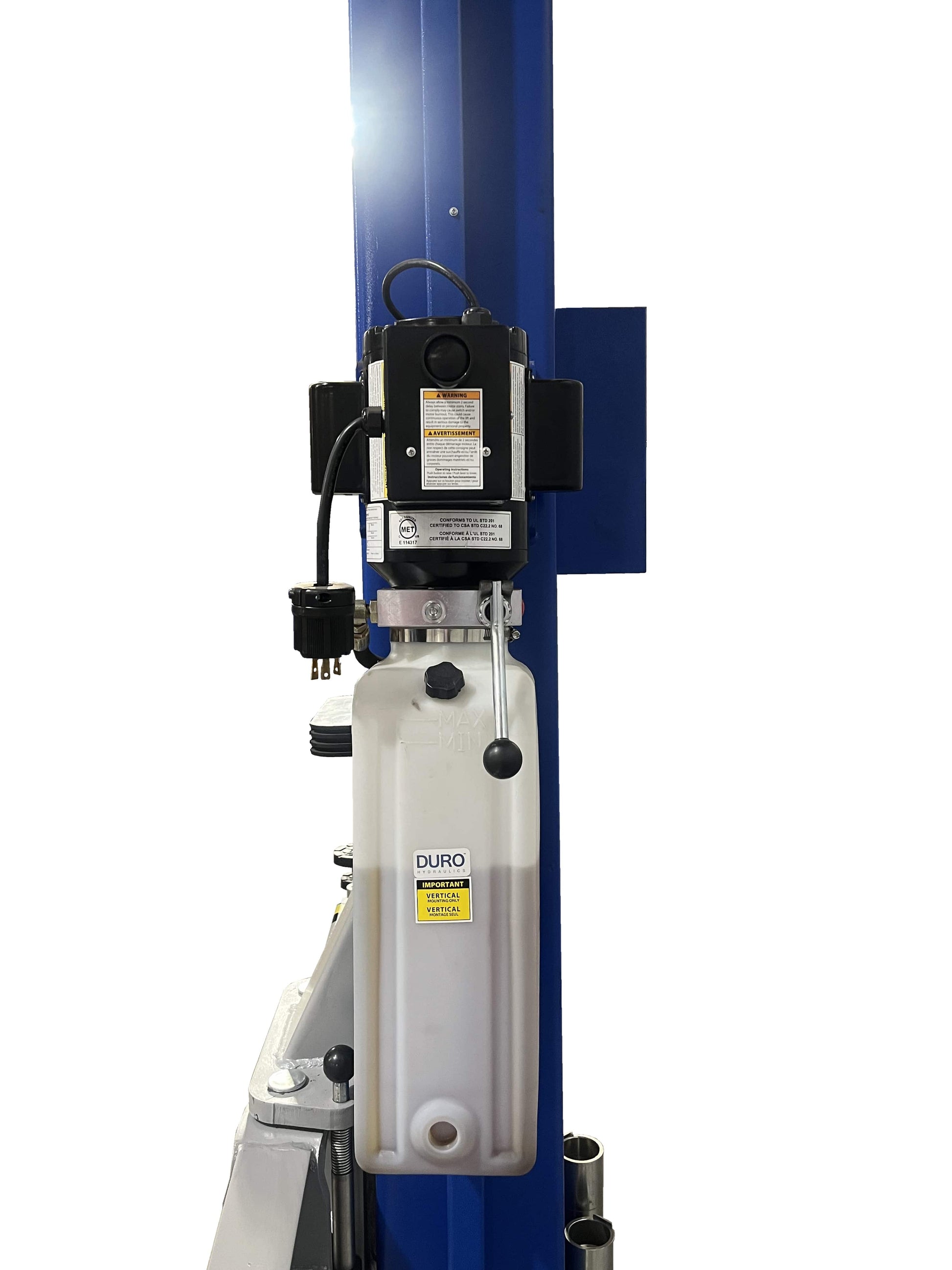

  • Duro MET, UL, CSA certified power unit
  • Warranty: 5 Years Structure / 1 Year Parts under normal use

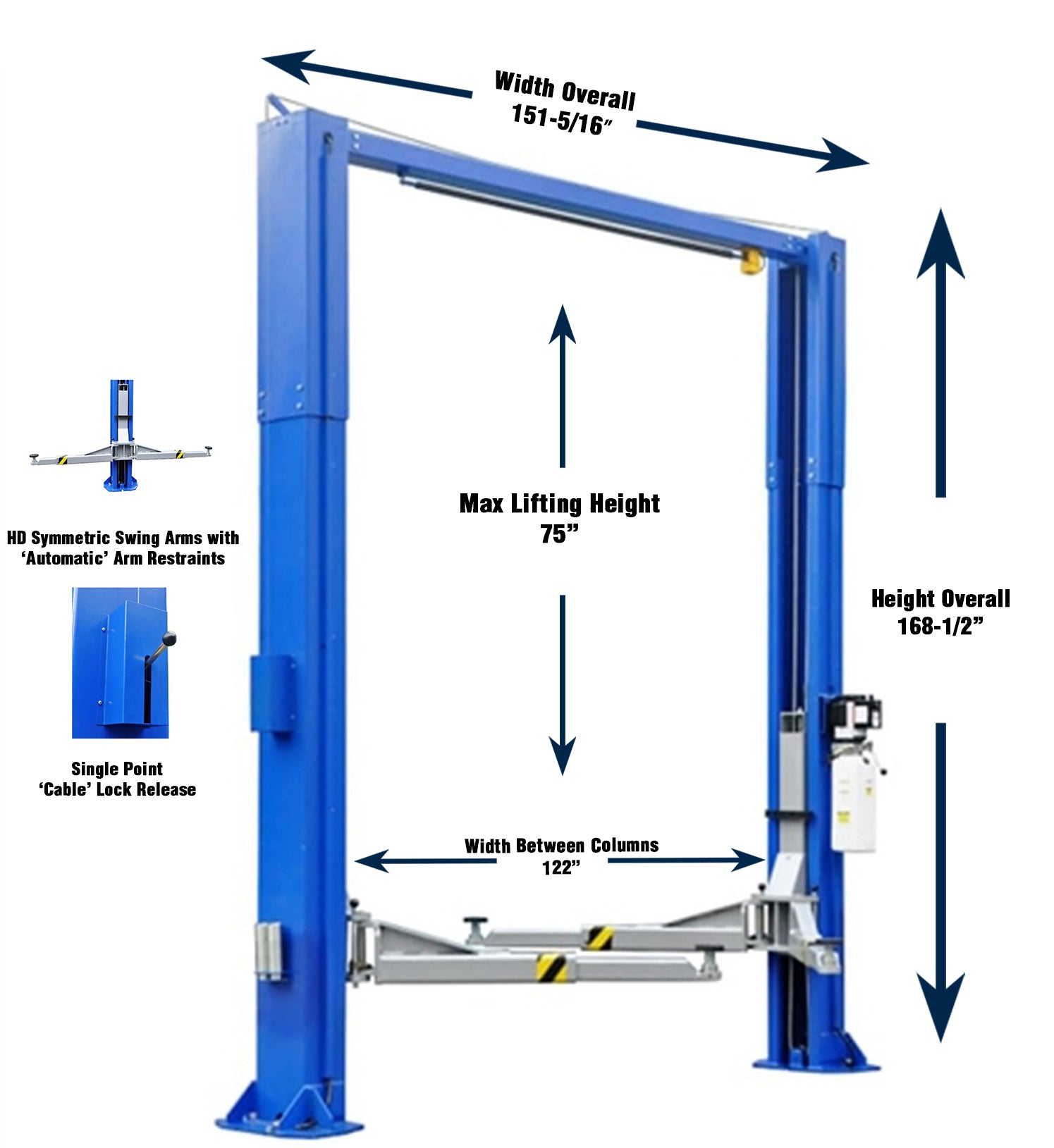

Product Specifications
Lifting Capacity 12,000 lbs
Overall Height 168-1/2″
Overall Width w/ Power Unit 151-5/16″
Max Lift Height 75″
Width Between Columns 122″
Minimum Pad Height 4-7/8″
Drive Thru Clearance 109″
Short Arm Reach – min/max 37-5/8″ – 57″
Long Arm Reach – min/max Same
Lifting Speed 50 Seconds
Power Requirements 220V – 20 AMP – 1 PH
Shipping Weight 2,295 lbs
