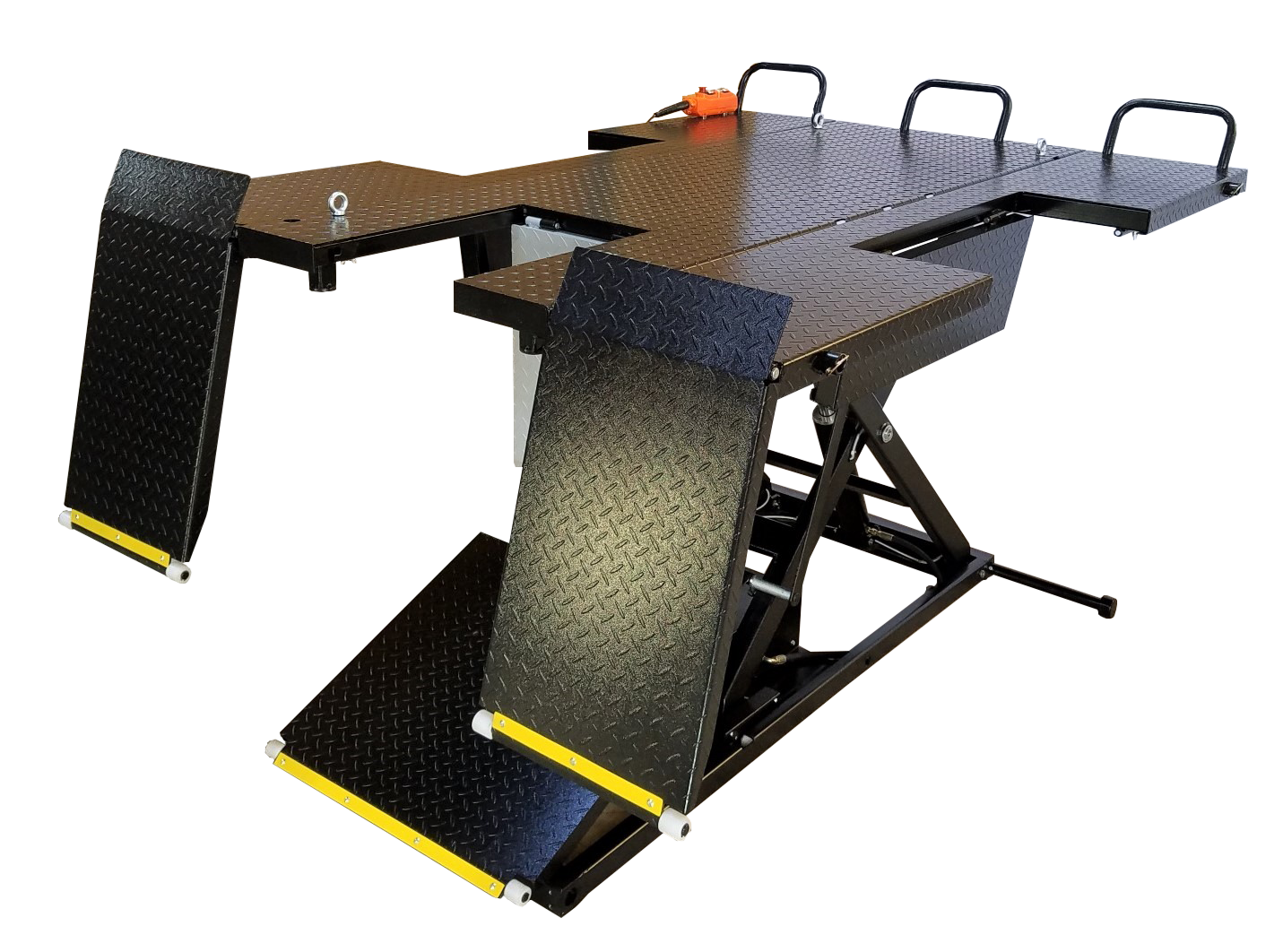

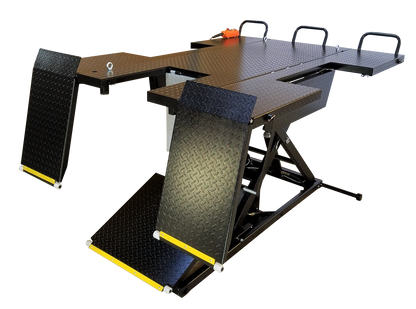

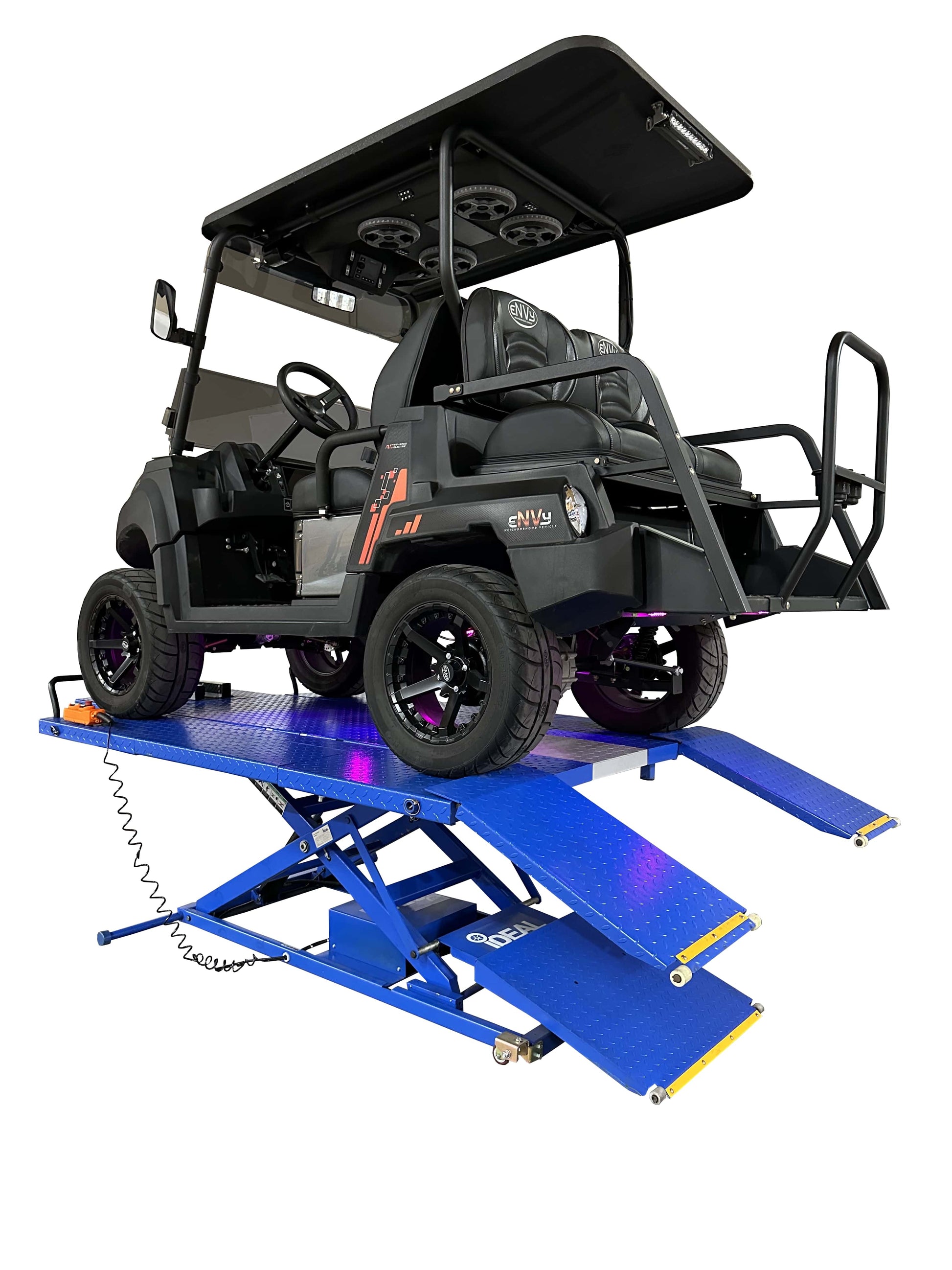

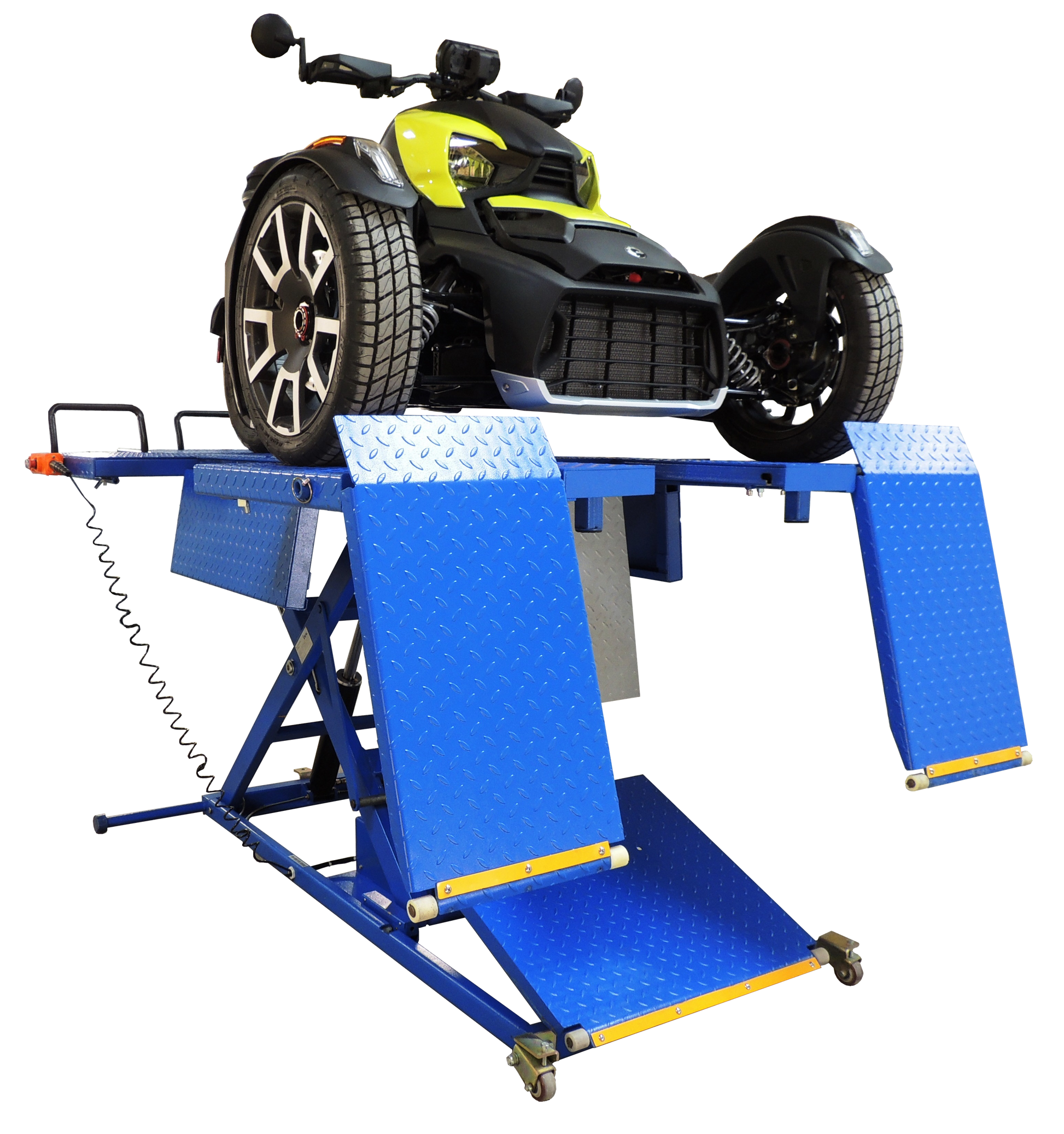

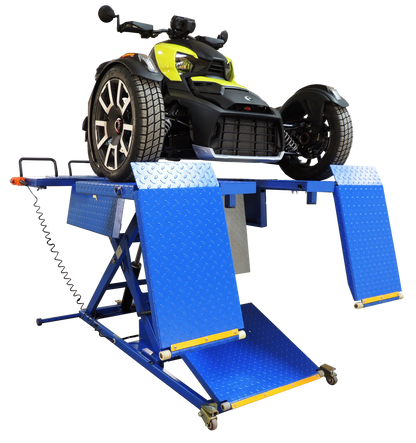

The iDEAL U-2200IEH-XR Electric / Hydraulic UTV Lift delivers unmatched power, size, and control for professional and home workshops alike. With an impressive 2,200 lb. lifting capacity and a wide 65” x 88.6” platform, this heavy-duty lift is designed to handle UTVs, ATVs, and other large recreational vehicles with ease. The durable electric/hydraulic power system provides smooth and efficient operation, lifting your machine to a comfortable 47.2-inch working height in seconds—all controlled by a convenient hand-held control pendant that manages both lift and lock functions.
Built for versatility and safety, the U-2200IEH-XR includes a full-width retractable ramp system for easy loading and unloading, six locking positions for secure operation, and a rear drop-down service panel for quick access to wheels and undercarriage components. The integrated wheel stops and stabilizer bar add extra support and security during use. Engineered with a rugged powder-coated finish and designed for both efficiency and durability, this lift makes UTV and ATV maintenance faster, safer, and more convenient than ever.

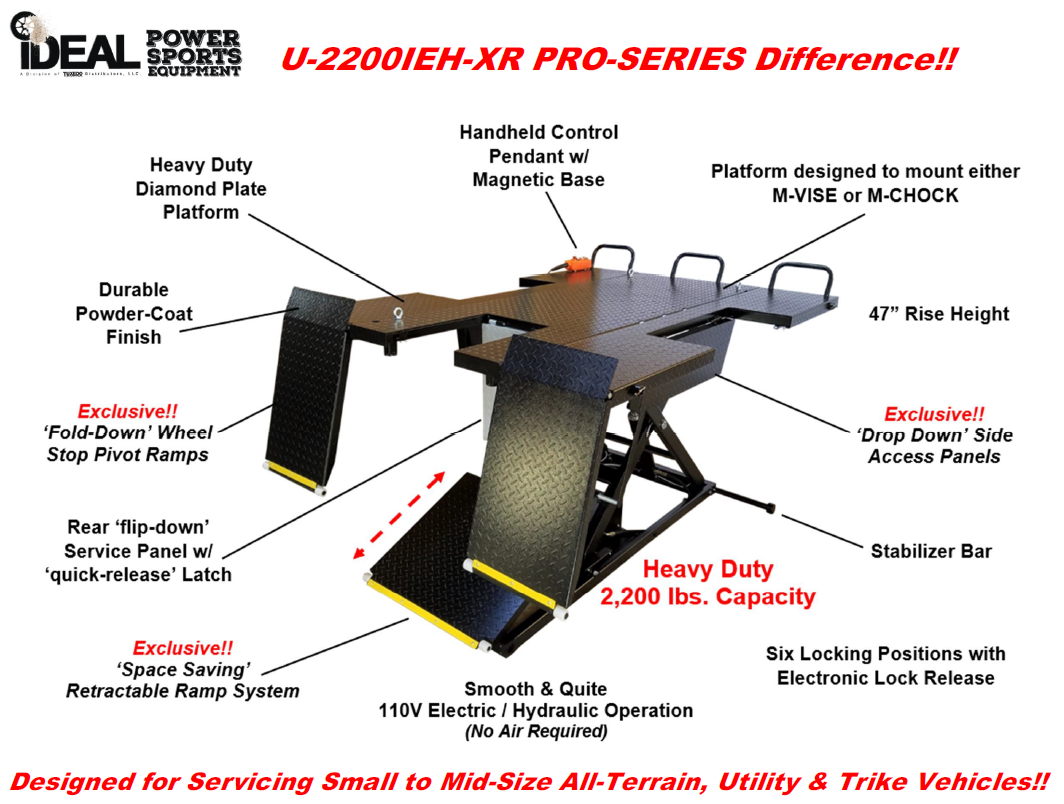

| Product Features |
|---|
| 2,200 lb. lifting capacity for UTVs, ATVs, and heavy power sport vehicles |
| Electric/hydraulic power system for quick and smooth lifting |

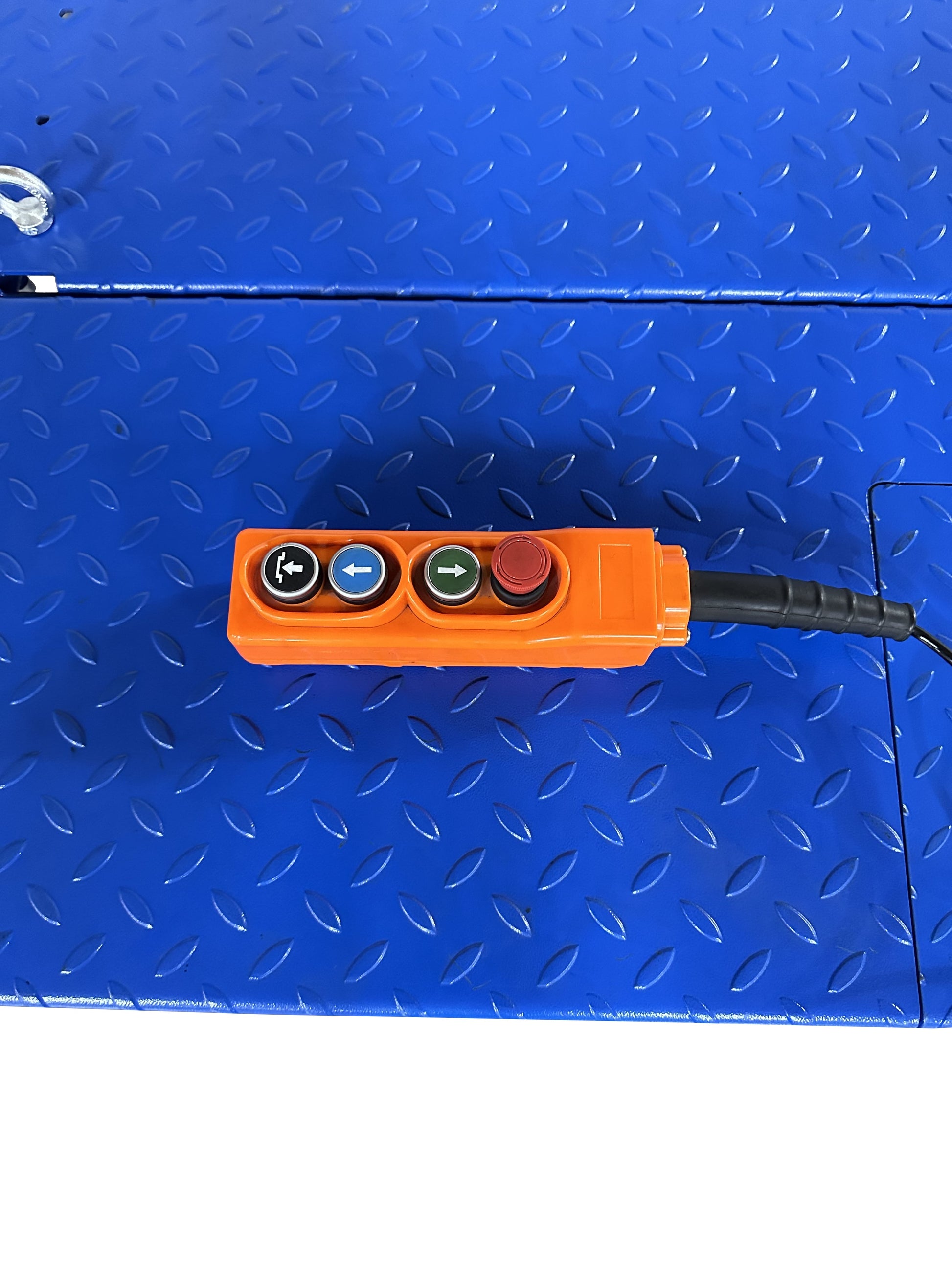

| Single-point hand-held control pendant for lift and lock release |
| Full-width retractable ramp system for easier vehicle access |

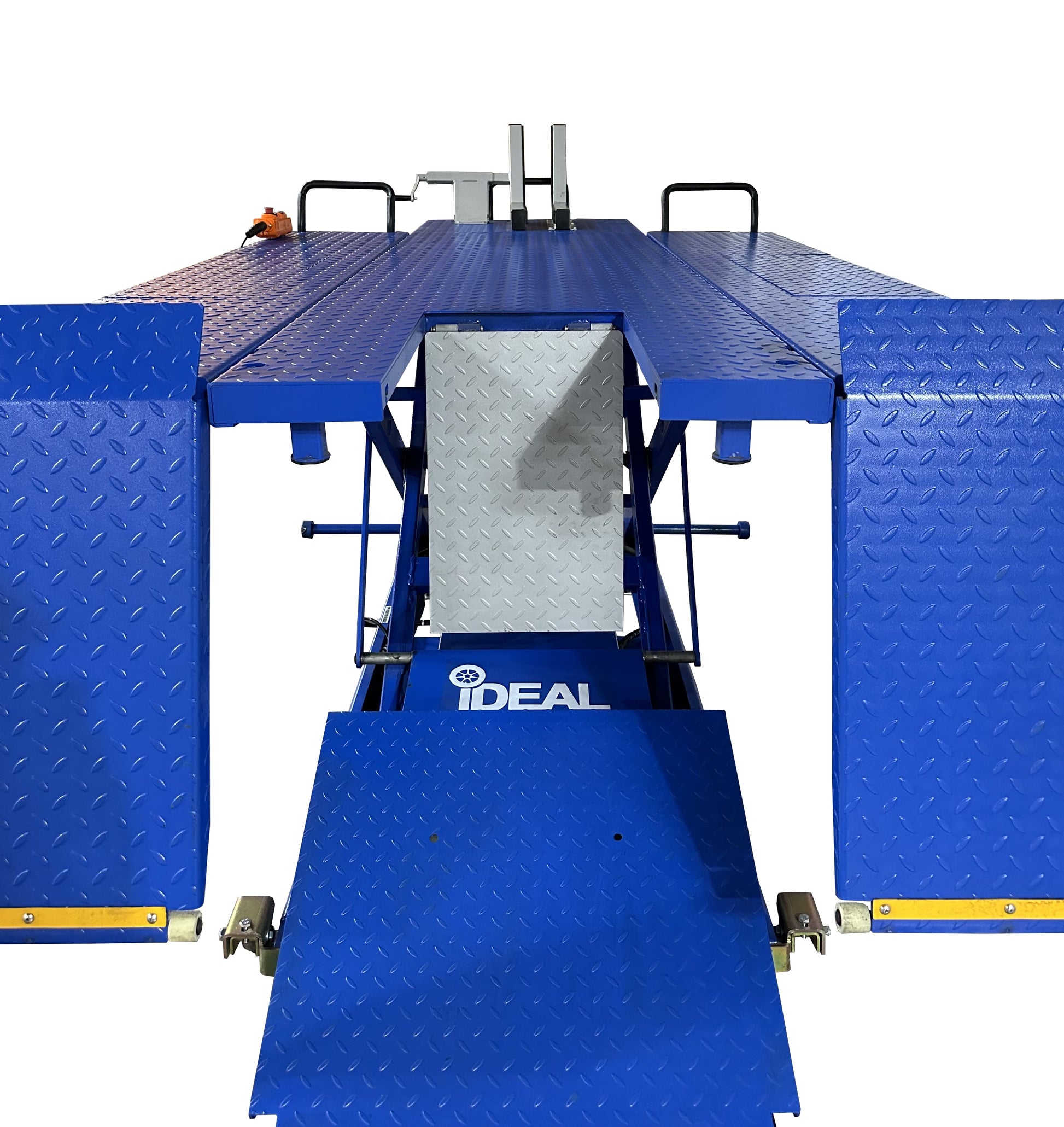

| Rear drop-down service panel for fast wheel and underbody access |
| Six locking positions with magnetic lock release for safety |
| Wheel stops and stabilizer bar for maximum stability during operation |
| Rugged powder-coated finish designed for long-lasting durability |
| Product Specifications | |
|---|---|
| Lifting Capacity | 2,200 lbs. (1,000 kg) |
| Maximum Lift Height | 47.2” (1200 mm) |
| Minimum Height | 7” (180 mm) |
| Platform Size | 65” x 88.6” (1650 mm x 2250 mm) |
| Power Supply | 110V, 60Hz, 1 Phase, 18A |
| Lift / Lower Time | 30 seconds each |
| Gross Weight | 1,095 lbs. |
