The KATOOL KT-310 Auto Body Frame Machine is built to deliver professional collision repair performance in a compact, shop-efficient design. CE-certified and engineered with European technology, this heavy-duty frame machine features a robust 60 KN pulling tower with full 360° rotation, giving you the flexibility to tackle damage from any angle.
Perfect for small to midsize vehicles, the KT-310 combines strength, safety, and precision with space-saving practicality. Its cold high-alloy rectangular tube frame offers enhanced durability, while the 9-grade locking system and adjustable lifting arms allow seamless height control for various vehicle types. With a max load capacity of 7,000 lbs, the KT-310 is ideal for shops seeking fast turnaround times without sacrificing power or control.
Whether you're working on light collision damage or structural frame pulls, the KT-310’s smart design—featuring quick-fix clamp jaws, rotating arms, and scissor-lift capability—makes setup and repair more efficient than ever.
| Key Features |
|---|
| 60 KN Pulling Tower with 360° Rotation – Reach damage from any angle with powerful, flexible pulling force |
| CE-Certified Safety & Build – Constructed with European-grade materials and cold-formed rectangular tubing |
| Adjustable Lifting Arms & Scissor-Lift Functionality – Supports nearly all vehicle types, from compacts to SUVs |
| Compact & Space-Saving – Designed for smaller shops without sacrificing strength or function |
| Quick-Fix Clamp Jaws – Easy installation with just two screws for rapid setup |
| 9-Grade Locking System – Fine-tune lift height with precision and safety |
| Heavy-Duty 7,000 lb Capacity – Handles everyday collision repairs with ease |
| Backed by 1-Year Warranty – Full parts and product defect coverage included |
| Specification | Value |
|---|---|

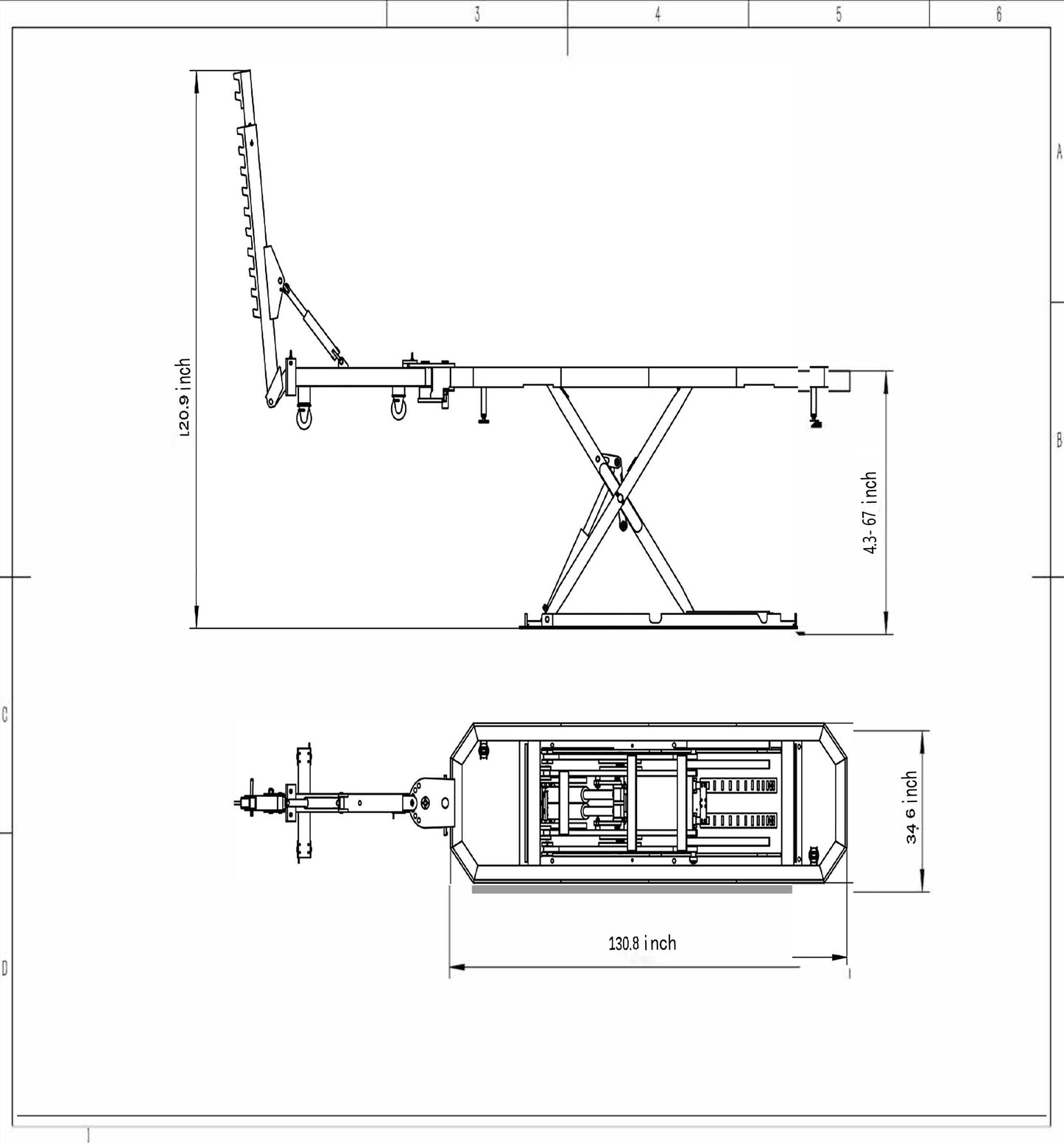

| Frame Length | 130.8 inches |
| Frame Width | 34.5 inches |
| Frame Height | 4.3 to 67 inches |
| Max Pulling Tower Force | 60 KN |
| Pulling Tower Working Range | 360 Degrees |
| Max Load Capacity | 7,000 lbs |
| Voltage | 220V |
| Drive-On Height | 110 mm |
| Lifting Arm Rotation | 180 Degrees |
| Frame Material | Cold High-Alloy Steel |
| Certification | CE Certified |
| Warranty | 1 Year (Parts & Defects) |
