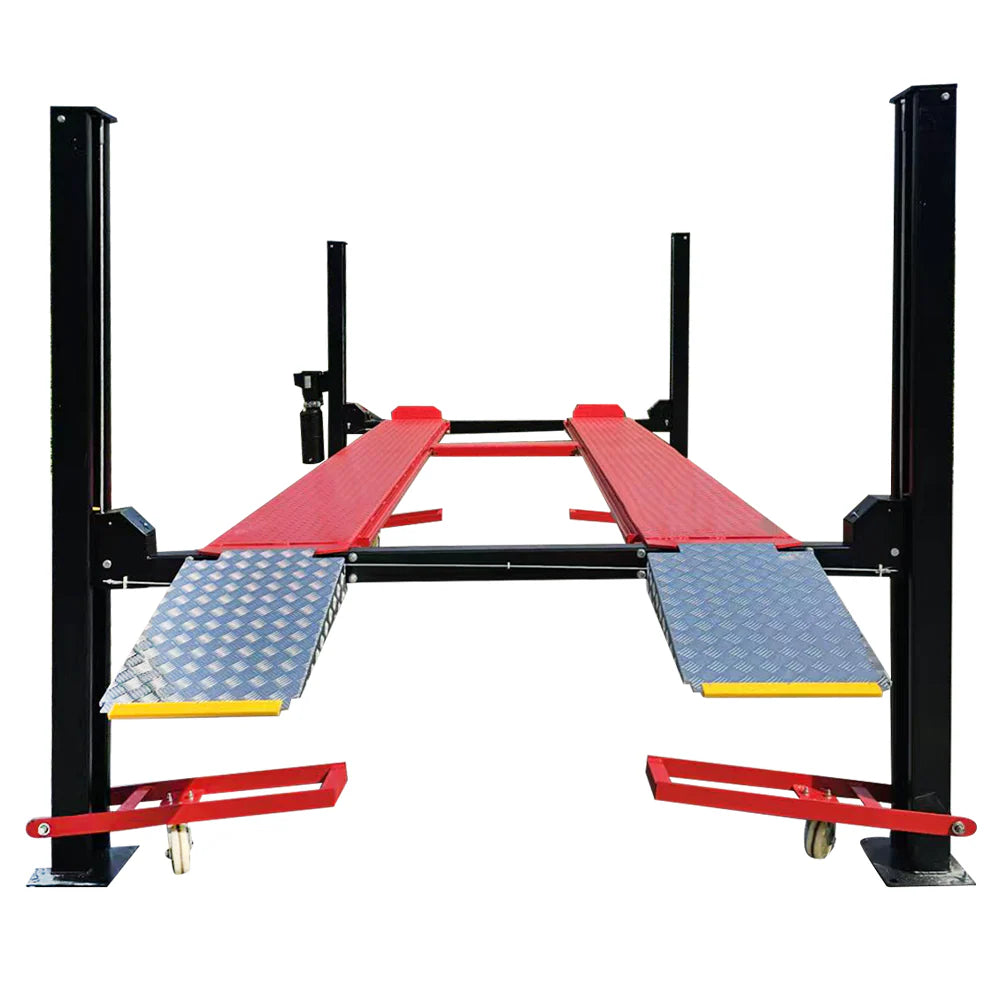

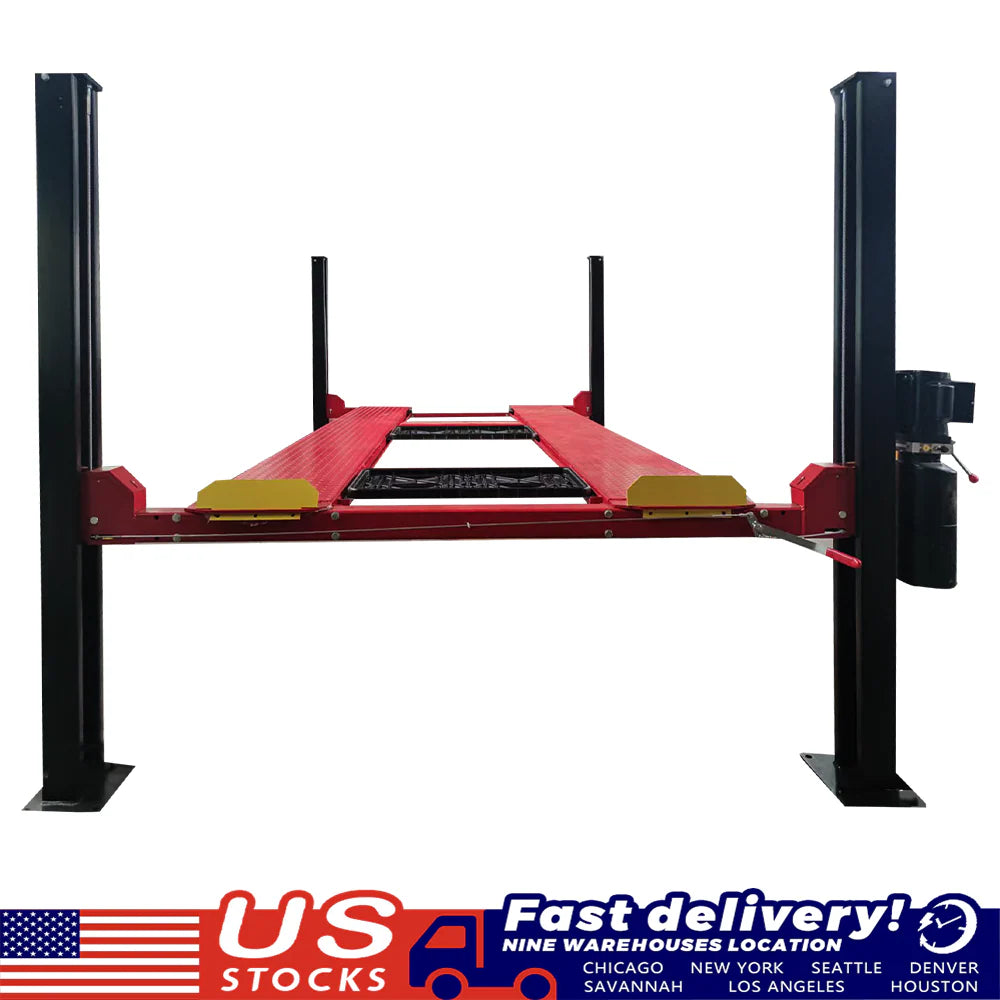

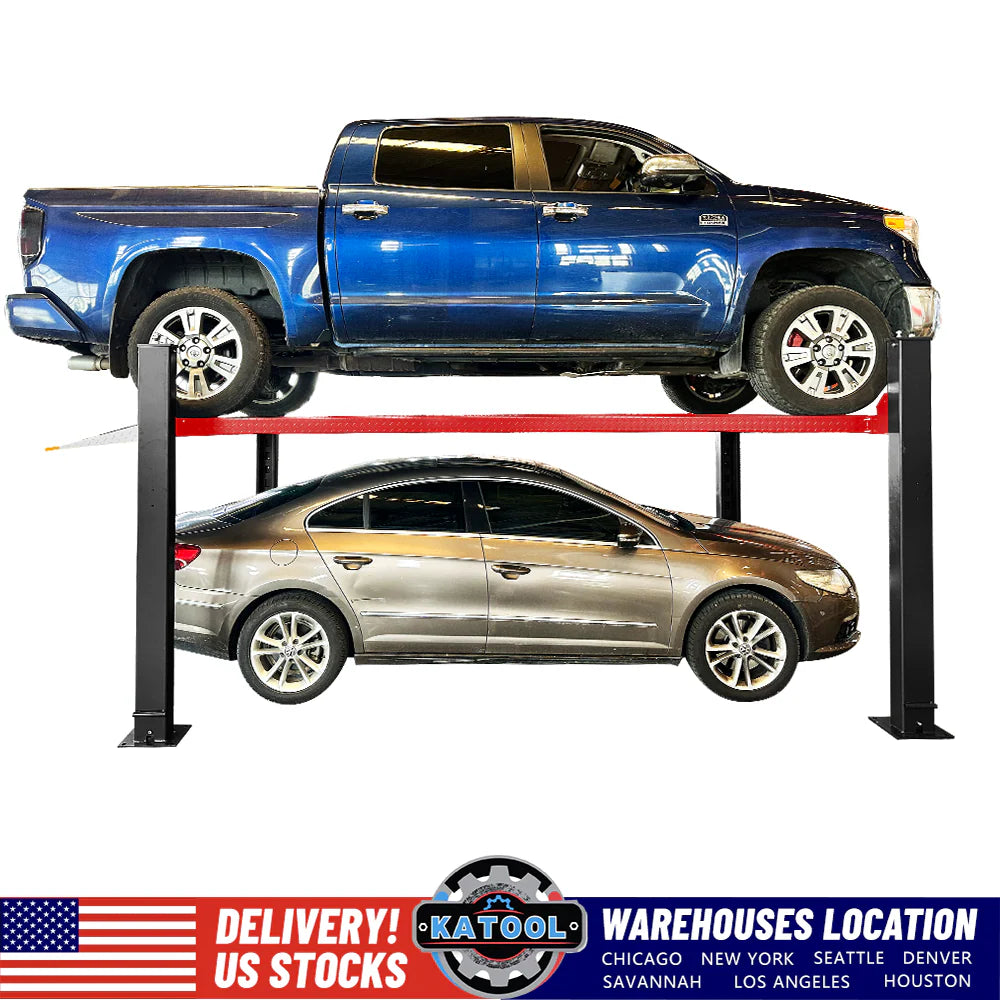

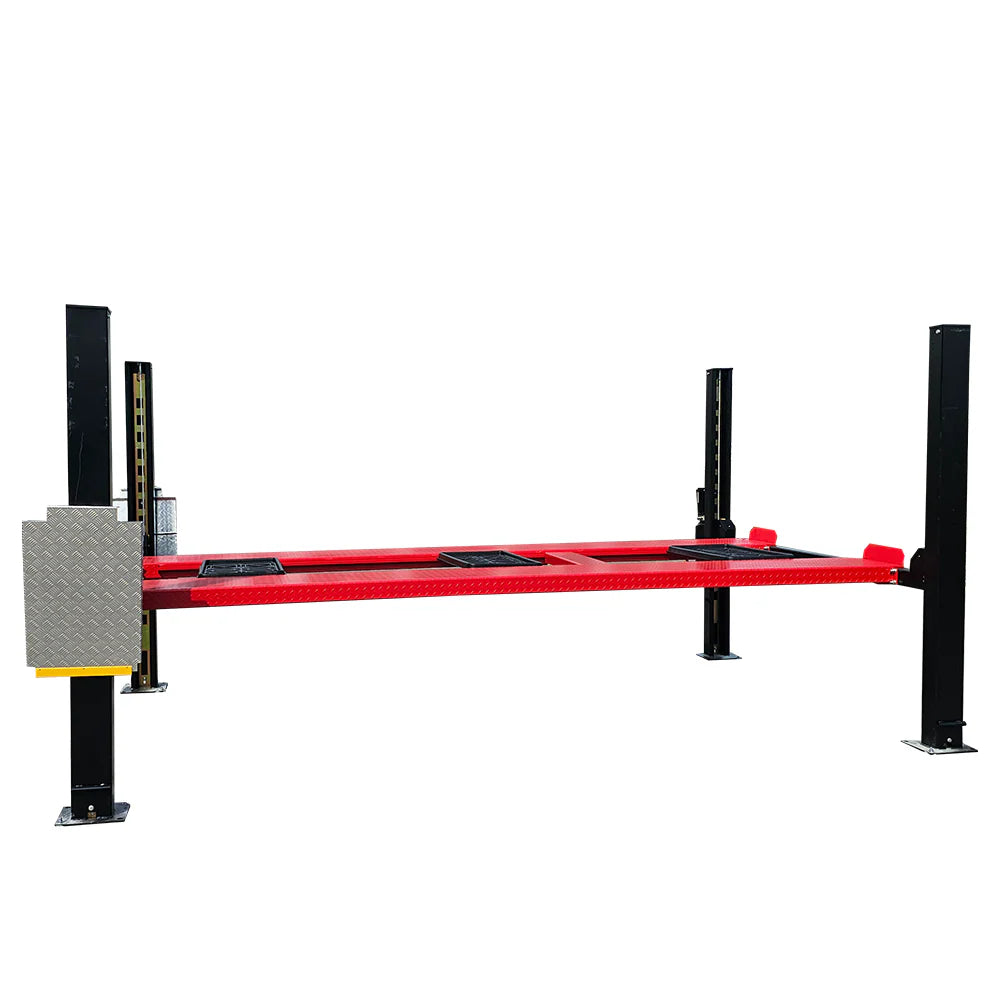

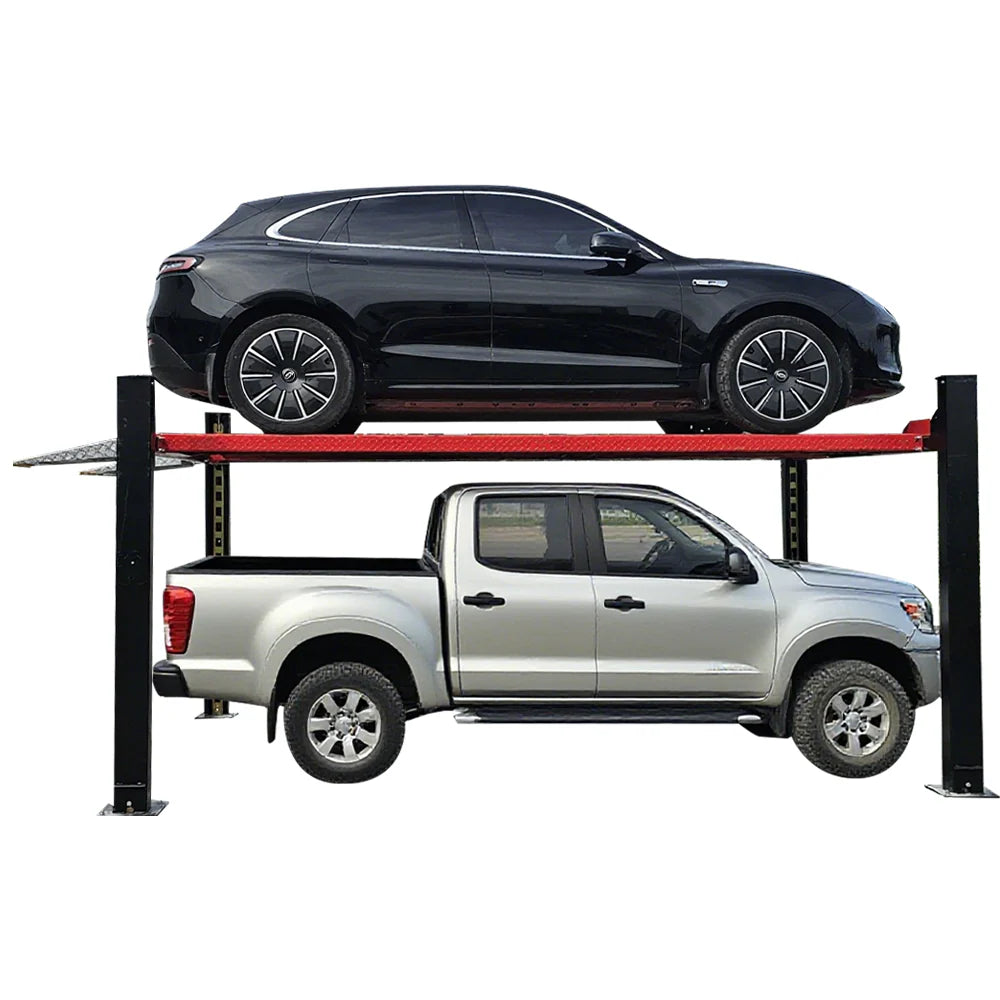

Built to handle serious lifting demands, the Katool 4H950 Four Post Lift delivers impressive strength and dependability for both shop service and vehicle storage. With a massive 9,500 lb lifting capacity and solid Q235/Q245 steel construction, this heavy-duty lift is ideal for working on cars, SUVs, or even light trucks. It’s engineered for durability, precision, and safety.
| Product Features |
|---|
|
 |
 |

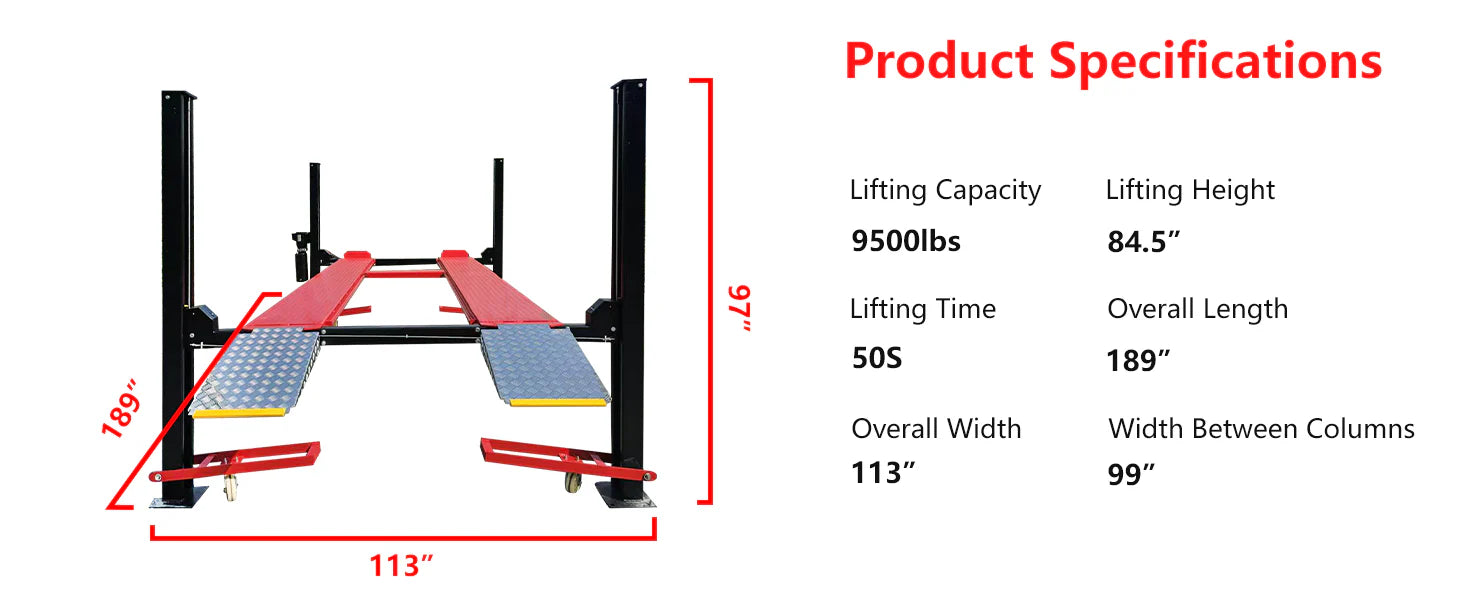

| Product Specifications | |
|---|---|

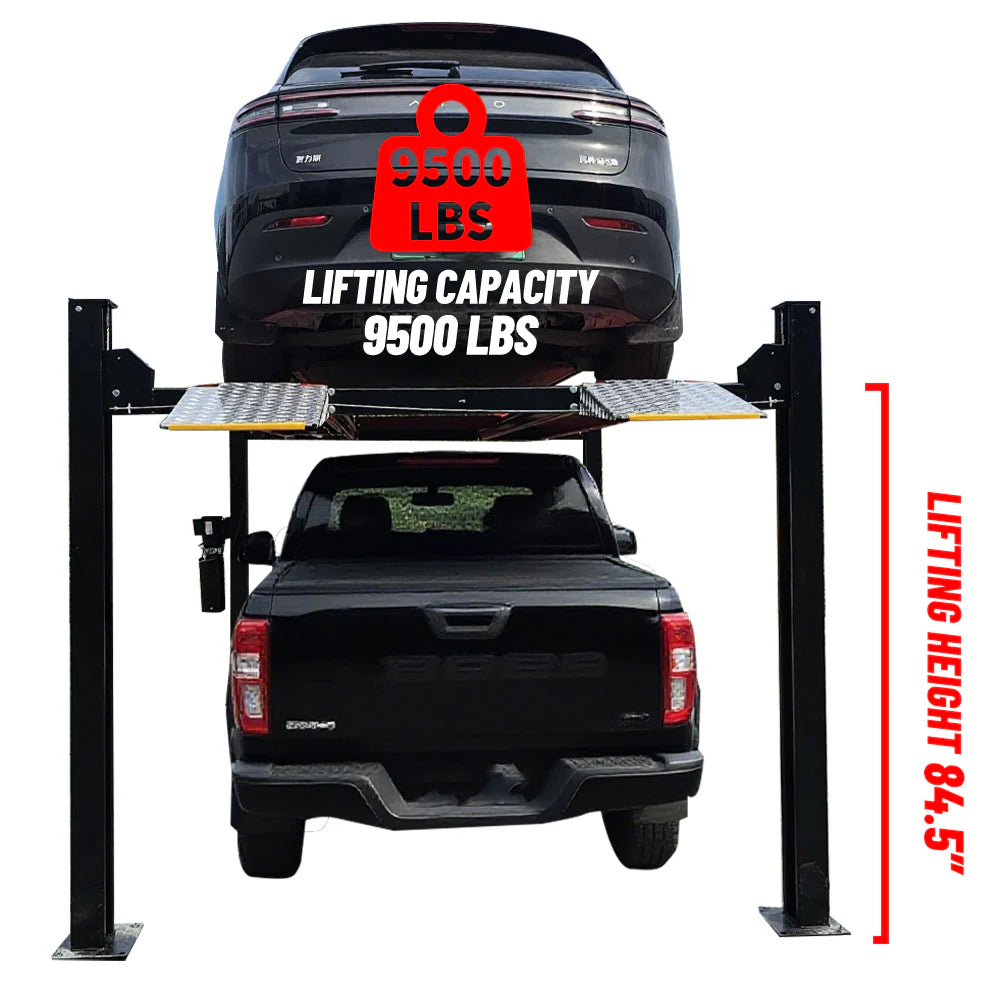

| Rated Lifting Capacity | 9,500 lbs (4.3 Tons) |
| Maximum Lift Height | 84.5" (2,146 mm) |
| Clearance Height Under Runways | 80.7" (2,050 mm) |
| Raise / Lower Time | Approx. 90 seconds up / 40 seconds down |
| Overall Height | 97" (2,464 mm) |
| Overall Width | 112.7" (2,863.5 mm) |
| Width Between Columns | 99.4" (2,525 mm) |
| Runway Length | 173" (4,394 mm) |
| Inside Runway Width | 37" (940 mm) |
| Outside Runway Width | 79.8" (1,880 mm) |
| Overall Length (Without Ramps) | 189.3" (4,805 mm) |
| Overall Length (With Ramps Installed) | 214.96" (5,460 mm) |

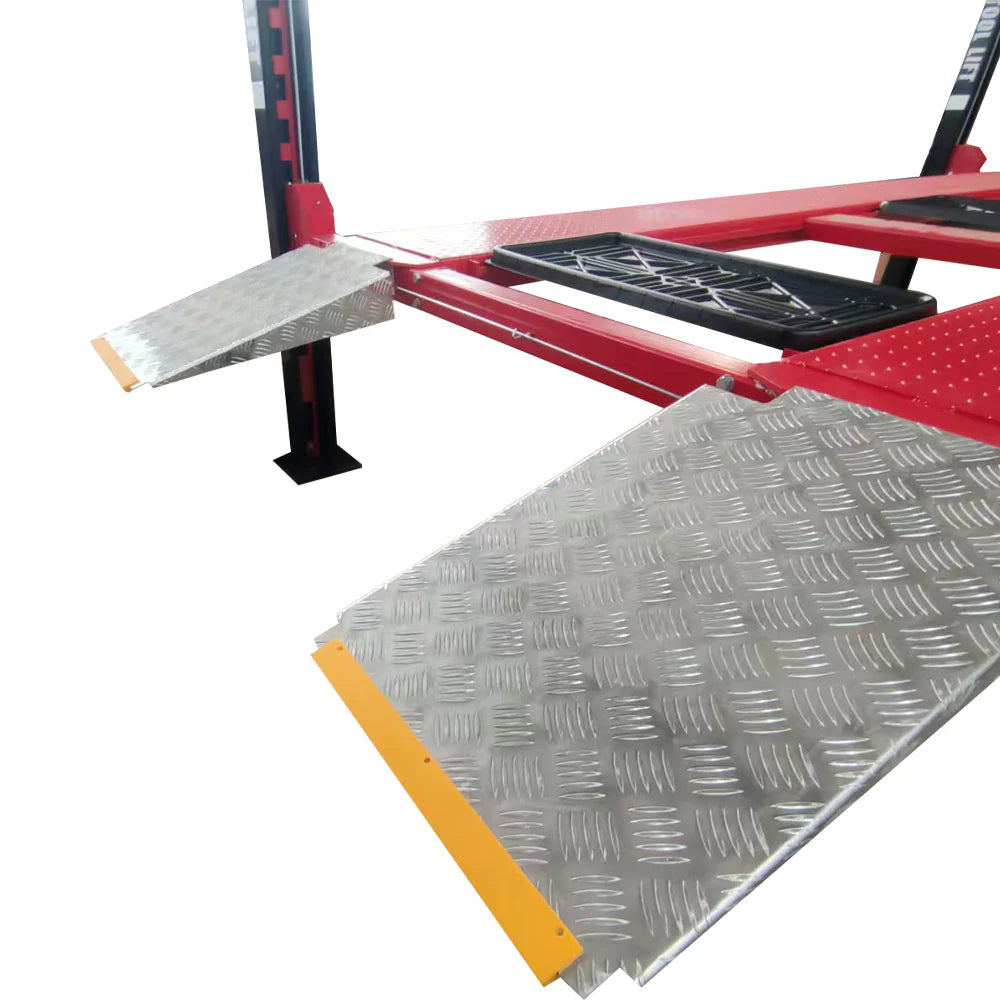

| Drive-On Ramp Length | 30.3" (770 mm) |
| Shipping Weight & Dimensions | Approx. 2,095 lbs | 186" x 30" x 23" |
| Motor Requirement | Minimum 2.2 kW motor |
| Voltage Options | 110V / 60Hz / 3HP or 220V / 60Hz / 3HP (Requires dedicated 30-amp breaker with 10-gauge wiring) |
| Runway Surface | Diamond-plate steel with non-slip finish |
| Safety Mechanism | Four-position mechanical locking system with adjustable safety ladders |

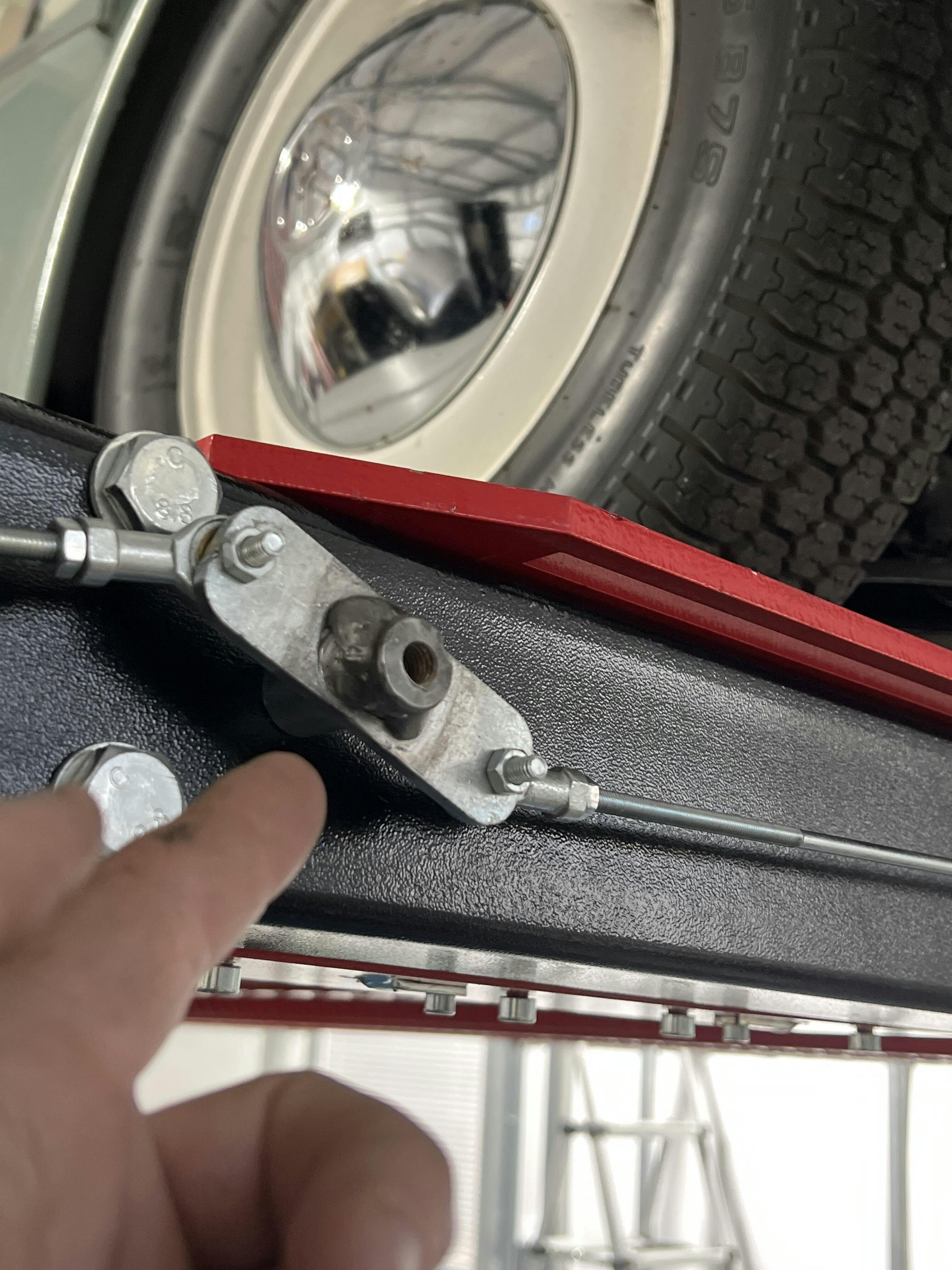

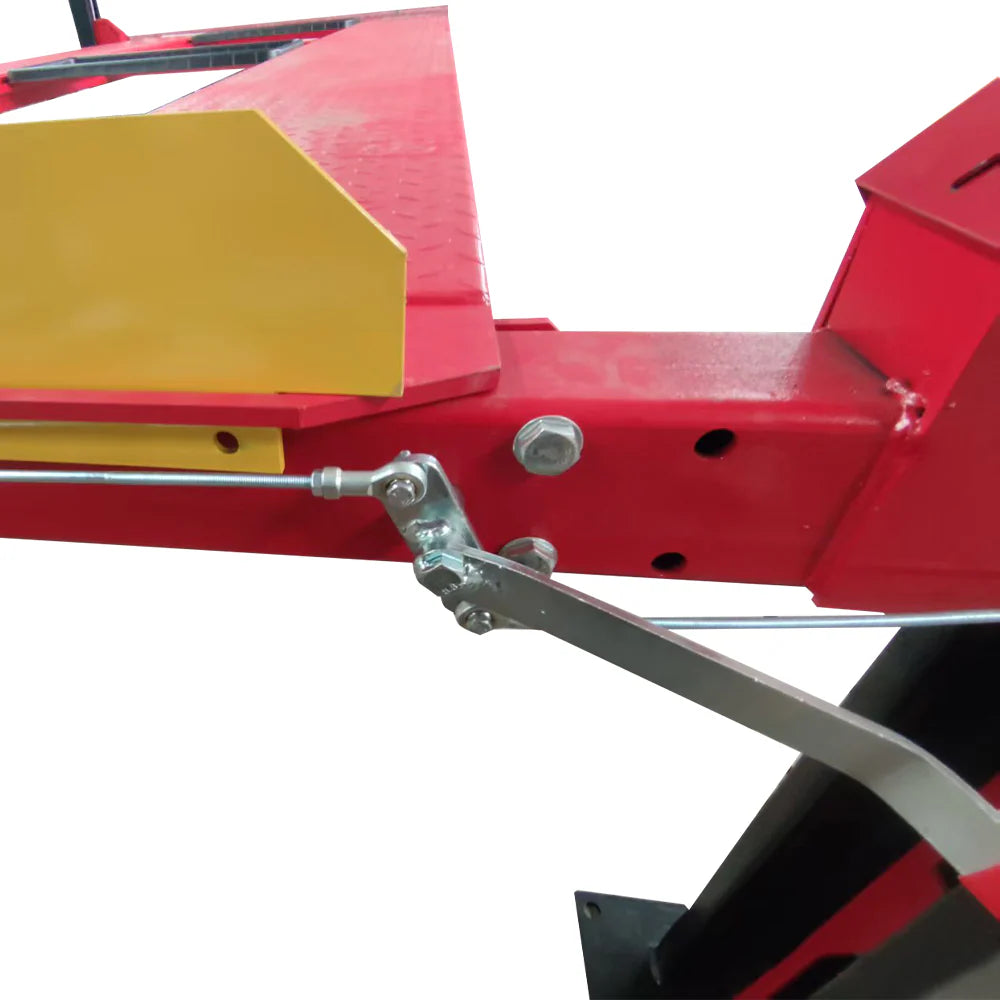

| Lock Release System | Single-point manual release (operator-side access) |
| Synchronization System | Heavy-duty steel cables and pulley system for even lifting |

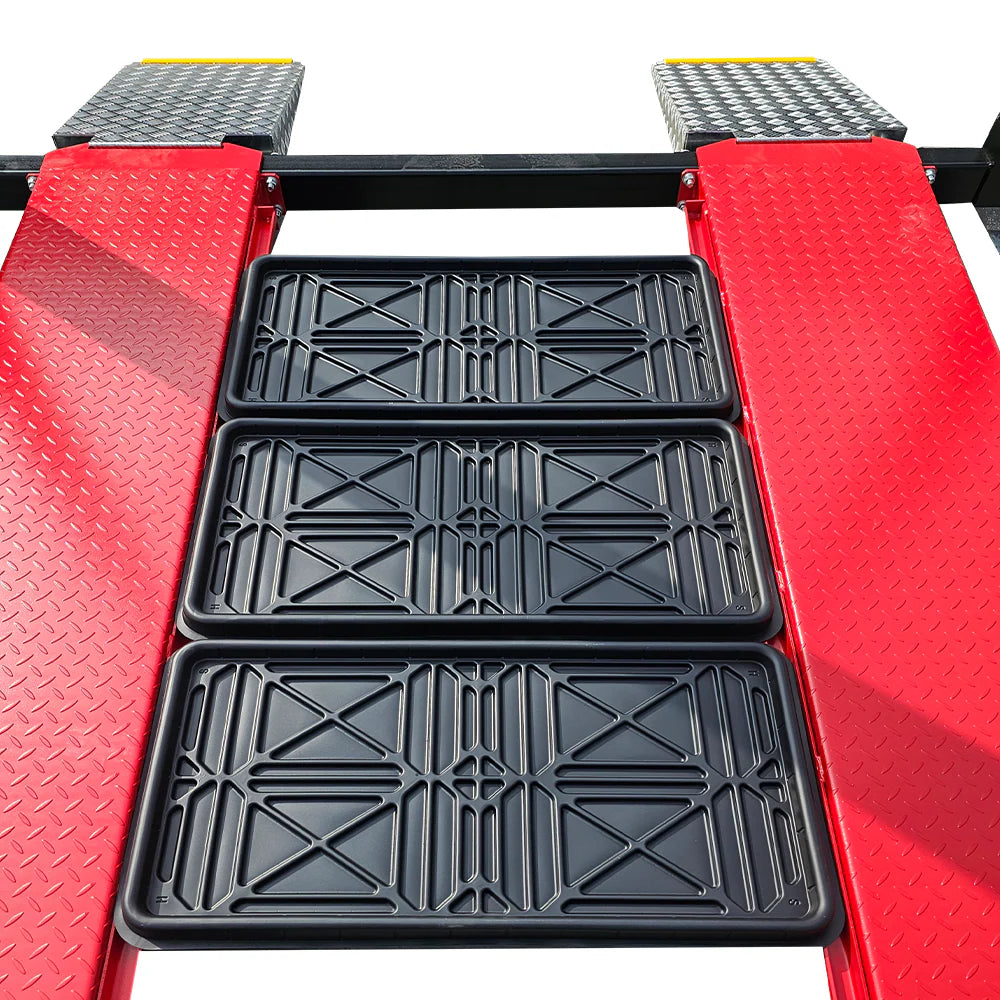

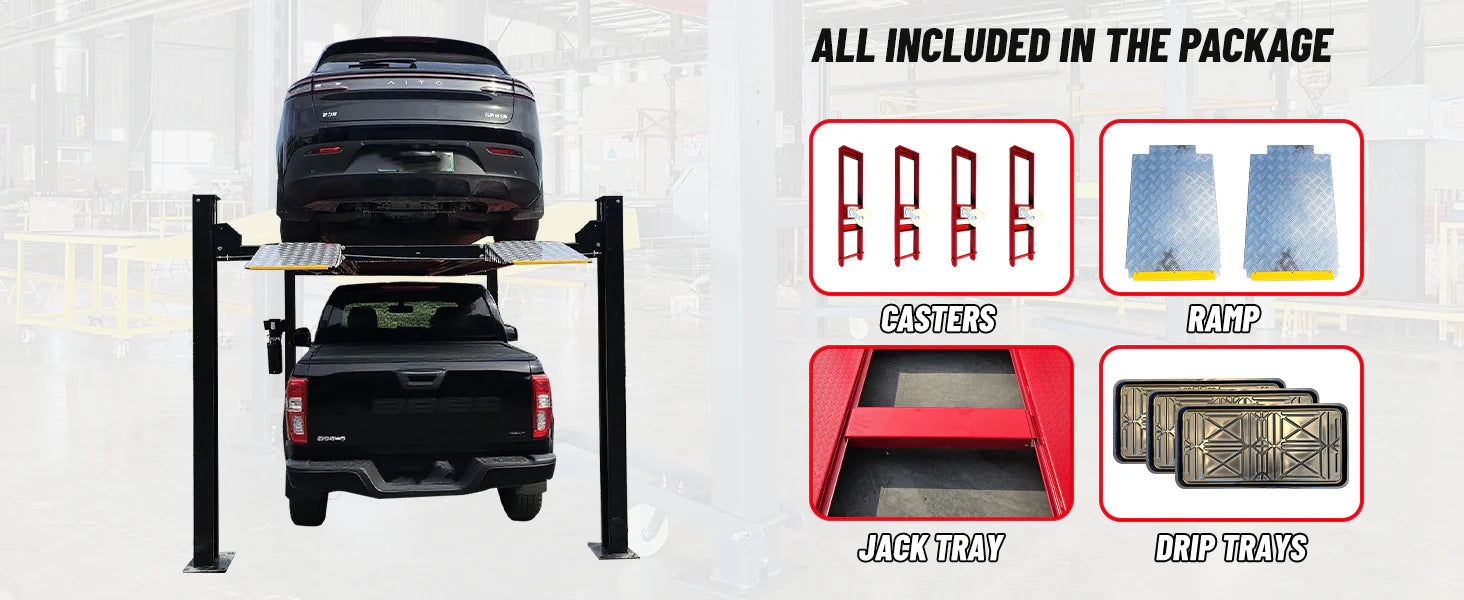

| Included Accessories | Caster kit, aluminum approach ramps, jack tray, and drip trays |
| Optional Accessories | Pneumatic sliding jack and additional jack trays |
| Concrete Requirement | Minimum 4" thick concrete, 3,000 PSI, level surface with no cracks |
| Warranty Coverage | 1-Year Limited Parts Warranty + 3-Year Structural Warranty |
