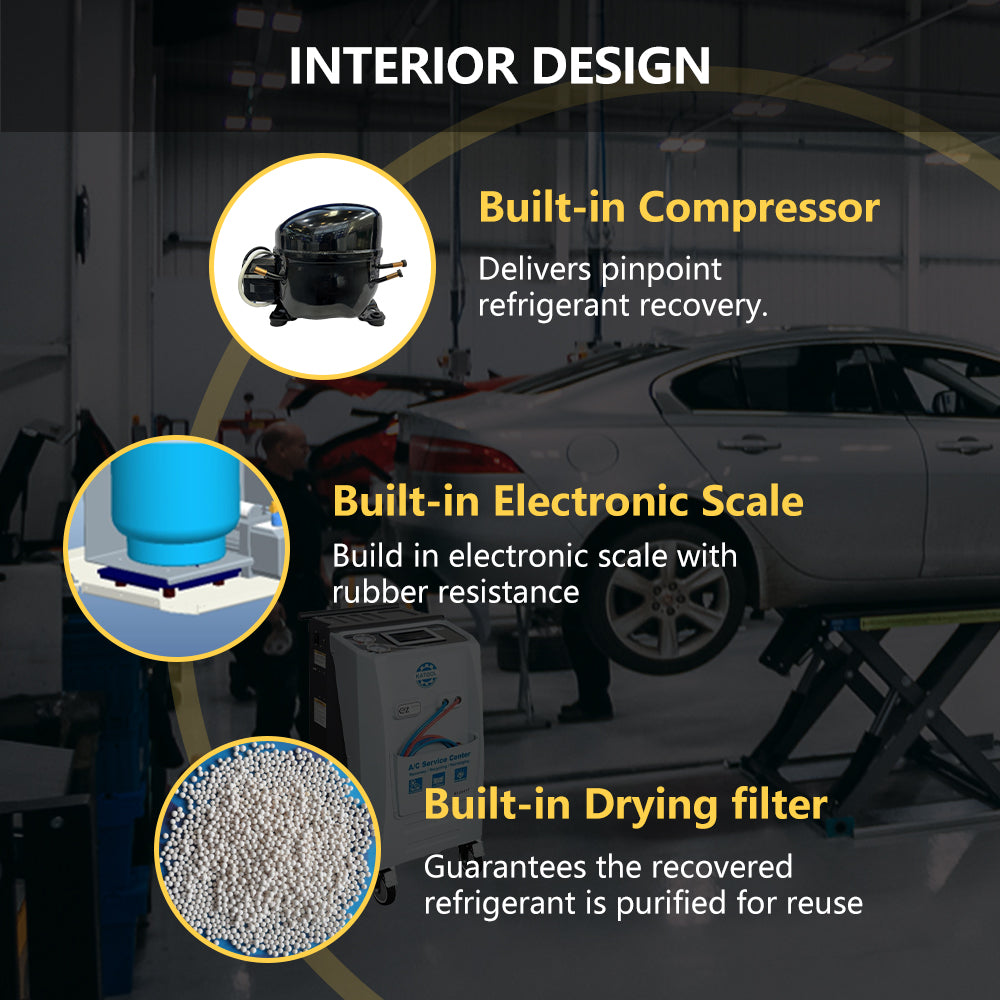

Stay cool and efficient with the KATOOL KT-AC1800 R-134a AC Recovery Machine, the ultimate tool for modern automotive air conditioning service. Engineered for reliability and performance, this machine is designed to handle R-134a refrigerant with professional-grade precision—featuring an oil-less twin-cylinder compressor and high-performance vacuum pump to recover refrigerant at speeds up to 39.7 lbs per hour.
Its advanced load cell technology delivers accurate refrigerant and oil measurements down to 0.04 oz, ensuring flawless recovery and recharging every time. A 7-inch high-resolution touchscreen display makes operation intuitive, while the rugged HDPE outer case keeps the machine lightweight, portable, and durable enough for any shop environment.
Fully compatible with both R-134a and R-1234YF systems, the KT-AC1800 comes equipped with a complete hose kit, integrated oil separator, high-efficiency fan, and safety shut-off systems. Certified to meet SAE J2851 and UL 1963, this machine is a must-have for auto shops focused on fast, clean, and safe A/C service.
Key Features
High-Speed Recovery – Up to 39.7 lbs/hr recovery speed for rapid A/C service
Extreme Accuracy – Load cell precision to 0.04 oz for refrigerant and oil measurements
Dual-System Compatibility – Works with both R-134a and R-1234YF MVAC systems
Intelligent Touchscreen Control – 7" high-quality display simplifies operation and diagnostics
Safety-Focused Design – Built-in pressure shut-offs, tank overfill sensors, and circuit breakers
Built for Durability – HDPE case, high-efficiency fan, and heavy-duty construction for daily use
Complete Kit Included – Includes hoses, oil bottle, filter-drier, and more for immediate setup
Meets Professional Standards – SAE J2851 & UL 1963 certified, designed in the U.S.A.
Specifications
| Specification | Value |
|---|---|
| Applicable Refrigerant | R-134a (also includes R-1234YF hose kit) |
| Voltage | 110V AC, 60 Hz |
| Recovery Speed | 39.7 lbs/hr (18 kg/hr) |
| Charge Accuracy | ±0.5 oz (15 g) |
| Load Cell Accuracy (Gas/Oil) | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Max Operating Pressure | 18 bar |
| Compressor | 1/3 hp, oil-less, sealed |
| Vacuum Pump | 3.6 CFM (120 L/min), dual stage |
| Display | 7” Touchscreen HQ |
| Oil Bottle Capacity | 250 mL (15 cubic inches) |
| Recovery Hose Length | 9.8 ft (3 m), SAE J2788 |
| Dimensions (L × W × H) | 22" × 28" × 41" |
| Gross Weight | 240 lbs (110 kg) |
| Certification | SAE J2851, UL 1963 |
| Country of Origin | Made in the U.S.A. |
| Extras | Built-in printer, SD card database, vacuum test, optional heating belt |
Included Components
R-134a and R-1234YF service hoses
Oil separator and oil measurement bottle
High-efficiency fan and condenser system
Filter-drier, safety sensors, and circuit breaker
Built-in printer and touchscreen display
