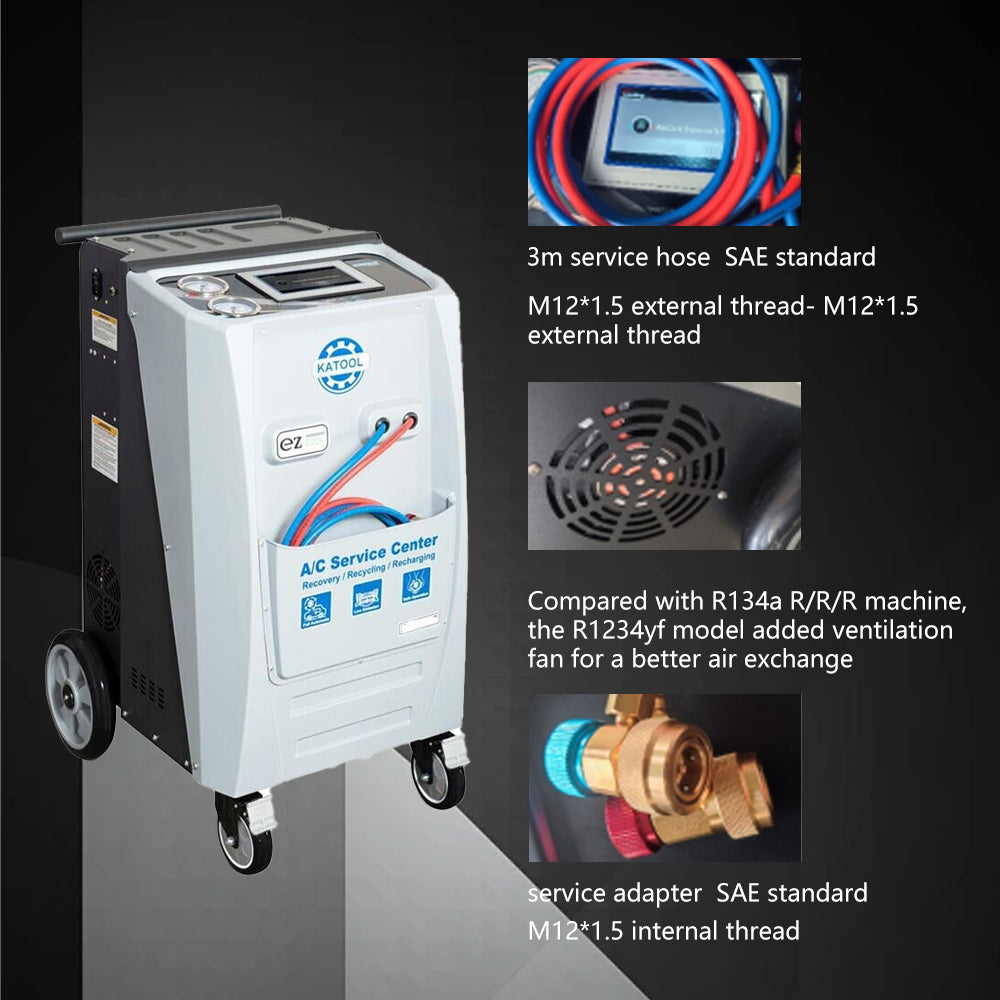

KATOOL KT-AC2100 R-1234YF AC Recovery Machine – Fast, Precise, and Reliable Refrigerant Recovery
Experience unmatched speed and precision with the KATOOL KT-AC2100, the ultimate recovery machine designed specifically for R-1234YF refrigerant systems. Built for professional HVAC technicians, this American-made powerhouse features a robust twin-cylinder compressor and a high-performance vacuum pump, recovering refrigerant at an impressive 39.7 lbs per hour to keep your workflow smooth and customers cool.
Accuracy is paramount in refrigerant recovery, and the KT-AC2100 delivers with advanced gas and oil load cell technology, providing measurements down to 0.04 oz for flawless recovery and recharge cycles. The 7-inch high-definition touchscreen ensures intuitive operation, while the rugged HDPE case offers portability and durability for demanding shop environments.
This all-in-one machine comes equipped with comprehensive hose kits for R-1234YF and R-134a systems, a filter drier, and an oil separator, allowing you to service a broad range of vehicles efficiently. Optional features such as a heating belt and SD database enable further customization for peak performance. Certified to meet SAE J2851 and UL 1963 standards, the KT-AC2100 is engineered for safety, speed, and precision in every job.
Key Features
Rapid Recovery Speed – Up to 39.7 lbs/hour for fast refrigerant handling
High Accuracy – Load cells measure refrigerant and oil down to 0.04 oz
Dual Refrigerant Support – Complete hose kit for R-1234YF and R-134a systems
User-Friendly Touchscreen – 7” high-quality display for easy, precise operation
Robust Safety Features – Includes pressure shut-offs, tank overfill sensors, and circuit breakers
Durable & Portable – Lightweight HDPE case with high-efficiency fan for optimal cooling
Professional Certifications – SAE J2851 and UL 1963 compliant
Made in the USA – Quality manufacturing with U.S. standards
Specifications
| Specification | Value |
|---|---|
| Applicable Refrigerant | R-1234YF (with R-134a hose kit) |
| Voltage | 110V AC, 60 Hz |
| Recovery Speed | 39.7 lbs/hr (18 kg/hr) |
| Charge Accuracy | ±0.5 oz (15 g) |
| Load Cell Accuracy (Gas/Oil) | 0.04 oz / 66 lbs (1 g / 30 kg) |
| Max Operating Pressure | 18 bar |
| Compressor | 1/3 hp, oil-less, hermetically sealed |
| Vacuum Pump | 3.6 CFM (120 L/min), dual stage |
| Display | 7” Touchscreen HQ |
| Oil Bottle Capacity | 250 mL (15 cubic inches) |
| Recovery Hose Length | 9.8 ft (3 m), SAE J2788 |
| Dimensions (L × W × H) | 22" × 28" × 41" |
| Gross Weight | 240 lbs (110 kg) |
| Certifications | SAE J2851, UL 1963 |
| Optional Features | Heating belt, SD database |
Included Accessories
Hose kits for R-1234YF and R-134a
Oil separator and measurement bottle
Filter drier and safety shut-off systems
High-efficiency fan and condenser
Built-in printer and vacuum test capability
