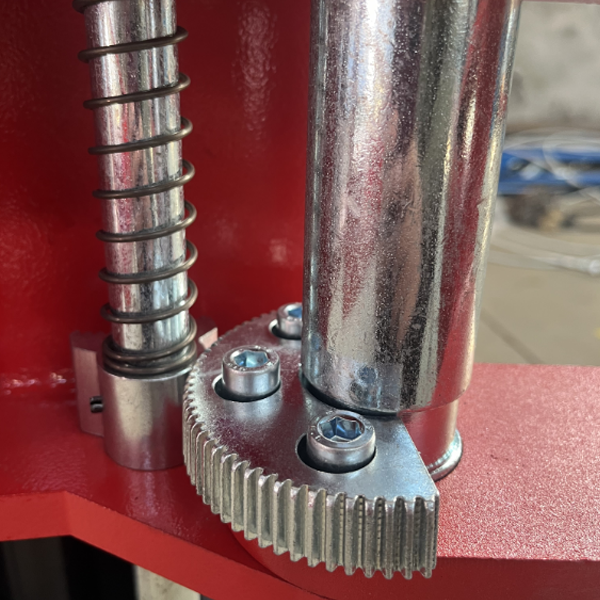

  • Close-up of a katool mechanical component with gears and springs on a red background
1 7

KATOOL KT-AS110D 11000 lbs. Clear Floor Two Post Lift - Direct Drive and Assymetric Arms

KATOOL KT-AS110D 11000 lbs. Clear Floor Two Post Lift - Direct Drive and Assymetric Arms

$2,599.00
$2,599.00
Sold out
LTL Freight cost for continental USA is $500

Availability: Low stock: 28 left
SKU: KT-AS110D
Vendor: Katool
Category: Two Post Lift
Tags: Automotive Lifts Car Lifts Two Post Lift

Shipping

Please contact us by phone or live chat to receive an accurate freight quote for your selected equipment. While some items may qualify for flat-rate shipping, most products require a custom freight estimate due to size, weight, and destination.

If you prefer to proceed with your order first, we can provide the shipping cost separately and issue a follow-up invoice for the freight charges.

Product Manual

Warranty

Triumph (NAT) Warranty Form

KATOOL Warranty Policy

Atlas Warranty Policy

AMGO Warranty Policy

View full product details

Katool KT-AS110D 11,000 LB Asymmetric Clear Floor Two Post Lift – Direct Drive Power & Precision

The Katool KT-AS110D Two Post Lift combines heavy-duty lifting power with innovative design for unmatched versatility and safety. Featuring a direct drive cylinder system and asymmetric arm configuration, this lift is perfect for accommodating a wide range of vehicles—especially larger SUVs and trucks with offset weight distribution.

With a massive 11,000 lb lifting capacity, this lift is CE certified and has passed rigorous safety testing—115% dynamic and 150% static load tests—to give your shop the confidence it needs for every job. Its clear floor design offers unobstructed workspace, while the single-point lock release system makes operation fast, secure, and user-friendly.

Additional features like rubber door guards, adjustable height adaptors (3.94" to 6"), an overhead shutoff bar, and foot protection safety rails with a built-in toolbox ensure both your technicians and vehicles stay protected throughout the lift cycle.

⚠ Installation Requirement: Minimum concrete thickness of 5.9” (150mm) and 3,000 PSI strength required. Please confirm flooring specifications before installing.

Product Features

  • 11,000 lb lifting capacity for trucks, vans, and SUVs

  • Direct drive hydraulic cylinders for smooth, efficient performance

  • Asymmetric arms for easier door access and better vehicle positioning

  • Clear floor design provides open, unobstructed workspace

  • Single-point safety lock release for fast and secure lowering

  • CE Certified – tested at 115% dynamic and 150% static capacity

  • Rubber door guards prevent vehicle damage during entry/exit

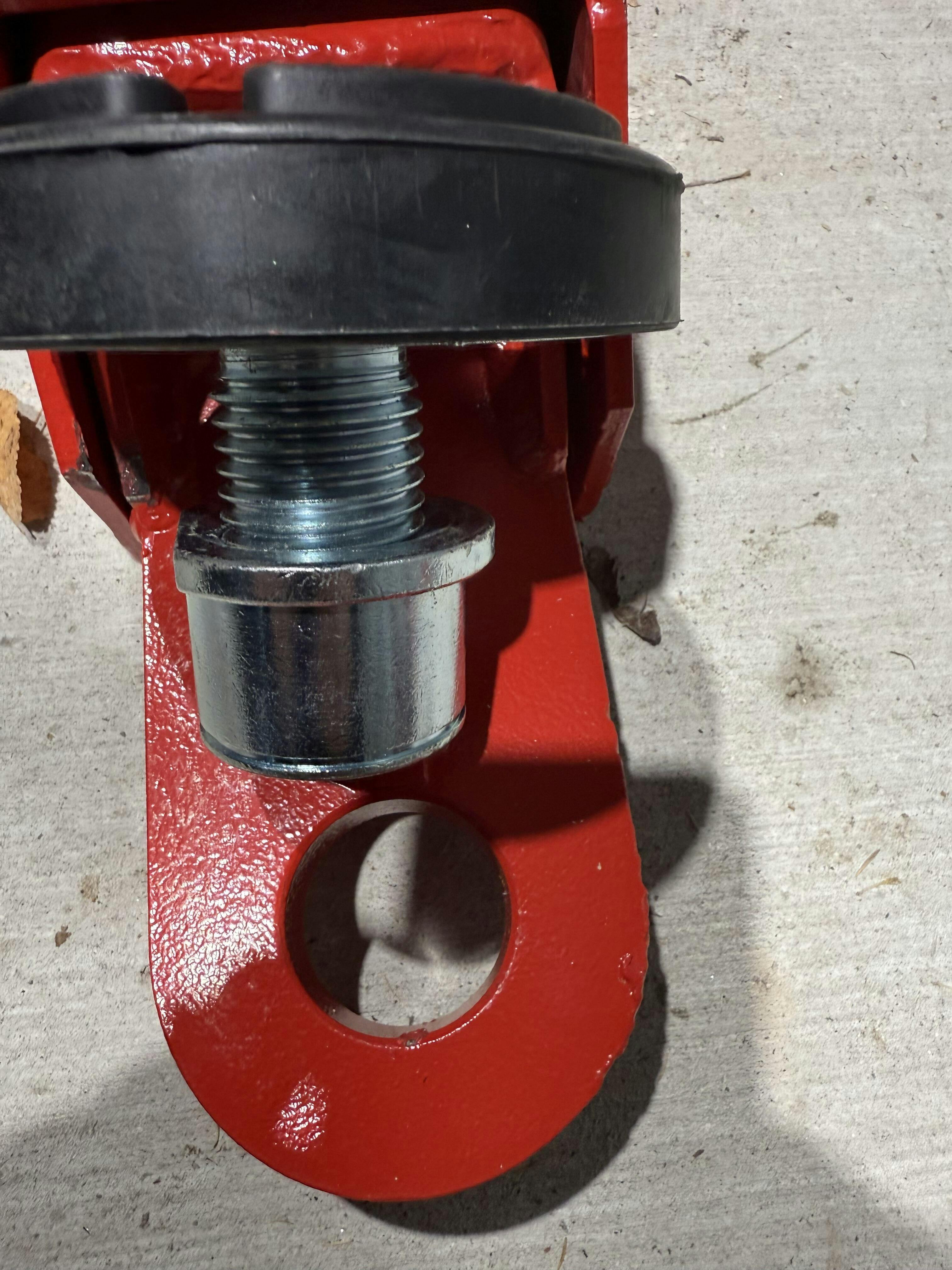

  • Adjustable height extension adaptors (3.94"–6") included

  • Overhead shutoff bar to prevent accidental over-lifting

  • Foot protection guardrails with integrated tool tray

  • 220V/60Hz/1PH hydraulic motor (110V optional)
 Katool lift with features highlighted on a white background KT-AS110D Lifting height
Product Specifications
Lifting Capacity 11,000 lbs / 4,990 kg
Max. Lifting Height 70.75 in / 1,800 mm
Minimum Height 3.74 in / 95 mm
Overall Height 141.25 in / 3,587 mm
Overall Width 134.65 in / 3,420 mm
Outside Column Width 120.4 in / 3,058 mm
Inside Column Width 109.37 in / 2,778 mm
Drive-Through Clearance 99.61 in / 2,530 mm
Motor 220V / 60Hz / 1PH / 2.2kW
Net Weight 1,323 lbs / 600 kg



Available now at TurboLifts.com for delivery or local pickup. If you’re looking for strength, safety, and smart design—the Katool KT-AS110D is your next lift.
